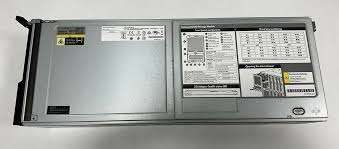

HPE Synergy D3940 12Gb SAS CTO Drive Enclosure with 40 SFF (2.5in) Drive Bays
Condition: NOB
RMA Warranty
Description
Overview
The HPE Synergy D3940 Storage Module is a direct-attached storage module with 40 small form factor (SFF) drive bays designed for use in HPE 12000 Synergy frames. It provides combinable storage for up to 10 compute modules in a single frame via HPE Synergy 12Gb SAS connectivity modules. Synergy storage is optimised for use as a direct-attached storage array or as software-defined storage using HPE StoreVirtual VSA or similar solutions. HPE Synergy is a single infrastructure comprised of pools of physical and virtual compute, storage and fabric resources and a single management interface that allows IT to instantly assemble and reassemble resources in any configuration. As the foundation for a new kind of business infrastructure, HPE Synergy eliminates hardware and operational complexity so IT can deliver infrastructure to applications faster and more flexibly with precision. Synergy storage allows multiple drive types to be configured in the same storage module to support a variety of workloads. HPE Synergy D3940 storage modules support a range of 12G SAS or 6G *SATA HDD and SSD intelligent drives. The storage module connects to the compute modules in the frame via Synergy 12 Gb SAS connectivity modules. Any number of drive bays in the storage module can be combined with any compute module that includes an intelligent array controller connected to the SAS fabric to make efficient use of available drives. Synergy Storage can scale up to 200 SFF drives in a single HPE Synergy 12000 frame using five storage modules. Adding a second I/O adapter and a second SAS connection module provides a redundant path for SAS drives within the storage module to ensure high availability. The modular design of the Synergy D3940 storage module allows it to slide out of the frame to service drives or I/O adapters without interrupting the operation of other drives within the module. In addition, the Synergy D3940 storage module is optimised for solid state drives, using high performance SAS connectivity with sixteen 12 Gb/s SAS channels. As a result, a single Synergy storage module can deliver up to eight times the bandwidth of other JBOD options, up to 2M IOPs.
HPE Synergy D3940 storage modules provide a large, efficient pool of storage resources that can be allocated to meet changing server workloads and business needs.Synergy Storage delivers industry-leading bandwidth and performance. Within the framework, administrators can create virtual JBODs or virtual drives, remap connections, or change personalities for any compute module; all through the storage’s configuration file. The D3940 Storage Module and 12Gb SAS Connection Module are fully integrated with other HPE Synergy hardware and software components and are managed and configured through HPE Synergy Composer. The D3940 Storage Module provides leading storage density and the flexibility to configure storage to meet business needs. The modular design simplifies maintainability and can be configured with dual HPE Synergy 12Gb SAS Flexible Storage I/O Adapters for high availability.
HPE StoreVirtual VSA software delivers advanced data services that allow you to enjoy the benefits and resiliency of in-chassis shared storage without having to purchase additional storage hardware. Synergy storage modules provide a flexible, high-capacity platform to support multiple clustered VSA nodes and create a virtual array that scales as storage needs evolve, with built-in high-availability and disaster recovery features to ensure business continuity throughout the virtual environment. Optimised for virtualised VMware, Microsoft Hyper-V and Linux KVM environments, HPE StoreVirtual VSA transforms your direct-attached storage into scalable, composable shared storage arrays without the cost and complexity traditionally associated with dedicated storage networks. The convergence of HPE StoreVirtual VSA software and HPE Synergy provides tremendous value to any type or size of business by focusing on cost optimisation and maximum flexibility within the data centre.
Note: SATA drives (and some Value SAS drives) have a single-port limitation, so they are more prone to failure than dual-port SAS drives. HPE recommends using dual-port SAS drives for HPE Synergy D3940 storage modules. However, not all workloads require high availability, so we will continue to offer less expensive SATA drives and Value SAS drives.

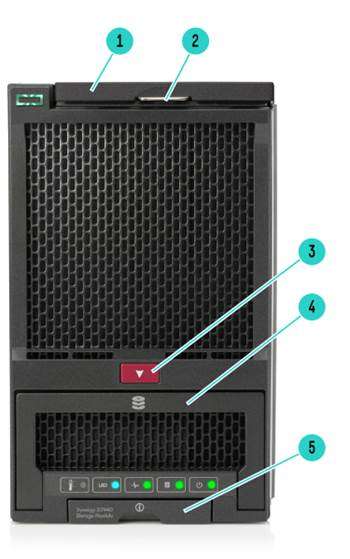

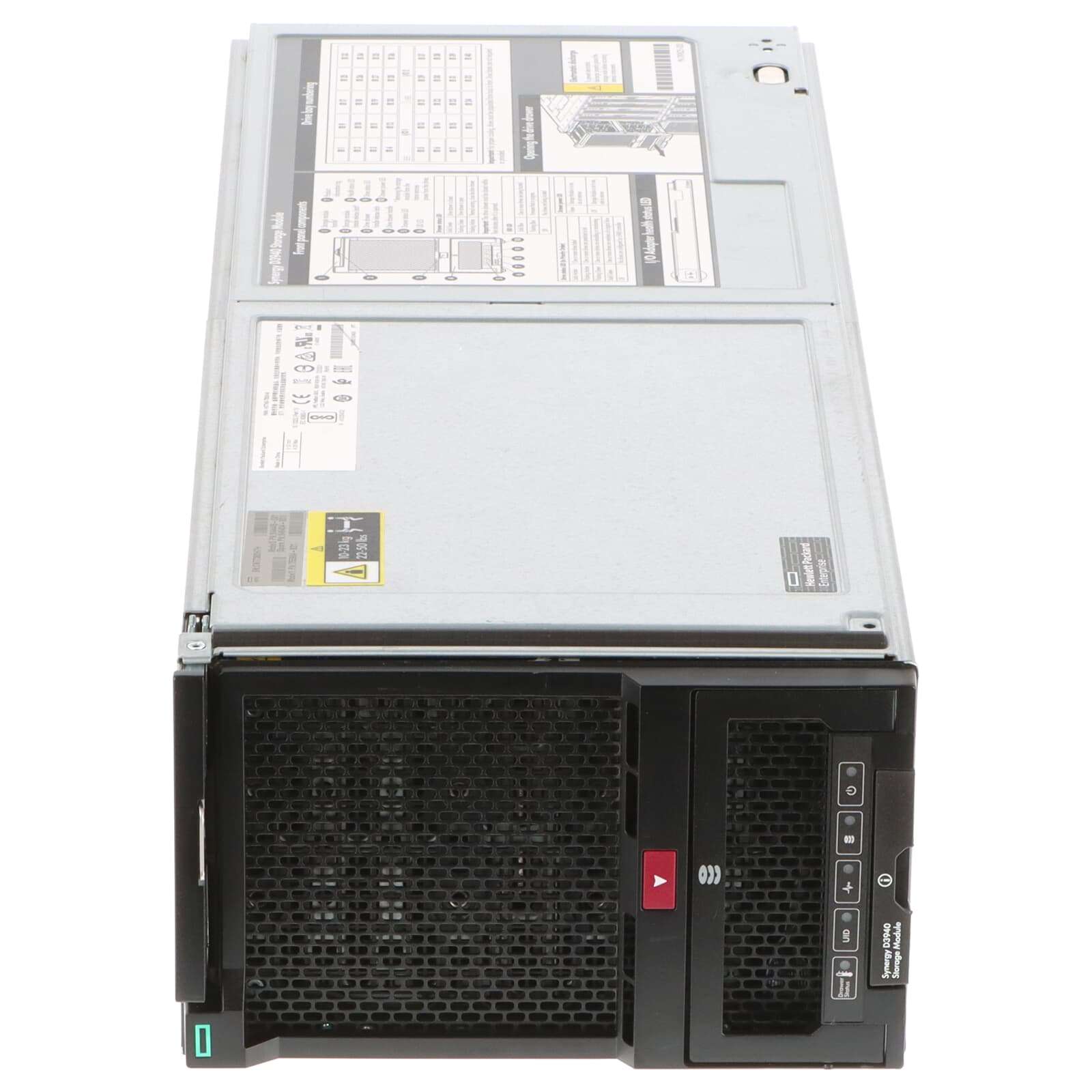

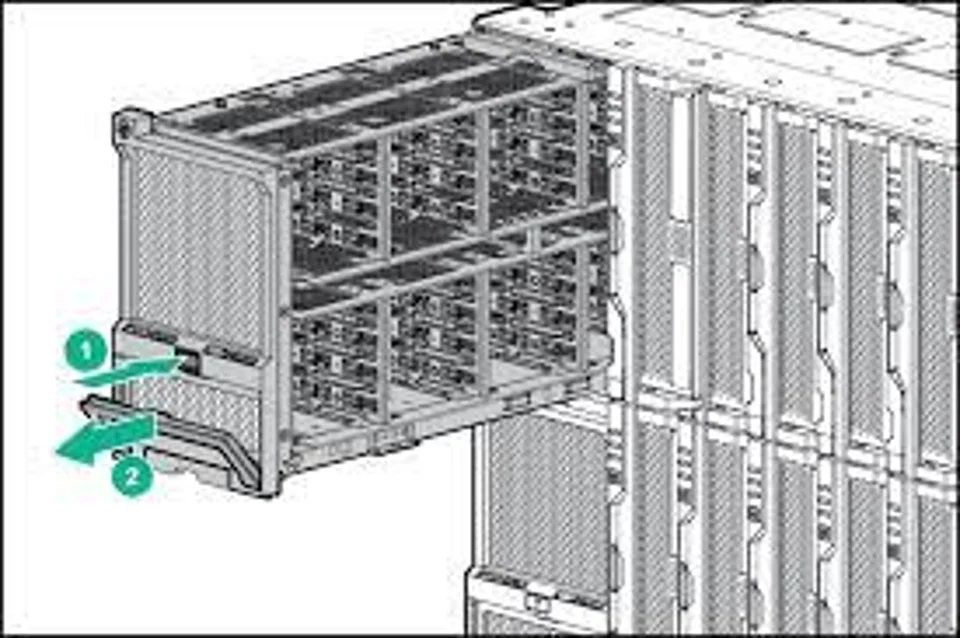

Synergy D3940 Storage Module Components
| 1. | Storage Module Handle | 4. | Drive Drawer Handle |
| 2. | Storage Module Handle Release Latch | 5. | Product Information Tag |
| 3. | Drive Drawer Handle Release Latch |
Storage Module Internal Elements
| 1. | Small Form Factor (SFF) drive carrier | 4. | D3940 I/O Adapter 2 |
| 2. | D3940 I/O Adapter 1 | 5. | I/O Adapter release handle |
| 3. | Cable management rail |
Synergy D3940 Storage Module LED Panel Information
| 1. | Drawer Status | 4. | Drive Status |
| a. Solid Green – Drawer is closed | a. Solid Amber – One or more drives failed | ||
| b. Flashing Green – Drawer is open | b. Flashing Amber – One or more drives are predicted to fail | ||
| c. Flashing Amber – Thermal warning, close the drive drawer | c. Flashing Green – One or more drives are rebuilding or transforming | ||
| 2. | UID | d. Solid Green – One or more drives are members of a logical drive | |
| a. Solid Blue – One or more drives are being located. | e. Off – No drives are configured by a RAID controller. | ||
| b. Flashing Blue – Firmware flash is in progress | 5. | Drawer Power | |
| c. Off – No drives are being located | |||
| 3. | Health Status |
| HPE Synergy D3940 Storage Module | ||
| Dimensions (DxWxH) |
D3940: 60.96 cm x 12.7 cm x 21.59 cm (24 in. x 5 in. x 8.5 in.) | |
| I/O Adapter: 20.32 cm x 11.43 cm x 1.91 cm (8 in. x 4.5 in. x .75 in.) | ||
| Weight (unloaded) |
D3940: | 9.39 kg (20.7 lbs) |
| I/O Adapter: | 0.59 kg (1.3 lbs) | |
| Weight (laoded) |
D3940: | 21.18 kg (46.7 lbs) – using .29 kg (.65 lb) average weight for SFF HDD with Smart Carrier. Actual fully populated weight may vary depending on SFF drives used. |
| Dual I/O Adapters | 1.18 kg (2.6 lbs) | |
| Protocol Support | 12 Gb/s SAS | |
| 6 Gb/s SAS | ||
| O/S Support | Defined by specific HPE array controller or SAS/ adapter used; please refer to the QuickSpecs and/or User Guide of the specific array controller or adapter as well as the O/S support information for the compute modules with which the storage module will be composed. | |
| LED Indicators | UID | |
| Health Status LED | ||
| Drawer Open / Temperature LED | ||
| Drive Status LED | ||
| Drawer Power LED | ||
| Drive LED Indicators (on drive trays) | Drive LED (top) – On-line/Activity | |
| Drive Failure LED (bottom) – Drive Fault/Locate | ||
| Relative Humidity (non-condensing) | Operating | 10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing |
| Non-operating | 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing | |
| Temperature Range | Operating | 10° to 35°C (50° to 95°F) |
| Non-operating | -30° to 60°C (-22° to 140°F) | |
| Power Consumption | 26 Watts (Minimum with dual I/O Adapters)
500 Watts (Maximum) |
|
Configuration Information
Notes: Factory Integrated Models (North America Only)
HPE Synergy D3940 Storage Module Configuration
Models
HPE Synergy D3940 12Gb SAS CTO Drive Enclosure with 40 SFF (2.5in) Drive Bays 835386-B21
Storage Module Options
HPE Synergy D3940 Redundant I/O Adapter 757323-B21
Notes:
– A single I/O adapter is included with each Synergy D3940 Storage Module. This option is for a second I/O adapter for redundancy.
– When configuring a storage module with SAS drives it is recommended that dual I/O modules also be configured for high availability.
