ML 30 Gen 10 Plus Server

Description

Overview

HPE ProLiant ML30 Gen10 Plus server

The HPE ProLiant ML30 Gen10 Plus server is a powerful and affordable tower server designed for small offices, remote offices and branch offices running local and hybrid cloud solutions, delivering enterprise-grade performance, security, reliability and scalability at a lower cost.

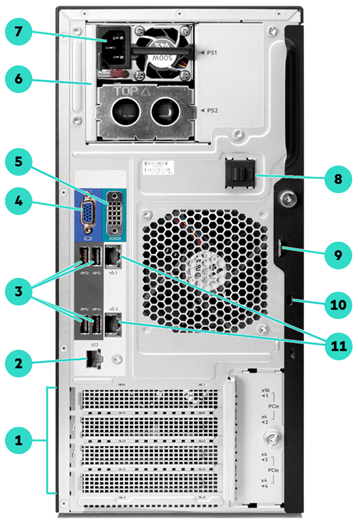

Rear View

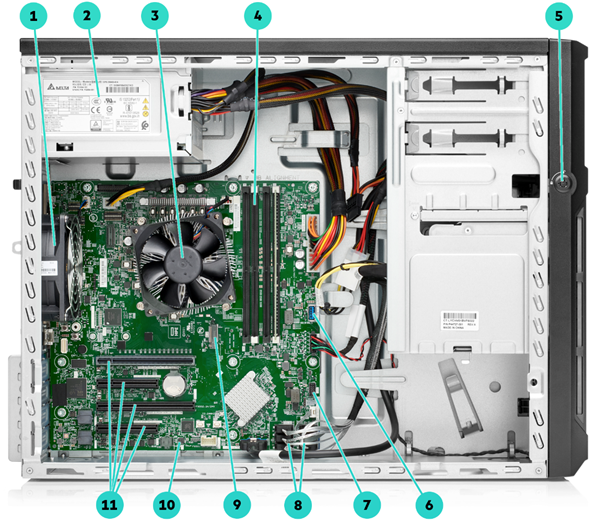

Internal View

Platform Information

• Form Factor
• 4U Tower

Notes: Sliding Shelf – 874578-B21 is optional to support rack form factor.

Chassis Types

• 8 SFF hot plug chassis with 2 half-height (5.25″) media bays for optional internal slim-line DVD bay kit, RDX, or LTO options
• 4 LFF hot plug chassis with 2 half-height (5.25″) media bays for optional internal slim-line DVD bay kit, RDX, or LTO options
• 4 LFF non-hot plug chassis with 2 half-height (5.25″) media bays for optional internal slim-line DVD bay kit, RDX, or LTO options

System Fans

• 1 Default system fan module (92 x 32 mm)
• 1 Default PCI fan module (92 x 32 mm) depending on model.

Notes:

– PCI fan module is part of HPE ML30 Gen10 PCI Fan and Baffle Kit (P06303-B21) which is included in pre-configured Performance Models.

– HPE ML30 Gen10 PCI Fan and Baffle Kit (P06303-B21) is required as follows:

Must be selected in 4LFF Hot Plug CTO Server and 8SFF Hot Plug CTO Server.

Must be selected in 4LFF NHP CTO Server and pre-configured Entry Model if any PCIe card (NIC, Smart Array Controller, graphic card, etc.) is selected except the E208e-p controller and 1Gb network adapters.

Dimensions

14.50 (H) x 6.89 (W) x 18.70 (D) in

(36.83 x 17.50 x 47.50 cm)

Weight(approximate)

• Minimum:

22.1 lb

10.1 kg

– 4 NHP LFF chassis with 1x LFF HDD, 1x processor including heatsink, 1x DIMM, 1x ATX power supply, cables for the above.

• Maximum:

38.7 lb

17.6 kg

– Fully loaded – 4 Hot-plug LFF chassis with 4x LFF HDDs, 1x DVD-RW, 1x tape drive, 1x processor including heatsink, 4x DIMMs, 2x power supplies, cables for the above.
