P06761-B21 HPE ProLiant ML30 Gen10 4 LFF Hot Plug CTO Server
Condition: NOB
RMA Warranty
Description
Overview

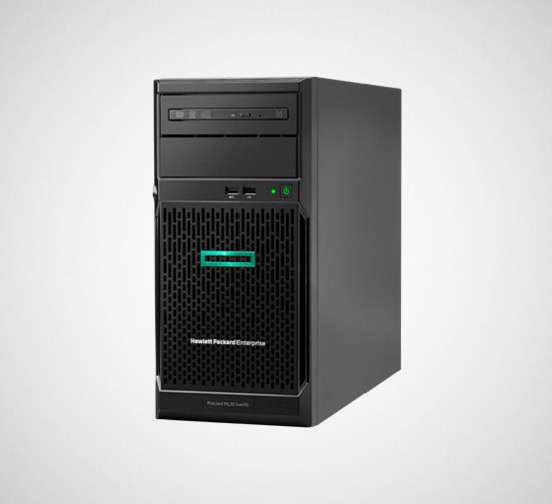

HPE ProLiant ML30 Gen10 Server
The HPE ProLiant ML30 Gen10 server is a powerful and affordable tower server designed for small offices, remotes and branch offices running local and hybrid cloud solutions, delivering enterprise performance, security, reliability and scalability at a lower cost.
4 LFF Model 8 SFF Model
Front View (details for 4LFF and 8SFF)
| 1. | Four (4) LFF or Eight (8) SAS/SATA HDD cage | 5. | USB 2.0 port |
| 2. | Media drive bay 2(blank shown) | 6. | Power On/Standby button and system power LED |
| 3. | Media drive bay 1 (optional slim-line DVD shown) | 7. | Health LED |
| 4. | USB 3.0 port |
Rear View
| 1. | PCI slots (slots 1-4) | 7. | Power supply power connector |
| 2. | Dedicated iLO management port (optional) | 8. | Power cord clip |
| 3. | Four (4) USB 3.0 ports | 9. | Padlock eye |
| 4. | VGA port | 10. | Kensington security slot |
| 5. | Serial port (optional) | 11. | NIC1/shared iLO port (upper), NIC2 port (lower) |
| 6. | Power supply bay (one optional redundant power supply with enablement kit and blank shown) |
| 1. | System fan | 7. | One (1) internal USB 3.0 port |
| 2. | Power supply | 8. | 6 SATA ports |
| 3. | One (1)Processor and heatsink/fan | 9. | M.2 slot |
| 4. | 4 DDR4 DIMM slots | 10. | Embedded TPM |
| 5. | Bezel lock | 11. | 4 PCIe expansion slots |
| 6. | Internal USB 3.0 port |
Platform Information
- Form Factor
- 4U Tower
Notes: Sliding Shelf – 874578-B21 is optional to support rack form factor.
Chassis Types
- 8 SFF chassis and 2 half-height (5.25”) media drive bays with optional 1 slim-line DVD bay kit option
- 4 LFF chassis and 2 half-height (5.25”) media drive bays with optional 1 slim-line DVD bay kit option
- 4 LFF NHP chassis and 2 half-height (5.25”) media drive bays with optional 1 slim-line DVD bay kit option or up to 2 LFF NHP HDD cage kits
System Fans
- 1 Default system fan module (92 x 32 mm)
- 1 Default PCI fan module (92 x 32 mm) depending on models
Notes:
− PCI fan module is part of HPE ML30 Gen10 PCI Fan and Baffle Kit (P06303-B21) which is included in pre-configured Performance Models.
− HPE ML30 Gen10 PCI Fan and Baffle Kit (P06303-B21) is required as follows:
Must be selected in 4LFF Hot Plug CTO Server and 8SFF Hot Plug CTO Server.
Must be selected in 4LFF NHP CTO Server and pre-configured Entry Model if M.2 SSD or any PCIe card (NIC, Smart Array Controller, graphic card, etc.) is selected except the E208e-p controller and 1Gb network adapters.
Dimensions
14.50 (H) x 6.89 (W) x 18.70 (D) in
(36.83 x 17.50 x 47.50 cm)
Weight(approximate)
• Minimum:
22.1 lb
10.1 kg
− 4 NHP LFF chassis with 1x LFF HDD, 1x processor including heatsink, 1x DIMM, 1x ATX power supply, cables for the above.
• Maximum:
38.7 lb
17.6 kg
− Fully loaded – 4 Hot-plug LFF chassis with 4x LFF HDDs, 1x DVD-RW, 1x tape drive, 1x processor including heatsink,4x DIMMs, 2x power supplies, cables for the above.
Configuration Information
| COT Server | HPE ProLiant ML30 Gen10 4 LFF Non Hot Plug CTO Server | HPE ProLiant ML30 Gen10 4 LFF Hot Plug CTO Server | HPE ProLiant ML30 Gen10 8 SFF Hot Plug CTO Server |
| SKU Number | P06760-B21 | P06761-B21 | P06762-B21 |
| Processor Socket | 1 | 1 | 1 |
| Processor | Not included as standard | Not included as standard | Not included as standard |
| DIMM Slots | 4 DIMM slots for UDIMM DDR4 Memory | ||
| Storage Controller | Embedded S100i SW RAID with 4 SATA ports | Embedded S100i SW RAID with 4 SATA ports, choice of HPE Smart Array controller | |
| PCIe | 4 PCIe 3.0 slots | ||
| Drive Cage | 4 LFF Non-Hot Plug | 4 LFF Hot Plug | 8 SFF Hot Plug |
| M.2 Slot | 1 M.2 PCIe 3.0 x2 slot | 1 M.2 PCIe 3.0 x2 slot | 1 M.2 PCIe 3.0 x2 slot |
| Network Controller | Embedded HPE Ethernet 1Gb 2-Port 361i Adapter
optional 1/10Gb standup card |
||
| Fans | 1 non-hot plug non-redundant system fan | ||
| Management | HPE iLO Standard with Intelligent Provisioning (embedded),
HPE OneView Standard (requires download), HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses) |
||
| USB | 2 front, 4 rear, 1 internal | ||
