ML 350 Gen 10 Server

Description

Overview

HPE ProLiant ML350 Gen10 Server

The secure 2P HPE ProLiant ML350 Gen10 server is designed with a flexible, shorter rackmount chassis that adapts to different physical environments and can drive a wide range of workloads, delivering ideal performance and scalability for changing business needs, making it the choice for growing SMBs, remote/branch offices of large enterprises, and data centres. Choose the 2P tower that will grow with you in the digital economy.

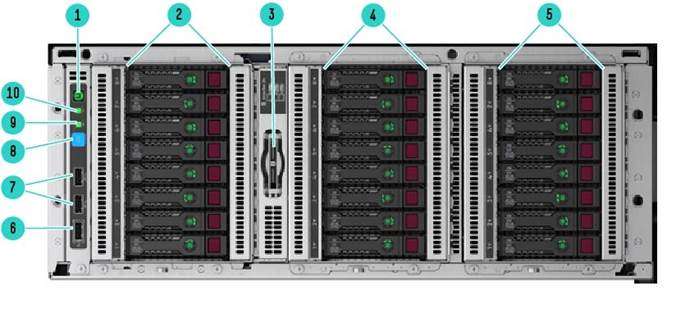

Front View – SFF chassis with optional Gen10 8SFF HDD Cage Kits shown (Rack mode)

1.	Power On/Stand-by button and System Power LED	6	iLO Service Port
2.	Box1: optional HDD Drive Cage Bay for additional 8 SFF or 4 LFF drives support, or upgradeable to 2 HH media devices + 1 slim-line DVD.	7	USB 3.0 port x 2
3	Serial number/iLO information pull tab	8	UID Button/LED
4	Box2: optional HDD Drive Cage Bay for additional 8 SFF or 4LFF drives support, or upgradeable to 8 SFF NVMe Express Bay	9	NIC Status LED
5	Box3: default with one 8 SFF HDD Drive Cage	10	System Health LED

Notes: Image shown without the security front bezel which is standard in every ML350 Gen10 unit and without the 1U sliding rail tray (of the Tower-to-Rack conversion kit).

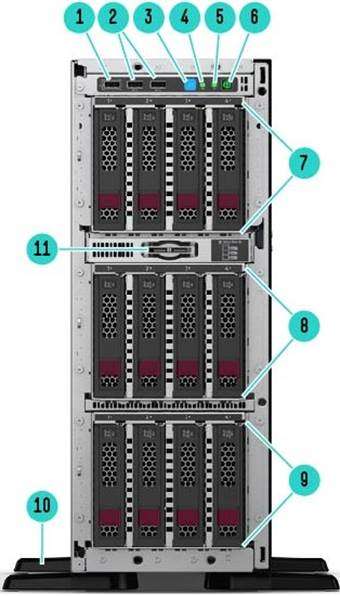

Front View – LFF chassis with optional Gen10 4LFF HDD Cage Kits shown (Tower mode)

1.	iLO Service Port	7	Box1: optional HDD Drive Cage Bay for additional 4 LFF or 8SFF drives support, or upgradeable to 2 HH media devices + 1 slim-line DVD
2.	USB 3.0 port x 2	8	Box2: optional HDD Drive Cage Bay for additional 4 LFF or 8 SFF drives support
3.	UID Button/LED	9	Box3: default with one 4LFF HDD Drive Cage
4	NIC Status LED	10	Tower feet (foldable at servicing)
5	System Health LED	11	Serial number/iLO information pull tab
6	Power On/Stand-by button and System Power LED

Notes:

– For NHP LFF chassis, please find detail in the ML350 Gen10 User Guide.

– Image shown without the security front bezel which is standard in every ML350 Gen10 unit.

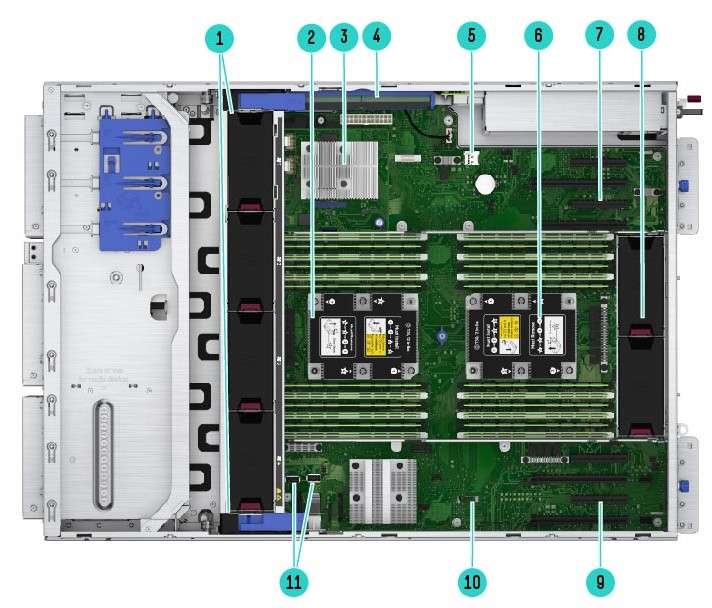

Internal View – with optional 2^nd CPU, Smart Array Modular Controller and Redundant Fan Kit shown

1.	Redundant fan cage kit with addt’l (4) system fans are shown, supporting 2P and/or advanced cooling requirements.	7		PCIe Slots (Slot 5-8, coming from CPU2) (requires Optional 2nd processor): Slot 5 and 7 can support Optional GPU
2.	CPU Socket 2 with the 2nd processor and heatsink, (depending on server model, the 2nd processor can be Optional) and 12 DDR4 DIMM slots for RDIMM or LRDIMM	8		System fans: (2) fans along with the air baffle (not shown) are standard for basic cooling
3.	HPE Smart Array Modular controller (AROC/Depending on server model, this can be Optional)	9		PCIe Slots (Slot 1-4, coming from CPU1): Slot 1 and 3 can support Optional GPU
4.	HPE Smart Storage Battery (Optional depending on model)	10		TPM Connector
5.	MicroSD Slot x1	11		Internal USB port x2 (USB3.0 x1 and USB2.0 x1)
6	CPU Socket 1 with one processor and heatsink, and 12 DDR4 DIMM slots for RDIMM or LRDIMM

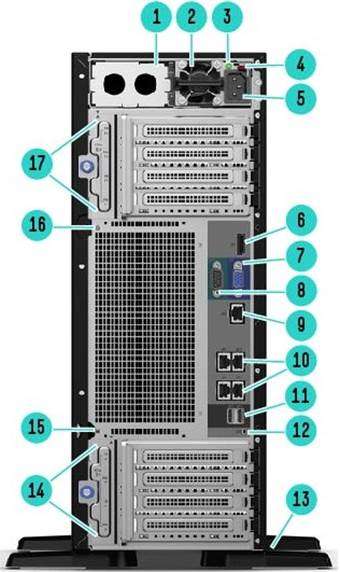

Rear View – With HPE Flex Slot RPS shown

1.	HPE Flexible Slot 2 (Optional – empty with power supply blank shown)	10	Embedded 4 x 1GbE Network ports
2.	HPE Flexible Slot 1 Power Supply	11	USB 3.0 port x 2
3.	Power supply Power LED	12	Unit ID LED
4.	Power supply handle (with red touch-point)	13	Tower feet (foldable at servicing)
5.	Power supply Power connection	14	PCI Slots (Slots 1-4) – Slot 1 and 3 can support Optional GPU
6.	Display Port	15	Padlock eye
7.	VGA Port	16	Kensington security slot
8.	Serial Port	17	PCI Slots (Slots 5-8) (requires Optional second processor) – Slot 5 and 7 can support Optional GPU
9.	Dedicated iLO Management Port (RJ45)

Form Factor

• 4U tower with rack conversion capability

Notes: When deployed as a Rack model, this system will take up 5U-height space in a standard data center rack facility.

Chassis Types

• 8 SFF chassis with optional SFF or LFF HDD cage kit (s), NVMe Express Bay, half-height (5.25″) media bay up to 2, and 1 slim-line DVD bay kit options
• 4 LFF chassis with optional LFF or SFF HDD cage kit (s), half-height (5.25″) media bay up to 2, and 1 slim-line DVD bay kit options
• 4 LFF NHP chassis with optional LFF NHP HDD cage kit (s), half-height (5.25″) media bay up to 2, and 1 slim-line DVD bay kit options

Notes:

– The 8 SFF chassis can be upgraded with SFF HDD cage kit (s) to 16 or 24 SFF. Note a field upgrade to 24 SFF will require redundant fan kit (874572-B21).

– The 8 SFF NVMe Express Bay option (874569-B21) can only be leveraged in the SFF chassis and installed in Box 2. Maximum of 8 SFF NVMe PCIe drives are supported when two ML350 Gen10 NVMe Riser boards (shipped in 874569-B21) are populated. When only one Riser board is populated, then 4 NVMe drives are supported. Note a field upgrade to NVMe Express Bay will require redundant fan kit (874572-B21).

– The 4 LFF HP or NHP chassis can be upgraded with LFF HDD cage kit (s) or LFF NHP HDD cage kit (s) to 8 or 12 LFF. Note a field upgrade to 12 LFF either in LFF hot-plug or LFF non-hot-plug chassis will require redundant fan kit (874572-B21).

– The 8 SFF or 4 LFF or 4 LFF NHP chassis can be upgraded to add half-height media bay up to 2, and/or 1 slim-line DVD in Box1. Note a field upgrade to fully populate front storage bays (Box1, 2 and 3 fully loaded) will require redundant fan kit (874572-B21).

– Now the system can support mixed SFF and LFF HDD cages in one system, for example, 4LFF + 8SFF + 4LFF based on a 4 LFF chassis. If the max. number of drives are installed in all three drive boxes, the redundant fan cage kit (874572-B21) is required.

System Fans

• Standard – fan types included

Notes:

– 1P models typically ship with 2 standard fans located at system rear. These two fans are default inside every ML350 Gen10 unit and do NOT support hot-plug operations.

– 2P models typically ship with 6 standard fans which provides N+1 redundant fan feature in most of the situations. For support detail or restriction, refer to ML350 Gen10 User Guide.

– Optional redundant fan kit (874572-B21) provides advanced cooling and redundancy functionality in heavier configurations. Configurations that require this kit are provided in later sections. Refer to the User Guide for special configuration scenarios where this kit is required but does not provide redundancy feature.



Dimensions

Tower

46.25 (H) x 64.8 (D) x 17.4 (W) cm

18.2 (H) x 25.51 (D) x 6.85 (W) in

Rack – System only

17.4 (H/4U) x 64.8 (D) x 44.5 (W) cm

6.85 (H) x 25.51 (D) x 17.52 (W) in

 Tower-to-Rack Conversion Kit (1U)

4.445 (H/1U) x 69.2 (D/without CMA. Depth with CMA: 83.5) x 45.2 (W) cm

1.75 (H/1U) x 27.23 (D/without CMA. Depth with CMA: 32.89) x 17.795 (W) in

Weight (approximate)

Minimum:

8 SFF or 4LFF chassis with 1x SFF or LFF HDD and HDD blanks, 1x HDD Drive Cage blank, 2x Media Bay blanks, 1x DVD bay blank, 1x processor including standard heatsink, 2 DIMMs, 1x power supply (plus blank), 1x Modular Smart Array (AROC), Cables for the above.

21 kg

46.30 lb

Maximum

Fully loaded system: 24 SFF or 12 LFF hard drives, 4 DW GPUs (or 8 standard PCIe expansion cards), 2x processors including 2 performance heatsinks, 24 DIMMs, 2x power supplies, 1x Modular Smart Array (AROC), Cables for the above.

42 kg

92.59 lb

---

Configuration Information

CTO Server	HPE ML350 Gen10 4 LFF CTO Server	HPE ML350 Gen10 8 SFF CTO Server	HPE ML350 Gen10 8 SFF Rack CTO Server
SKU Number	877625-B21	877626-B21	877627-B21
Processor Sockets	Two as standard	Two as standard	Two as standard
Processor	Not included as standard	Not included as standard	Not included as standard
DIMM Slots	24-DIMM slots	24-DIMM slots	24-DIMM slots
Storage Controller	Embedded SW RAID S100i with 14 SATA ports, choice of HPE modular Smart Array (AROC) and/or PCIe Standup controller card (s)
PCIe	8 PCIe Gen3 slots (x16, x8, x16, x8, x16, x8, x16, x8) as standard Notes: PCIe slots 5 – 8 require the second processor to enable.
Drive Cage – included	4 LFF	8 SFF	8 SFF
Network Controller	Embedded 4x1GbE HPE Ethernet 1Gb 4-port 369i Adapter with optional 1/10/25Gb Standup card Notes: embedded 4x1GbE HPE Ethernet 1Gb 4-port 369i Adapter does not support speeds of 100MB/s and 10MB/s.
Fans	2-Standard	2-Standard	6-Standard
Power Supply Cage included	HPE Flex Slot RPS cage and PDB included	HPE Flex Slot RPS cage and PDB included	HPE Flex Slot RPS cage and PDB included
Management	HPE iLO with Intelligent Provisioning (standard), iLO Advances and OneView (optional)
USB	6x 3.0/2.0 standard plus front iLO Service Port	6x 3.0/2.0 standard plus front iLO Service Port	6x 3.0/2.0 standard plus front iLO Service Port
Tower-to-Rack conversion kit	Optional Notes: Please select 874578-B21 (Tower-to-Rack Conversion kit) under the Ad-Hoc category.	Optional Notes: Please select 874578-B21 (Tower-to-Rack Conversion kit) under the Ad-Hoc category.	Easy Install rack-rail tray (1U) with CMA included as mandatory (must-select) accessories

Notes: Refer to HPE Power Advisor Tool to review the power requirement for your selected configuration and determine what power supply module(s) to select.

Additional drive cages	Optional 4xLFF HDD Cage kit, up to 2 (total of 3) Notes: For mixed SFF and LFF HDD configuration, please select 4 LFF CTO Server as the base configuration.	Optional 8xSFF HDD Cage kit, up to 2 (total of 3)	Optional 8xSFF HDD Cage kit, up to 2 (total of 3)
Half-Height Media Bay	2 Optional	2 Optional	2 Optional
ODD	1 Optional	1 Optional	1 Optional
Redundant Fan Cage Kit	Optional	Optional	Included as standard – total 6 fans included
8 SFF NVMe Express Bay	Not available	Optional, up to 1	Optional, up to 1

Notes:

– This aplies to CTO configurations, field upgrades may differ depending on field configuration.

– The HH Media Bay (2) and slim ODD Bay together takes up the space of one 4 LFF or 8 SFF drive cage, which means when media bay, ODD or both is selected, the max. drive cage installation will be 2.

– To get advanced cooling in richer configurations and/or under certain ambient environmental conditions, the Redundant Fan Cage Kit (874572-B21) which consists of one fan cage with 4 additional fans, is REQUIRED. This kit is automatically selected when the Rack CTO SKU is selected. Refer to the Redundaunt Fan Kit section or ML350 Gen10 User Guide for detail.

– When the 8SFF Rack CTO Server (877627-B21) is selected, the Redundant Fan Cage Kit (874572-B21) and ML350 Gen10 T/R Conversion Kit (874578-B21) will be automatically selected.

– Now the system can support mixed SFF and LFF HDD cages in one system. Please select the 4 LFF CTO Server (877625-B21) as the base configuration to start with.
