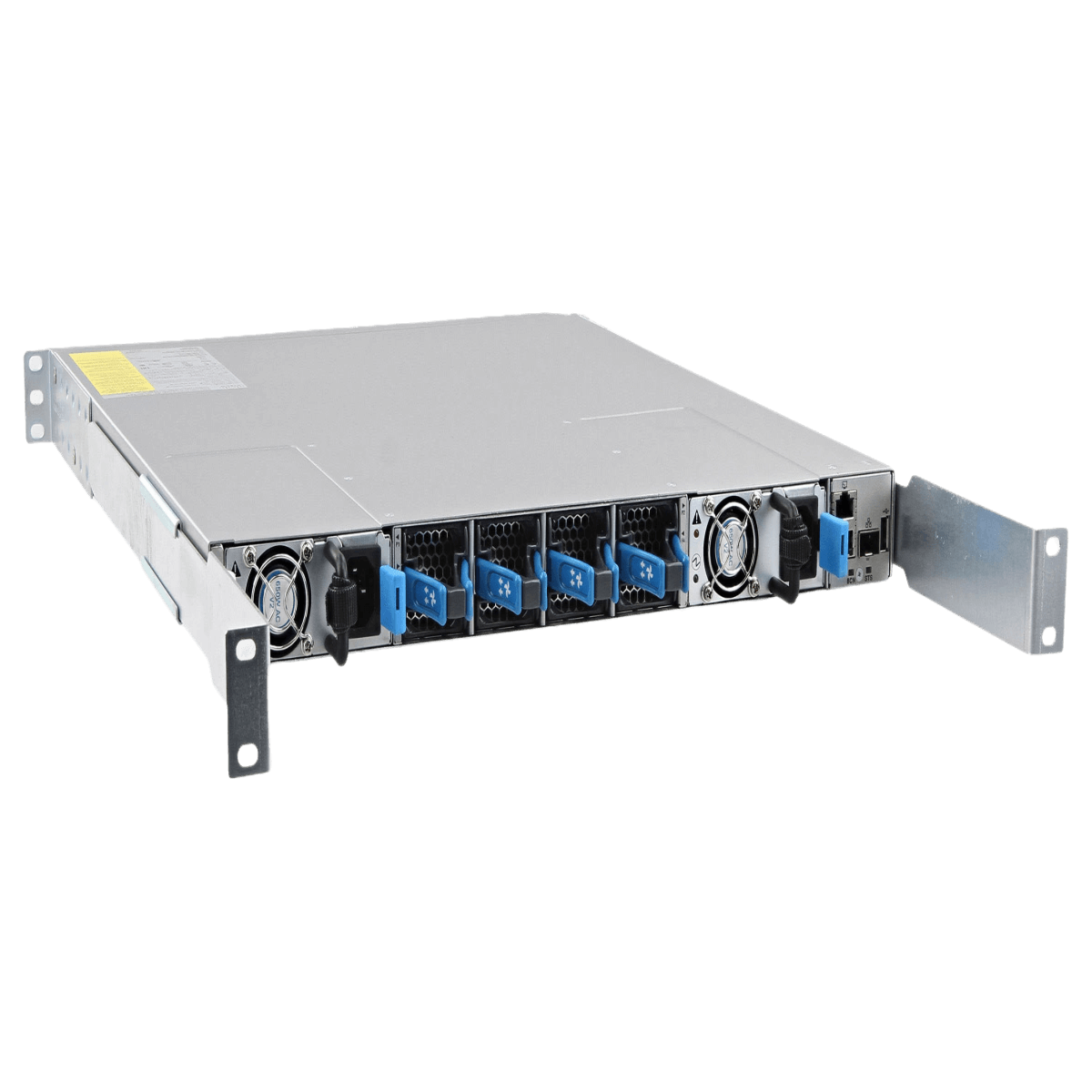

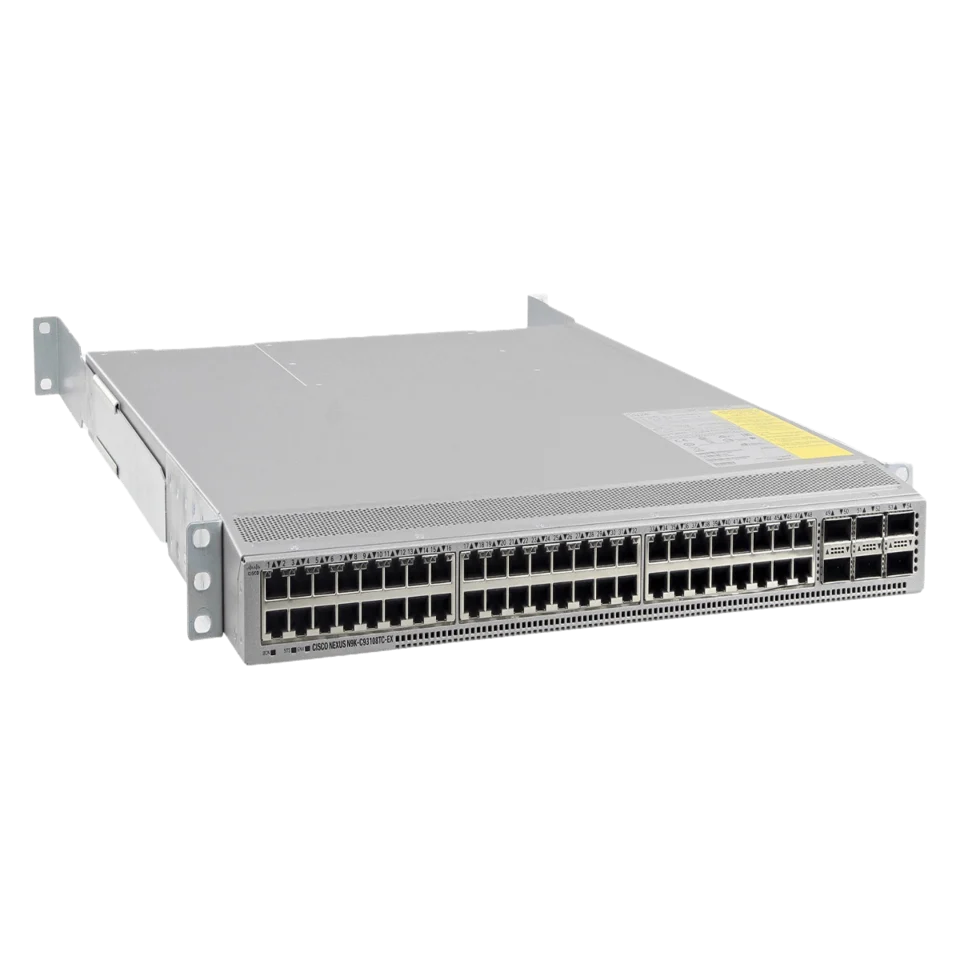

Nexus 9K Fixed with 48p 10G BASE-T and 6p 40G/100G QSFP28
Condition: NOB
RMA Warranty
Description
Product Brief
The Cisco Nexus 93108TC-EX Switch delivers 2.16 Tbps bandwidth and supports 48 10GBASE-T downlink ports. It’s ideal for data centers, virtualization, and cloud computing. Flexible uplink options allow seamless migration to higher speeds
Product Specifications
Table 1 N9K-C93108TC-EX Specification
| Feature | Cisco Nexus 93108TC-EX |
|---|---|
| Ports | 48 x 100-Mbps/1/10GBASE-T and 6 x 40/100-Gbps QSFP28 ports |
| CPU | 4 cores |
| System Memory | 24 GB |
| SSD Drive | 64 GB |
| System Buffer | 40 MB |
| Management Ports | 2 ports: 1 RJ-45 and 1 SFP |
| USB Ports | 1 |
| RS-232 Serial Ports | 1 |
| Power Supplies (up to 2) | 500W AC, 650W AC, 930W DC, or 1200W HVAC/HVDC |
| Typical Power (AC/DC) | 290W |
| Maximum Power (AC/DC) | 499W |
| BTU/hr | 1703 |
| Input Voltage (AC) | 100 to 240V |
| Input Voltage (HVAC) | 200 to 277V |
| Input Voltage (DC) | –48 to –60V |
| Input Voltage (HVDC) | –240 to –380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 4 |
| Airflow | Port-side intake and exhaust |
| Physical Dimensions (H x W x D) | 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
| Acoustics | 48.6 dBA at 40% fan speed, 65.2 dBA at 70% fan speed, 76.5 dBA at 100% fan speed |
| RoHS Compliance | Yes |
| MTBF | 366,130 hours |
| Minimum ACI Image | ACI-N9KDK9-12.0 |
| Minimum NX-OS Image | NXOS-703I4.3 |
Table 2 Hardware Perfomance and scalability specifications
|
Item |
Cisco Nexus 9300-EX Series Switches |
|
Maximum number of Longest Prefix Match (LPM) routes |
896,000 |
|
Maximum number of IP host entries |
896,000 |
|
Maximum number of MAC address entries |
256,000 |
|
Maximum number of multicast routes |
32,000 |
|
Number of Interior Gateway Management Protocol (IGMP) snooping groups |
Shipping: 8,000 Maximum: 32,000 |
|
Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch |
16 |
|
Maximum number of Access Control List (ACL) entries |
Per slice of the forwarding engine: 4000 ingress 2000 egress Total (2 forwarding slices): 8000 ingress 4000 egress |
|
Maximum number of VLANs |
4096 |
|
Number of Virtual Routing and Forwarding (VRF) instances |
Shipping: 1,000 Maximum: 16,000 |
|
Maximum number of ECMP paths |
64 |
|
Maximum number of port channels |
512 |
|
Maximum number of links in a port channel |
32 |
|
Number of active SPAN sessions |
4 |
|
Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances |
3,967 |
|
Maximum number of Hot-Standby Router Protocol (HSRP) groups |
490 |
|
Number of Network Address Translation (NAT) entries |
1,023 |
|
Maximum number of Multiple Spanning Tree (MST) instances |
64 |
|
Flow-table size used for Cisco Tetration Analytics platform |
64,000 |
|
Number of Queues |
8 |
Table 3 Weight
