OceanStor 2600F V3 front top

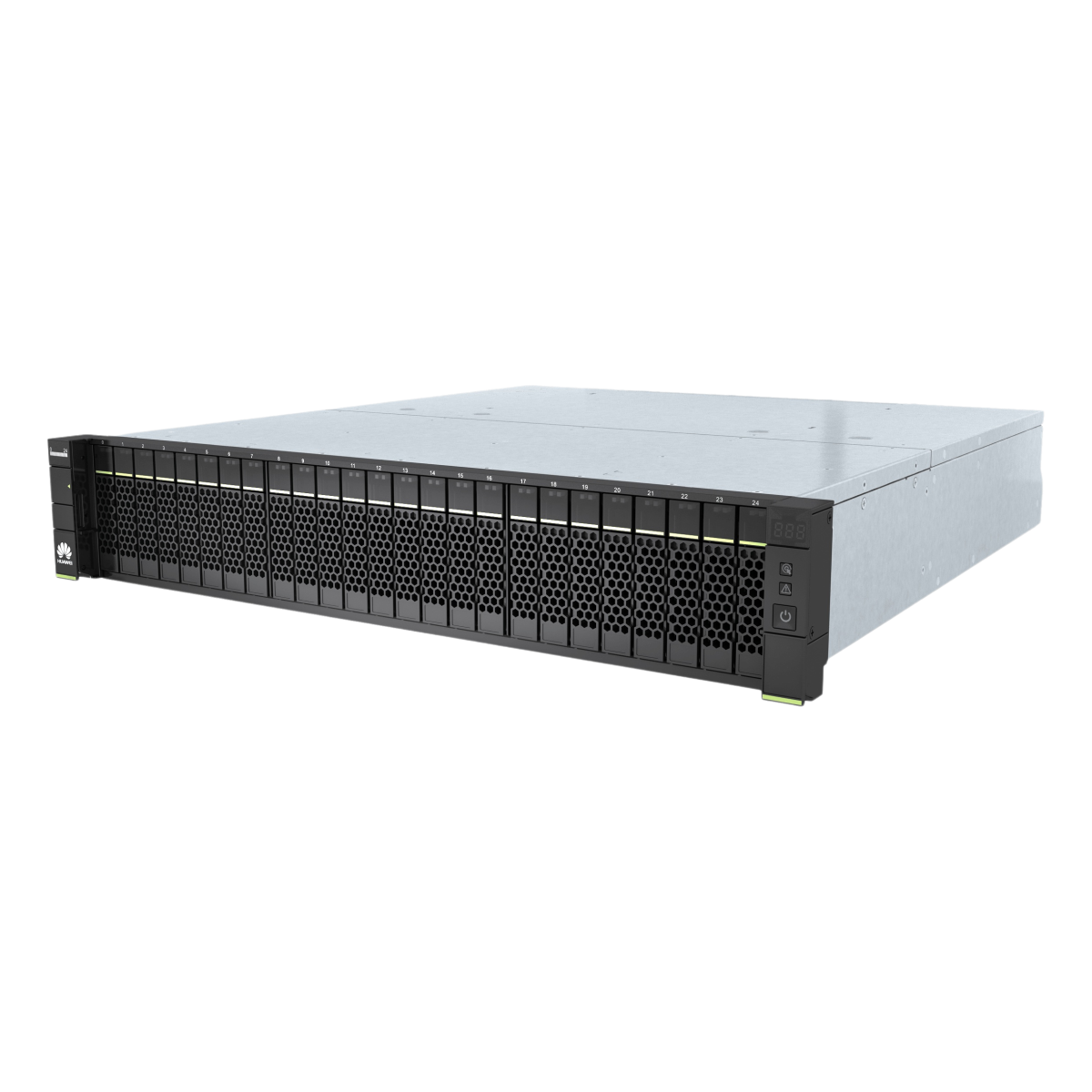

OceanStor 2600F V3 front right

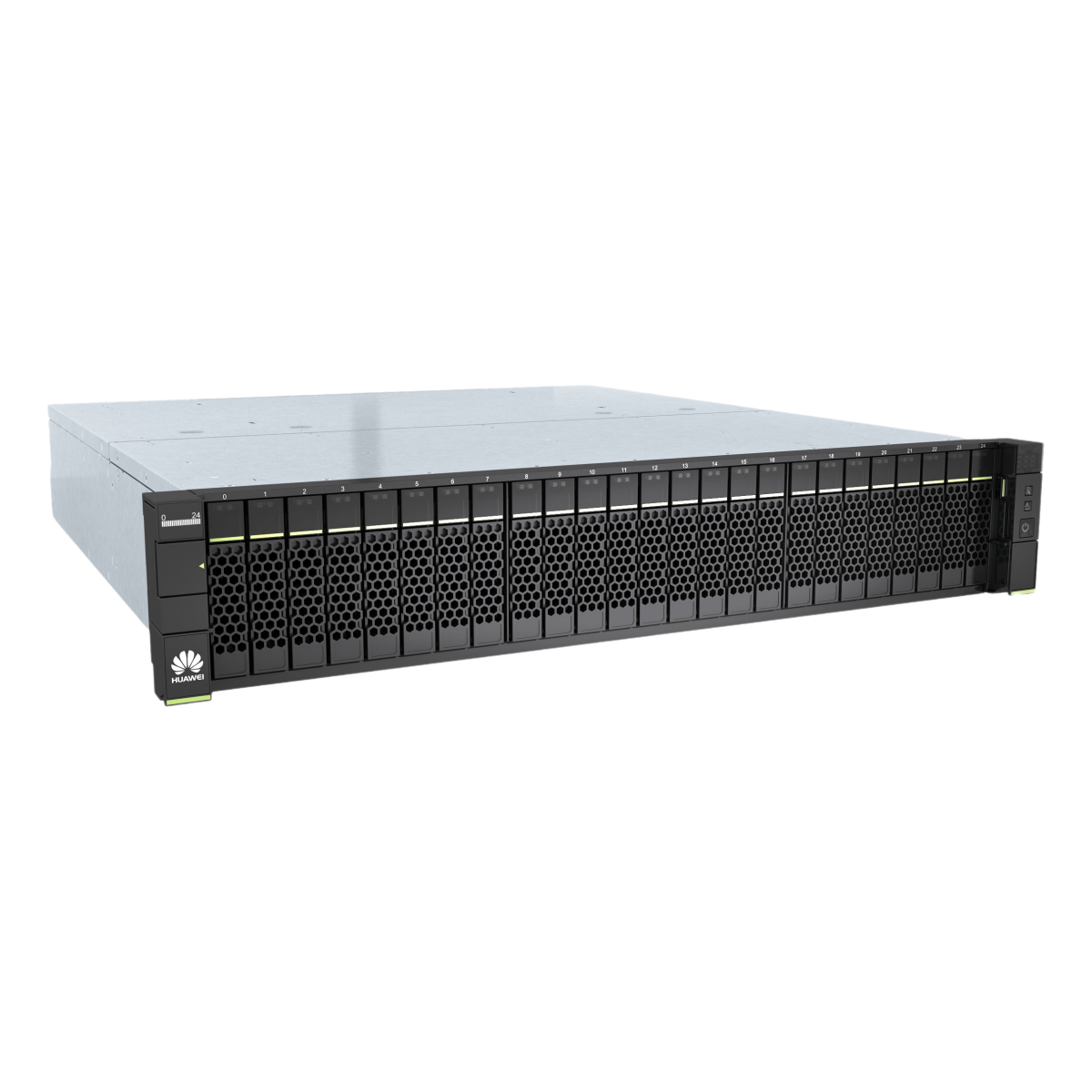

OceanStor 2600F V3 front left

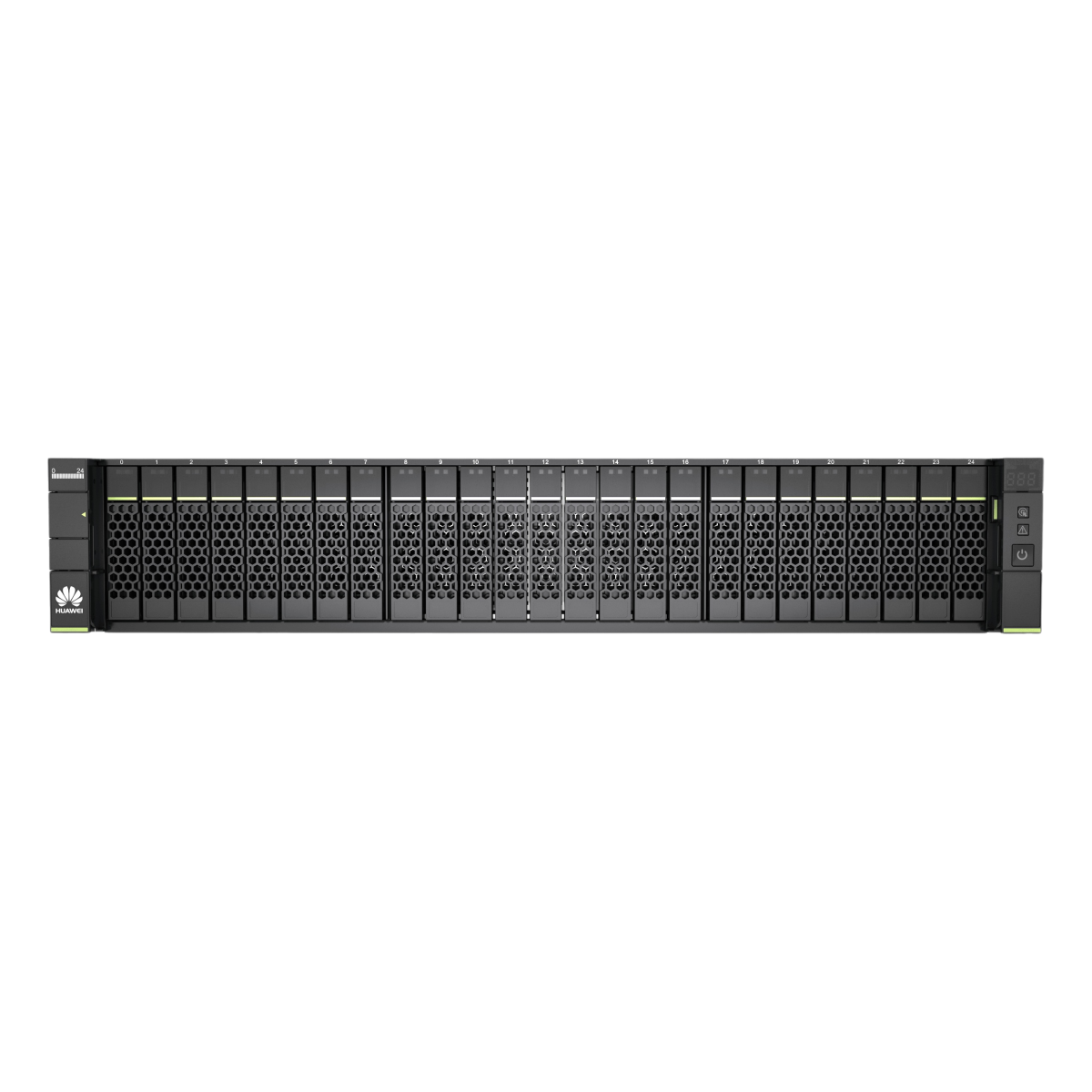

OceanStor 2600F V3 front

The OceanStor 2600F/5500F/5600F/5800F V3 all-flash storage system is Huawei’s mid-range storage product optimized for all-flash storage

Condition: NOB

RMA Warranty

support team Girl Avatar

Expert Consultant Support

Solution Support ,More Discount.
Live Chat   |   Email
7*24h Online
Global Discount

Description

Features

  • System architecture designed for all-flash storage
  •  Adopts end-to-end deeply optimized self-developed flash storage architecture design to ensure the ultimate performance experience of key applications for users, helping businesses to easily enter the all-flash storage era.
  • Integrated active-active SAN and NAS protection for core applications
  • The company is the first in the industry to introduce an innovative all-flash active-active solution that supports both SAN and NAS active-active, ensuring high availability of both database and file services.
  • Intelligent and efficient
  •  System resources support linear expansion and can be expanded online to a maximum of 8 controllers and 2TB cache. While providing a stable 1ms low latency, it can provide a concurrent processing capacity of more than 600,000 IOPS.

Technical specifications

name 2600F V3 5500F V3 5600F V3 5800F V3
Architecture All Flash
Latency <1ms
System cache (scales with the number of controllers) 32GB~256GB 64GB~512GB 128GB~1024GB 256GB~2048GB
Maximum number of controllers 8 8 8 8
Supported storage protocols FC、FCoE、iSCSI、NFS、CIFS、HTTP、FTP FC、FCoE、iSCSI、InfiniBand、NFS、CIFS、HTTP、FTP
Front channel port type 16Gbps FC、8Gbps FC、10Gbps FCoE、1/10Gbps Ethernet 16Gbps FC、8Gbps FC、10Gbps FCoE、1/10Gbps Ethernet、56Gbps InfiniBand
Maximum number of disks in dual controllers 300 500 1000 1200
Hard Drive Type Enterprise-class SSD
RAID Support 0,1,3,5,6,10,50
Data protection software
  • Snapshot (HyperSnap) Clone (HyperClone)
  • Copy (HyperCopy) Volume Mirror (HyperMirror)
  • Array active-active (HyperMetro) Remote replication (HyperReplication)
  • WORM (HyperLock) Integrated backup (HyperVault)
Key business protection
  • SmartQoS
  • Smart Cache Partition (SmartPartition)
Improved resource efficiency
  • Smart LUN Migration
  • Smart Heterogeneous Virtualization
  • Smart Multi-tenant
  • Quota Management (SmartQuota)
  • SmartDedupe
  • SmartCompression
  • SmartThin
  • SmartMotion
  • SmartErase
Storage Management Software
  • Host multipathing (UltraPath) Disaster recovery management (BCManager)
  • Single device management software (DeviceManager) Centralized operation and maintenance management software (eSight)
  • Remote maintenance management (Cloud Service)
