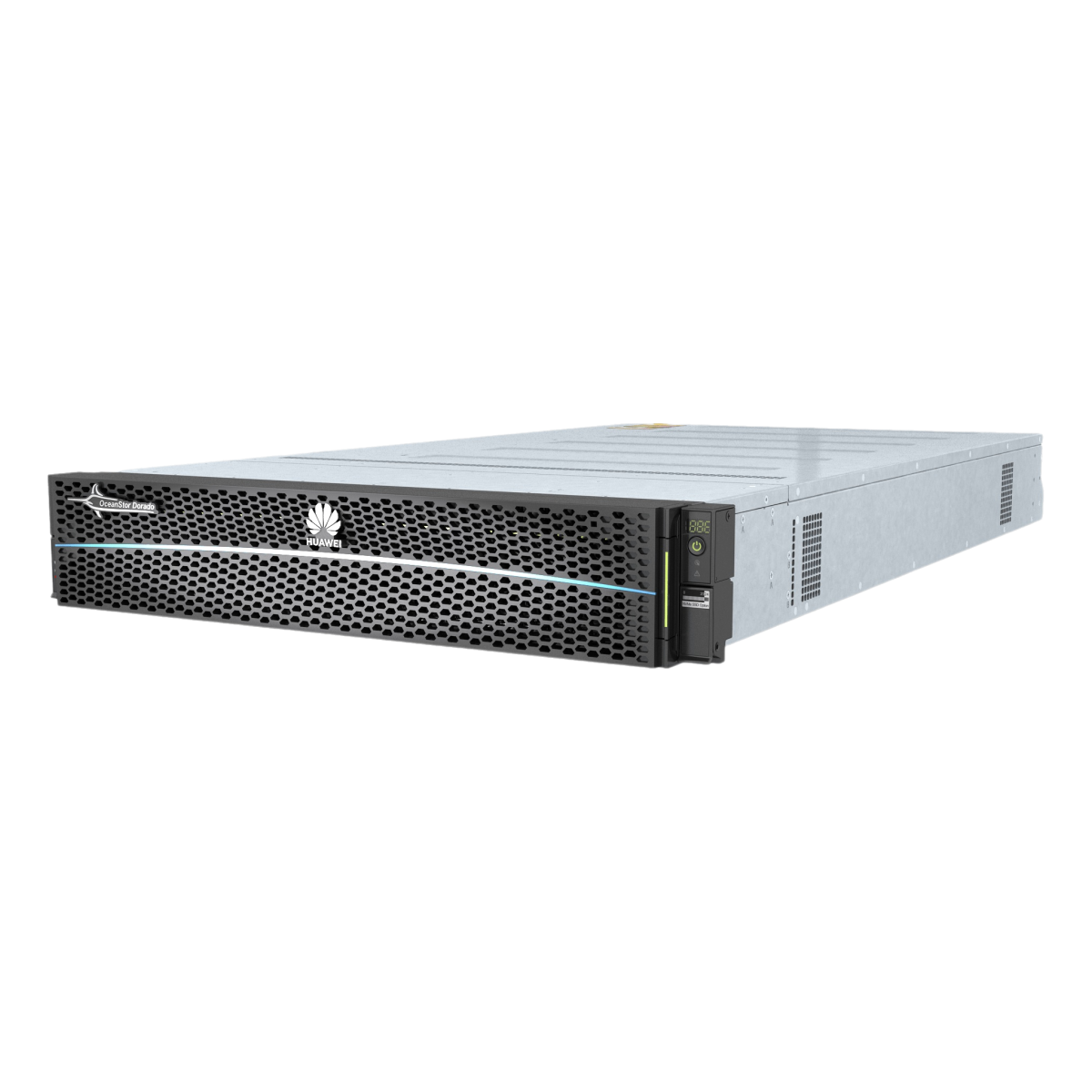

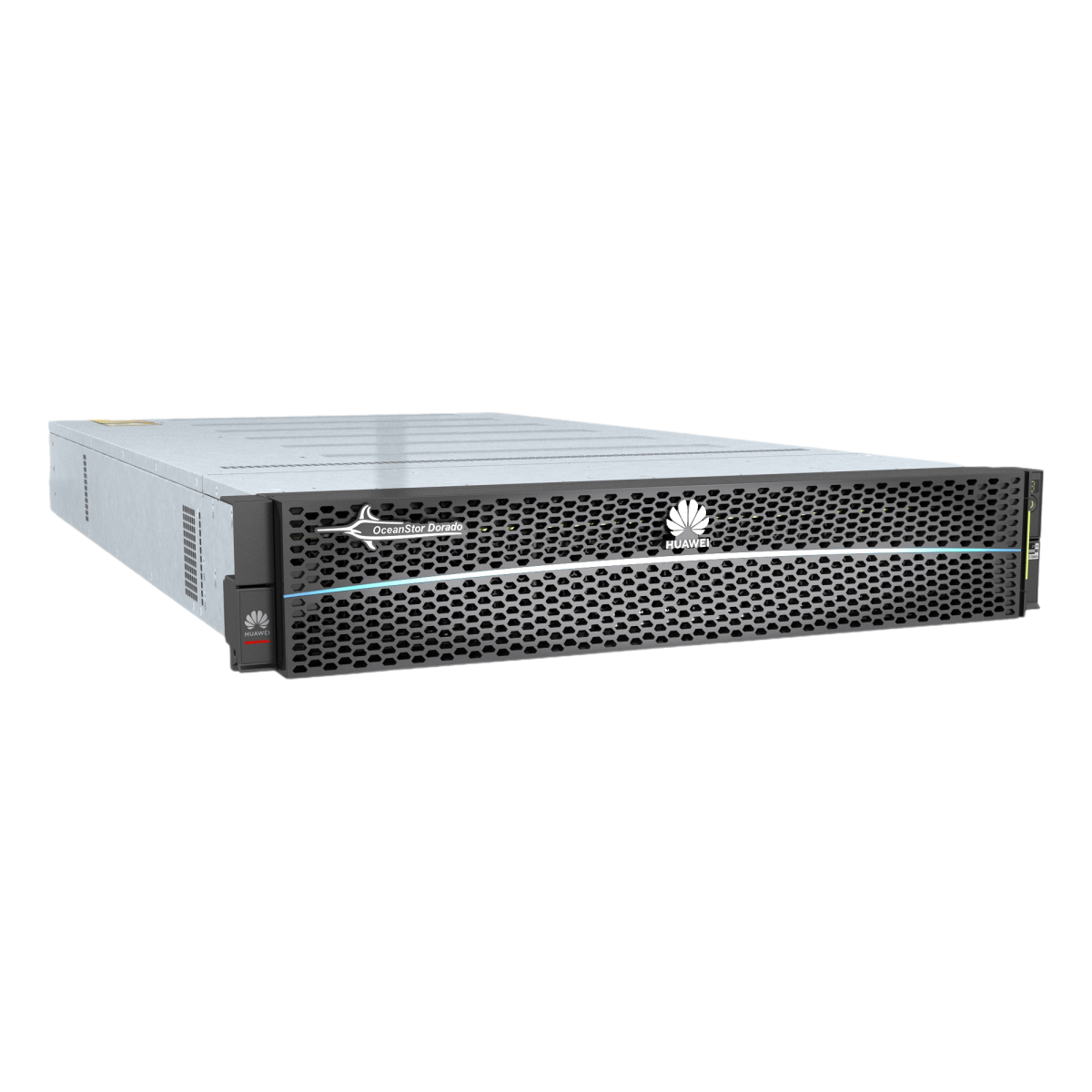

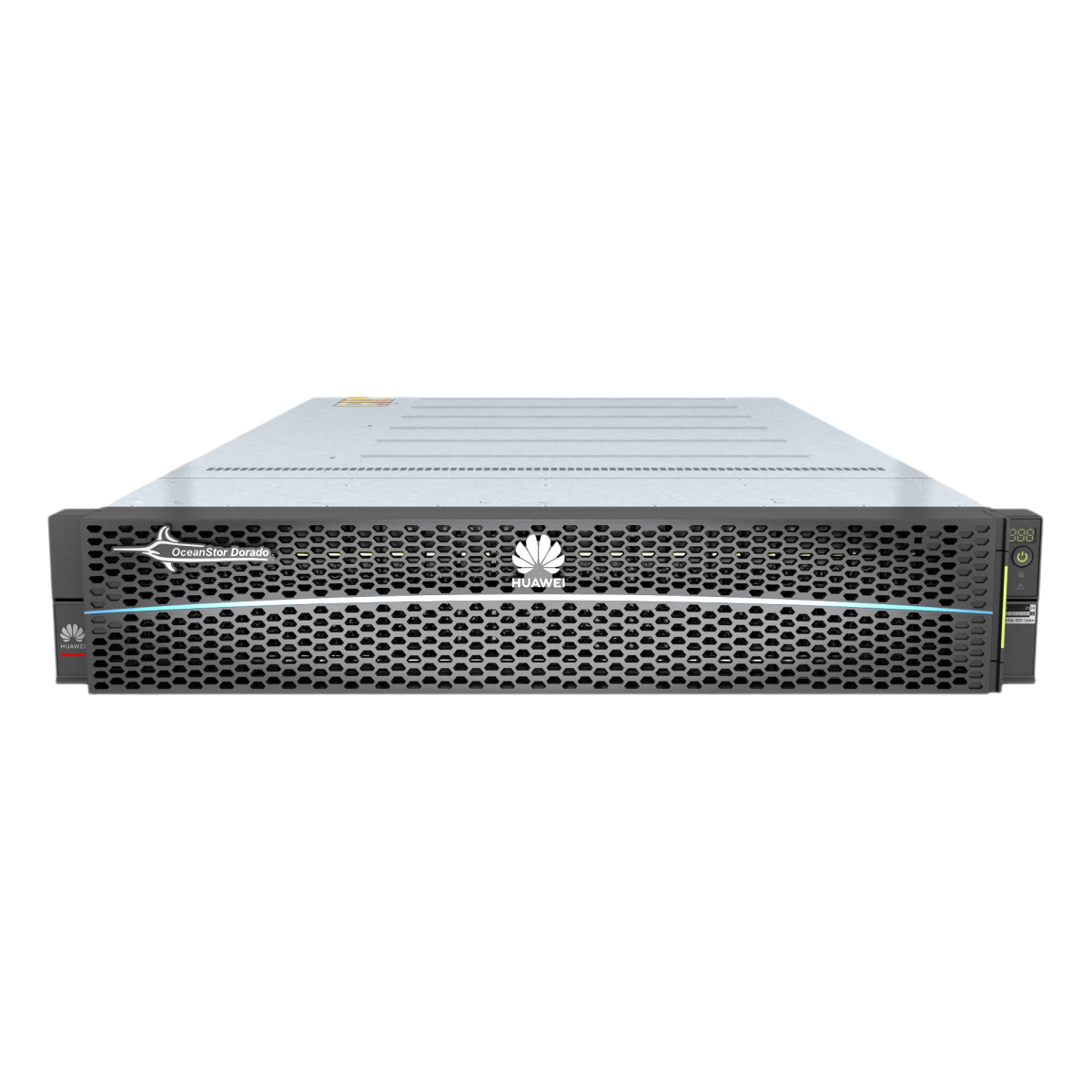

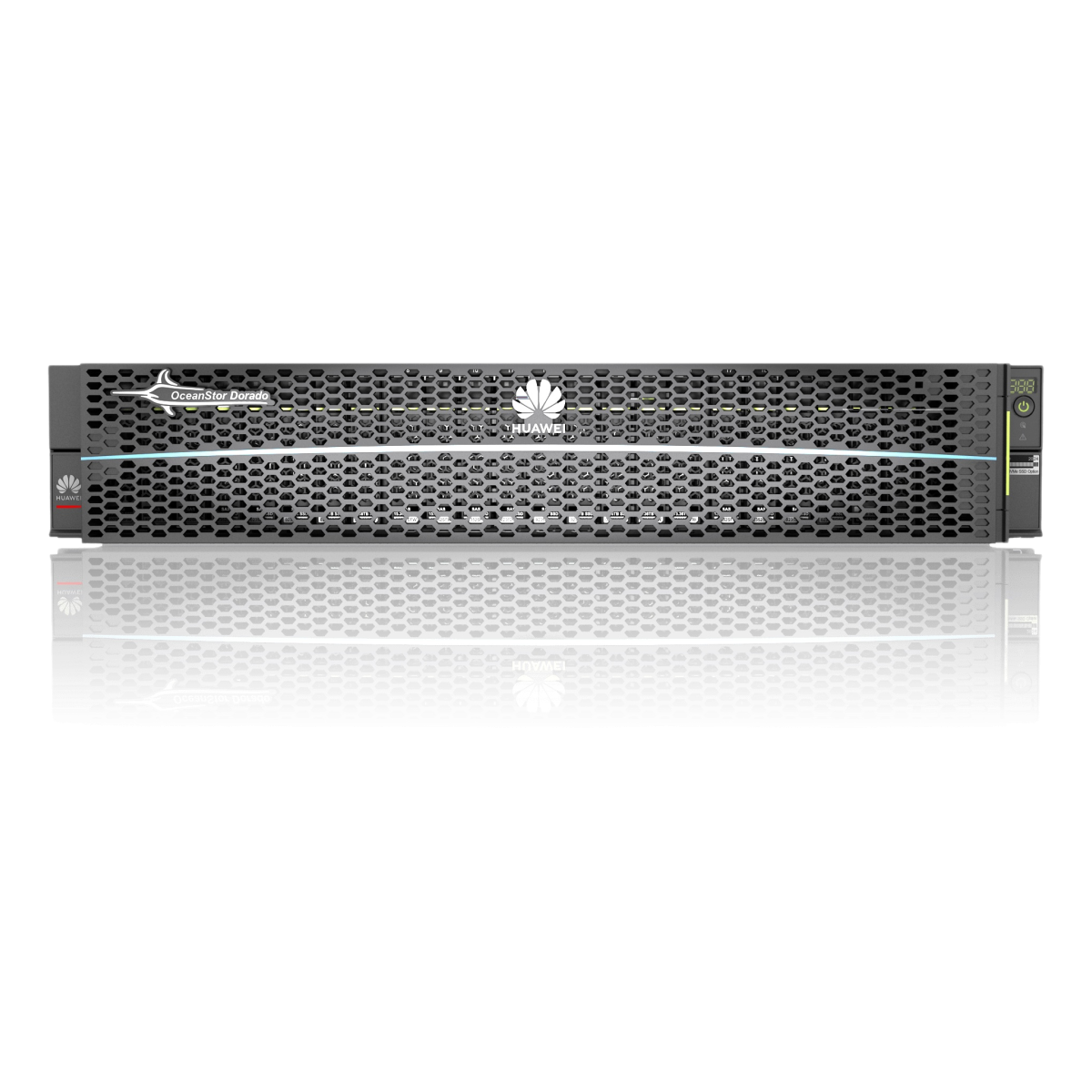

OceanStor Dorado 5300/5500/5600 are Huawei’s all-flash storage products.
Condition: NOB
RMA Warranty
Description
Product Features
Ever Fast Performance with Innovative Hardware
Innovative hardware platform:
Huawei innovative storage hardware platform achieves end-to-end data acceleration, with performance improved by 30% compared to the previous generation.
● The intelligent multi-protocol interface card is used to carry out the protocol analysis work that should be handled by the general-purpose CPU operation, accelerating front-end access performance by 20%.
● Adopting a computing platform with industry benchmark performance, the computing power is 25% better than the industry level.
● Based on the machine learning framework, combined with intelligent hardware and intelligent caching algorithms, proactively analyze and control Grasp the I/O rules of multiple application models, realize intelligent prefetching of memory space, and read cache commands,Hit rate increased by 50%.
● SmartCache+SCM intelligent multi-level cache, intelligent identification of hot and cold data and grading acceleration,OLTP full read latency reduced by 60%.
● Smart SSD carries the core FTL (Flash Translation Layer) algorithm to accelerate SSD in-disk data access reduces write latency by 50%.
● Intelligent hardware has built-in Huawei storage fault gene library to accelerate component fault diagnosis and location, so Reduced fault recovery time from 2 hours to 10 minutes.
Intelligent algorithms:
Most flash vendors lack E2E innate capabilities to ensure full performance from their SSDs. OceanStor Dorado 5300/5500/5600 run industry-leading FlashLink® intelligent algorithms based on self-developed controllers, disk enclosures, and operating systems.
● Many-core balancing algorithm: Taps into the many-core computing power of a controller to maximize the data processing capability.
● Service splitting algorithm: Offloads reconstruction services from the controller enclosure to the smart SSD enclosure to ease the load pressure of the controller enclosure for more efficient I/O processing.
● Cache acceleration algorithm: Accelerates batch processing with the intelligent module to bring intelligence to storage systems during application operations.
The data layout between SSDs and controllers is coordinated synchronously.
● Large-block sequential write algorithm: : Aggregates multiple discrete data blocks into a unified big data block for disk flushing, reducing write amplification and ensuring stable performance.
● Independent metadata partitioning algorithm: Effectively controls the performance compromise caused by garbage collection for stable performance.
● I/O priority adjustment algorithm: Ensures that read and write I/Os are always prioritized, shortening the access latency.
FlashLink® intelligent algorithms give full play to all flash memory and help Huawei OceanStor Dorado achieve unparalleled performance for a smoother service experience.
E2E NVMe architecture for full series:
All-flash storage has been widely adopted by enterprises to upgrade existing IT systems, but always-on service models continue to push IT system performance boundaries to a new level. Conventional SAS-based all-flash storage cannot break the bottleneck of 0.5 ms latency. NVMe all-flash storage,on the other hand, is a future-proof architecture that implements direct communication between the CPU and SSDs, shortening the transmission path.
In addition, the quantity of concurrencies is increased by 65,536 times, and the protocol interaction is reduced from four times to two, which doubles the write request processing. Huawei is a pioneer in adopting end-to-end NVMe architecture across the entire series. OceanStor Dorado all-flash systems use the industry-leading 32 Gb FC-NVMe/100 Gb RoCE protocols at the front end and adopt Huawei-developed link-layer protocols to implement failover within seconds and plug-and-play, thus improving the reliability and O&M. It also uses a 100 Gb RDMA protocol at the back end for E2E data acceleration. This enables latency as low as 0.05 ms and 10x faster transmission than SAS all-flash storage.
Globally shared distributed file system OceanFS:
OceanStor Dorado 5300/5500/5600 all-flash storage supports NAS functions through all-A distributed file system shared between different offices ensures that NAS performance is always one step faster. Multiple cores in the controller processing business to maximize the release of computing power; intelligent prefetching of metadata + intelligent layout to further reduce Short access latency makes NAS performance more than 30% ahead of the industry.
Linear increase of performance and capacity:
Unpredictable business growth requires storage to provide simple linear increases in performance as more capacity is added to keep up with ever-changing business needs.Huawei OceanStor Dorado 5300/5500/5600 all-flash storage scale-out architecture supports linear expansion, IOPS varies with the engine Linear growth in quantity, matching future unpredictable business development with predictable performance.
End-cloud intelligence, ever-smart and efficient:
Extreme convergence:
Huawei OceanStor Dorado 5300/5500/5600 all-flash storage has a variety of functions and extremely integrated features, which can meet the needs of business diversity, improve storage resource utilization, and effectively reduce TCO: it can provide both SAN and NAS services, and supports both Parallel access to multiple services to ensure the best path for dual business access; supports NAS and S3 integration, files and objects can be interoperated under a single instance, and supports smooth evolution from files to objects; generation integration allows data to flow freely between devices of different generations, reducing the cost of It reduces the difficulty of operation and management and reduces IT purchase costs.
File flow across storage:
Huawei OceanStor Dorado 5300/5500/5600 all-flash storage built-in file system OceanFS provides server-free file migration. OceanFS supports two migration methods: take over first and copy first. The migration business interruption time is as low as 5 minutes, and the migration speed can reach 2GB per second, which greatly reduces the impact of file migration on the business.
At the same time, OceanFS also supports hot and cold grading of files. Users can formulate 7 grading strategies to regularly migrate cold data to hybrid flash memory, all-mechanical hard disk object storage, or public cloud platforms based on file creation time, modification time, directory, etc., with a maximum It can save 60% of the whole life cycle storage cost of files.
On and off-cloud synergy:
Huawei OceanStor Dorado 5300/5500/5600 all-flash storage adopts the principle of combining edge personalized intelligence and general intelligence on the cloud. The device has built-in intelligent hardware platform incremental training, deep learning business characteristics, and improved personalized experience; DME-IQ intelligent operation and maintenance The management platform collects real-time statistics on the patterns of 190,000+ devices on the existing network, extracts common patterns, and enhances basic operation and maintenance capabilities.
Comprehensive blackmail prevention solutions before, during and after the event:
Ransomware has become a major global network threat. Huawei OceanStor Doraodo 5500/5600 all-flash storage provides three layers of protection: ransomware interception, secure snapshot recovery, and quarantine recovery to achieve comprehensive data protection; protocol encryption, data encryption, and copy encryption make data impossible to steal; Comprehensive detection and analysis of pre-event ransomware file interception, real-time ransomware detection during the event, and post-event intelligent ransomware detection, with a ransomware identification rate of 99.9%; security snapshot recovery in seconds, further reducing the impact of ransomware.
Intelligence throughout service lifecycle:
Intelligent management covers resource planning, provisioning, system tuning,risk prediction, and fault location, and enables 60-day and 14-day predictions of
performance bottleneck and disk faults respectively, and immediate solutions for 93% of problems detected.
Always-On Applications with 5-Layer Reliability：
In order to meet the sustainable development in the future, various industries such as finance, manufacturing and operators are vigorously promoting intelligent upgrades of business systems, which has given rise to diversified businesses and rich data types, and requires higher standards for IT systems that carry business upgrades. requirements. Users expect to deploy IT systems that are robust enough to fully integrate multiple business types and ensure their stable operation. Huawei OceanStor Dorado all-flash storage meets your expectations. It builds an end-to-end reliability architecture from five levels: component level, architecture level, product level, solution level, and cloud level, carrying the requirements of fully integrated scenarios and ensuring business 99.9999% high Available.
Benchmark-Setting 5-Layer Reliability Component – SSDs:
Reliability has always been a top concern in the development of SSDs, and Huawei SSDs are a prime example of this. Leveraging global wear-leveling technology, Huawei SSDs can balance their loads for a longer lifespan of each SSD. In addition, Huawei’s patented anti-wear leveling technology prevents simultaneous multi-SSD failures and improves the reliability of the entire system.
Architecture – fully interconnected design:
Huawei OceanStor Dorado 5300/5500/5600 all-flash storage adopts an intelligent matrix multi-control architecture to eliminate single points of failure and achieve high system availability. The storage architecture adopts a fully symmetrical A-A design, and application servers can access LUNs through any controller. IO does not need to be forwarded; multiple controllers jointly bear business pressure through a load balancing algorithm; once a controller fails, other controllers can smoothly take over the business without any interruption to the business.
Product – enhanced hardware and software:
Product design is a systematic project that requires dual consideration from both the hardware and software levels to introduce stable storage that carries key enterprise applications to the market. The hardware adopts a fully redundant architecture design, supports dual-port NVMe and hot-swappable design to ensure that there will be no single point of failure; innovatively uses a 9.5 mm thick PALM SSD and a dual-plane orthogonal backplane design to increase the capacity density by 44% and improve heat dissipation. Capacity increased by 25% to ensure the stable operation of the 2U36 bay hard disk enclosure; the first intelligent hard disk enclosure has a built-in intelligent hardware platform, which offloads and reconstructs services from the controller to run on the intelligent hard disk enclosure. It also supports cross-rack RAID technology and tolerates hard disk enclosure-level failures. , with RAID-TP technology, it can not only tolerate the failure of three disks at the same time, but also reconstruct 1TB of data in just 25 minutes; in addition, the system supports complete enterprise-level features and differentiated highlights such as 3-second scheduled snapshots, establishing storage product reliability. Benchmark.
Solution – gateway-free active-active solution:
All-flash storage carries key enterprise services, requiring that data never be lost and services never be interrupted. Active-active has become an inevitable choice. Huawei OceanStor Dorado 5300/5500/5600 all-flash storage adopts SAN&NAS integrated AA gateway-free active-active solution to reduce faulty nodes, reduce deployment complexity, and improve system reliability; at the same time, the Active-Active active-active solution implements load-balanced active-active mirroring And uninterrupted cross-site takeover ensures that core applications are not troubled by downtime; the industry’s only NAS AA dual-active solution ensures efficient and reliable NAS performance; the industry’s only ALL IP SAN dual-active solution uses long-distance RoCE transmission and has better performance than traditional The IP solution has increased by 50%; the industry’s only storage and optical synergy SOCC solution ensures that sub-health problems of dual-active/replication links are effectively alleviated, and link switching can be completed in as fast as 2 seconds. In addition, the active-active solution can be smoothly upgraded to a data protection solution with three centers in two places or four centers in two places, providing a higher level of data protection. Provides professional container CDR disaster recovery plug-in, supporting cross-site active-active disaster recovery within a single cluster of container applications, cross-container cluster active-standby disaster recovery, and integrated backup and recovery functions across storage.
Cloud-level reliability—the industry’s benchmark for gateway-free cloud migration:
With the popularization of public cloud use, more and more backup services use public cloud object storage as backup storage to achieve higher cost performance and reliability of off-site backup;Huawei OceanStor Doraodo 5500/5600 CloudBackup feature uses public cloud object storage as backup storage, eliminating the need to purchase separate backup storage devices and backup software, reducing acquisition and maintenance costs. Backup supports interconnection with Huawei Cloud Object Storage Service (OBS) and AWS S3, supports incremental backup, supports full copy recovery and file-level fine-grained recovery, and provides cloud-level reliability capabilities.
Technical Specifications
| Model | OceanStor Dorado 5300 | OceanStor Dorado 5500 | OceanStor Dorado 5600 |
| Hardware Specifications | |||
| Maximum Number of Controllers | 16 | ||
| System Cache | 256GB~2TB | 384GB~4TB | 768GB~8TB |
| Supported Storage Protocols | FC，iSCSI，NFS，CIFS，FC-NVMe，NVMe Over RoCE，NDMP，S3，NFS over RDMA | ||
| Front-End Port Types | 8/16/32 Gbit/s FC/FC-NVMe, 10/25/ 40/100GE, 25G NVMe over RoCE | 8/16/32 Gbit/s FC/FC-NVMe，10/25/40/100GE，25/100 Gb NVMe over RoCE/NFS over RDMA | |
| Back-End Port Types | 100G RDMA/SAS 3.0 | ||
| Maximum Number of Hot-Swappable I/O Modules per Controller Enclosure | 6 | 12 | 12 |
| Maximum Number of Front-End Ports per Controller Enclosure | 40 | 48 | 48 |
| Hard drive type | 1.92TB/3.84TB/7.68TB/15.36TB/30.72TB palm-sized NVMe SSD
960GB/1.92TB/3.84TB/7.68TB/15.36TB SAS SSD |
||
| SCM Supported | 800G/1.6TB SCM | ||
| Software Specifications | |||
| Supported RAID Levels | RAID5，RAID6，RAID-TP | RAID5，RAID6，RAID10，RAID-TP | |
| Value-Added Features |
|
||
| Storage Management Software | DeviceManager UltraPath DME IQ NFS+ | ||
