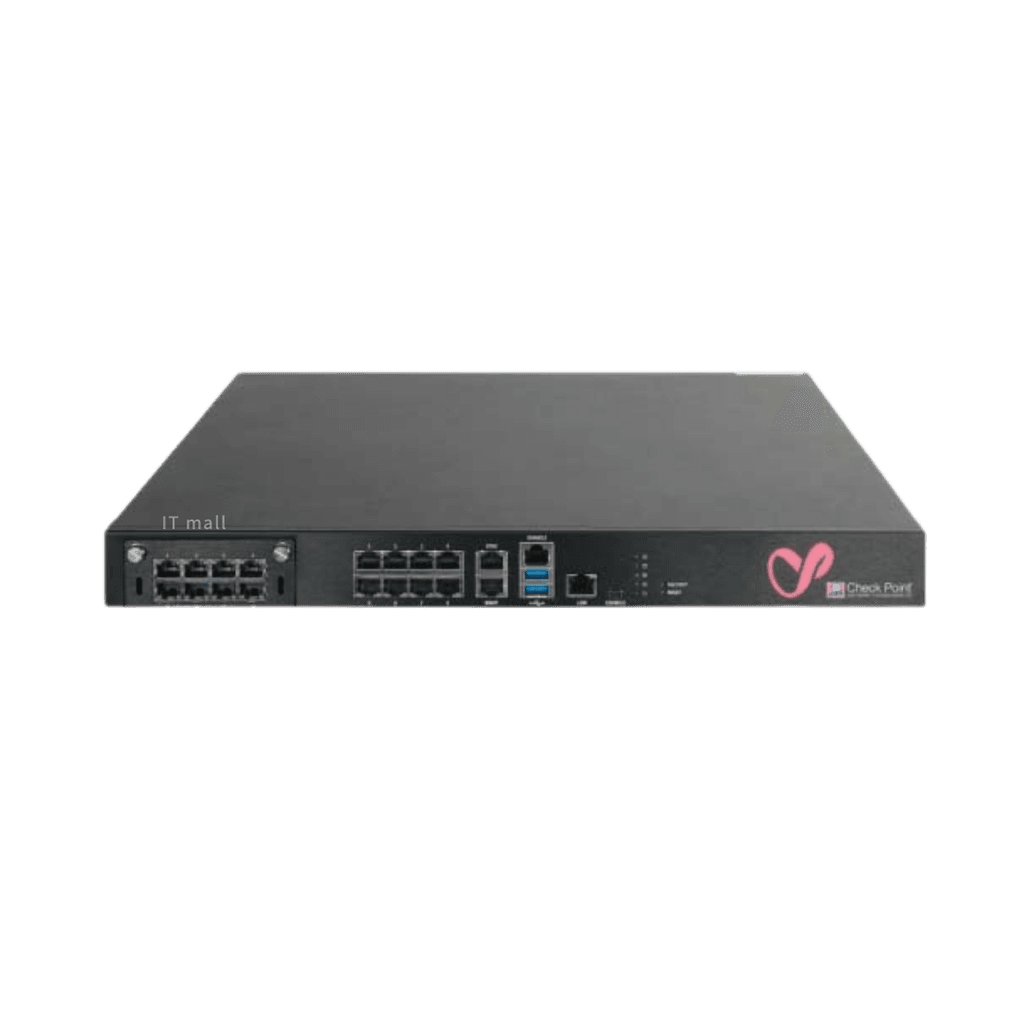

QUANTUM SPARK 6200

Description

SPECIFICATIONS

Performance

Enterprise Test Conditions
Threat Prevention1 (Gbps) 1.8
NGFW2 (Gbps) 3.72
IPS (Gbps) 4.65
Firewall (Gbps) 9

RFC 3511, 2544, 2647, 1242 Performance (Lab)
Firewall 1518B UDP (Gbps) 17.55
VPN AES-128 (Gbps) 2.75
Connections/sec 67000
Concurrent connections 2/4/8M

Additional Features

Highlights

• 1x CPUs,2 physical cores, 4 virtual cores
• 1x 240 GB SSD storage
• 1 AC power supply (2x in Plus)
• 8, 16 and 32 GB memory options
• Lights-Out-Management (included in Plus)
• Virtual Systems (Base/Plus/max mem): 10/20/20

Network Expansion Slot Options (1 of 1 slots open)

• 8x 10/100/1000Base-T RJ45 port card, up to 18 ports
• 4x 1000Base-F SFP port card, up to 4 ports
•4x 10GBase-F SFP+ port card, up to 4 ports
Content Security

First Time Prevention Capabilities
• CPU-level, OS-level and static file analysis
• File disarm and reconstruction via Threat Extraction
• Average emulation time for unknown files that require full
sandbox evaluation is under 100 seconds
• Maximal file size for Emulation is 100 MB
• Emulation OS Support: Windows XP, 7, 8.1, 10

Applications

• Classify 700+ pre-defined data types
• End user and data owner incident handling

Content Security (continued)
Dynamic User-based Policy
• Integrates with Microsoft AD, LDAP, RADIUS, Cisco pxGrid,
Terminal Servers and with 3rd parties via a Web API
• Enforce consistent policy for local and remote users on Windows,
macOS, Linux, Android and Apple iOS platforms
Network
Network Connectivity
• Integrated SD-WAN network optimization and resilience
• Total physical and virtual (VLAN) interfaces per appliance:
1024/4096 (single gateway/with virtual systems)
• 802.3ad passive and active link aggregation
• Layer 2 (transparent) and Layer 3 (routing) mode
High Availability
• Active/Active L2, Active/Passive L2 and L3
• Session failover for routing change, device and link failure
• ClusterXL or VRRP
IPv6
• NAT66, NAT64, NAT46
• CoreXL, SecureXL, HA with VRRPv3
Unicast and Multicast Routing (see SK98226)
• OSPFv2 and v3, BGP, RIP
• Static routes, Multicast routes
• Policy-based routing
• PIM-SM, PIM-SSM, PIM-DM, IGMP v2, and v3

Physical
Power Requirements

• Power Supply rating: Base 1x 150W PSU, Plus 2x 150W PSU
• AC power input: 100 to 240V (50-60Hz)
• Power consumption avg/max: 83W/113W
• Maximum thermal output: 385.6 BTU/hr.

Dimensions

• Enclosure: 1RU
• Dimensions (WxDxH): 17.2 x 20 x 1.73 in.(438x508x44mm)
• Weight (Base/Plus): 14.9/16.5 lbs. (6.75/7.5 kg)

Environmental Conditions

• Operating: 0° to 40°C, humidity 5 to 95%
• Storage: –20° to 70°C, humidity 5 to 95%

Certifications

• Safety: UL, CB, CE, TUV GS
• Emissions: FCC, CE, VCCI, RCM/C-Tick
• Environmental: RoHS, WEEE, REACH1, ISO140011
