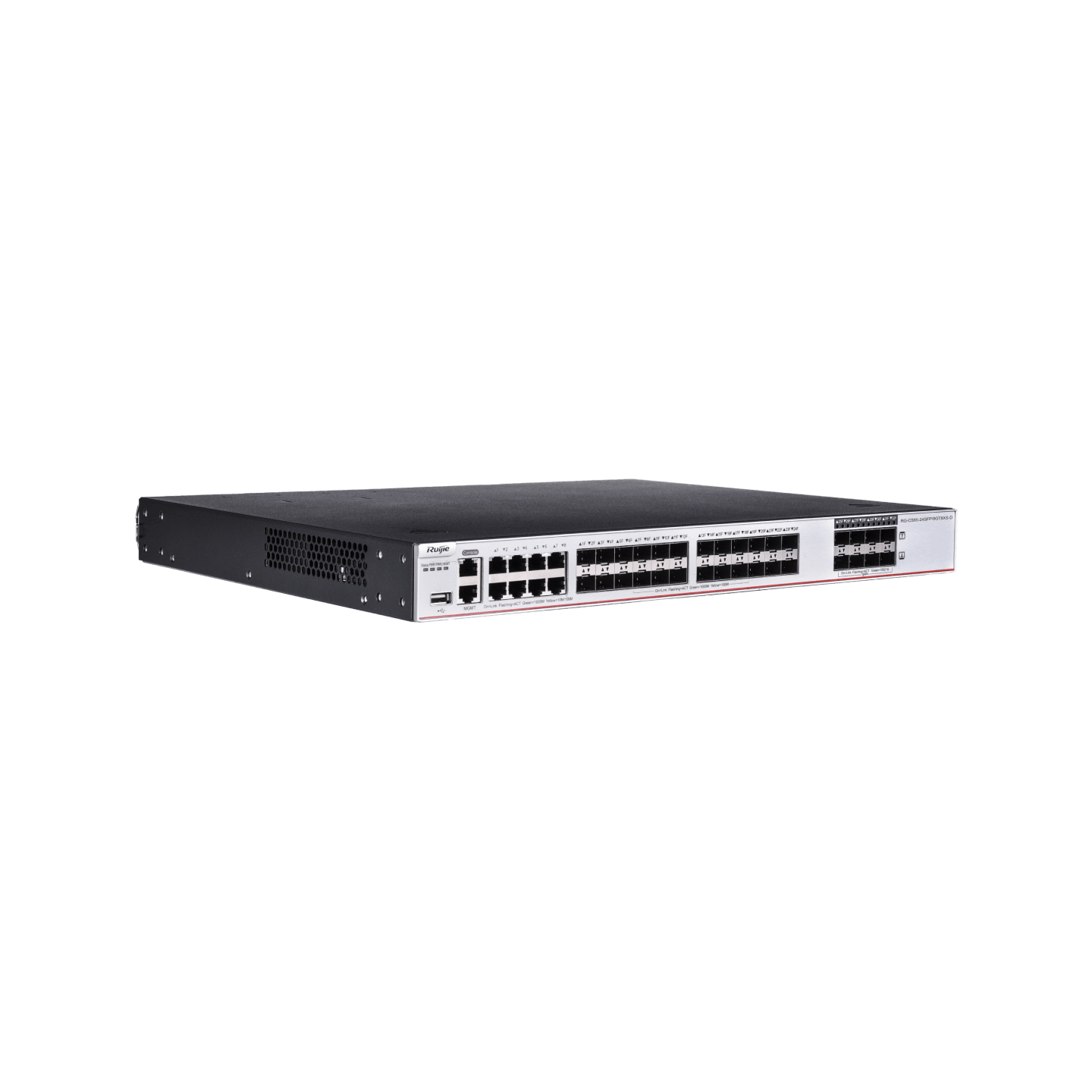

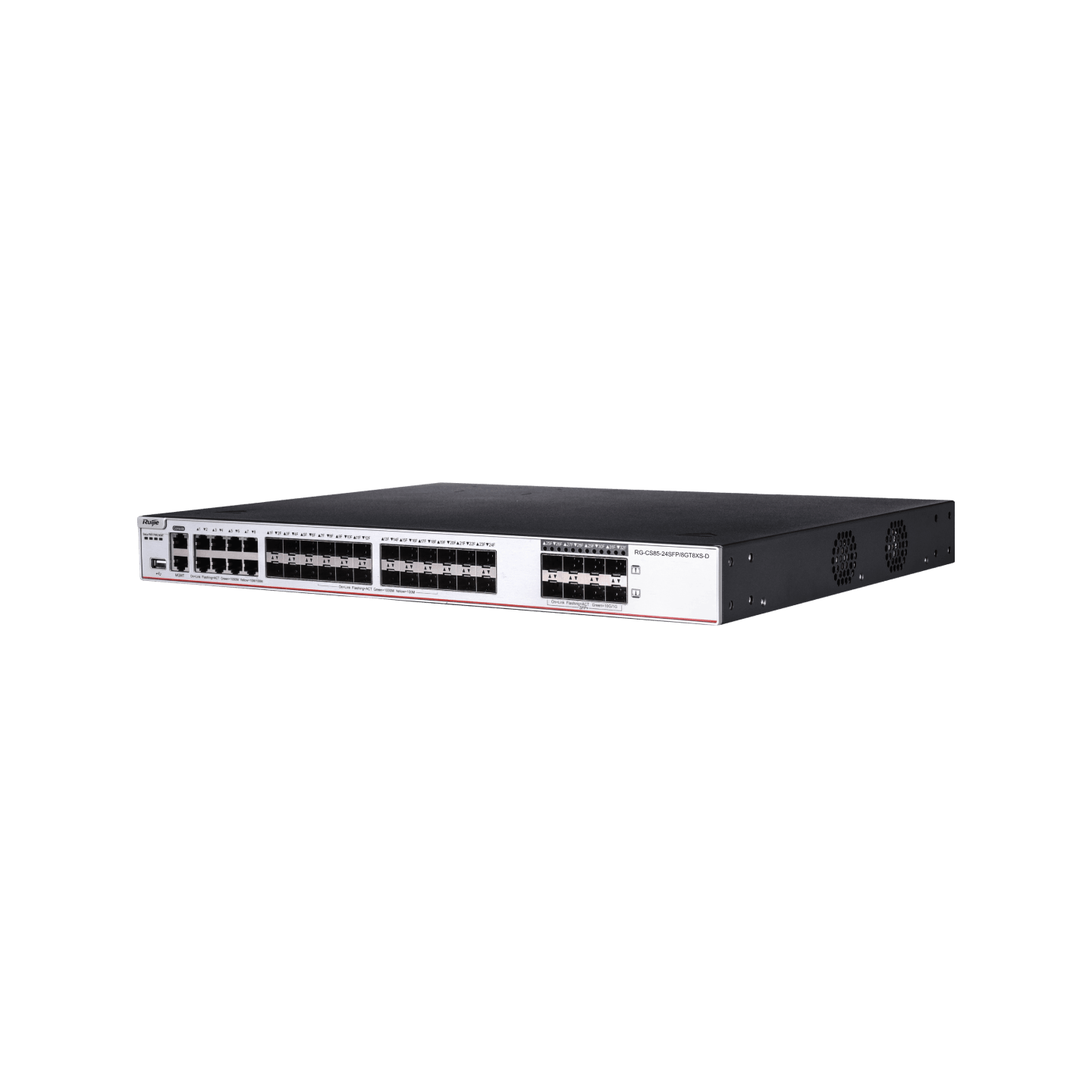

24-Port GE Optical Ports (with Eight Combo Ports), 8 × 10G Optical Ports
Condition: NOB
RMA Warranty
Description
Aggregation switch for large-sized networks, or core switch for small and medium-sized networks
Highlight Features
- Rich port types, 24 x 1000 Mbps Ethernet ports, and 8 × 10G optical ports for uplink
- Hardware redundancy, guaranteed service continuity and network connectivity
- VSU virtualization, flexible networking and high reliability
- Layer 3 routing control, adaptive to multiple services, efficient and guaranteed data transmission
- Network security policies, real-time monitoring, CPP and NFPP, delivering enhanced network robustness
- SNMP, RMON, Syslog, USB log backup features, CLI, Eweb, telnet and other management modes, easy network maintenance
Hardware Specifications
| Hardware Specifications | RG-CS85-24GT8XS-D | RG-CS85-24SFP/8GT8XS-D | RG-CS85-48GT4XS-D | RG-CS85-48GT4XS-HPD | RG-CS85-48SFP4XS-D |
| Interface Specifications | |||||
| Fixed port | 24 x 10/100/1000 Mbps electrical ports with auto-negotiation, 8 x 1GE/10GE SFP+ ports | 24 x 1000 Mbps SFP ports (ports 1-16 are 100/1000 Mbps SFP ports), 8 x 10/100/1000 Mbps combo ports with auto-negotiation, 8 x 1GE/10GE SFP+ ports | 48 x 10/100/1000 Mbps electrical ports with auto-negotiation, 4 x 1GE/10GE SFP+ ports | 48 x 10/100/1000 Mbps electrical ports with auto-negotiation, PoE/PoE+ supported, 4 x 1GE/10GE SFP+ ports | 48 x 1000 Mbps SFP ports, 4 x 1GE/10GE SFP+ ports |
| Fan module | 3 fixed fans | 3 fixed fans | 3 fixed fans | 2 modular fans | 3 modular fans |
| Power module | 2 replaceable hot-swappable power supply slots | 2 replaceable hot-swappable power supply slots | 2 replaceable hot-swappable power supply slots | 2 replaceable hot-swappable power supply slots | 2 replaceable hot-swappable power supply slots |
| Fixed management port | 1 x console, 1 x MGMT, 1 x USB3.0 | 1 x console, 1 x MGMT, 1 x USB3.0 | 1 x console, 1 x MGMT, 1 x USB3.0 | 1 x console, 1 x MGMT, 1 x USB3.0 | 1 x console, 1 x MGMT, 1 x USB3.0 |
| Expansion slot | One expansion slot | One expansion slot | One expansion slot | One expansion slot | One expansion slot |
| System Specifications | |||||
| Packet forwarding rate | 512 Mpps | 512 Mpps | 488 Mpps | 488 Mpps | 488 Mpps |
| Switching capacity | 688 Gbps | 688 Gbps | 656 Gbps | 656 Gbps | 656 Gbps |
| MAC address table size | 64,000 | 64,000 | 64,000 | 64,000 | 64,000 |
| ARP table size | 24,000 | 24,000 | 24,000 | 24,000 | 24,000 |
| Number of IPv4 unicast routes | 24,000 | 24,000 | 24,000 | 24,000 | 24,000 |
| Number of IPv4 multicast routes | 4,000 | 4,000 | 4,000 | 4,000 | 4,000 |
| Number of IPv6 unicast routes | 14,000 | 14,000 | 14,000 | 14,000 | 14,000 |
| Number of IPv6 multicast routes | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 |
| Number of ACEs | Ingress: 7,000
Egress:1,500 |
||||
| Number of VSU members | 4 | 4 | 4 | 4 | 4 |
| Dimensions and Weight | |||||
| Dimensions (W x D x H) | 440 x 340 x 44 mm (17.32 x 13.39 x 1.73 in), 1 RU | 440 x 340 x 44 mm (17.32 x 13.39 x 1.73 in), 1 RU | 440 x 340 x 44 mm (17.32 x 13.39 x 1.73 in), 1 RU | 442 x 420 x 43.6 mm (17.40 x 16.54 x 1.72 in), 1 RU | 442 x 420 x 43.6 mm (17.40 x 16.54 x 1.72 in), 1 RU |
| Weight | 4.4 kg (9.70 lbs) | 4.3 kg (9.48 lbs) | 4.5 kg (9.92 lbs) | 5.5 kg (12.12 lbs) | 5.3 kg (11.68 lbs) |
| CPU and Storage | |||||
| CPU | Dual-core CPU, 1.2 GHz | Dual-core CPU, 1.2 GHz | Dual-core CPU, 1.2 GHz | Dual-core CPU, 1.2 GHz | Dual-core CPU, 1.2 GHz |
| Flash memory | 4 GB | 4 GB | 4 GB | 4 GB | 4 GB |
| BootROM | 16 MB | 16 MB | 16 MB | 16 MB | 16 MB |
| SDRAM | 1 GB | 1 GB | 1 GB | 1 GB | 1 GB |
| Data packet buffer | 4 MB | ||||
| Power and Consumption | |||||
| Maximum power consumption | <60 W (excluding expansion modules) <85 W (including expansion modules) |
<77 W (excluding expansion modules) <102 W (including expansion modules) |
<70 W (excluding expansion modules) <95 W (including expansion modules) |
<110 W (non-PoE)
<1,590 W (PoE full load) |
<150 W |
| Maximum output power | RG-PA150IB-F: 150 W | RG-PA150IB-F: 150 W | RG-PA150IB-F: 150 W | RG-PA600I-P-F: 600 W
RG-PA1000I-P-F: 176 V AC to 290 V AC, 1000 W 90 V AC to 176 V AC, 930 W (PoE: 740 W) |
RG-PA150IB-F: 150 W |
| Rated input voltage | AC: 100 V to 240 V
HVDC: 240 V
LVDC: 48 V to 60 V |
AC:
200 V to 240 V
DC: -48 V to -60 V |
AC: 100 V to 240 V
DC: -48 V to -60 V |
||
| Maximum input voltage | AC: 90 V to 264 V
HVDC: 192 V to 288 V
LVDC: 36 V to 75 V |
AC: 176 V to 264 V
DC: -38 V to -75 V |
AC: 90 V to 264 V
DC: -36 V to -75 V |
||
| Environment and Reliability | |||||
| MTBF | ≥ 1,051,000 hours | ≥ 823,000 hours | ≥ 963,000 hours | ≥ 832,000 hours | ≥ 788,000 hours |
| Primary Airflow | Left-to-right and front-to-right airflow | Front-to-rear airflow | |||
| Operating temperature | 0°C to 45°C (32°F to 113°F) | ||||
| Storage temperature | -40°C to +70°C (-40°F to +158°F) | ||||
| Operating humidity | 10% to 90% RH (non-condensing) | ||||
| Storage humidity | 5% to 95% RH (non-condensing) | ||||
| Operating noise | 45°C: 56.2 dB | 45°C: 57.1 dB | 45°C: 57.9 dB | 27°C: 50 dB
45°C: 65 dB |
27°C: 53 dB
45°C: 68 dB |
| Interface surge protection | Power port: 6 kV/6 kV
Telecom port: 10 kV (MGMT port: 4 kV) |
||||
Software Specifications
| RG-CS85 Series | |
| Feature | Description |
| Ethernet switching | Jumbo frame (maximum length: 9,216 bytes) |
| IEEE 802.1Q (supporting 4K VLANs) | |
| Voice VLAN | |
| Super VLAN, Private VLAN | |
| MAC VLAN, Port based VLAN, Protocol based VLAN, IP-Subnet based VLAN | |
| GVRP | |
| Basic QinQ
Flexible QinQ |
|
| STP, RSTP, and MSTP | |
| ERPS (G.8032) | |
| LLDP/LLDP-MED | |
| LACP (IEEE 802.3ad) | |
| IP service | ARP |
| DHCP client, DHCP relay, and DHCP server | |
| DHCP snooping | |
| DNS | |
| DHCPv6 client and DHCPv6 relay | |
| DHCPv6 snooping | |
| Neighbor Discovery (ND) and ND snooping | |
| IP routing | Static routing |
| RIP and RIPng | |
| OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6 | |
| BGP4 and BGP4+ | |
| IPv4 and IPv6 VRF | |
| IPv4 and IPv6 PBR | |
| Multicast | IGMP v1/v2/v3, and IGMP proxy |
| IGMP v1/v2/v3 snooping | |
| PIM-DM, PIM-SM, and PIM-SSM | |
| MSDP | |
| MLD v1/v2 | |
| MLD snooping v1/v2 | |
| PIM-SMv6 and PIM-SSM v6 | |
| MPLS | MPLS L3VPN |
| ACL and QoS | Standard IP ACLs
Extended IP ACLs Extended MAC ACLs Time-based ACLs Expert-level ACLs ACL80 IPv6 ACL |
| ACL redirection | |
| Port traffic rate limiting | |
| Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ | |
| Congestion avoidance: tail drop, RED, and WRED | |
| 802.1p/DSCP/ToS traffic classification
Eight priority queues per port |
|
| Security | Multiple AAA modes |
| RADIUS and TACAS+ | |
| Port-based and MAC-based 802.1x authentication | |
| Web authentication | |
| HTTPS | |
| SSHv1, SSHv2 | |
| Global IP-MAC binding | |
| Port isolation and port security | |
| IP source guard | |
| SAVI | |
| CPP and NFPP | |
| Strict and loose RPF
uRPF ignoring default routes |
|
| Reliability | REUP, RLDP, DLDP |
| IPv4 VRRP v2/v3 and IPv6 VRRP | |
| BFD | |
| Link tracing, fault notification, and remote loopback based on 802.3ah (EFM) | |
| Hot swapping of power modules and cables | |
| 3-level fan speed adjustment
Fan fault alarm |
|
| Device virtualization | Virtual Switching Unit (VSU) |
| NMS and maintenance | SPAN, RSPAN, and ERSPAN |
| sFLOW | |
| NTP and SNTP | |
| FTP and TFTP | |
| SNMP v1/v2/v3 | |
| RMON (1, 2, 3, 9) | |
| NETCONF | |
| CWMP (TR-069) standard protocol | |
| gRPC | |
| Cloud and SON | |
| PoE | IEEE 802.3af and 802.3at
Uninterruptible power supply upon hot start Port priority |
Order Information
Order switches, expansion modules, power supply modules, and other components as needed. Before ordering an expansion module or power supply module, please contact our online customer service team for the latest support information about the module.
| Model | Description |
| RG-CS85-24GT8XS-D | 24 x 10/100/1000 Mbps electrical ports with auto-negotiation, 8 x 1GE/10GE SFP+ ports, 1 x expansion slot, 3 x built-in fixed fans, 2 x power supply module slots (Purchase at least one RG-PA150IB-F module.) |
| RG-CS85-24SFP/8GT8XS-D | 24 x 10/100/1000 Mbps SFP ports (Ports 1-16 are 100/1000 Mbps SFP ports), 8 x 10/100/1000 Mbps combo ports with auto-negotiation, 8 x 1GE/10GE SFP+ ports, 1 x expansion slot, 3 x built-in fans, 2 x power supply module slots (Purchase at least one RG-PA150IB-F module.) |
| RG-CS85-48GT4XS-D | 48 x 10/100/1000 Mbps electrical ports with auto-negotiation, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 3 x built-in fixed fans, 2 x power supply module slots (Purchase at least one RG-PA150IB-F module.) |
| RG-CS85-48GT4XS-HPD | 48 x 10/100/1000 Mbps electrical ports with auto-negotiation, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x modular fans, 2 x power supply module slots (Purchase at least one RG-PA600I-P-F/RG-PA1000I-P-F module.) |
| RG-CS85-48SFP4XS-D | 48 x 1000 Mbps SFP ports, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 3 x modular fans, 2 x power supply module slots (Purchase at least one RG-PA150IB-F module.) |
| CM85-4XS2CQ | Expansion module, 4 x 10GE SFP+ ports and 2 x 100GE QSFP28 ports |
| RG-PA150IB-F | 150 W AC power supply module |
| RG-PA600I-P-F | 600 W PoE AC power supply module |
| RG-PA1000I-P-F | 1000 W PoE AC power supply module |
| Mini-GBIC-GT | 1000BASE-GT mini GBIC module |
| MINI-GBIC-SX-MM850 | Single-port 1000BASE-SX mini GBIC module (LC interface) |
| MINI-GBIC-LX-SM1310 | Single-port 1000BASE-LX mini GBIC module (LC interface) |
| MINI-GBIC-LH40-SM1310 | Single-port 1000BASE-LH mini GBIC module (LC interface), supporting a transmission distance of 40 km (24.85 miles) |
| MINI-GBIC-ZX50-SM1550 | Single-port 1000BASE-ZX mini GBIC module (LC interface), supporting a transmission distance of 50 km (24.85 miles) |
| MINI-GBIC-ZX80-SM1550 | Single-port 1000BASE-ZX mini GBIC module (LC interface), supporting a transmission distance of 80 km (24.85 miles) |
| MINI-GBIC-ZX100-SM1550 | 1000BASE-ZX mini GBIC module, supporting a transmission distance of 100 km (62.14 miles) |
| XG-SFP-SR-MM850 | 10GE LC module (62.5/125μm: 33 m (108.27 ft); 50/125μm: 66 m (216.54 ft); transmit for 300 m (984.25 ft) when modal bandwidth is 2000Mhz *km), applicable to SFP+ ports |
| XG-SFP-LR-SM1310 | 10GE LC interface module (1310 nm), 10 km (6.21 miles), applicable to SFP+ ports |
| XG-SFP-ER-SM1550 | 10GE LC interface module (1550 nm), 40 km (24.85 miles), applicable to SFP+ ports |
| XG-SFP-AOC1M | 10GE SFP+ fiber-optic cable, 1 m (3.28 ft), including one cable and two interface modules |
| XG-SFP-AOC3M | 10GE SFP+ fiber-optic cable, 3 m (3.28 ft), including one cable and two interface modules |
| XG-SFP-AOC5M | 10GE SFP+ fiber-optic cable, 5 m (3.28 ft), including one cable and two interface modules |
