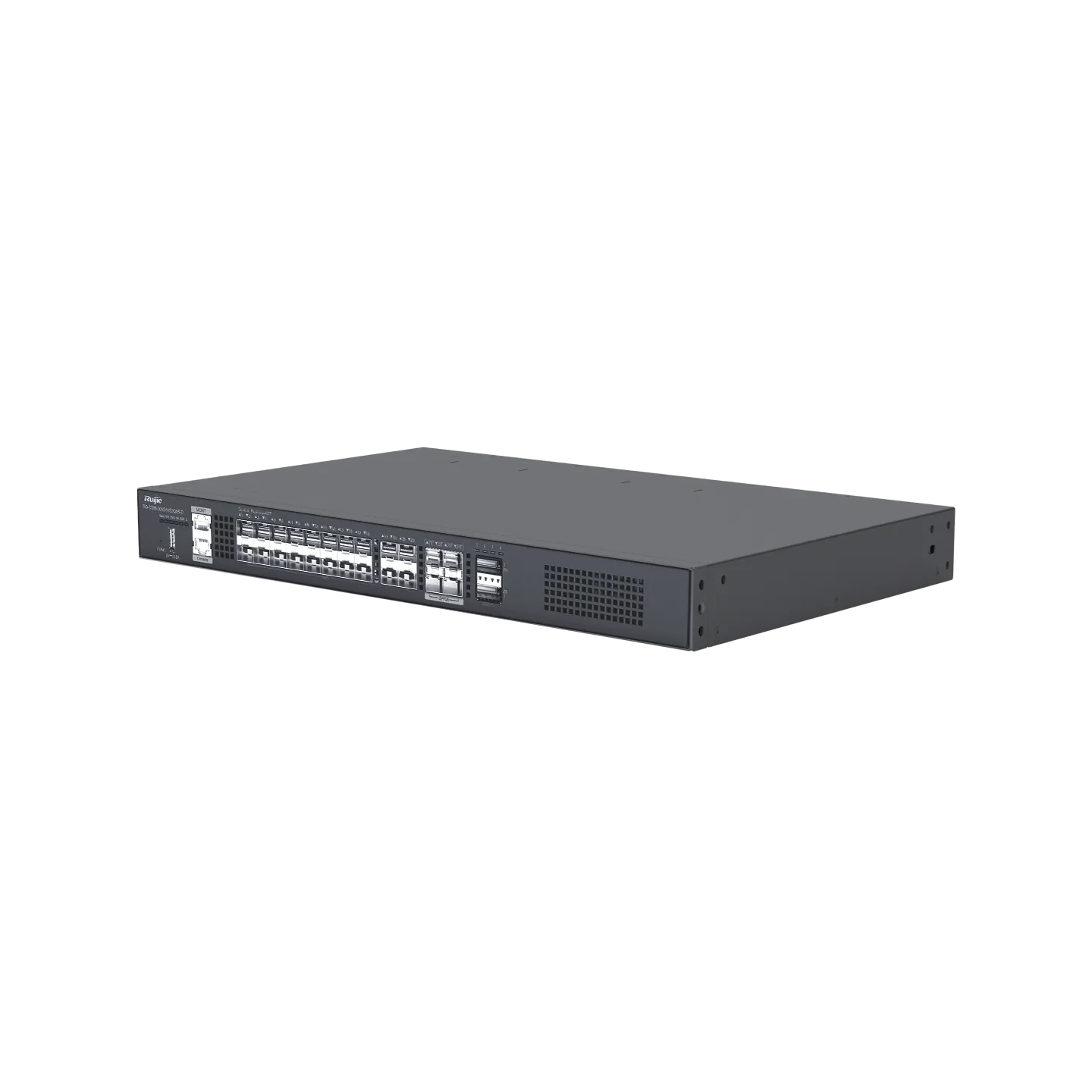

20 x 10GE SFP+ ports, 4 x 25GE SFP28 ports, 2 x 40GE QSFP+ ports
Condition: NOB
RMA Warranty
Description
Suitable for small & medium enterprise core, or large-scale campus network aggregation switch
Highlight Features
-
20 x 10GE SFP+ ports (Compatible with 2.5GE), 4 x 25GE SFP28 ports, and 2 x 40GE QSFP+ ports for uplink
- VSU, realizing flexible networking and high performance
- Hardware-level multi-protection, ensuring service continuity
- Network security policies and real-time monitoring, enhancing network robustness
- Comprehensive QoS policies for flexible network resource allocation and stable services
- Diverse network management modes, enabling simple maintenance
Hardware Specifications
| Hardware Specifications | RG-CS86-20XS4VS2QXS-D |
| Interface Specifications | |
| Fixed Ports | 20 x 1GE/2.5GE/10GE SFP+ ports, 4 x 10GE/25GE SFP28 ports, 2 x 40GE QSFP+ ports. One switch provides a maximum of 32 x 10GE ports, 2 x modular power slots, and 2 x modular fan slots. |

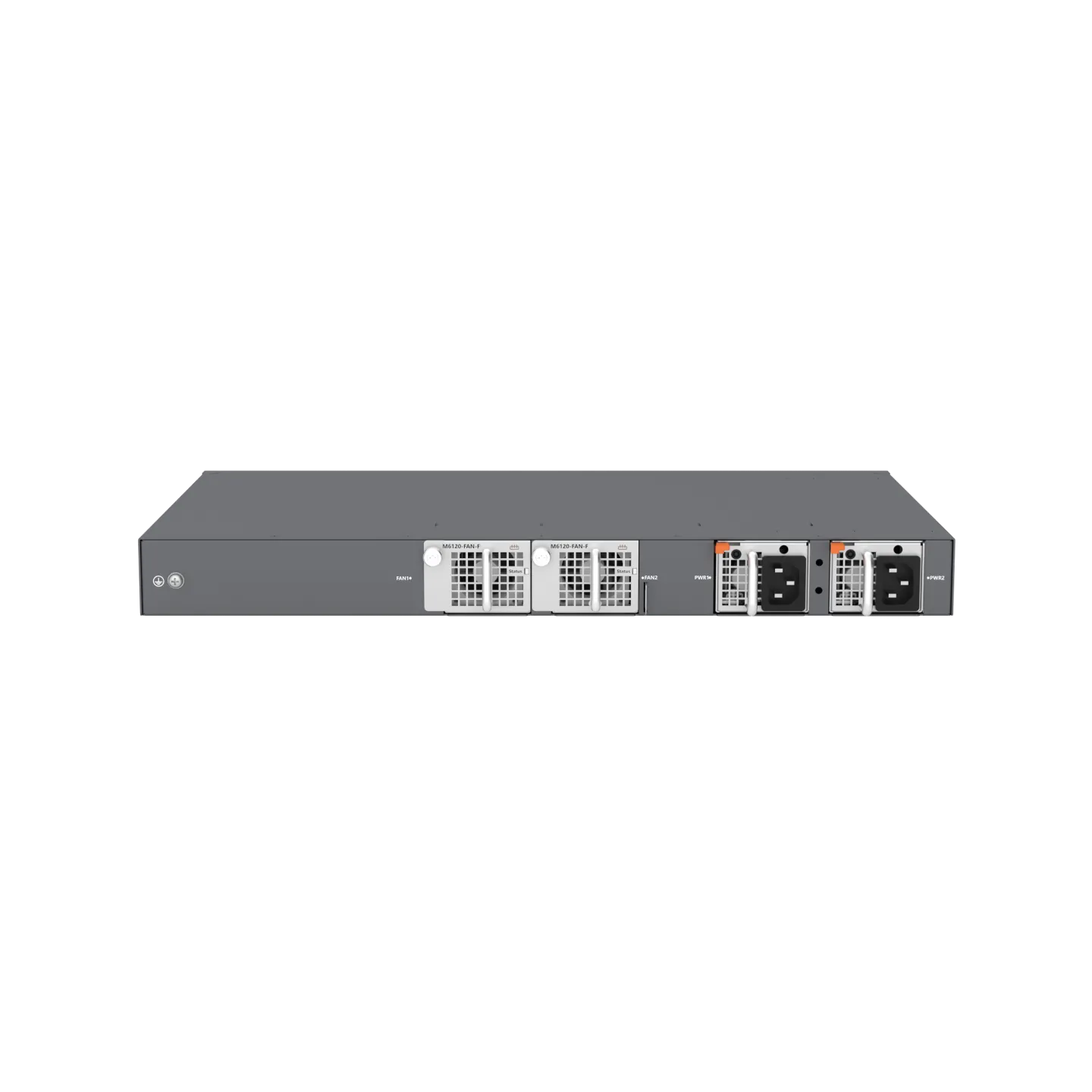

| Fan module | Dual pluggable modular fans, with front-to-rear ventilation channels
Fan speed regulating and alarm function |
| Power module | 2 x replaceable hot-swappable power supply slots |
| Fixed management port | 1 x MGMT port, 1 x console port, and 1 x USB port |
| System Specifications | |
| Packet forwarding rate | 570 Mpps |
| Switching capacity | 760 Gbps |
| MAC address table size | 32,768 |
| ARP table size | 16,000 |
| Number of IPv4 unicast routes | 16,000 |
| Number of IPv4 multicast routes | 4,000 |
| Number of IPv6 unicast routes | 16,000 |
| Number of IPv6 multicast routes | 2,000 |
| Number of ACEs | In: 2,500
Out: 1,000 |
| Number of VSU members | 2 |
| Dimensions and Weight | |
| Dimensions (W x D x H) | 440 x 330 x 43.6 mm (17.32 in. x 12.99 in. x 1.72 in.), 1 RU |
| Weight of the empty chassis | 4.6 kg (10.14 lbs.) |
| CPU and Storage | |
| CPU | Dual-core CPU, 1.25 GHz |
| Flash memory | 1 GB |
| BootROM | 16 MB |
| SDRAM | 1 GB |
| Data packet buffer | 4 MB |
| Power and Consumption | |
| Power supply | Supported power module type: RG-PA150I-F
AC input: Rated voltage range: 100–240 V AC; 50/60 Hz Maximum voltage range: 90–264 V AC; 47/63 Hz Rated input current: 3 A
HVDC input: Rated voltage: 240 V DC Maximum voltage range: 192–288 V AC Rated current per circuit: 3 A |
| Maximum power consumption | < 85 W |
| Maximum output power | RG-PA150I-F: 150 W |
| Rated input voltage | RG-PA150I-F:
AC input: Rated voltage range: 100–240 V AC; 50/60 Hz
HVDC input: Rated voltage: 240 V DC |
| Maximum input voltage | RG-PA150I-F:
AC input: Maximum voltage range: 90–264 V AC; 47/63 Hz
HVDC input: Maximum voltage range: 192–288 V DC |
| Environment and Reliability | |
| Primary airflow | Front-to-rear airflow |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Storage humidity | 5% to 95% RH (non-condensing) |
| Interface surge protection | Power port: 6 kV/6 kV
Telecom port: 10 kV (MGMT port: 4 kV) |
| Temperature alarm | Supported |
Software Specifications
| RG-CS86-20XS4VS2QXS-D | |
| Feature | Description |
| Ethernet Switching | Jumbo frame (maximum length: 9,216 bytes) |
| IEEE 802.1Q (supporting 4K VLANs) | |
| Voice VLAN | |
| Super VLAN, private VLAN | |
| MAC VLAN, port-based VLAN, protocol-based VLAN, IP subnet-based VLAN | |
| GVRP | |
| Basic QinQ | |
| STP, RSTP, and MSTP | |
| ERPS (G.8032) | |
| LLDP/LLDP-MED | |
| LACP (IEEE 802.3ad) | |
| IP Service | ARP |
| DHCP client, DHCP relay, and DHCP server | |
| DHCP snooping | |
| DNS | |
| DHCPv6 client and DHCPv6 relay | |
| DHCPv6 snooping | |
| Neighbor Discovery (ND) and ND snooping | |
| IP Routing | Static routing |
| RIP and RIPng | |
| OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6 | |
| BGP4 and BGP4+ | |
| IPv4 and IPv6 VRF | |
| IPv4 and IPv6 PBR | |
| Equal and Weighted Cost Multi-Path (ECMP) | |
| Multicast | IGMP v1/v2/v3, and IGMP proxy |
| IGMP v1/v2/v3 snooping | |
| PIM-DM, PIM-SM, and PIM-SSM | |
| MSDP | |
| MLD v1/v2 | |
| MLD snooping v1/v2 | |
| PIM-SMv6 and PIM-SSM v6 | |
| IGMP filtering, IGMP immediate leave | |
| ACL and QoS | Standard IP ACLs
Extended IP ACLs Extended MAC ACLs Time-based ACLs Expert-level ACLs ACL80 IPv6 ACL |
| ACL redirection | |
| Port traffic rate limiting | |
| Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ | |
| Congestion avoidance: tail drop, RED, and WRED | |
| 802.1p/DSCP/ToS traffic classification
Eight priority queues per port |
|
| Security | Multiple AAA modes |
| RADIUS and TACAS+ | |
| Port-based and MAC-based 802.1x authentication | |
| Web authentication | |
| HTTPS | |
| SSHv1, SSHv2 | |
| Global IP-MAC binding | |
| Port isolation and port security | |
| IP source guard | |
| SAVI | |
| CPP and NFPP | |
| Strict and loose RPF | |
| Reliability | REUP, RLDP, DLDP |
| IPv4 VRRP v2/v3 and IPv6 VRRP | |
| BFD | |
| Hot swapping of power modules and cables | |
| 3-level fan speed adjustment
Fan fault alarm |
|
| Device virtualization | VSU |
| NMS and maintenance | SPAN, RSPAN, and ERSPAN |
| sFlow | |
| NTP and SNTP | |
| FTP and TFTP | |
| SNMP v1/v2/v3 | |
| RMON (1, 2, 3, 9) | |
| Telnet | |
| NETCONF | |
| CWMP (TR-069) standard protocol | |
| gRPC | |
| Cloud and SON | |
Order Information
| Model | Description |
| RG-CS86-20XS4VS2QXS-D | 20 x 1GE/2.5GE/10GE SFP+ ports, 4 x 10GE/25GE SFP28 ports, 2 x 40GE QSFP+ ports, supports up to 32 x 10GE ports, 2 x slots for power supply module, requires at least one RG-PA150I-F power supply module, 2 x slots for fan modules, 2 x pre-installed fans (Purchase at least one RG-PA150I-F module.) |
| RG-PA150I-F | 150 W AC power supply module for RG-CS86-20XS4VS2QXS-D |
| Mini-GBIC-GT | 1000BASE-GT mini GBIC conversion module |
| MINI-GBIC-SX-MM850 | 1000BASE-SX, SFP transceiver, SM (850 nm, 500 m, LC). |
| MINI-GBIC-LX-SM1310 | 1000BASE-LX, SFP transceiver, SM (1310 nm, 10 km, LC) |
| MINI-GBIC-LH40-SM1310 | 1000BASE-LH, SFP transceiver, SM (1310 nm, 40 km, LC) |
| MINI-GBIC-ZX80-SM1550 | 1000BASE-ZX80, SFP transceiver, SM (1550 nm, 80 km, LC) |
| GE-SFP-LX20-SM1310-BIDI | SFP BiDi transceiver-Tx1310/Rx1550, 20 km, LC |
| GE-SFP-LX20-SM1550-BIDI | SFP BiDi transceiver-Tx1550/Rx1310, 20 km, LC |
| GE-SFP-LH40-SM1310-BIDI | SFP BiDi transceiver-Tx1310/Rx1550, 40 km, LC |
| GE-SFP-LH40-SM1550-BIDI | SFP BiDi transceiver-Tx1550/Rx1310, 40 km, LC |
| 2.5G-SFP-LX03-SM1310-BIDI-I | SFP 2.5G BiDi transceiver-Tx1310/Rx1550, 3 km，LC |
| 2.5G-SFP-LX03-SM1550-BIDI-I | SFP 2.5G BiDi transceiver-Tx1550/Rx1310, 3 km，LC |
| XG-SFP-SR-MM850 | 10G LC fiber module, applicable to SFP+ ports, max cabling distance: 300 m |
| XG-SFP-LR-SM1310 | 10G LC fiber module, applicable to SFP+ ports, max cabling distance: 10 km |
| XG-SFP-ER-SM1550 | 10G LC fiber module, applicable to SFP+ ports, max cabling distance: 40 km |
| VG-SFP-SR-MM850 | 25G fiber module |
| VG-SFP-LR-SM1310 | 25G fiber module |
| XG-SFP-AOC1M | 10G SFP+ connector fiber, 1-meter long, including one cable and two connector modules |
| XG-SFP-AOC3M | 10G SFP+ connector fiber, 3-meter long, including one cable and two connector modules |
| XG-SFP-AOC5M | 10G SFP+ connector fiber, 5-meter long, including one cable and two connector modules |
| VG-SFP-AOC5M | 25G Base SFP+ fiber cable (including modules on both ends), 5-meter long |
| 40G-QSFP-SR-MM850 | 40G SR fiber module, applicable to QSFP+ ports (OM3/OM4 MPO interface, 8-core, 850 nm wavelength, max cabling distance: 100 m (OM3), 150 m (OM4) |
| 40G-QSFP-LR4 SM1310 | 40G LR single-mode fiber module, applicable to QSFP+ ports, max cabling distance:10 km (LC, dual-core, 1310 nm wavelength) |
| 40G-AOC-5M | 40G QSFP+ connector fiber, 5-meter long, including one cable and two connector modules |
| 40G-AOC-10M | 40G QSFP+ connector fiber, 10-meter long, including one cable and two connector modules |
