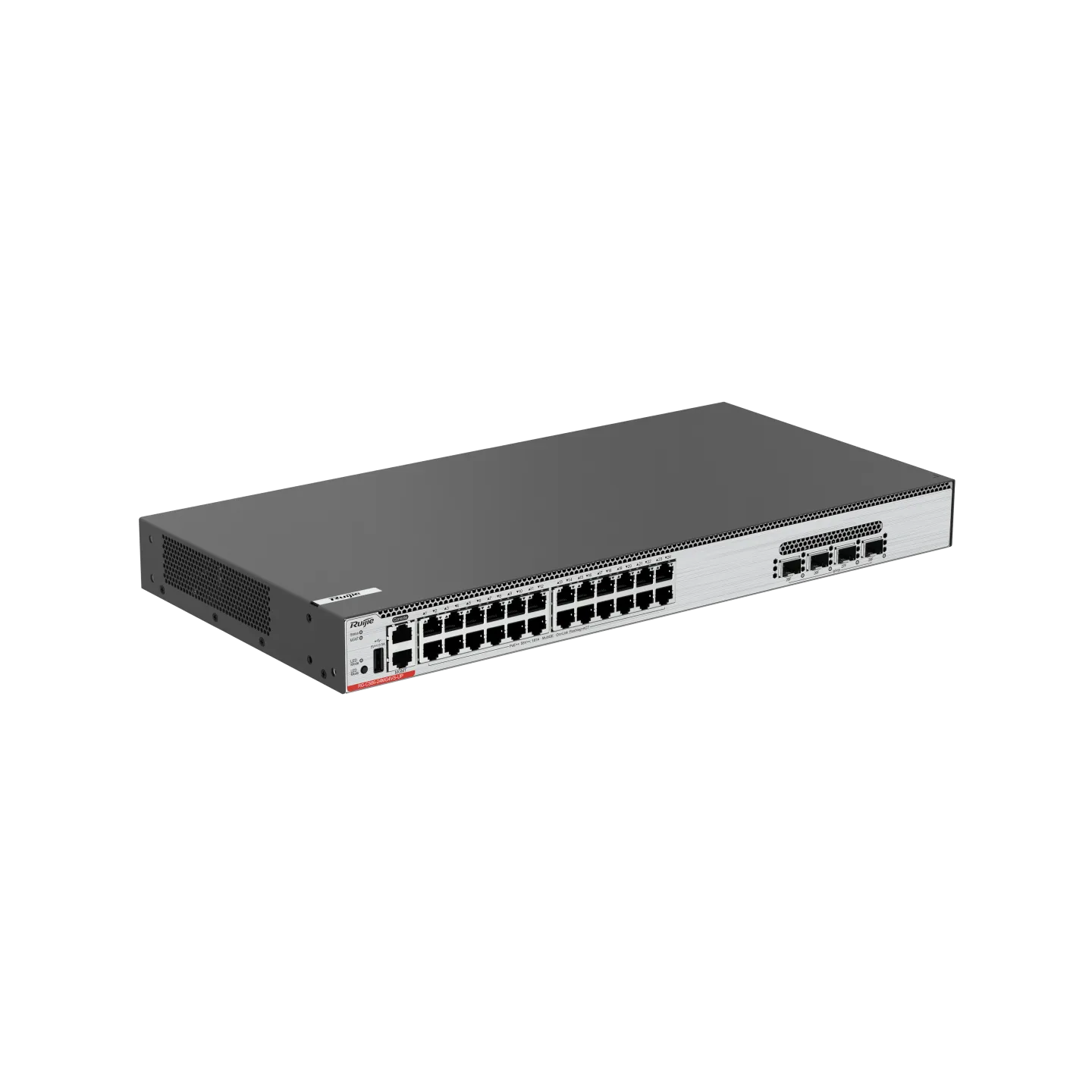

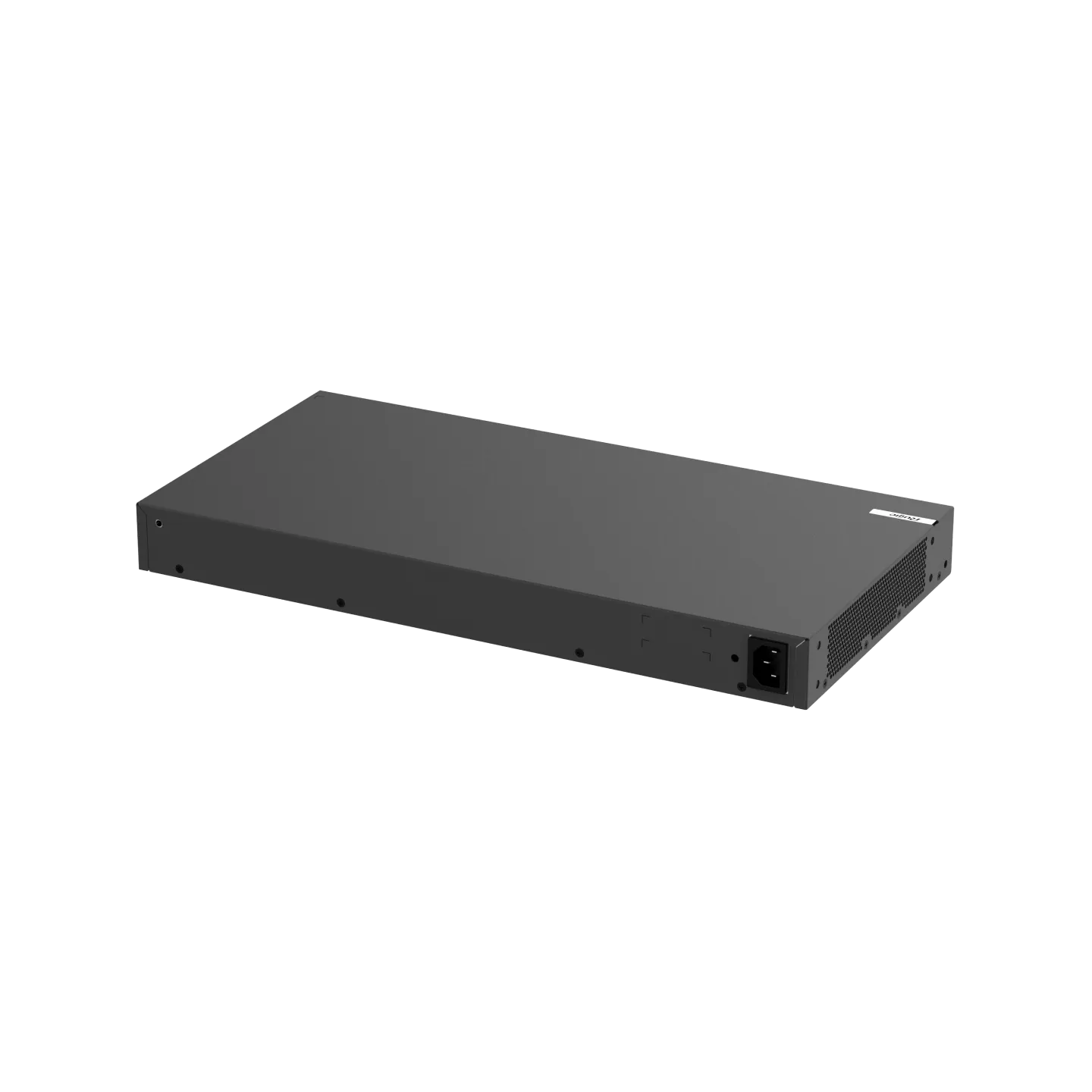

24 x 5GE Ethernet ports, 4 x 25GE SFP28 ports
Condition: NOB
RMA Warranty
Description
Diverse access rates: 5 Gbps/2.5 Gbps/1 Gbps/100 Mbps Multiple power modes: PoE/PoE+/PoE++ 4 x 25GE SFP28 ports for uplink, enabling flexible networking and high-performance campus networks
- 24 x 5GE/2.5GE/GE/100M Base-T Ethernet ports for access, 4 x 25GE ports for uplink, meeting high-bandwidth campus network demands
- Hardware-level multi-protection, ensuring service continuity
- VSU, realizing flexible networking and high performance
- Network security policies and real-time monitoring, enhancing network robustness
- Intelligent speed regulation and auto sleeping, reducing energy consumption and noise
- Diverse network management modes, enabling simple maintenance
Multi-GE Switch
| Hardware Specifications | RG-CS86-24MG4VS-UP | RG-CS86-48MG4VS2QXS-UPD | RG-CS86-24XMG4XS4VS-UPD | RG-CS86-12XMG4VS-UP |
| Interface Specifications | ||||
| Fixed port | 24 x 100M/1000M/2.5GE/5GE electrical ports with auto-negotiation 4 x 10GE/25GE SFP28 ports |
48 x 100M/1000M/2.5GE/5GE electrical ports with auto-negotiation 4 x 10GE/25GE SFP28 ports + 2 x 40GE QSFP+ ports |
24 x 100M/1000M/2.5GE/5GE/10GE electrical ports with auto-negotiation
4 x 1GE/10GE SFP+ ports 4 x 10GE/25G SFP28 ports |
12 x 100M/1000M/2.5GE/5GE/10GE electrical ports with auto-negotiation
4 x 10GE/25G SFP28 ports |
| Fan module | 2 fixed fans | 3 modular fans | 3 modular fans | 2 fixed fans |
| Power module | 1 Built-in power module | 2 replaceable hot-swappable power supply slots | 2 replaceable hot-swappable power supply slots | 1 Built-in power module |
| Fixed management port | 1 x MGMT port
1 x console port 1 x USB port |
1 x MGMT port
1 x console port 1 x USB port |
1 x MGMT port
1 x console port 1 x USB port |
1 x MGMT port
1 x console port 1 x USB port |
| System Specifications | ||||
| Packet forwarding rate | 327 Mpps | 625 Mpps | 565 Mpps | 327 Mpps |
| Switching capacity | 440 Gbps | 840 Gbps | 760Gbps | 440 Gbps |
| MAC address table size | 32,768 | |||
| ARP table size | 16,000 | |||
| Number of IPv4 unicast routes | 16,000 | |||
| Number of IPv4 multicast routes | 4,000 | |||
| Number of IPv6 unicast routes | 16,000 | |||
| Number of IPv6 multicast routes | 2,000 | |||
| Number of ACEs | Ingress: 2,500
Egress:1,000 |
|||
| Number of VSU members | 2 | |||
| Dimensions and Weight | ||||
| Dimensions (W x D x H) | 442 × 220 × 43.6 mm (17.40 × 29.92 × 6.89 in.) , 1 RU | 442 × 220 × 43.6 mm (17.40 × 29.92 × 6.89 in.) , 1 RU | 442 × 220 × 43.6 mm (17.40 × 29.92 × 6.89 in.) , 1 RU | 442 × 220 × 43.6 mm (17.40 × 29.92 × 6.89 in.) , 1 RU |
| Weight | 3.65 kg (8.82 lbs) | 6.11 kg (13.47 lbs) | 6.11 kg (13.47 lbs) | 3.65 kg (8.82 lbs.) |
| CPU and Storage | ||||
| CPU | ARM processor, 1.25 GHz | ARM processor, 1.25 GHz | ARM processor, 1.25 GHz | ARM processor, 1.25 GHz |
| Flash memory | 1 GB | 1 GB | 1 GB | 1 GB |
| BootROM | 16 MB | 16 MB | 16 MB | 16 MB |
| SDRAM | 1 GB | 1 GB | 1 GB | 1 GB |
| Data packet buffer | 4 MB | 4 MB | 4 MB | 4 MB |
| Power Supply and Consumption | ||||
| Maximum power consumption | Without PoE: < 120 W (Total power consumption of all modules)
Full PoE load: < 370 W |
Without PoE: < 240 W (Total power consumption of all modules)
Full PoE load: < 1600 W |
Without PoE: < 120 W (Total power consumption of all modules)
Full PoE load: < 1650 W |
Without PoE: < 120 W (Total power consumption of all modules)
Full PoE load: < 370 W |
| Maximum output power | 460W | RG-PA600I-P-F: 600 W
RG-PA1000I-P-F: 1000 W (Input Voltage: 176 V AC to 290 V AC or 190 V DC to 290 V DC) 930 W (Input Voltage: 90 V AC to 176 V AC, 176 V AC not included) |
RG-PA600I-P-F: 600 W
RG-PA1000I-P-F: 1000 W (Input Voltage: 176 V AC to 290 V AC or 190 V DC to 290 V DC) 930 W (Input Voltage: 90 V AC to 176 V AC, 176 V AC not included) |
460W |
| Rated Input Voltage | Built-in power module
Rated voltage range: 100 V AC to 240 V AC |
Available model: RG-PA600I-P-F
Rated voltage range: 100 V AC to 240 V AC Available model: RG-PA1000I-P-F Rated voltage range: 100 V AC to 240 V AC |
Available model: RG-PA600I-P-F
Rated voltage range: 100 V AC to 240 V AC Available model: RG-PA1000I-P-F Rated voltage range: 100 V AC to 240 V AC |
Built-in power module
Rated voltage range: 100 V AC to 240 V AC |
| Maximum input voltage | Built-in power module
Maximum voltage range: 90 V AC to 264 V AC |
Available model: RG-PA600I-P-F
Maximum voltage range: 90 V AC to 264 V AC Available model: RG-PA1000I-P-F Maximum voltage range: 90 V AC to 264 V AC |
Available model: RG-PA600I-P-F
Maximum voltage range: 90 V AC to 264 V AC Available model: RG-PA1000I-P-F Maximum voltage range: 90 V AC to 264 V AC |
Built-in power module
Maximum voltage range: 90 V AC to 264 V AC |
| PoE-capable Port | Ports 1 to 24 support PoE/PoE+ and HPoE power supply Maximum output power of a HPoE-capable port: 90 W |
Ports 1 to 48 support PoE/PoE+ power supply Ports 1 to 24 support HPoE power supply Maximum output power of a HPoE-capable port: 90 W |
Ports 1 to 24 support PoE/PoE+ and HPoE power supply Maximum output power of a HPoE-capable port: 90 W |
Ports 1 to 12 support PoE/PoE+ and HPoE power supply
Maximum output power of a HPoE-capable port: 90 W |
| Environment and Reliability | ||||
| MTBF | 22.18 years | 27.02 years | 22.18 years | 22.18 years |
| Primary airflow | Front/Left-to-rear airflow | Front/Left-to-rear airflow | Front/Left-to-rear airflow | Front/Left-to-rear airflow |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) | 0°C to 45°C (32°F to 113°F) | 0°C to 45°C (32°F to 113°F) | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | –40°C to +70°C (–40°F to +158°F) | –40°C to +70°C (–40°F to +158°F) | –40°C to +70°C (–40°F to +158°F) | –40°C to +70°C (–40°F to +158°F) |
| Operating Humidity | 10% RH to 90% RH (non-condensing) | 10% RH to 90% RH (non-condensing) | 10% RH to 90% RH (non-condensing) | 10% RH to 90% RH (non-condensing) |
| Storage Humidity | 5% RH to 95% RH (non-condensing) | 5% RH to 95% RH (non-condensing) | 5% RH to 95% RH (non-condensing) | 5% RH to 95% RH (non-condensing) |
| Surge Protection | 6 kV | 6 kV | 6 kV | 6 kV |
| Temperature Monitoring | Temperature alarm | Temperature alarm | Temperature alarm | Temperature alarm |
Software Specifications
| Software Specifications | RG-CS86-24MG4VS-UP | RG-CS86-48MG4VS2QXS-UPD | RG-CS86-24XMG4XS4VS-UPD | RG-CS86-12XMG4VS-UP |
| Ethernet switching | Jumbo frame (maximum length: 9216 bytes) | |||
| IEEE 802.1Q (supporting 4K VLANs) | ||||
| Voice VLAN | ||||
| Super VLAN, Private VLAN | ||||
| MAC VLAN, Port based VLAN, Protocol based VLAN, IP-Subnet based VLAN | ||||
| GVRP | ||||
| Basic QinQ
Flexible QinQ |
||||
| STP, RSTP, and MSTP | ||||
| ERPS (G.8032) | ||||
| LLDP/LLDP-MED | ||||
| LACP (IEEE 802.3ad) | ||||
| IP service | ARP | |||
| DHCP client, DHCP relay, and DHCP server | ||||
| DHCP snooping | ||||
| DNS | ||||
| DHCPv6 client and DHCPv6 relay | ||||
| DHCPv6 snooping | ||||
| Neighbor Discovery (ND) and ND snooping | ||||
| IP Routing | Static routing | |||
| RIP and RIPng | ||||
| OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6 | ||||
| BGP4 and BGP4+ | ||||
| IPv4 and IPv6 PBR | ||||
| ECMP | ||||
| Multicast | IGMP v1/v2/v3, and IGMP proxy | |||
| IGMP v1/v2/v3 snooping | ||||
| PIM-DM, PIM-SM, and PIM-SSM | ||||
| MSDP | ||||
| MLD v1/v2 | ||||
| MLD snooping v1/v2 | ||||
| PIM-SMv6 and PIM-SSM v6 | ||||
| ACL and QoS | Standard IP ACLs
Extended IP ACLs Extended MAC ACLs Time-based ACLs Expert-level ACLs ACL80 IPv6 ACL |
|||
| Port traffic rate limiting | ||||
| Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ | ||||
| Congestion avoidance: tail drop, RED, and WRED | ||||
| 802.1p/DSCP/ToS traffic classification
Eight priority queues per port |
||||
| Security | Multiple AAA modes | |||
| RADIUS and TACAS+ | ||||
| Port-based and MAC-based 802.1x authentication | ||||
| Web authentication | ||||
| HTTPS | ||||
| SSHv1, SSHv2 | ||||
| Global IP-MAC binding | ||||
| IP source guard | ||||
| SAVI | ||||
| CPP and NFPP | ||||
| Strict and loose RPF
uRPF ignoring default routes |
||||
| Reliability | REUP, RLDP, DLDP | |||
| IPv4 VRRP v2/v3 and IPv6 VRRP | ||||
| BFD | ||||
| GR for RIP, OSPF, BGP | ||||
| 1+1 power redundancy | ||||
| Hot swapping of power and fan modules | ||||
| Device virtualization | Virtual Switching Unit (VSU) | |||
| NMS and maintenance | SPAN, RSPAN, and ERSPAN | |||
| sFLOW | ||||
| NTP and SNTP | ||||
| FTP and TFTP | ||||
| SNMP v1/v2/v3 | ||||
| RMON (1, 2, 3, 9) | ||||
| NETCONF | ||||
| CWMP (TR-069) standard protocol | ||||
| gRPC | ||||
| Cloud and SON | ||||
| PoE | IEEE 802.3af, 802.3at and 802.3bt
Uninterruptible power supply upon hot start Port priority |
|||
Follow the steps to order a RG-CS86 multi-GE switch:
- Select a model of RG-CS86 series switches. The device is fully equipped with fan modules that do not need to be purchased separately.
- Select power modules based on switch models. At least one power module is required.
- Select optical modules based on optical interfaces of the switch.
Models marked with asterisks (*) in the ordering information are available later.
Switch and Power Module
| Model | Description |
| RG-CS86-24MG4VS-UP | 24 x 100M/1000M/2.5GE/5GE electrical ports with auto-negotiation 4 x 10GE/25GE SFP28 ports ,support PoE/PoE+/PoE++fixed AC power supply and fan |
| RG-CS86-48MG4VS2QXS-UPD | 48 x 100M/1000M/2.5GE/5GE electrical ports with auto-negotiation
4 x 10GE/25GE SFP28 + 2 x 40GE QSFP+ ports, support PoE/PoE+/PoE++(25-48 ports only support PoE/PoE+) 2 modular power supply slots (at least one RG-PA600I-P-F/ RG-PA1000I-P-F power module needed,no power module in default),3 modular fan slots (3 fan modules are equipped by default) |
| RG-CS86-24XMG4XS4VS-UPD | 24 x 100M/1000M/2.5GE/5GE/10GE electrical ports with auto-negotiation, 4 x 1GE/10GE SFP+ ports , 4 x 10GE/25GE SFP28 ports,support PoE/PoE+/PoE++
2 modular power supply slots (at least one RG-PA600I-P-F or RG-PA1000I-P-F power module needed,no power module in default),3 modular fan slots (3 fan modules are equipped by default) |
| RG-CS86-12XMG4VS-UP | 12 x 100M/1000M/2.5GE/5GE/10GE electrical ports with auto-negotiation, 4 x 10GE/25GE SFP28 ports,support PoE/PoE+/PoE++
fixed AC power supply and fan |
| RG-PA600I-P-F | 600 W AC power module |
| RG-PA1000I-P-F | 1000 W AC power module |
GE Optical Module
| Model | Description |
| Mini-GBIC-GT | 1000BASE-GT mini GBIC module |
| MINI-GBIC-SX-MM850 | 1000BASE-SX, SFP transceiver, SM (850 nm, 500 m, LC). |
| MINI-GBIC-LX-SM1310 | 1000BASE-LX, SFP transceiver, SM (1310 nm, 10 km, LC) |
| MINI-GBIC-LH40-SM1310 | 1000BASE-LH, SFP transceiver, SM (1310 nm, 40 km, LC) |
| MINI-GBIC-ZX80-SM1550 | 1000BASE-ZX80, SFP transceiver, SM (1550 nm, 80 km, LC) |
| GE-SFP-LX20-SM1310-BIDI | SFP BIDI Transceiver-TX1310/RX1550, 20 km, LC |
| GE-SFP-LX20-SM1550-BIDI | SFP BIDI Transceiver-TX1550/RX1310, 20 km, LC |
| GE-SFP-LH40-SM1310-BIDI | SFP BIDI Transceiver-TX1310/RX1550, 40 km, LC |
| GE-SFP-LH40-SM1550-BIDI | SFP BIDI Transceiver-TX1550/RX1310, 40 km, LC |
10GE Optical Module
| Model | Description |
| XG-SFP-SR-MM850 | 10GE SR, SFP+ transceiver, LC, 850-nm wavelength, applicable to SFP+ port 62.5 μm/125 μm : 33 m over MMF 50 μm/125 μm: 66 m over MMF 2000 MHz·km: 300 m over MMF |
| XG-SFP-LR-SM1310 | 10GE LR, SFP+ transceiver, LC, 1310-nm wavelength, 10 km over SMF, applicable to SFP+ ports |
| XG-SFP-ER-SM1550 | 10GE ER, SFP+ transceiver, LC, 1550-nm wavelength, 40 km over SMF, applicable to SFP+ ports |
| XG-SFP-AOC1M | 10GE SFP+ active optical cable, 1 m, including one cable and two interface modules |
| XG-SFP-AOC3M | 10GE SFP+ active optical cable, 3 m, including one cable and two interface modules |
| XG-SFP-AOC5M | 10GE SFP+ active optical cable, 5 m, including one cable and two interface modules |
25GE Optical Module
| Model | Description |
| VG-SFP-SR-MM850 | 25GE SR, SFP28, 850-nm wavelength, 100 m over MMF |
| VG-SFP-LR-SM1310 | 25GE LR, SFP28, 1310-nm wavelength, 10 km over SMF |
| VG-SFP-AOC5M | 25GE SFP+ active optical cable, 5 m, including two modules |
40GE Optical Module
| Model | Description |
| 40G-QSFP-SR-MM850 | 40GE SR, QSFP+ transceiver, applicable to QSFP+ ports OM3 and OM4 MMF, MPO, 8-core, 850-nm wavelength, 100 m over OM3 MMF or 150 m over OM4 MMF |
| 40G-QSFP-LR4 SM1310 | 40GE LR4, QSFP+ transceiver, LC, 1310-nm wavelength, 2-core, 10 km over SMF, applicable to QSFP+ ports |
| 40G-AOC-5M | 40GE QSFP+ active optical cable, 5 m, including one cable and two interface modules |
| 40G-AOC-10M | 40GE QSFP+ active optical cable, 10 m, including one cable and two interface modules |
