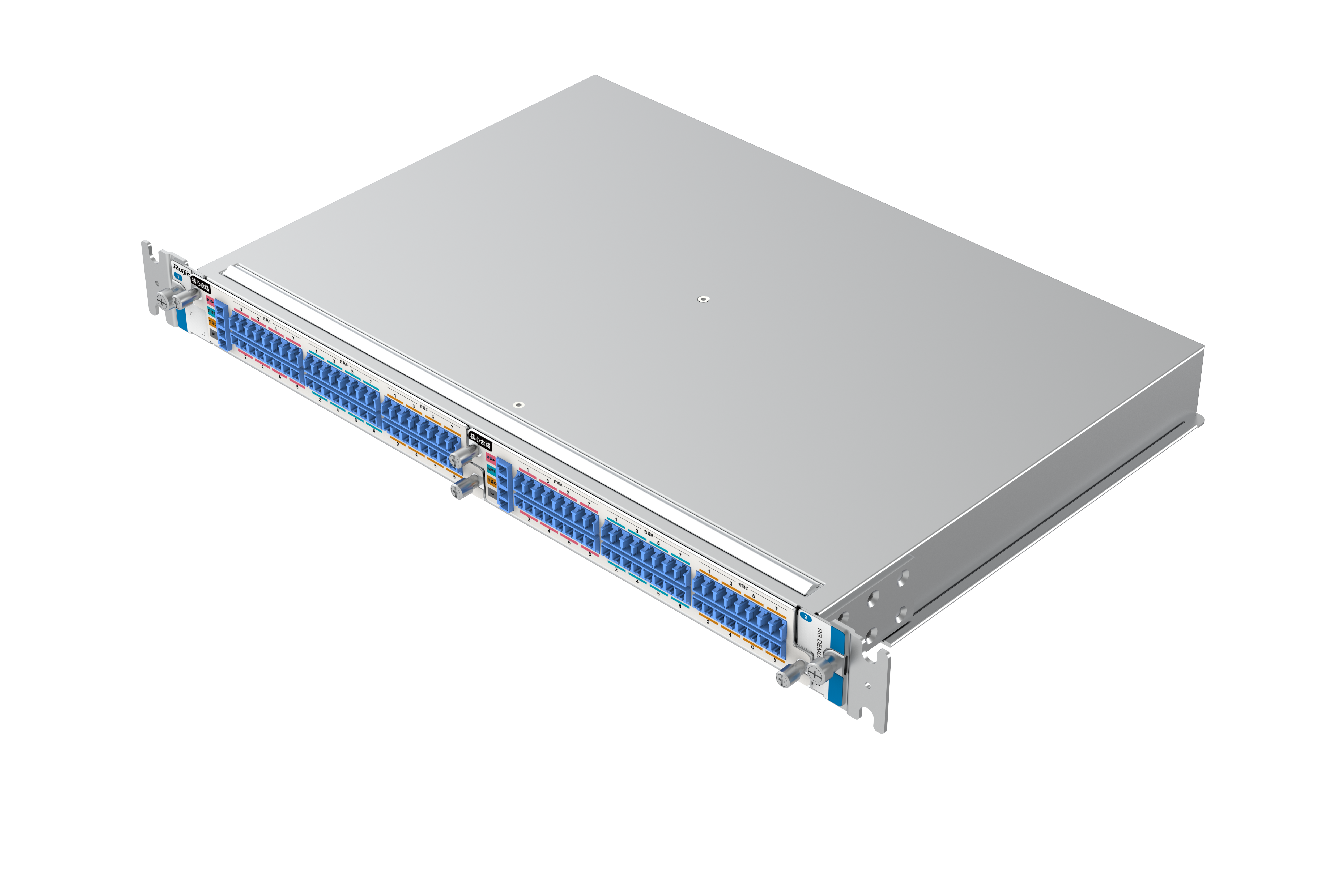

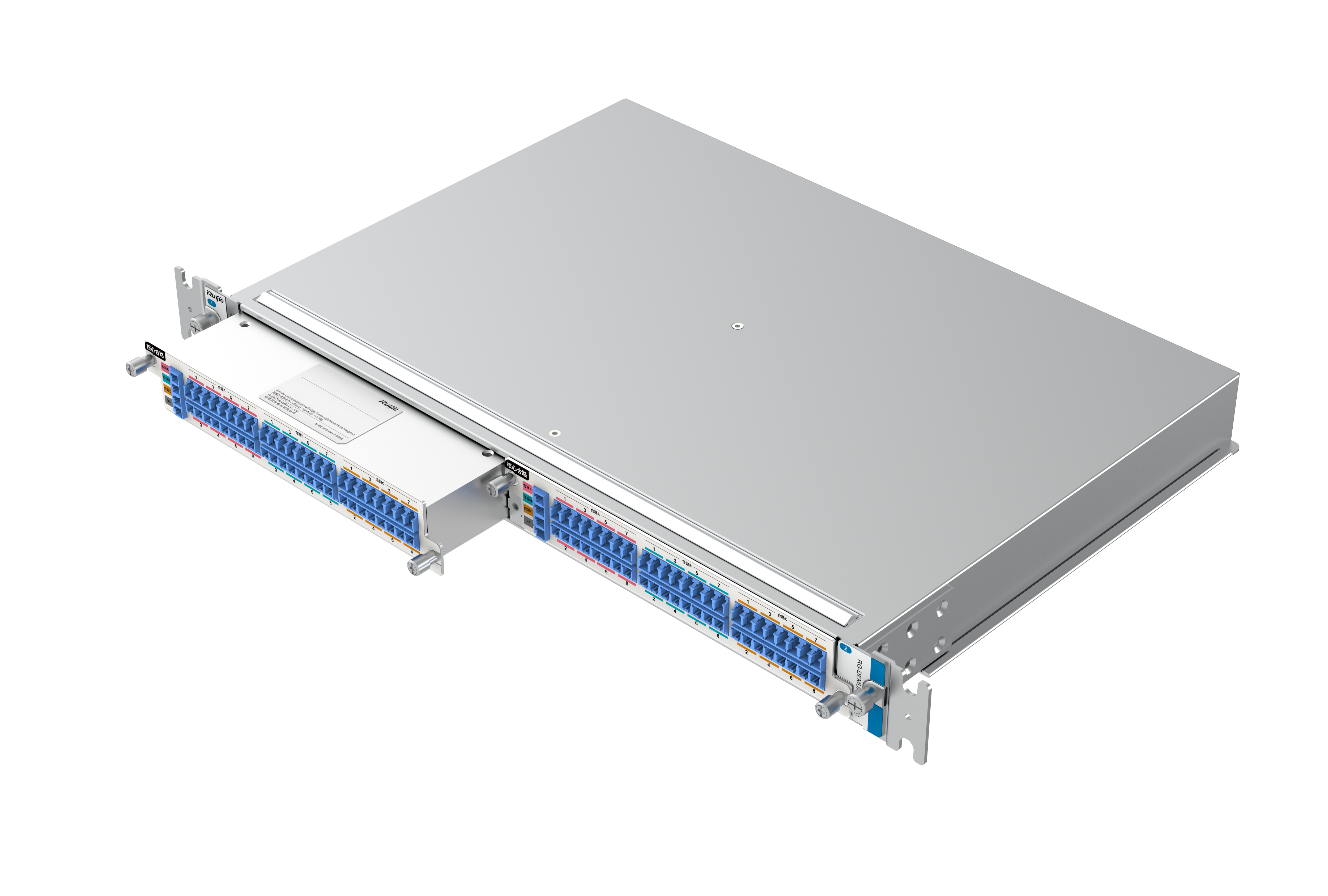

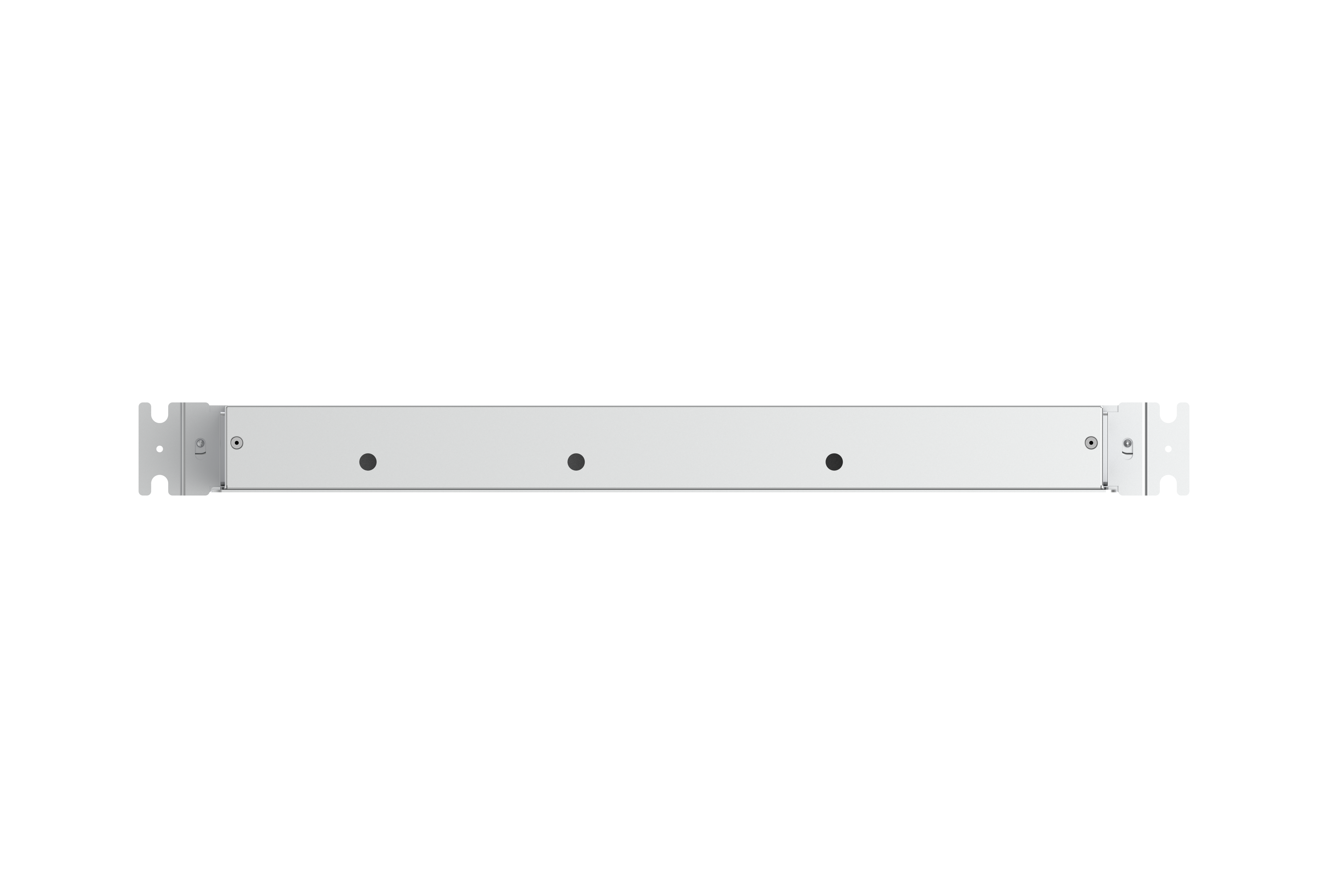

48-port combiner and transparent distribution device
Condition: NOB
RMA Warranty
Description
Used in Simplified Optical Ethernet solution to make distribution nodes passive and provide exclusive Gigabit/10G bandwidth for Fiber-to-The-Room (FTTR)
Highlight Features
- The 48-port combiner and transparent distribution device provide 48 ports for device access at full load. They use six WDM fibers for transmission, which effectively reduces trunk optical fibers required in buildings.
- The unique colored optical technology is used to provide exclusive Gigabit/10G bandwidth for indoor use, which meets network requirements.
- The all-optical network involves only passive devices, exempting ELV rooms from O&M management and making distribution nodes passive completely.
- All-optical deployment makes upgrade easy. One-time deployment of combiner and transparent distribution device may free you from upgrade worries for ten years.
- Cooperation with the INC controller to achieve easy and efficient O&M management
| Model | RG-DEMUX(C)-24LC/LC | RG-DEMUX-48LC/LC | RG-MUX-48LC/LC |
| Name | 24-port demultiplexer, with chassis and one reserved expansion slot | 48-port demultiplexer | 48-port transparent multiplexer |
| Number of CWDM 16-channel demultiplexer groups | 3 groups | 6 groups | 3 groups |
| Installation location | Core side | Core side | Building side |
| Maximum number of ports supported | 24 | 48 | 48 |
| Dimension (W × D × H) | 297.6 mm * 438.5 mm * 40.2 mm | 297.6 mm * 438.5 mm * 40.2 mm | 210.2 mm * 440 mm * 39.8 mm |
RG-DEMUX(C)-24LC/LC
Specifications
| Item | RG-DEMUX(C)-24LC/LC |
| Description | 24-port demultiplexer, with three demultiplexing ports |
| Center wavelength | 1271 nm to 1571 nm (CWDM) |
| Channel spacing | 20 nm |
| Channel bandwidth | ± 6.5 nm |
| Insertion loss | ≤ 4 dB (demultiplexer and transparent multiplexer) |
| Return loss | > 45 dB |
| Polarization dependent loss | < 0.3 dB |
| Adjacent channel isolation | > 25 dB |
| Non-adjacent channel isolation | > 35 dB |
| Connector | LC/UPC |
| Operating temperature | –40°C to +85°C (–40°F to +185°F) (WDM products have no requirement for the altitude) |
| Storage temperature | –40°C to +85°C (–40°F to +185°F) |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 90% RH |
| Standards | GR-1221-Core and GR-1209-Core |
| Net weight | 3.05 kg (6.72 lbs) |
| Number of CWDM 16-channel demultiplexer groups | Three groups |
| Maximum number of ports supported | 24 |
| Dimension (W x D x H) | 297.6 mm x 438.5 mm x 40.2 mm (11.72 in. x 17.26 in. x 1.58 in.) |
RG-DEMUX-48LC/LC
Specifications
| Item | RG-DEMUX-48LC/LC |
| Description | 48-port demultiplexer, with six demultiplexing ports |
| Center wavelength | 1271 nm to 1571 nm (CWDM) |
| Channel spacing | 20 nm |
| Channel bandwidth | ± 6.5 nm |
| Insertion loss | ≤ 4 dB (demultiplexer and transparent multiplexer) |
| Return loss | > 45 dB |
| Polarization dependent loss | < 0.3 dB |
| Adjacent channel isolation | > 25 dB |
| Non-adjacent channel isolation | > 35 dB |
| Connector | LC/UPC |
| Operating temperature | –40°C to +85°C (–40°F to +185°F) (WDM products have no requirement for the altitude) |
| Storage temperature | –40°C to +85°C (–40°F to +185°F) |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 90% RH |
| Standards | GR-1221-Core and GR-1209-Core |
| Net weight | 3.49 kg (7.69 lbs) |
| Number of CWDM 16-channel demultiplexer groups | Six groups |
| Maximum number of ports supported | 48 |
| Dimension (W x D x H) | 297.6 mm x 438.5 mm x 40.2 mm (11.72 in. x 17.26 in. x 1.58 in.) |
RG-MUX-48LC/LC
Specifications
| Item | RG-MUX-48LC/LC |
| Description | 48-port transparent multiplexer, with six demultiplexing ports |
| Center wavelength | 1271 nm to 1571 nm (CWDM) |
| Channel spacing | 20 nm |
| Channel bandwidth | ± 6.5 nm |
| Insertion loss | ≤ 4 dB (demultiplexer and transparent multiplexer) |
| Return loss | > 45 dB |
| Polarization dependent loss | < 0.3 dB |
| Adjacent channel isolation | > 25 dB |
| Non-adjacent channel isolation | > 35 dB |
| Connector | LC/UPC |
| Operating temperature | –40°C to +85°C (–40°F to +185°F) (WDM products have no requirement for the altitude) |
| Storage temperature | –40°C to +85°C (–40°F to +185°F) |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 90% RH |
| Standards | GR-1221-Core and GR-1209-Core |
| Net weight | 3.01 kg (6.64 lbs) |
| Number of CWDM 16-channel demultiplexer groups | Three groups |
| Maximum number of ports supported | 48 |
| Dimension (W x D x H) | 210.2 mm x 440 mm x 39.8 mm (8.28 in. x 17.32 in. x 1.57 in.) |
