expansion module of the core combiner
Condition: NOB
RMA Warranty
Description
Used in Simplified Optical Ethernet solution to make distribution nodes passive and provide exclusive Gigabit/10G bandwidth for Fiber-to-The-Room (FTTR)
Highlight Features
- The expansion module of the 24-port core combiner uses three WDM fibers for transmission, which effectively reduces trunk optical fibers required in buildings.
- The unique colored optical technology is used to provide exclusive Gigabit/10G bandwidth for indoor use, which meets network requirements.
- The all-optical network involves only passive devices, exempting ELV rooms from O&M management and making distribution nodes passive completely.
- The modular expansion module is easy to fix and install.
Specifications
| Model | RG-DEMUX(C)-24LC/LC | RG-DEMUX-48LC/LC | RG-MUX-48LC/LC |
| Name | 24-port demultiplexer, with chassis and one reserved expansion slot | 48-port demultiplexer | 48-port transparent multiplexer |
| Number of CWDM 16-channel demultiplexer groups | 3 groups | 6 groups | 3 groups |
| Installation location | Core side | Core side | Building side |
| Maximum number of ports supported | 24 | 48 | 48 |
| Dimension (W × D × H) | 297.6 mm * 438.5 mm * 40.2 mm | 297.6 mm * 438.5 mm * 40.2 mm | 210.2 mm * 440 mm * 39.8 mm |

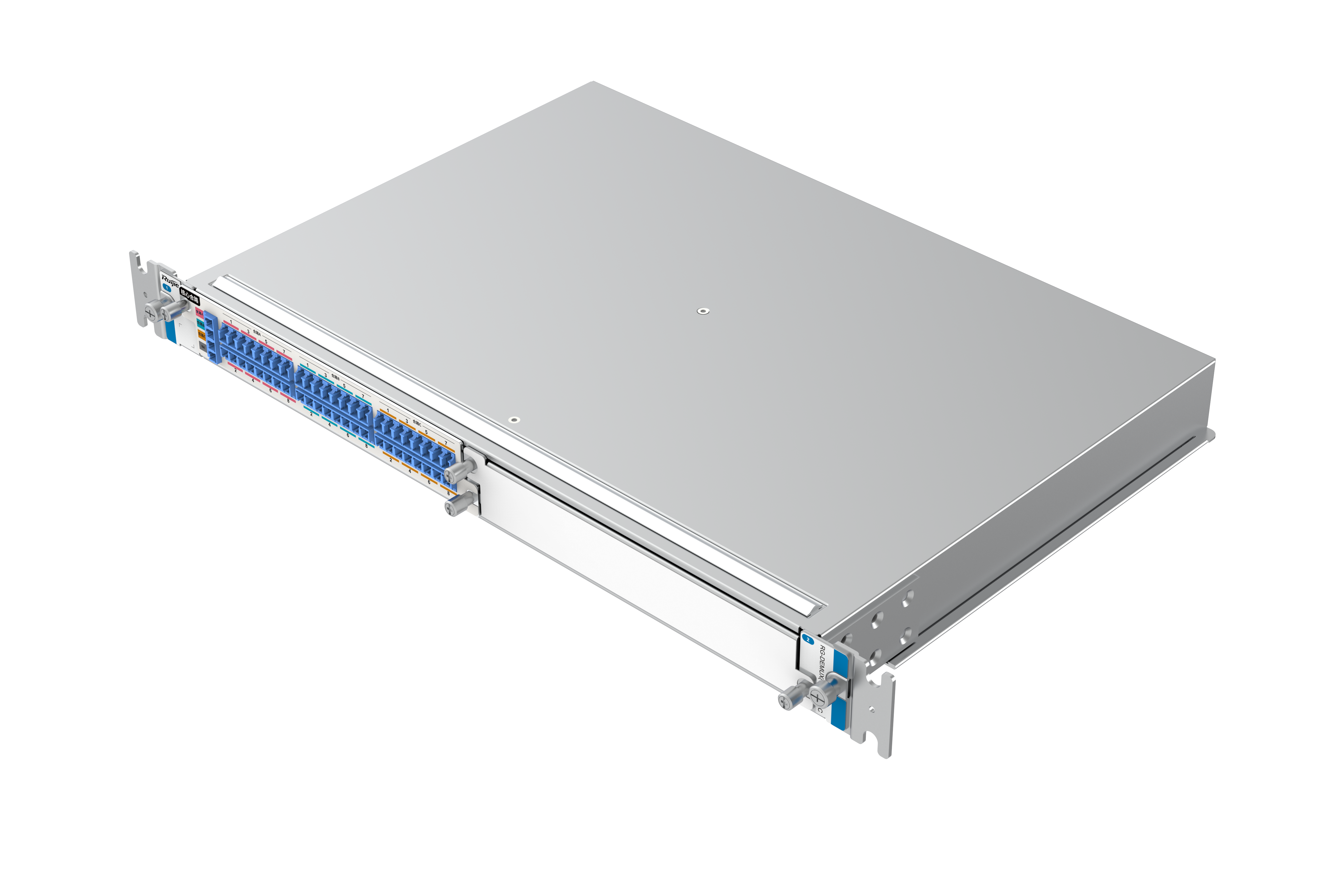

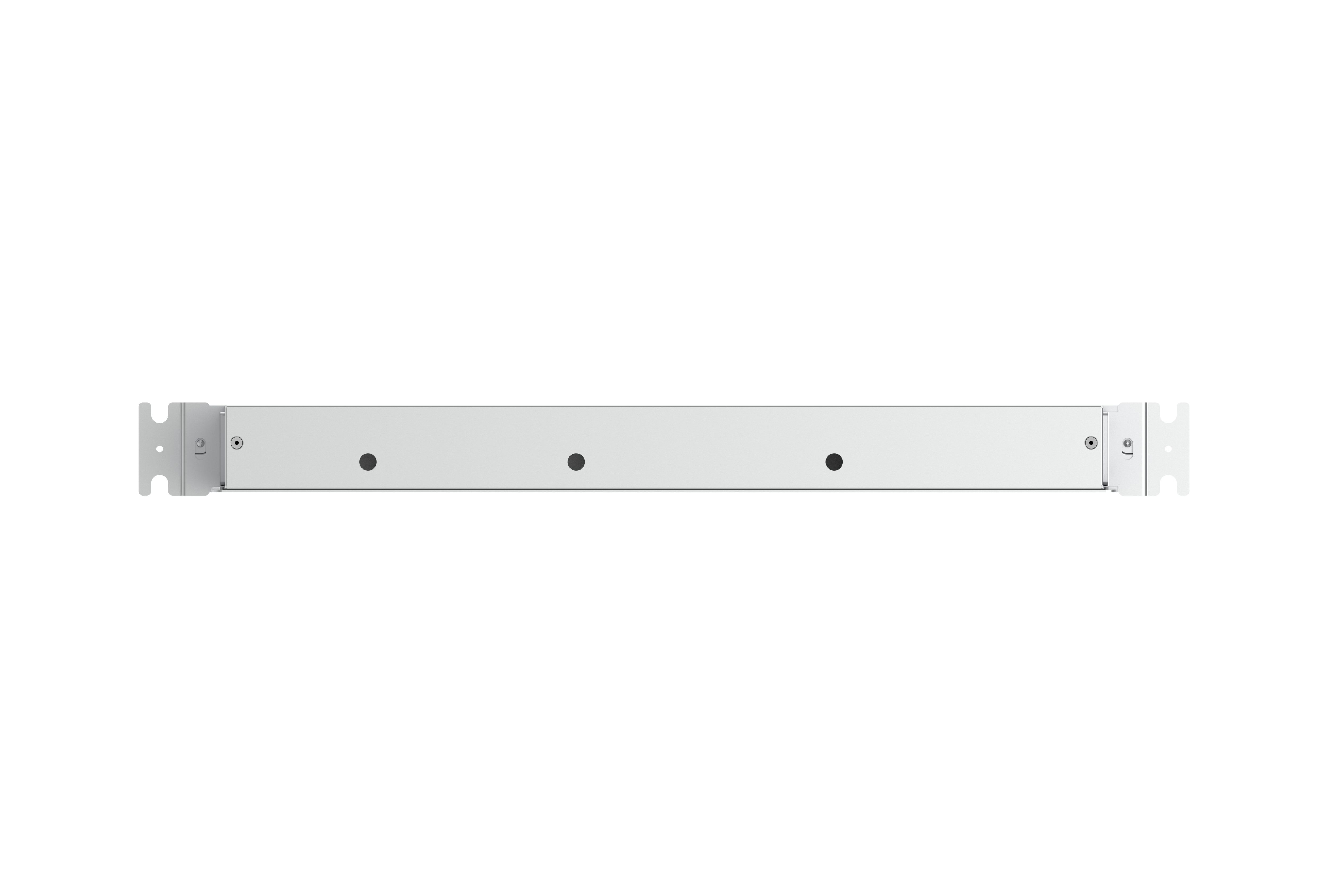

RG-DEMUX(C)-24LC/LC
Specifications
| Item | RG-DEMUX(C)-24LC/LC |
| Description | 24-port demultiplexer, with three demultiplexing ports |
| Center wavelength | 1271 nm to 1571 nm (CWDM) |
| Channel spacing | 20 nm |
| Channel bandwidth | ± 6.5 nm |
| Insertion loss | ≤ 4 dB (demultiplexer and transparent multiplexer) |
| Return loss | > 45 dB |
| Polarization dependent loss | < 0.3 dB |
| Adjacent channel isolation | > 25 dB |
| Non-adjacent channel isolation | > 35 dB |
| Connector | LC/UPC |
| Operating temperature | –40°C to +85°C (–40°F to +185°F) (WDM products have no requirement for the altitude) |
| Storage temperature | –40°C to +85°C (–40°F to +185°F) |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 90% RH |
| Standards | GR-1221-Core and GR-1209-Core |
| Net weight | 3.05 kg (6.72 lbs) |
| Number of CWDM 16-channel demultiplexer groups | Three groups |
| Maximum number of ports supported | 24 |
| Dimension (W x D x H) | 297.6 mm x 438.5 mm x 40.2 mm (11.72 in. x 17.26 in. x 1.58 in.) |
RG-DEMUX-48LC/LC
Specifications
| Item | RG-DEMUX-48LC/LC |
| Description | 48-port demultiplexer, with six demultiplexing ports |
| Center wavelength | 1271 nm to 1571 nm (CWDM) |
| Channel spacing | 20 nm |
| Channel bandwidth | ± 6.5 nm |
| Insertion loss | ≤ 4 dB (demultiplexer and transparent multiplexer) |
| Return loss | > 45 dB |
| Polarization dependent loss | < 0.3 dB |
| Adjacent channel isolation | > 25 dB |
| Non-adjacent channel isolation | > 35 dB |
| Connector | LC/UPC |
| Operating temperature | –40°C to +85°C (–40°F to +185°F) (WDM products have no requirement for the altitude) |
| Storage temperature | –40°C to +85°C (–40°F to +185°F) |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 90% RH |
| Standards | GR-1221-Core and GR-1209-Core |
| Net weight | 3.49 kg (7.69 lbs) |
| Number of CWDM 16-channel demultiplexer groups | Six groups |
| Maximum number of ports supported | 48 |
| Dimension (W x D x H) | 297.6 mm x 438.5 mm x 40.2 mm (11.72 in. x 17.26 in. x 1.58 in.) |
RG-MUX-48LC/LC
Specifications
| Item | RG-MUX-48LC/LC |
| Description | 48-port transparent multiplexer, with six demultiplexing ports |
| Center wavelength | 1271 nm to 1571 nm (CWDM) |
| Channel spacing | 20 nm |
| Channel bandwidth | ± 6.5 nm |
| Insertion loss | ≤ 4 dB (demultiplexer and transparent multiplexer) |
| Return loss | > 45 dB |
| Polarization dependent loss | < 0.3 dB |
| Adjacent channel isolation | > 25 dB |
| Non-adjacent channel isolation | > 35 dB |
| Connector | LC/UPC |
| Operating temperature | –40°C to +85°C (–40°F to +185°F) (WDM products have no requirement for the altitude) |
| Storage temperature | –40°C to +85°C (–40°F to +185°F) |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 90% RH |
| Standards | GR-1221-Core and GR-1209-Core |
| Net weight | 3.01 kg (6.64 lbs) |
| Number of CWDM 16-channel demultiplexer groups | Three groups |
| Maximum number of ports supported | 48 |
| Dimension (W x D x H) | 210.2 mm x 440 mm x 39.8 mm (8.28 in. x 17.32 in. x 1.57 in.) |
