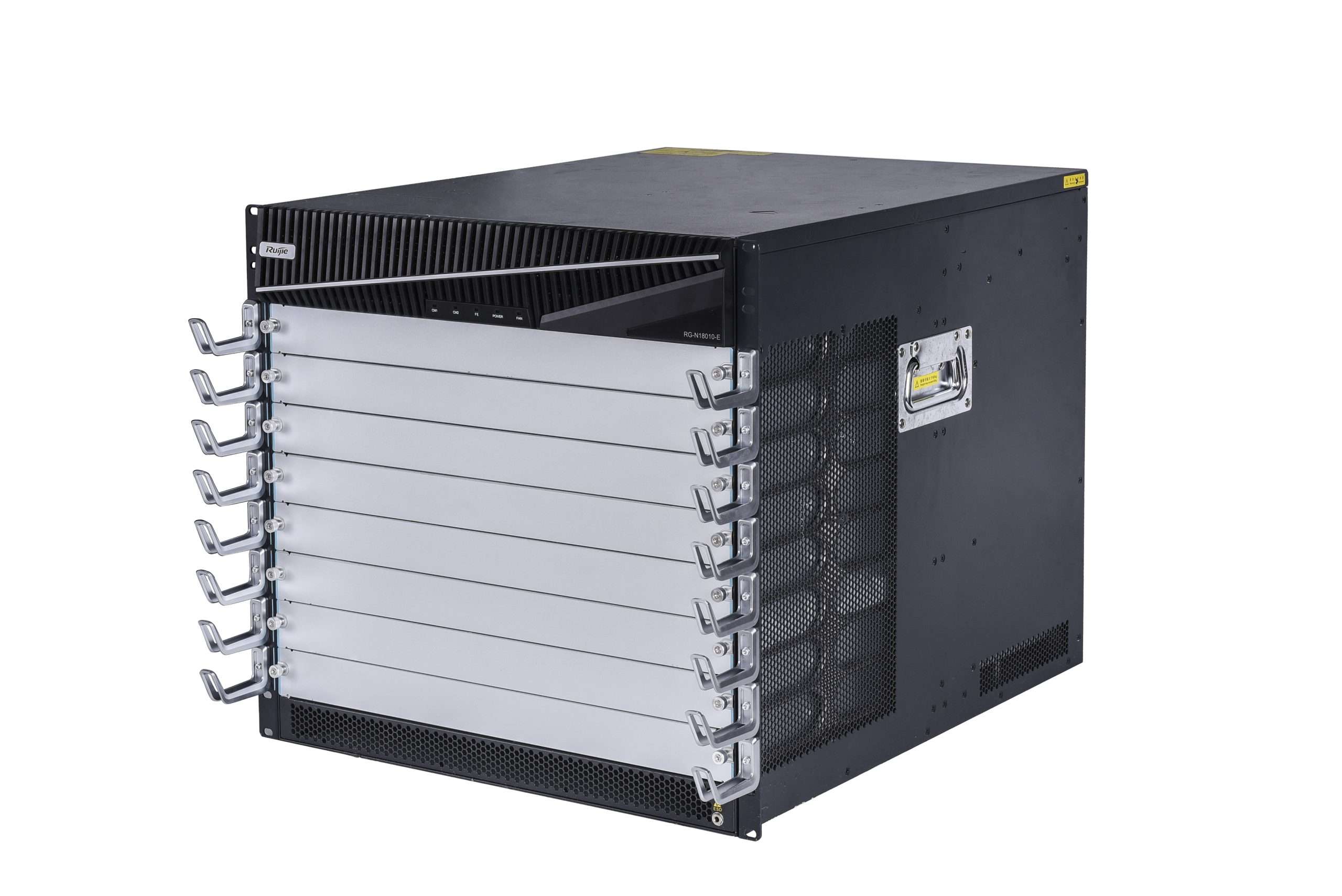

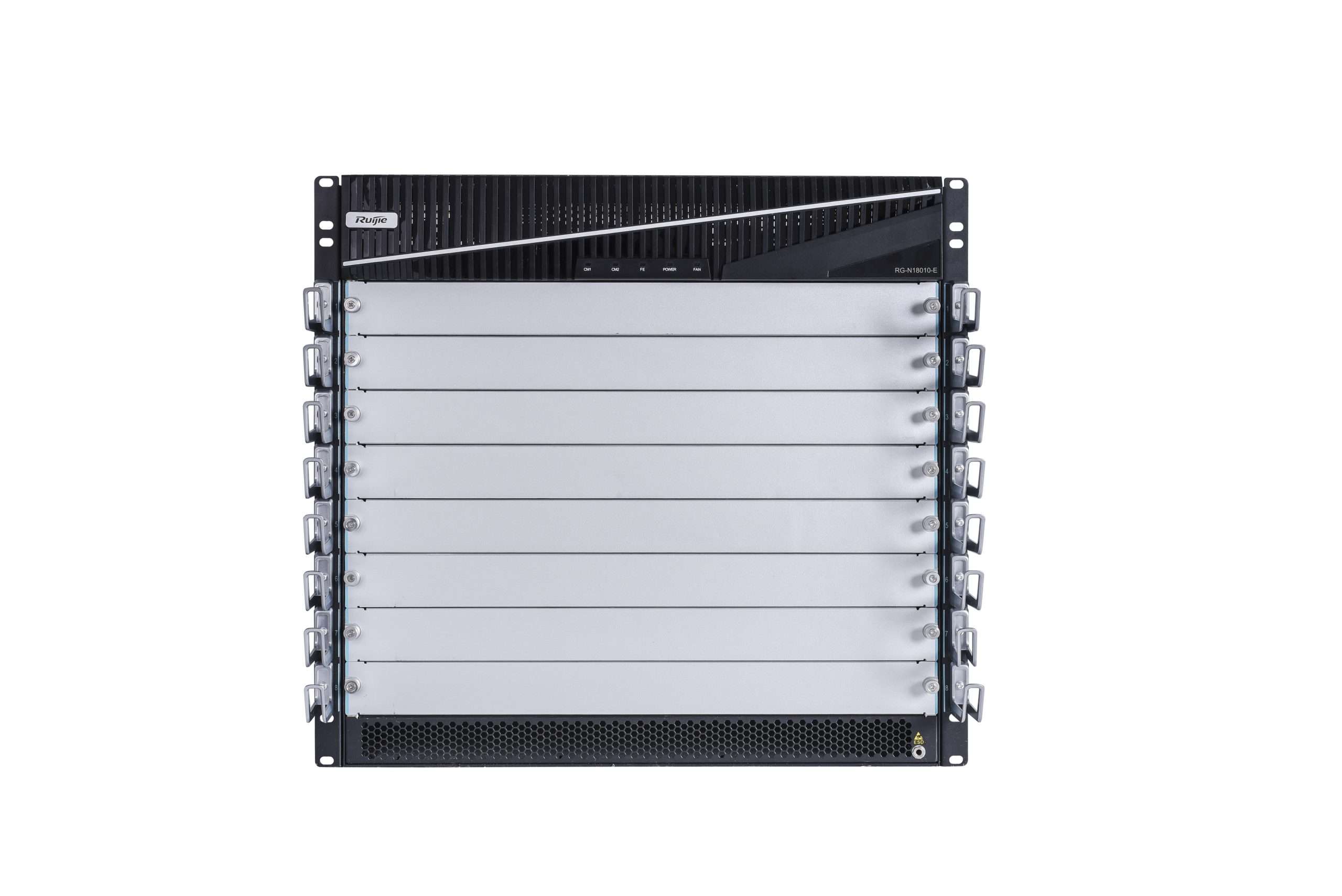

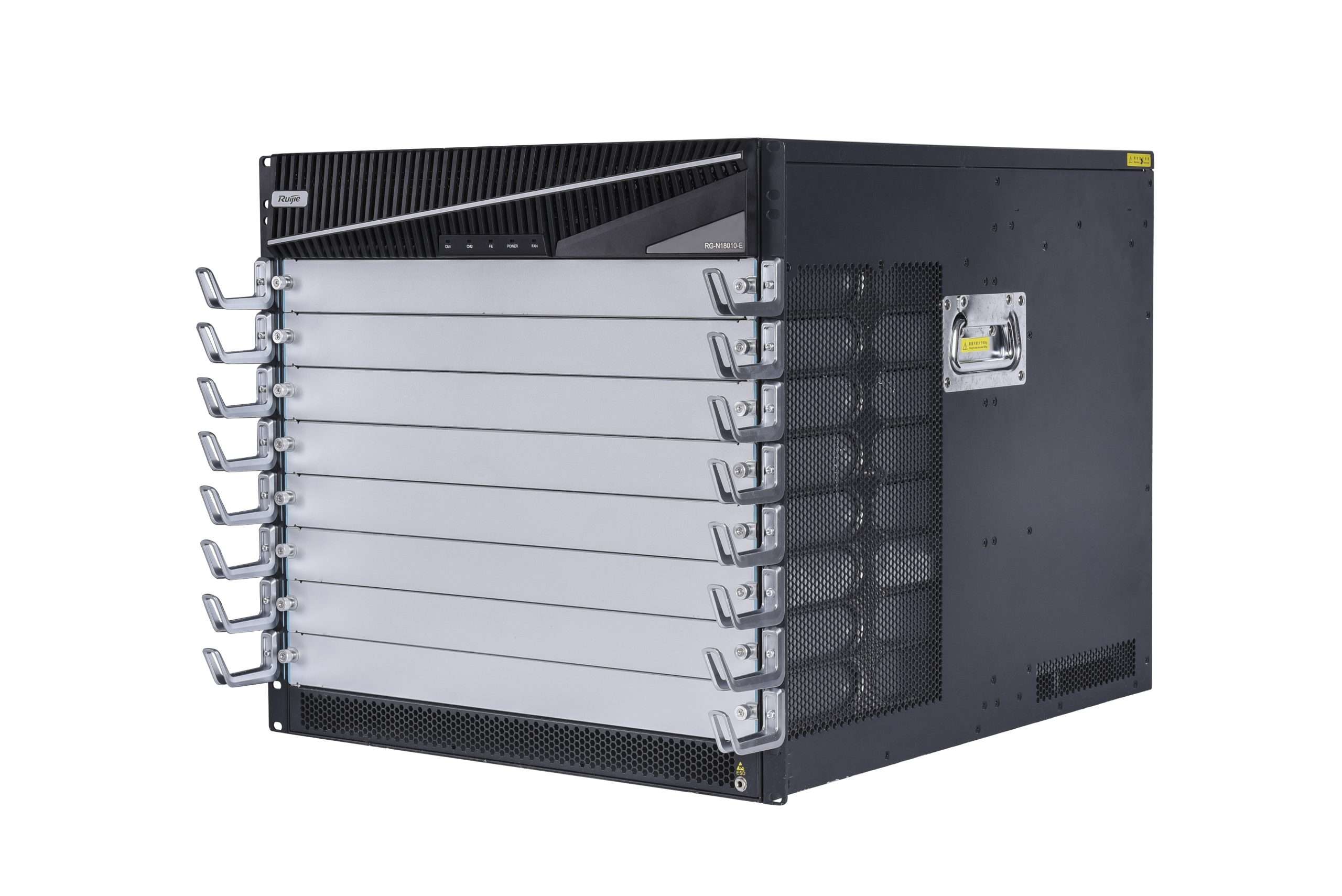

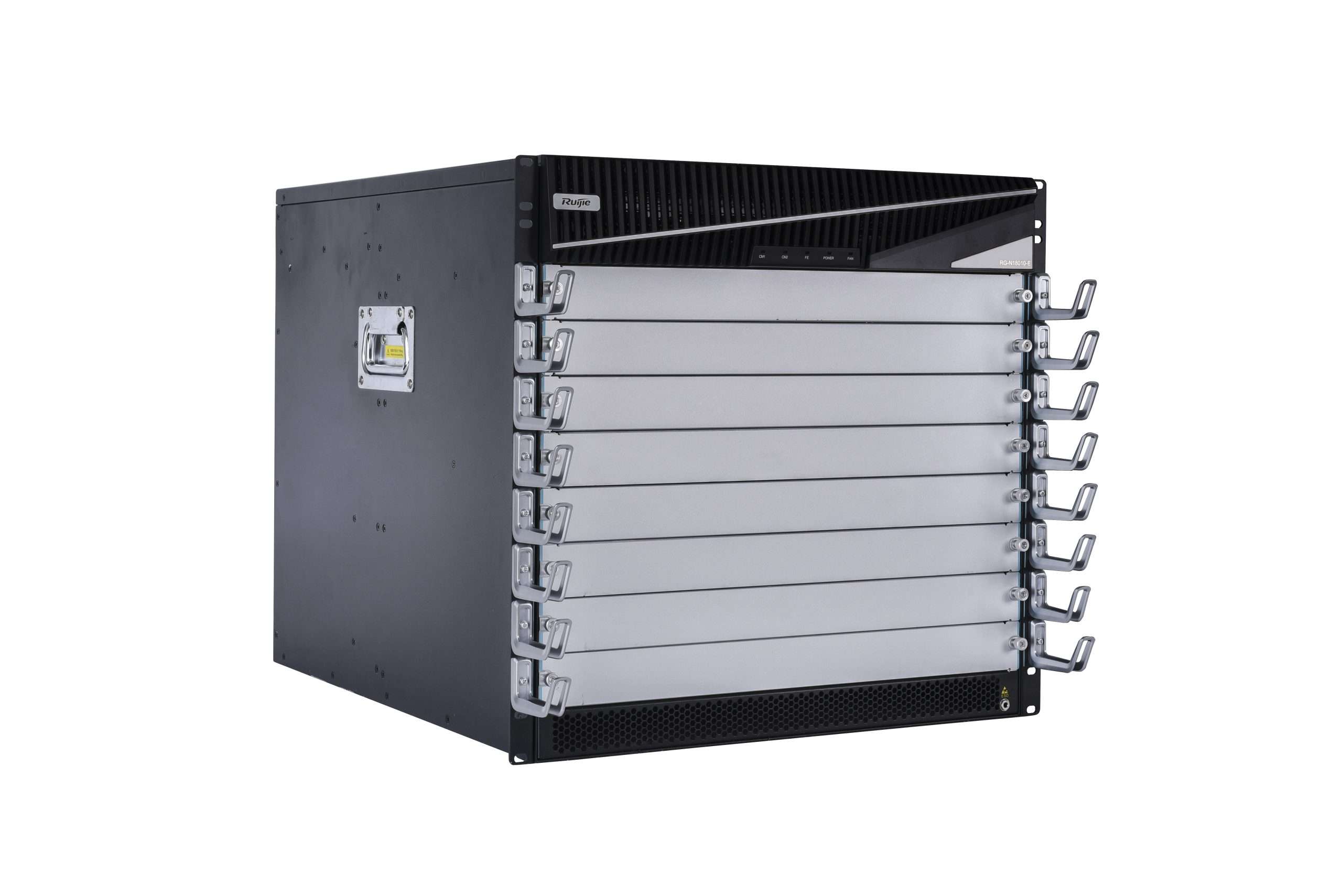

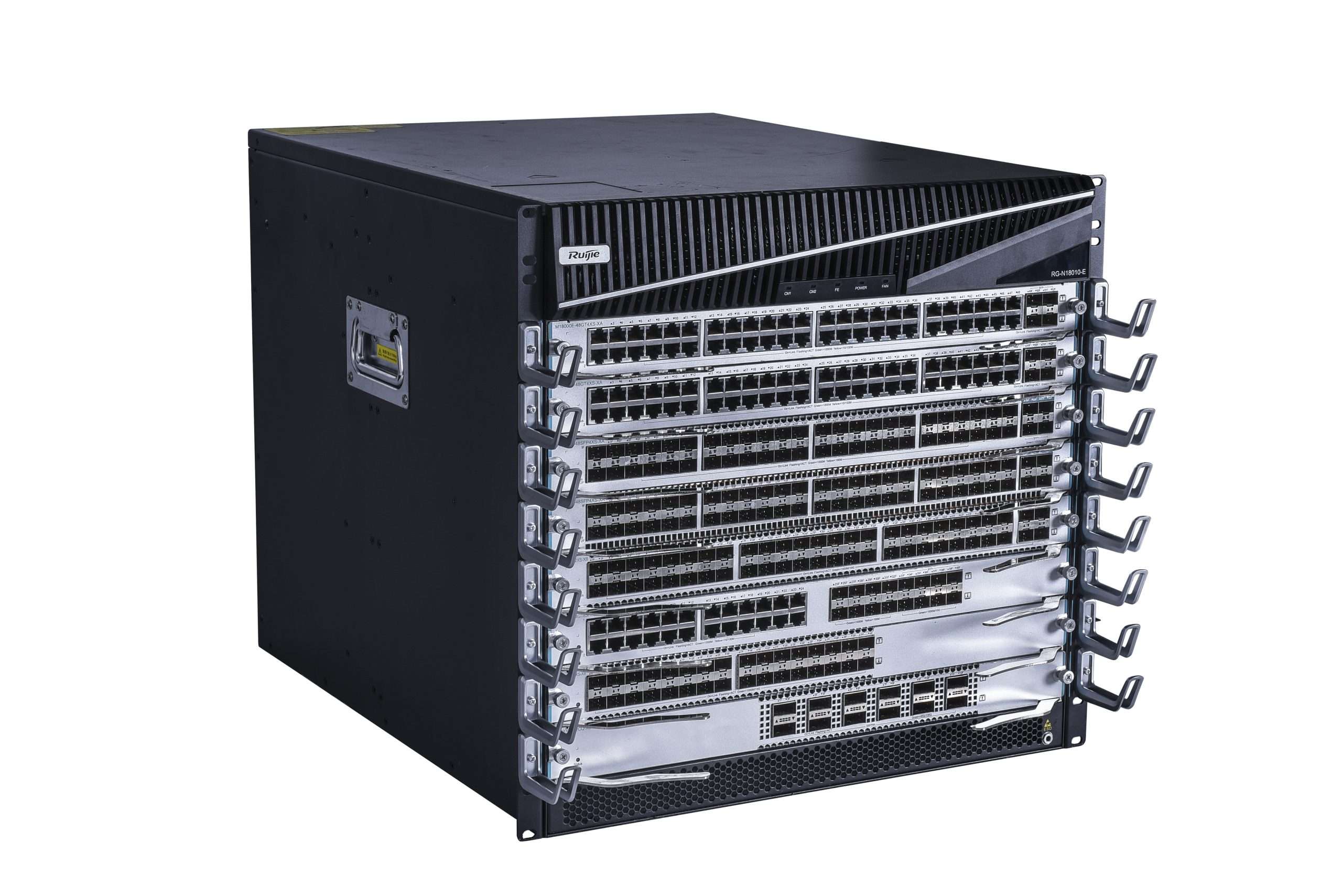

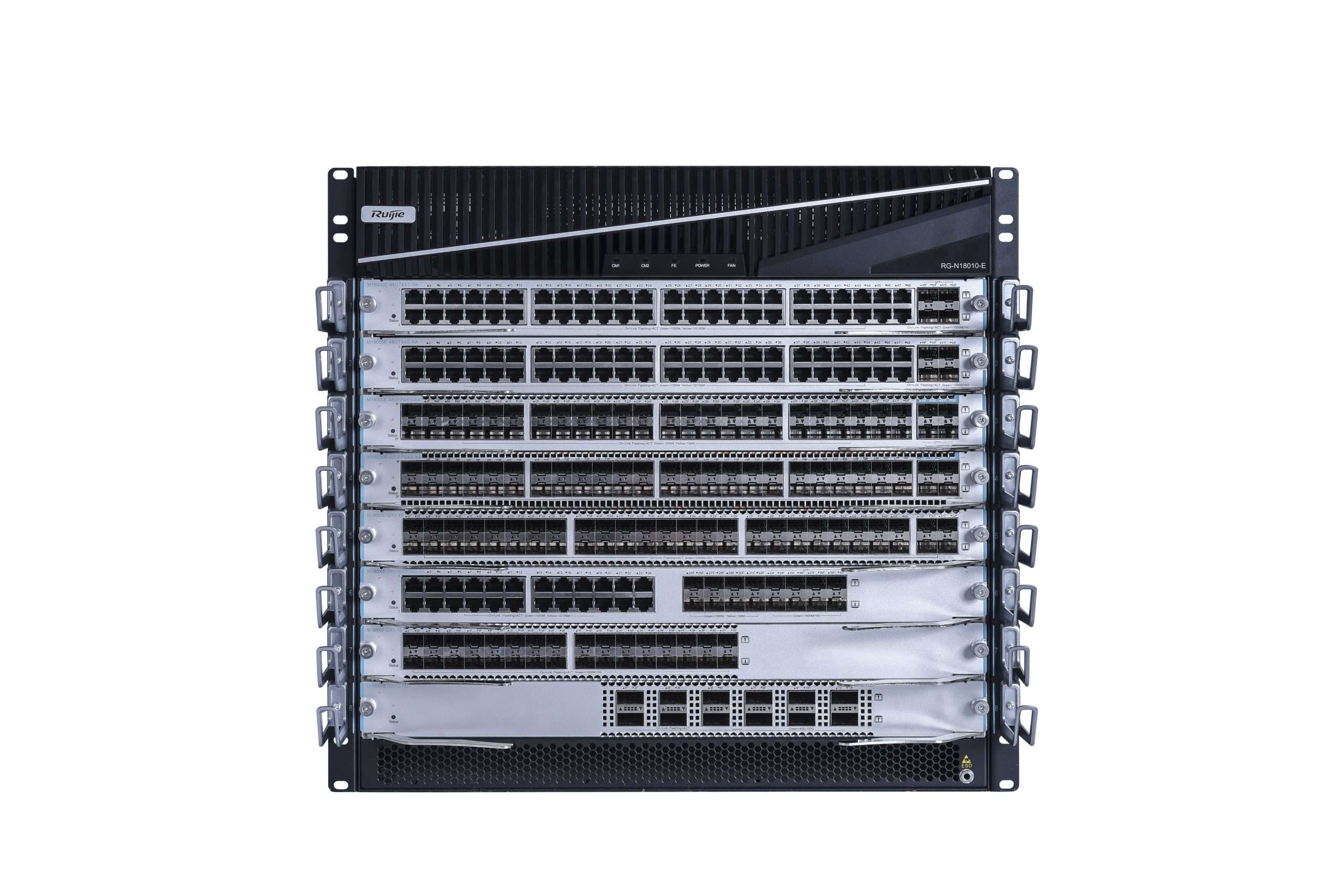

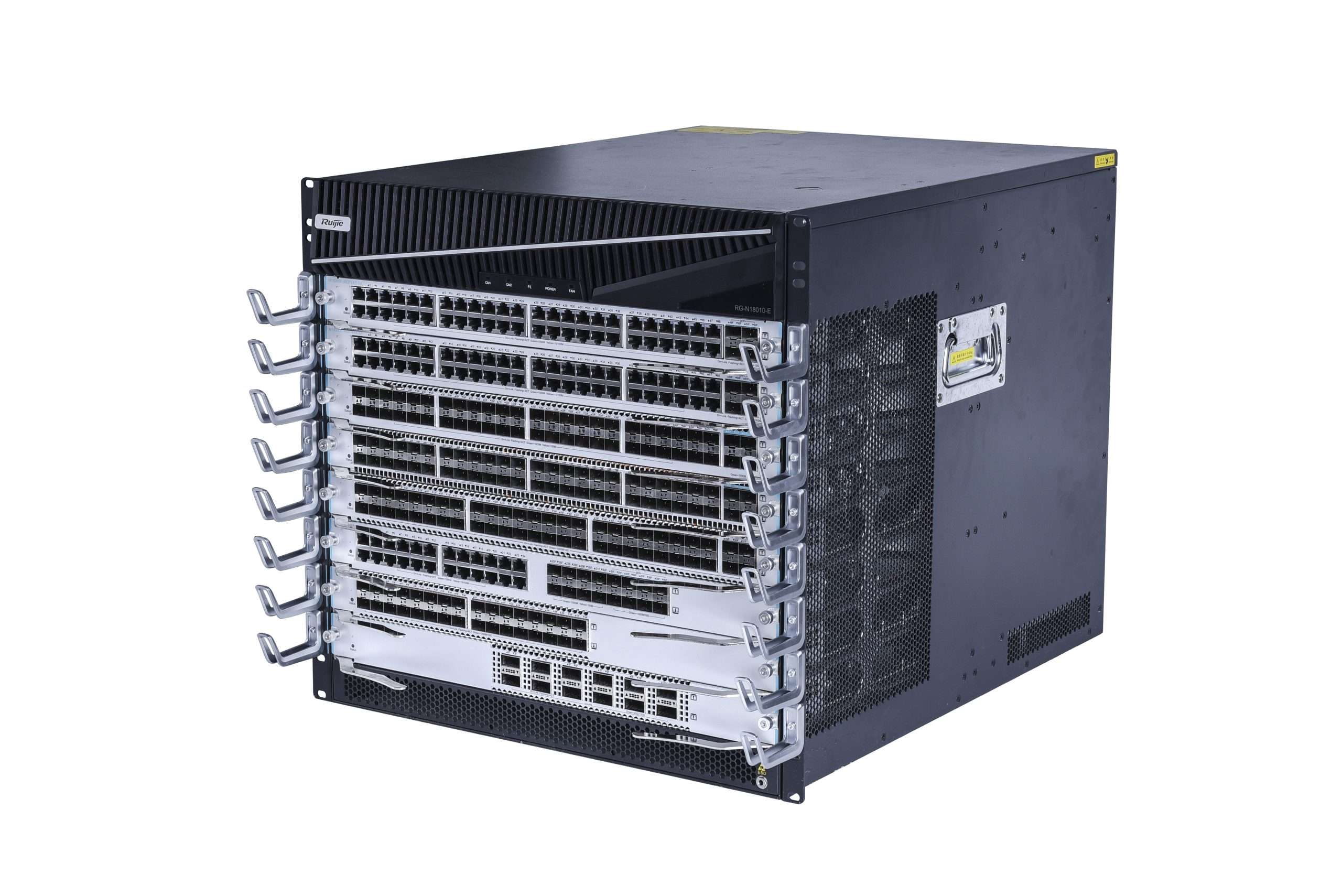

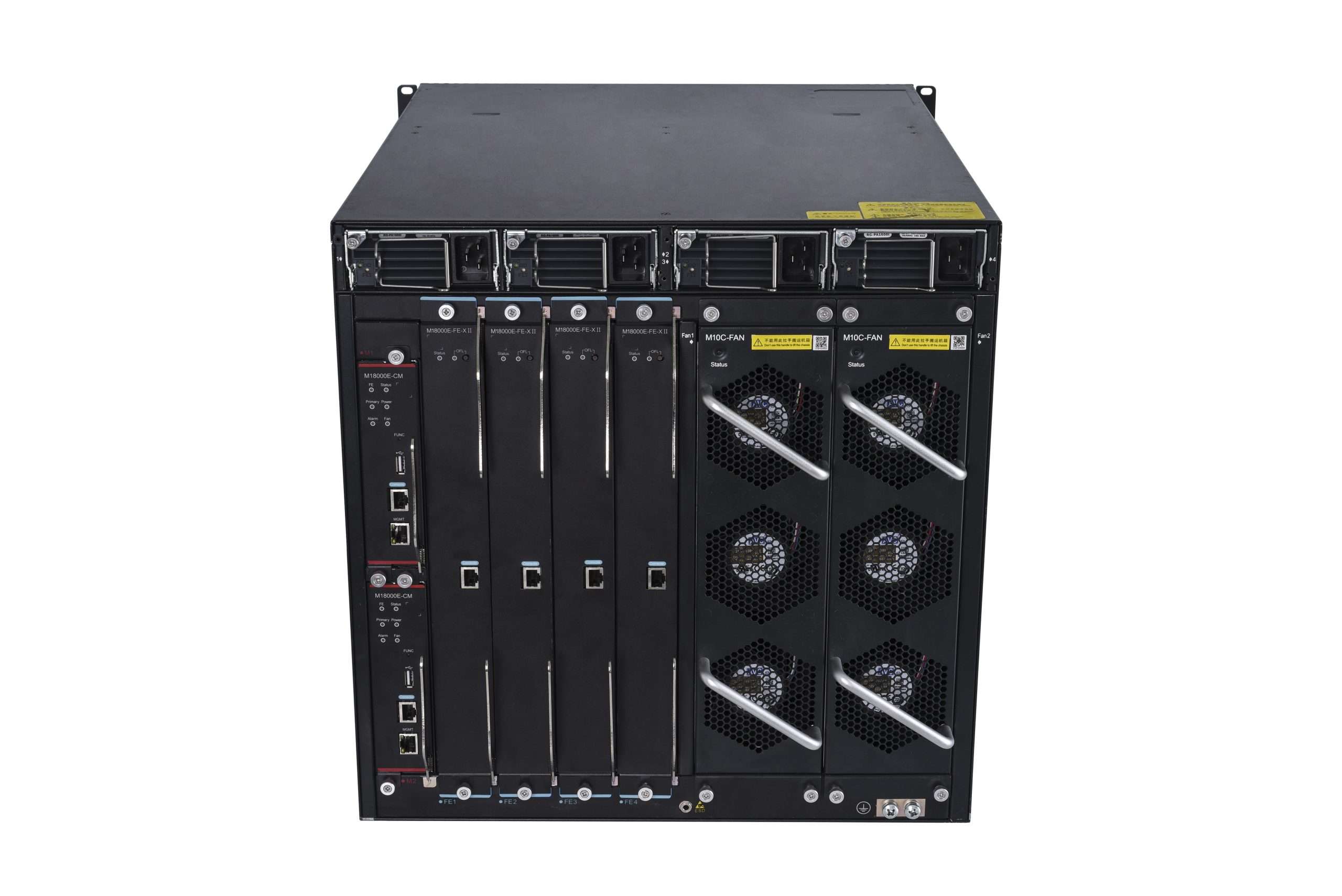

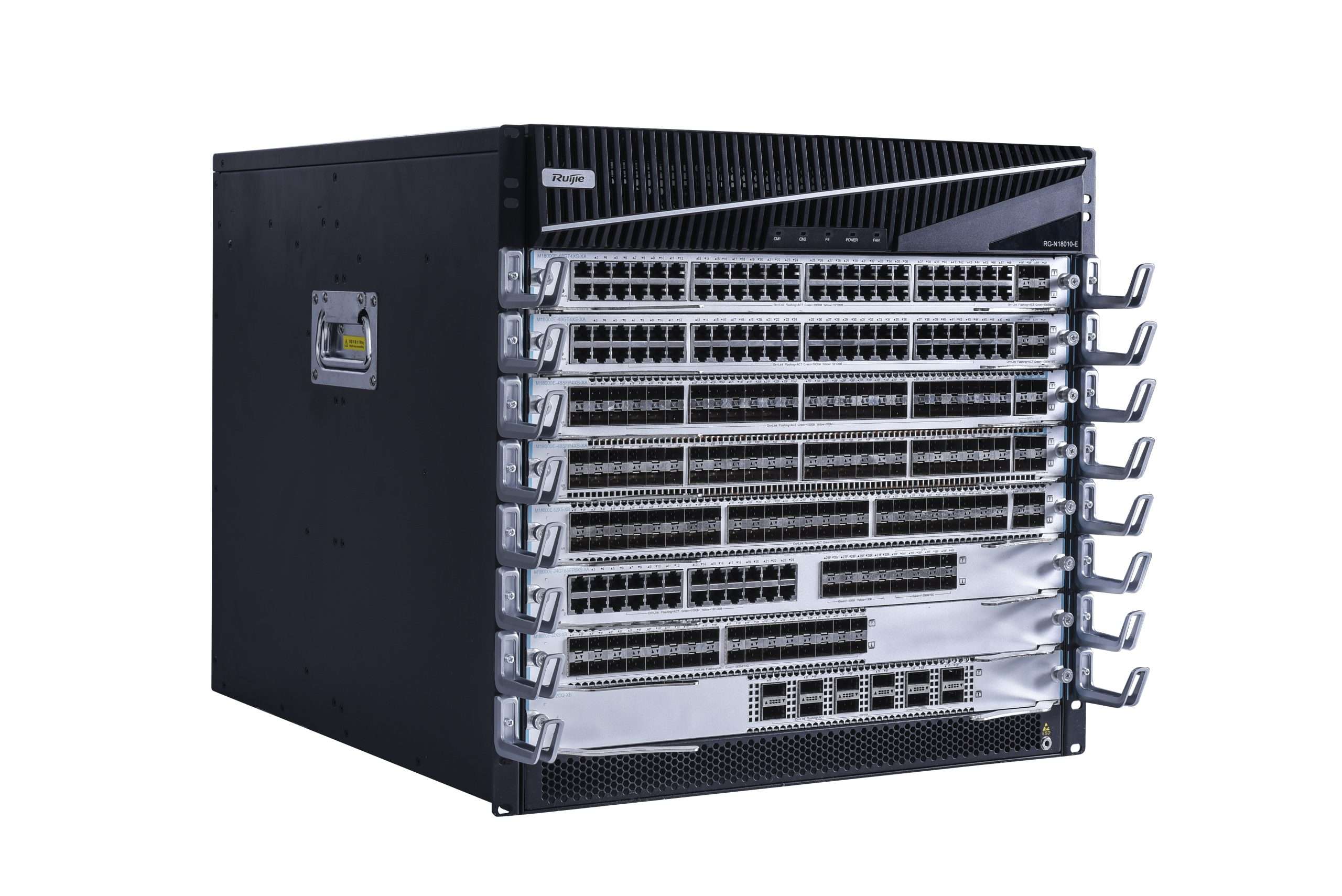

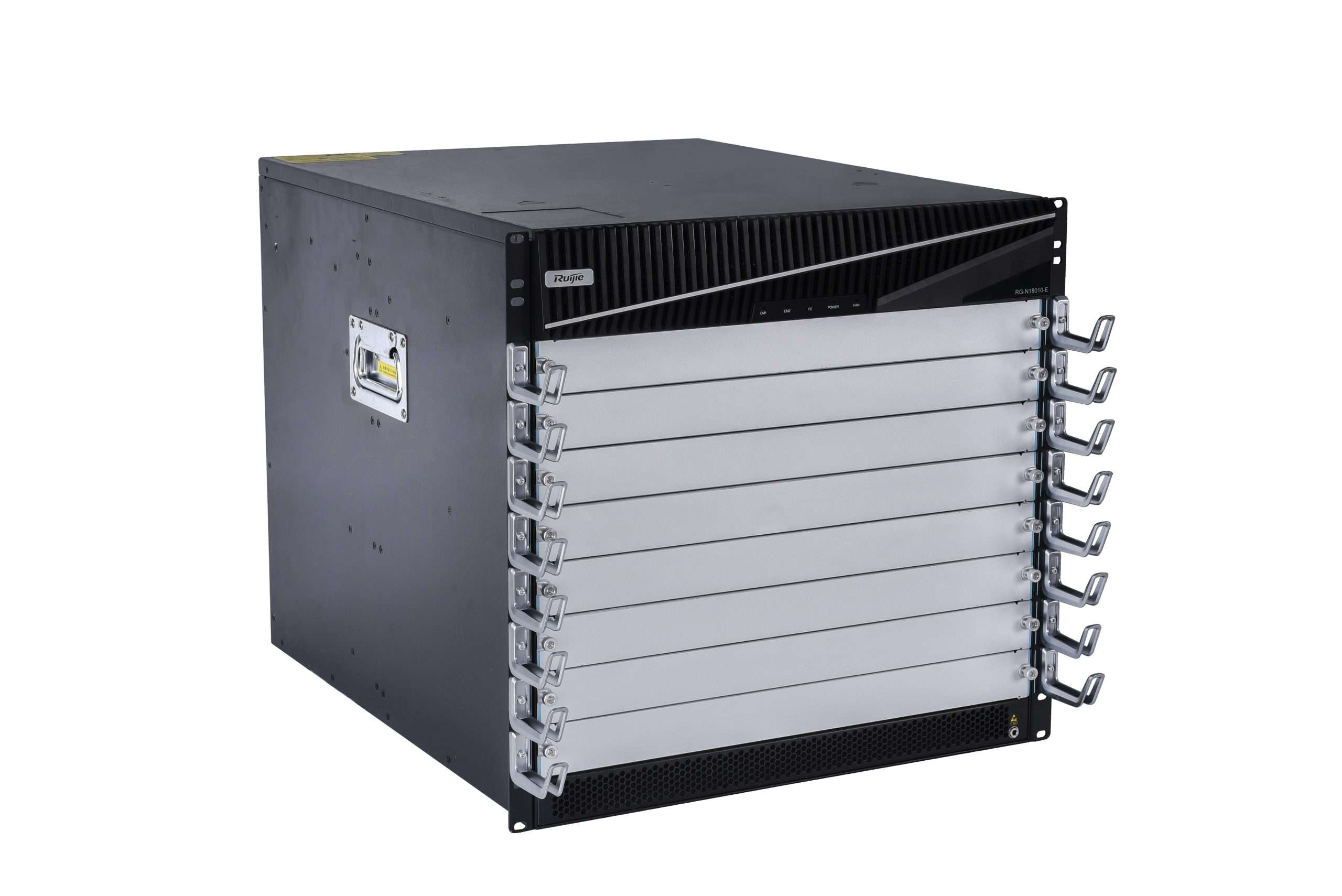

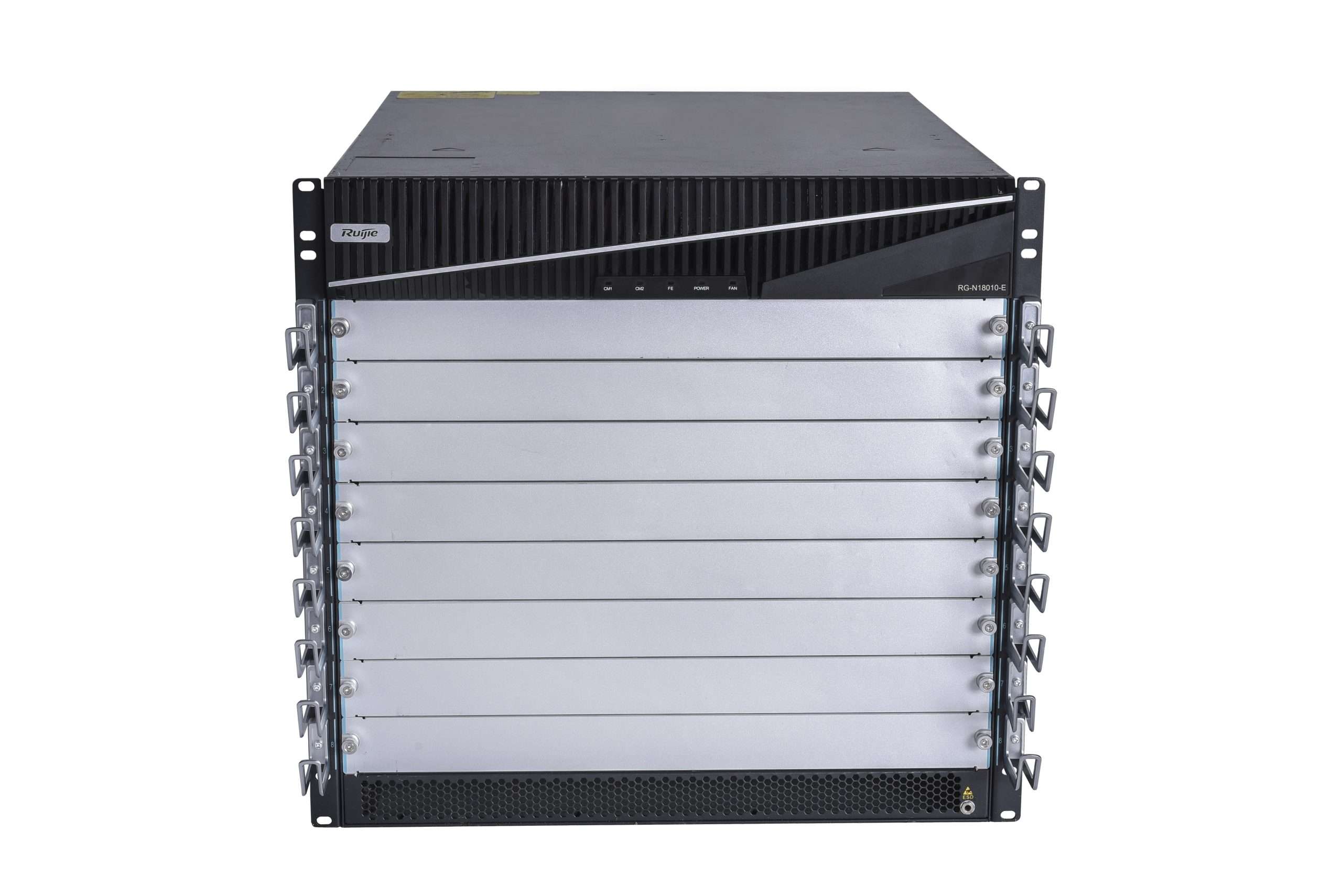

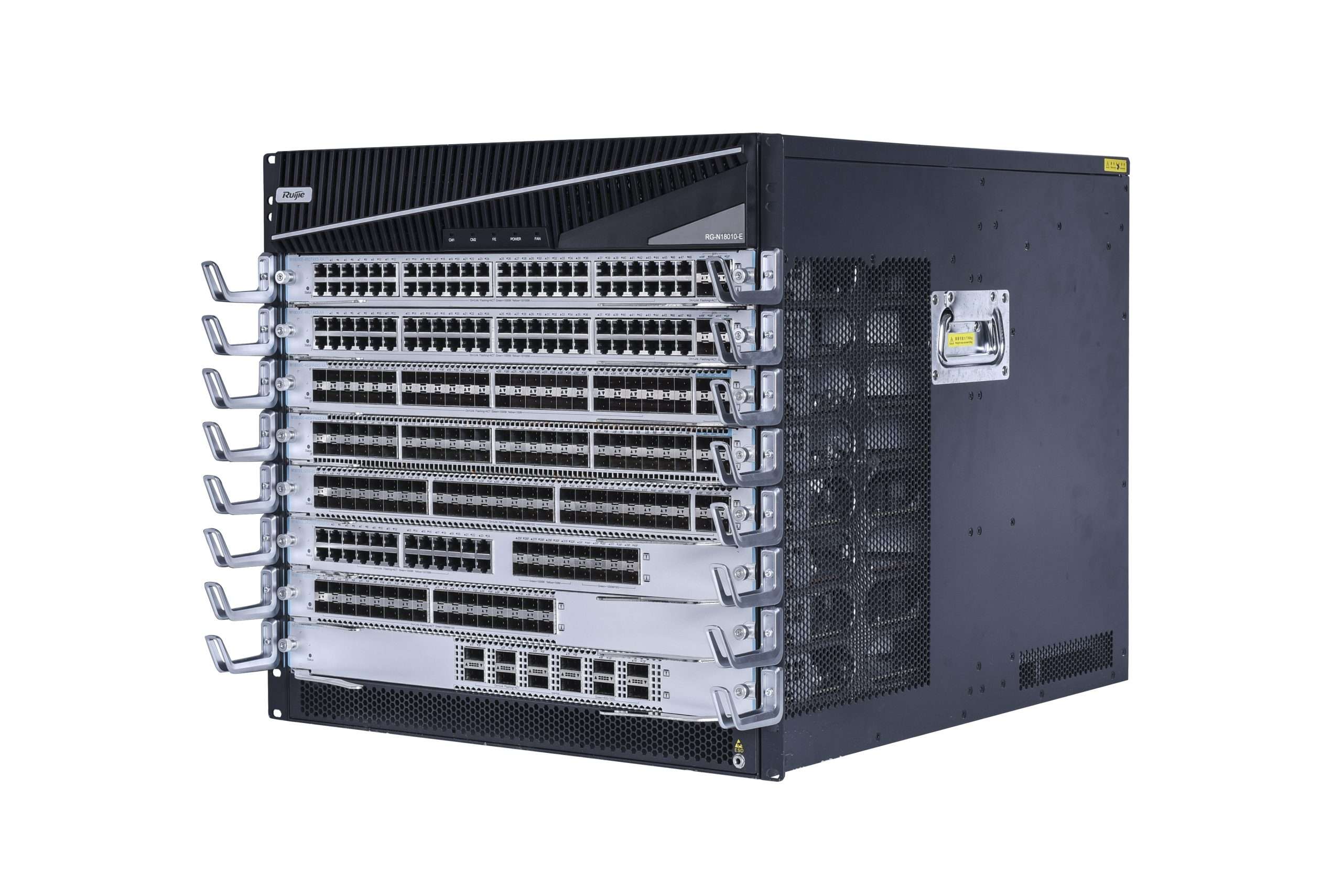

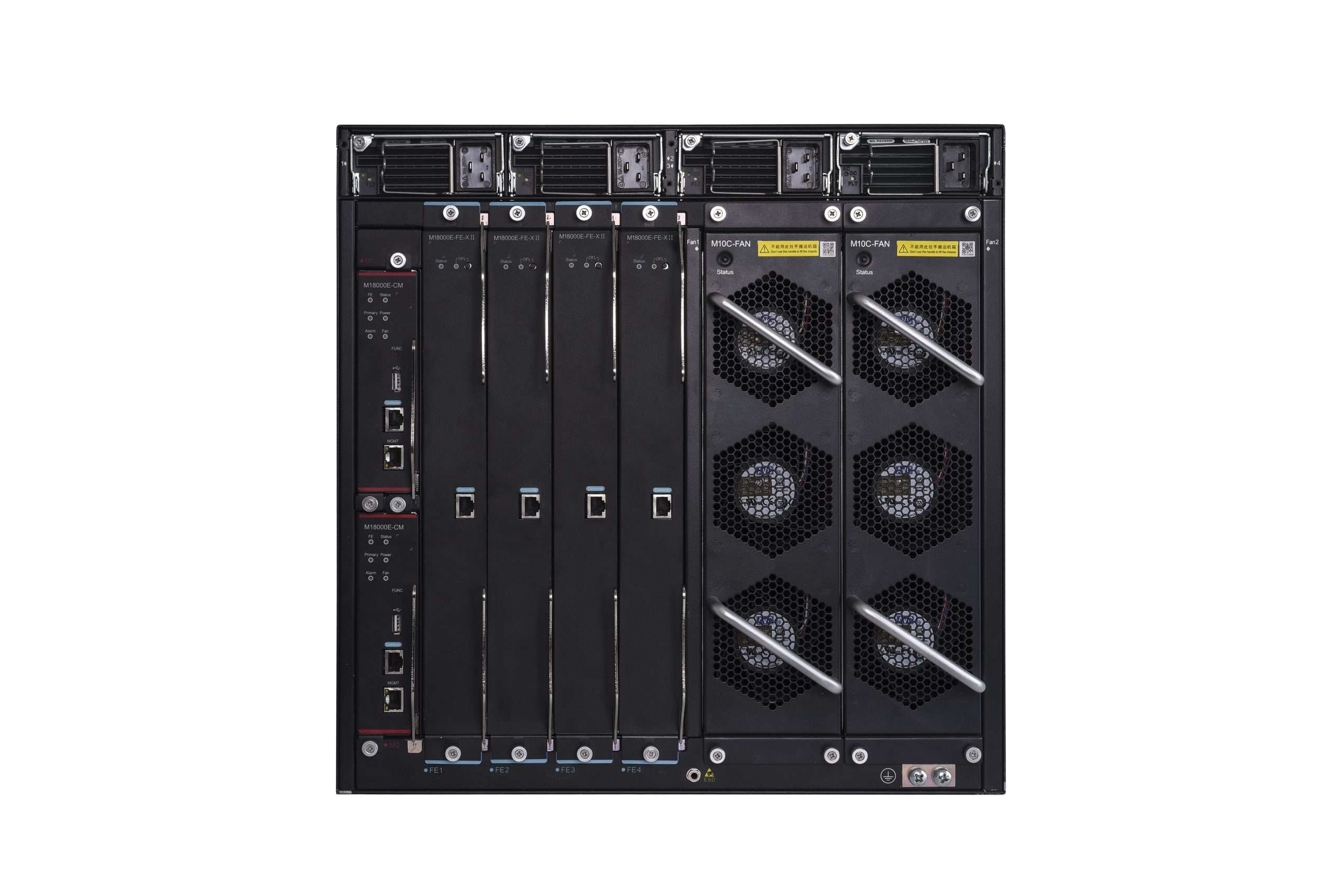

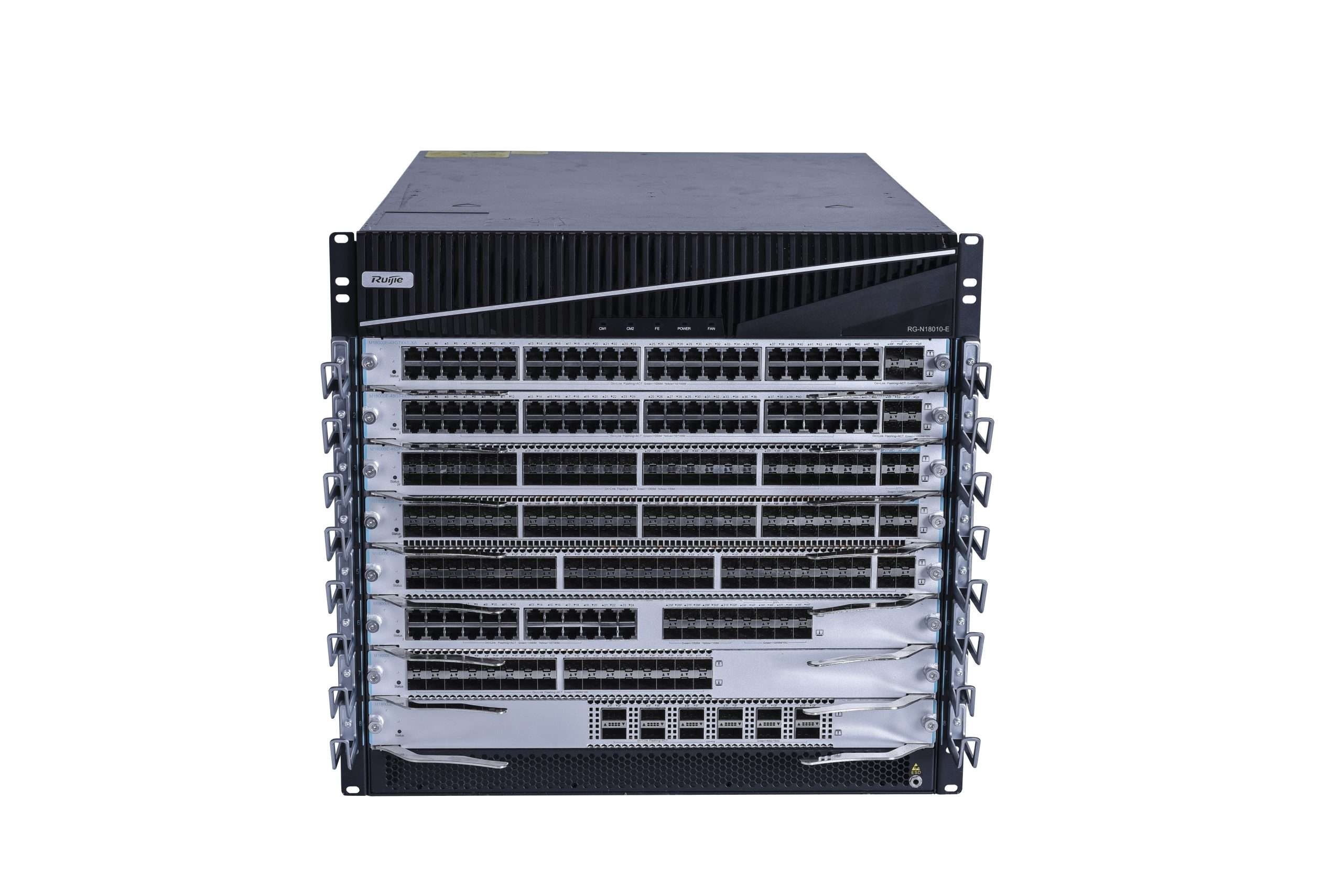

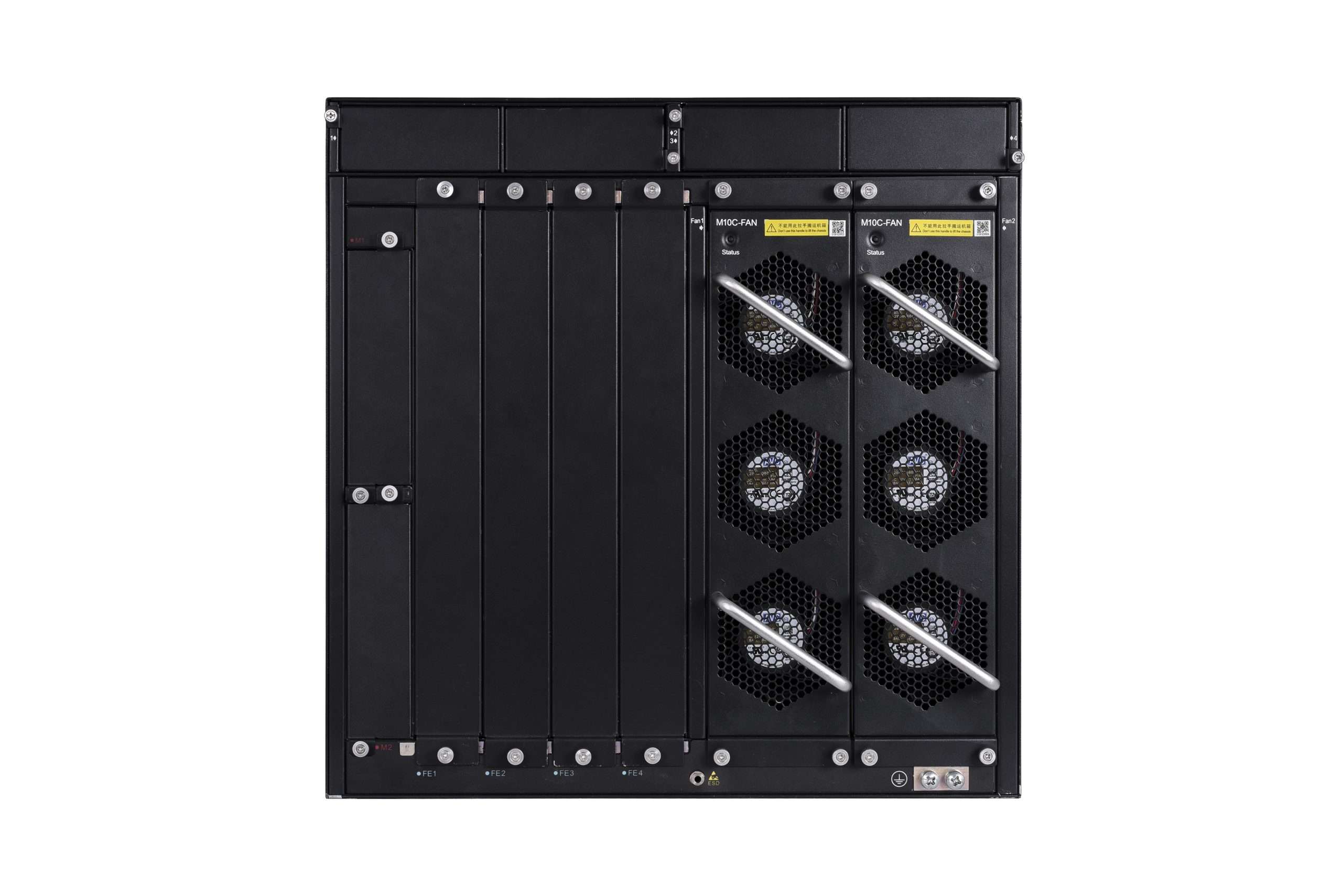

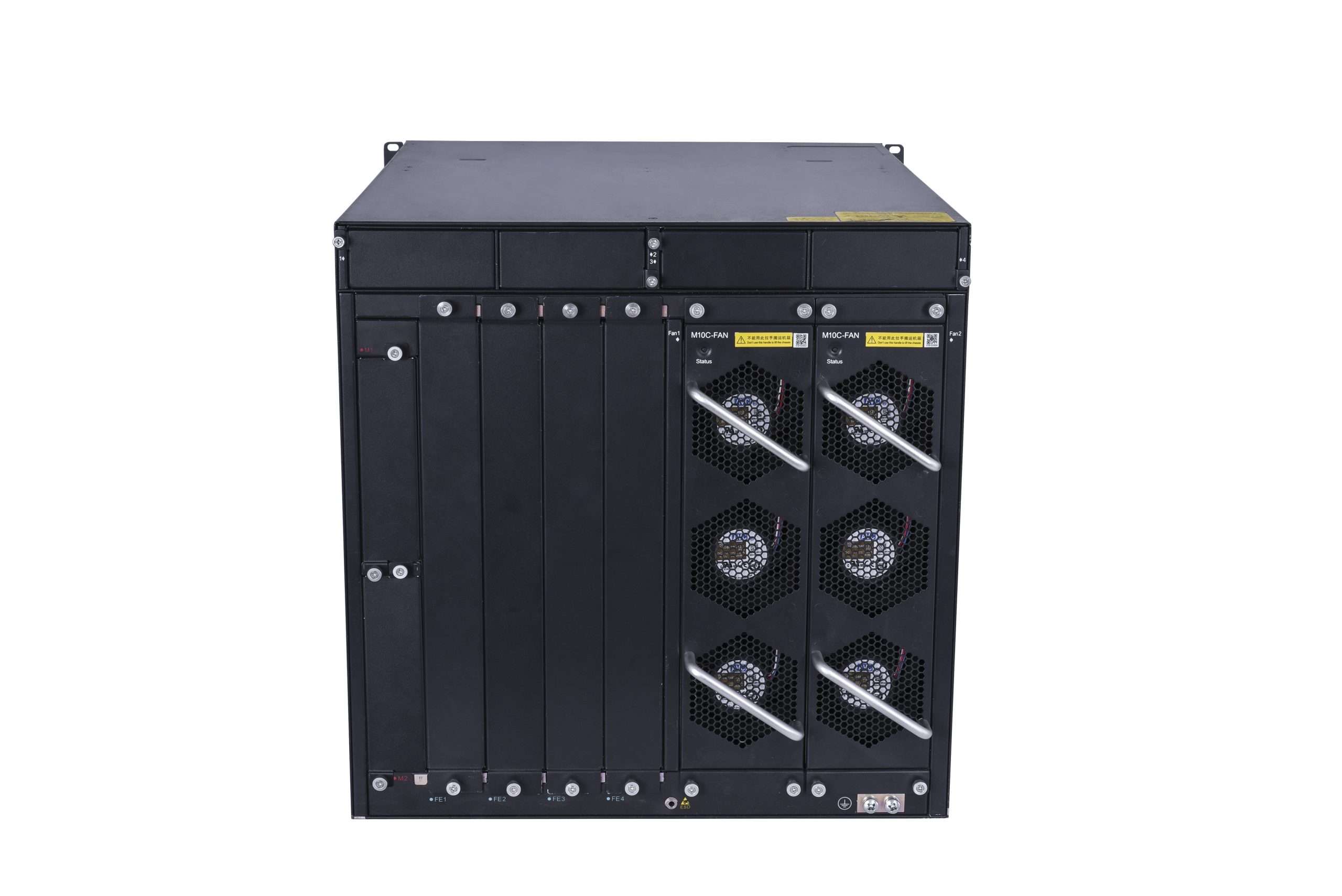

8 Service Slots, 10 RU
Condition: NOB
RMA Warranty
Description
- Clos orthogonal architecture, delivering non-blocking forwarding and high-speed transmission without packet loss
- RGOS, a fully-decoupled modular operating system, providing independent components and nonstop services
- Multiple hardware-level protection, offering carrier-class reliability and ensuring continuous operation without downtime
- Fan connections in in-line mode and innovative Y-shaped airflow, improving heat dissipation efficiency and enhancing system reliability
- Support for SDN, achieving raid deployment and automated O&M for campus networks
- Fit for new SOE solution and innovative hyper-converged ports, allowing flexible networking
Hardware Specifications
| Hardware Specifications | N18010-E | N18014-E |
| Interface Specifications | ||
| Power module | 4 | 4 |
| Fan module | 2 | 2 |
| Fixed management port | 1 x MGMT port, 1 x console port, and 1 x USB port | |
| Supervisor module slot | 2 | 2 |
| Line card slot | 8 | 12 |
| Switch fabric module slot | 4 | 4 |
| System Specifications | ||
| Packet forwarding rate | 14,200 Mpps | 21,000 Mpps |
| System switching capacity | 19.2 Tbps | 28.8 Tbps |
| Number of MAC address | ● Number of static MAC addresses
XA card: 4,000 XB card: 10,000 ● Number of global MAC addresses XA card: 96,000 XB card: 256,000 |
|
| ARP table size | XA card: 40,000
XB card: 96,000 |
|
| Number of IPv4 unicast routes | XA card: 64,000 (shared with IPv6 routes)
XB card: 350,000 (shared with IPv6 routes) |
|
| Number of IPv4 multicast routes | XA card: 4,000
XB card: 4,000 |
|
| Number of IPv6 unicast routes | XA card: 15,000 (≤ 64 bytes, shared with IPv4 routes)
XB card: 65,000 |
|
| Number of IPv6 multicast routes | XA card: 2,000
XB card: 2,000) |
|
| Number of ACEs | ● XA card:
Ingress: 7,000 Egress: 1,500 ● XA card: Ingress: 28,000 Egress: 4,000 |
|
| Number of VSU members | 2 | 2 |
| Dimensions and Weight | ||
| Dimensions (W x D x H) | 442.5 x 560 x 442 mm (17.42 in. x 22.05 in. x 17.40 in.), 10 RU | 482.6 x 570.7 x 605.1 mm (19.00 in. x 22. 47 in. x 23.82 in.), 14 RU |
| Weight (empty chassis and fan modules) | 43.6 kg (96.12 lbs) | 68.3 kg (150.58 lbs) |
| CPU and Storage | ||
| CPU | Supervisor module:
M18000E-CM : 2.2 GHz quad-core processor Line card: XA/XB/FE card: 2.2 GHz quad-core processor |
Supervisor module:
M18000E-CM : 2.2 GHz quad-core processor Line card: XA/XB/FE card: 2.2 GHz quad-core processor |
| Storage | Supervisor module and line card:
Flash memory: 8 GB SDRAM: DDR4 4 GB |
|
| Power and Consumption | ||
| Maximum power consumption | M18000E-CM: 60 W
M18000E-48GT4XS-XA: 85 W M18000E-48SFP4XS-XA: 117 W M18000E-24GT8SFP8XS-XA: 95 W M18000E-32XS-XB: 149 W M18000E-52XS-XB: 250 W M18000E-12CQ-XB:240 W M18010E-FE-X I: 50 W M18000E-FE-X II: 160 W M10C-FAN: 216 W |
M18000E-CM: 60 W
M18000E-48GT4XS-XA: 85 W M18000E-48SFP4XS-XA: 117 W M18000E-24GT8SFP8XS-XA: 95 W M18000E-32XS-XB: 149 W M18000E-52XS-XB: 250 W M18000E-12CQ-XB: 240 W M18010E-FE-X I: 50 W M18000E-FE-X II: 160 W M14FAN-F: 360 W |
| Maximum output power | RG-PA600I: 600 W
RG-PD600I: 600 W RG-PA1600I: ● 90 to 180 V AC; 1,200 W ● 180 to 264 V AC; power: 1,600 W RG-PD1600I: 1,400 W |
|
| Rated input voltage | ● RG-PA600I: 100–120 V, 200–240 V, 50/60 Hz
● RG-PD600I: –48 V DC ● RG-PA1600I: 100–120V, 200–240 V, 50/60 Hz ● RG-PD1600I: –48 V DC |
|
| Maximum input voltage | ● RG-PA600I: 90–264 V, 47–63 Hz
● RG-PD600I: –40 V DC to –75 V DC ● RG-PA1600I: 90–264 V, 47–63 Hz ● RG-PD1600I: –40 V DC to –75 V DC |
|
| Environment and Reliability | ||
| MTBF | ≥ 200,000 hours | |
| Primary airflow | Line card: Side-to-rear airflow
Supervisor module/FE: Front-to-rear airflow |
Line card: Side-to-rear airflow
Supervisor module/FE: Front-to-rear airflow |
| Operating temperature | 0°C to 50°C (37°F to 122°F) | |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) | |
| Operating humidity | 10% to 90% RH (non-condensing) | |
| Storage humidity | 5% to 95% RH (non-condensing) | |
| Operating noise | 55.9 dB at the temperature of 35°C (95°F)
73.4 dB at the temperature of 50°C (122°F) |
55.9 dB at the temperature of 35°C (95°F)
73.4 dB at the temperature of 50°C (122°F) |
| Interface surge protection | Power port: 6 kV
Telecom port: 4 kV (MGMT port) |
Power port: 6 kV
Telecom port: 4 kV (MGMT port) |
| Operating altitude | –500 m to +5,000 m (–1640.42 ft. to +16404.20 ft.) | |
Software Specifications
| RG-N18000-E Series | |
| Feature | Description |
| Ethernet Switching | Jumbo frame (maximum length: 9,216 bytes) |
| IEEE 802.3az EEE | |
| IEEE 802.1Q (supporting 4K VLANs) | |
| Voice VLAN | |
| Super-VLAN and private VLAN | |
| MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment | |
| GVRP | |
| Basic QinQ and selective QinQ | |
| STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | |
| ERPS (G.8032) | |
| LLDP/LLDP-MED | |
| IP Service | Static and dynamic ARP |
| DHCP client | |
| DHCP relay | |
| DHCP server | |
| DHCP snooping | |
| DNS | |
| DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping | |
| Neighbor Discovery (ND) and ND snooping | |
| IPv4 and IPv6 GRE tunnel | |
| IPv6 manual tunnel, IPv6 automatic tunnel, and IPv6 ISATAP tunnel | |
| IP Routing | Static routing |
| RIP and RIPng | |
| OSPFv2 and OSPFv3 | |
| GR | |
| IS-ISv4 and IS-ISv6 | |
| BGP4 and BGP4+ | |
| IPv4/IPv6 VRF | |
| IPv4/IPv6 PBR | |
| Multicast | IGMPv1/v2/v3 |
| IGMPv1/v2 snooping | |
| IGMP proxy | |
| IGMP fast leave | |
| PIM-DM, PIM-SM, PIM-SSM, and other multicast routing protocols | |
| Multicast static routing | |
| PIM-SM, PIM-SSM, PIM-SMv6, and PIM-SSMv6 | |
| MSDP for inter-domain multicast | |
| MLDv1/v2 | |
| MLDv1 snooping | |
| Multicast source IP address check
Multicast source port check Validity check of IGMP packets |
|
| Multicast querier | |
| MPLS | MPLS L3VPN |
| MPLS 6VPE and MPLS 6PE | |
| MPLS IPv6 | |
| MPLS MIB (RFC 1273, 4265, 4382) | |
| ACL and QoS | Standard IP ACLs (hardware ACLs based on IP addresses) |
| Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers) | |
| Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) | |
| Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range) | |
| ACL80 and IPv6 ACL | |
| Applying ACLs globally (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range) | |
| ACL redirection | |
| Port traffic identification | |
| Port traffic rate limiting | |
| IEEE 802.1p | |
| Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, SP+WFR, and SP+WFQ | |
| Congestion avoidance: tail drop, RED, and WRED | |
| Rate limiting based on the inbound or outbound interface | |
| Eight queues on each port | |
| Security | Multi-AAA |
| RADIUS authentication, authorization, and accounting | |
| TACACS+ | |
| IEEE 802.1X | |
| IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication | |
| Web authentication | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| SSHv1 and SSHv2 | |
| Global IP-MAC binding | |
| ICMP (discarding ICMP packets of which the rate exceeds the threshold on an interface) | |
| Port security | |
| IP source guard | |
| SAVI | |
| ARP spoofing prevention | |
| CPP and NFPP | |
| Various attack defense functions including NFPP, ARP anti-spoofing, DHCP/DHCPv6 attack defense, ICMP attack defense, ND attack defense, IP scanning attack defense, and customizing attack defense packet types | |
| Loose and strict RPF
uRPF ignoring default routes |
|
| Reliability | REUP |
| Rapid Link Detection Protocol (RLDP), Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control | |
| Data Link Detection Protocol (DLDP) | |
| IPv4/IPv6 ECMP | |
| IPv4 VRRP v2/v3 and IPv6 VRRP v3 | |
| BFD | |
| Link monitoring, fault notification, and remote loopback based on 802.3ah (EFM) | |
| 1+1 redundancy for supervisor modules | |
| N+M redundancy for power modules | |
| Hot patching for online patch upgrade | |
| GR for OSPF/IS-IS/BGP | |
| BFD for VRRP/OSPF/BGP4/IS-IS/IS-ISv6/static routing | |
| Hot swapping of supervisor modules, switch fabric modules, power modules, and fan modules | |
| Device Virtualization | VSU |
| NMS and Maintenance | SPAN, RSPAN, and ERSPAN |
| sFlow (network detection technology based on packet sampling, which is mainly used for traffic statistics and analysis in heavy-traffic scenarios) | |
| N:1 mirroring, 1:N mirroring, and flow-based mirroring
VLAN mirroring |
|
| NTP and SNTP | |
| FTP, SFTP, TFTP, and Xmodem | |
| SNMP v1/v2/c3 | |
| RMON (1, 2, 3, 9) | |
| Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, as well as private alarm extension groups
RMON used to implement Ethernet statistics, historical statistics, and alarm functions |
|
| NETCONF | |
| CWMP | |
| gRPC | |
| OpenFlow Special 1.3 | |
| Flow table analysis defined by all protocols
Transmission of specified packets to the controller Configuring the controller’s IP address and port Notifying port status changes to the controller |
|
| Web-based NMS | |
| VXLAN | EVPN VXLAN tunnel establishment
LAN access to VXLAN IPv4 over IPv4 Distributed gateway IPv6 over IPv6 Using an SVI to connect to the VXLAN network Using a routed interface to connect to the VXLAN network Proxy ARP (replying with the actual MAC address)) ND proxy (replying with the actual MAC address) ND reply (replying with the actual MAC address) VXLAN static route Anycast gateway VXLAN bridging mode VXLAN routing mode Proxy ARP (replying with the gateway MAC address) Configuring the UDP port number in VXLAN packets Static VXLAN tunnel creation Layer 2 VXLAN bridge Layer 3 VXLAN gateway EVPN VXLAN |
Note: The item marked with the asterisk (*) will be available in the future.
Chassis and Supervisor Modules
| Model | Description |
| RG-N18010-E | RG-N18010-E chassis, eight line cards, two supervisor modules, and four SFUs |
| RG-N18014-E | RG-N18014-E chassis, 12 line cards, two supervisor modules, and four SFUs |
| M18000E-CM | RG-N18000-E high-performance supervisor module |
| M18000E-CM II | RG-N18000-E 2nd high-performance supervisor module |
Power Modules and Fan Modules
| Model | Description |
| RG-PA600I | RG-N18000-E power module (redundancy, AC, 600 W, 10 A) |
| RG-PD600I | RG-N18000-E power module (redundancy, DC, 600 W, 20 A) |
| RG-PA1600I | RG-N18000-E power module (redundancy, AC, 1600 W, 16 A) |
| RG-PD1600I | RG-N18000-E power module (redundancy, DC, 1400 W, 50 A) |
SFUs
| Model | Description |
| M18010E-FE-X I | RG-N18010-E first-generation SFU |
| M18000E-FE-X II | RG-N18000-E second-generation SFU |
Line Cards
| Model | Description |
| M18000E-32XS-XB | 32 x 10GE optical ports (SFP+, LC) |
| M18000E-52XS-XB | 52 x 10GE optical ports (SFP+, LC) |
| M18000E-12CQ-XB | 12 x 100GE optical ports (QSFP28, LC/MPO) |
| M18000E-24GT8SFP8XS-XA | 24 x GE electrical ports (RJ45) + 8 x GE optical ports (SFP, LC) + 8 x 10GE optical ports (SFP+, LC) |
| M18000E-48GT4XS-XA | 48 x GE electrical ports (RJ45) + 4 x 10GE optical ports (SFP+, LC) |
| M18000E-48SFP4XS-XA | 48 x GE optical ports (SFP, LC) + 4 x 10GE optical ports (SFP+, LC) |
| M18000E-8SFX | CWDM line card for 18000E series core switches, providing 8 x 10GE SFX ports. The ports are backward compatible with a data rate of 1000 Mbps. |
| M18000E-8SFG | CWDM line card for 18000E series core switches, providing 8 x GE SFG ports |
| M18000E-HCA | High-capacity line card for centralized authentication of the RG-N18000-E, supporting two HCA cards |
| HCA-20XS | 20 x 10GE optical ports (SFP, LC) The line card must be used with the M18000E-HCA card. |
| HCA-4CQ | 4 x 100GE optical ports (QSFP28, LC/MPO) The line card must be used with the M18000E-HCA card. |
