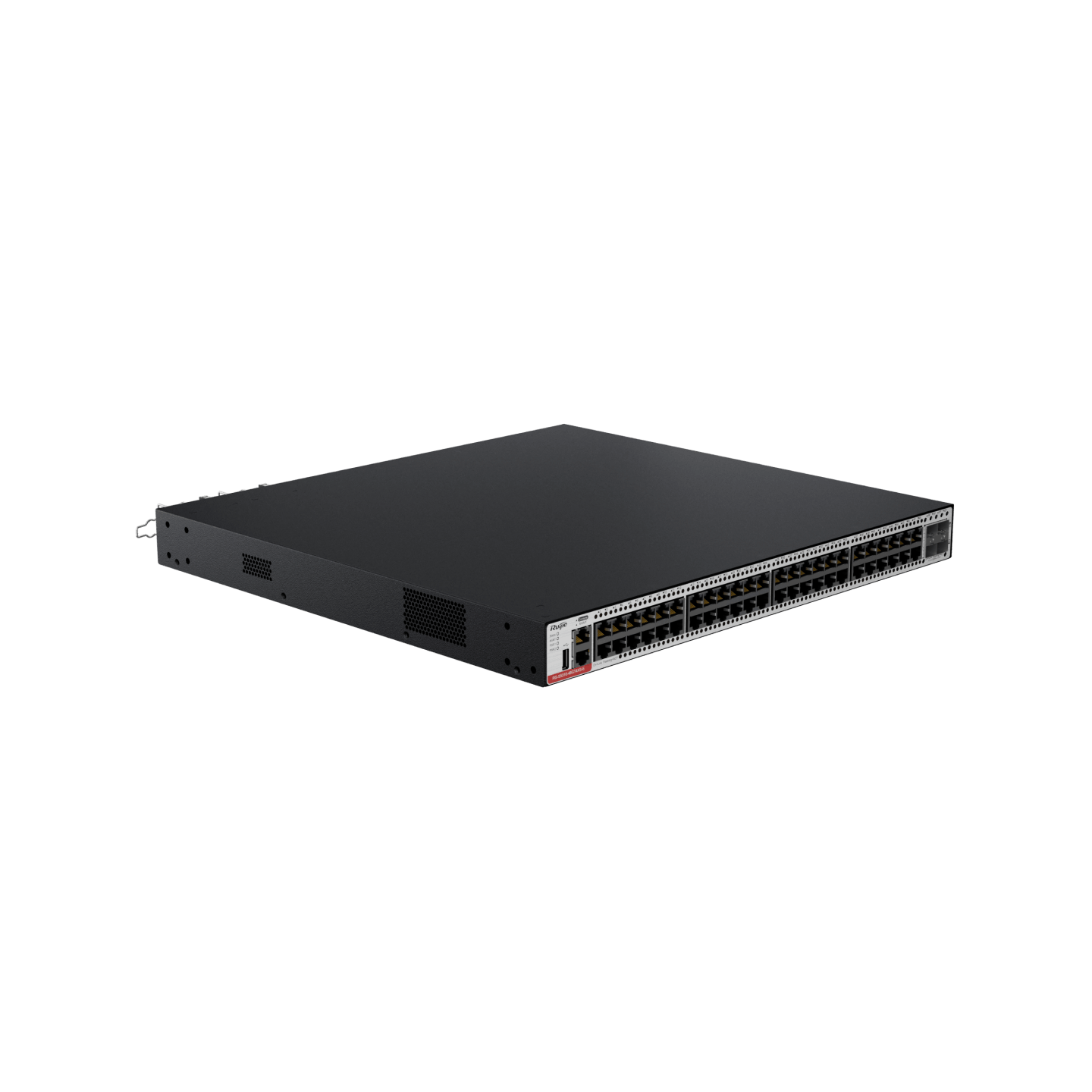

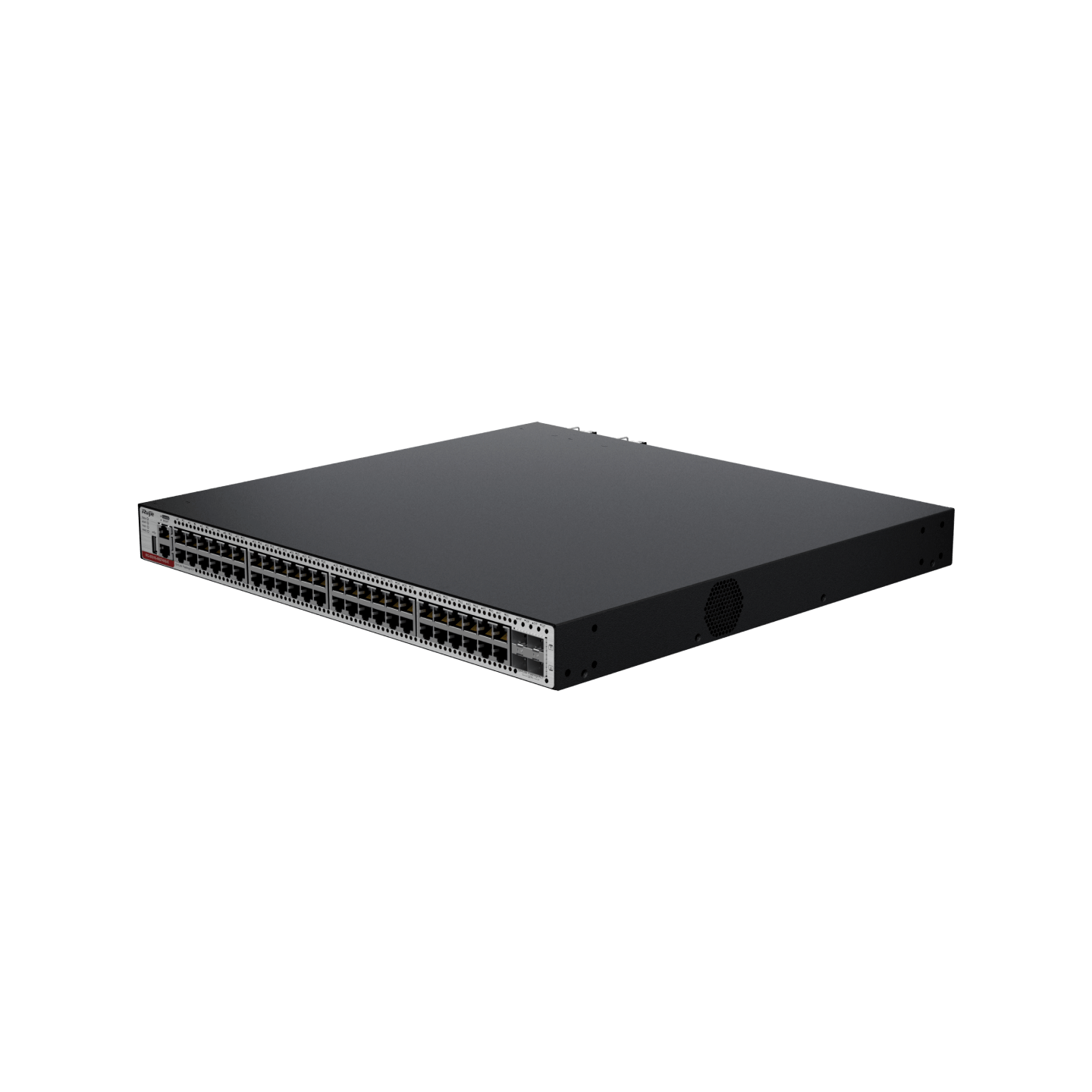

48-Port GE Electrical Ports,Four 10G Optical Ports
Condition: NOB
RMA Warranty
Description
- Rich port types, 48 x 1000 Mbps Ethernet ports, 4 x 10G optical ports for uplink

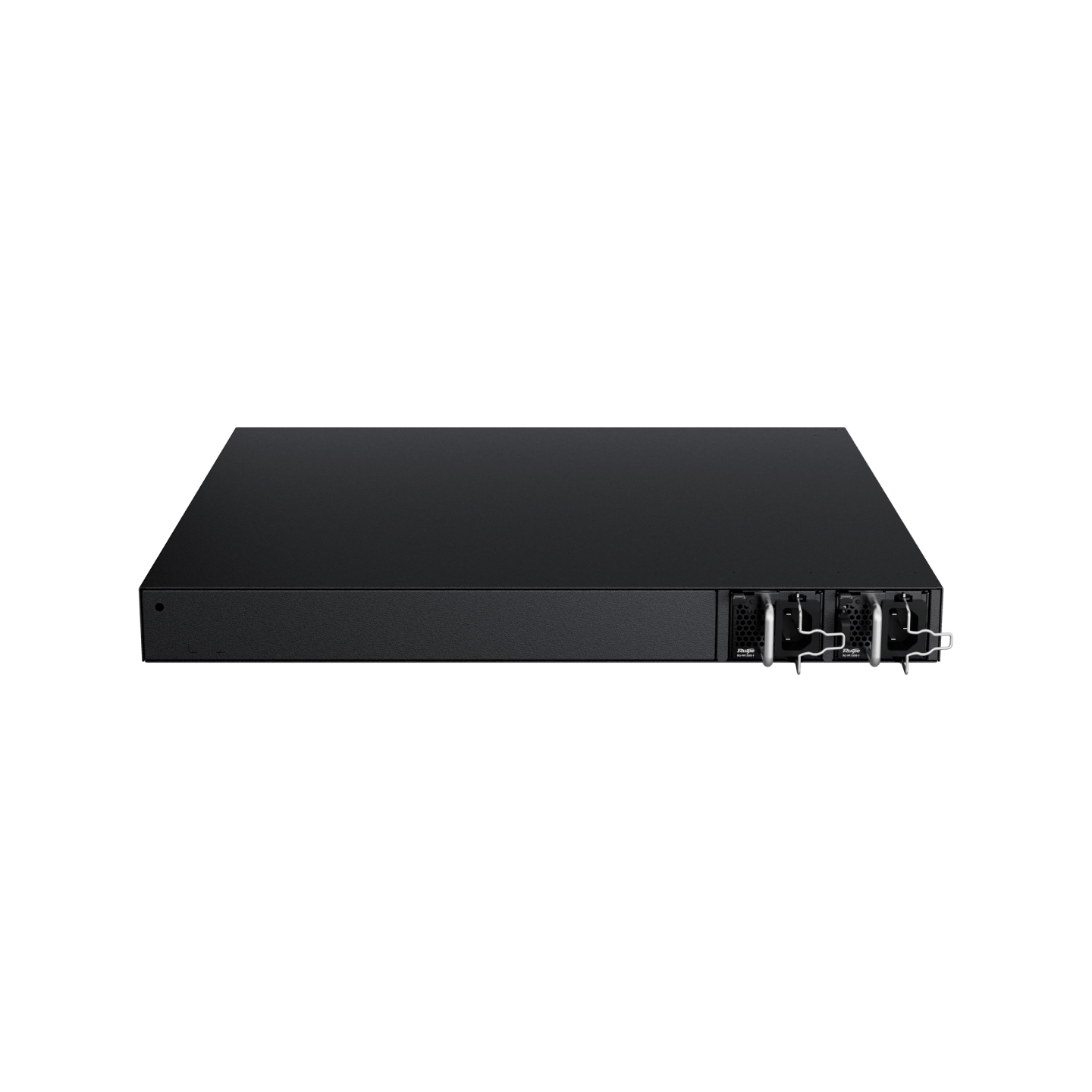

- Hot-swappable dual power modules for 1+1 redundancy
- VSU virtualization, flexible networking and high performance
- Network security policies and real-time monitoring, delivering enhanced network robustness
- Multiple management modes, simplified and easy network maintenance
Hardware Specifications
| Hardware Specifications | RG-S5310-24GT4XS-E | RG-S5310-24GT4XS-P-E | RG-S5310-48GT4XS -E | RG-S5310-48GT4XS-P-E | RG-S5310-24SFP4XS-E | RG-S5310-48SFP4XS-E |
| Interface Specifications | ||||||
| Fixed port | 24 x 10/100/1000 BASE-T ports
4 x 1G/10G SFP+ ports |
24 x 10/100/1000 BASE-T ports
4 x 1G/10G SFP+ ports IEEE 802.3af and 802.3at |
48 x 10/100/1000 BASE-T ports
4 x 1G/10G SFP+ ports |
48 x 10/100/1000 BASE-T ports
4 x 1G/10G SFP+ ports IEEE 802.3af and 802.3at |
24 x 1000M SFP ports
4 x 1G/10G SFP+ ports
|
48 x 1000M SFP ports
4 x 1G/10G SFP+ ports
|
| Power module | 2 x power modules (1+1 redundancy of power modules) | 2 x power modules (1+1 redundancy of power modules) | 2 x power modules (1+1 redundancy of power modules) | 2 x power modules (1+1 redundancy of power modules) | 2 x power modules (1+1 redundancy of power modules) | 2 x power modules (1+1 redundancy of power modules) |
| Management port | 1 x MGMT port, 1 x console port, and 1 x USB 2.0 port | |||||
| System Specifications | ||||||
| Switching Capacity | 128 Gbps | 128 Gbps | 176 Gbps | 176 Gbps | 128 Gbps | 176 Gbps |
| Packet Forwarding Rate | 96 Mpps | 96 Mpps | 132 Mpps | 132 Mpps | 96 Mpps | 132 Mpps |
| Number of MAC addresses | 32,000 | |||||
| ARP table size | 4k/16k (authorized) | |||||
| ND table size | 2k/8k (authorized) | |||||
| Number of IPv4 unicast routes | 8k/12k (authorized) | |||||
| Number of IPv4 multicast routes | 2,500 | |||||
| Number of IPv6 unicast routes | 4,000 | |||||
| Number of IPv6 multicast routes | 1,200 | |||||
| Number of ACEs | Ingress: 3,500
Egress: 1,500 |
|||||
| Number of IGMP groups | 2,500 | |||||
| Number of MLD groups | 1,000 | |||||
| Number of VSU members | 4 | 4 | 4 | 4 | 4 | 4 |
| Dimensions and Weight | ||||||
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm (17.40 in. x 16.56 in. x 1.72 in.), 1 RU | |||||
| Weight | 4.2 kg (9.26 lbs) | 4.3 kg (9.48 lbs) | 4.3 kg (9.48 lbs) | 4.6 kg (10.14 lbs) | 4.2 kg (9.26 lbs) | 4.5 kg (9.92 lbs. ) |
| CPU and Storage | ||||||
| CPU | 1.2 GHz dual-core processor | |||||
| Flash | 2 GB | |||||
| SDRAM | 1 GB | |||||
| Data packet buffer | 3 MB | |||||
| Power and Consumption | ||||||
| Maximum power consumption | ≤ 40 W | < 85 W (non-PoE)
< 810 W (PoE full load) |
≤ 55 W | < 75 W (non-PoE)
< 1,570 W (PoE full load) |
≤ 85 W | ≤ 108 W |
| Maximum output power | RG-PA70IB: 70 W
RG-PA150IB-F: 150 W RG-PD150IB-F: 150 W |
RG-PA600I-P-F: 600 W (PoE: 370 W)
RG-PD600I-P-F: 600 W (PoE: 370 W) RG-PA1000I-P-F: 176–290 V AC, 1000 W; 90–176 V AC, 930 W (PoE: 740 W) |
RG-PA70IB: 70 W
RG-PA150IB-F: 150 W RG-PD150IB-F: 150 W |
RG-PA600I-P-F: 600 W (PoE: 370 W)
RG-PD600I-P-F: 600 W (PoE: 370 W) RG-PA1000I-P-F: 176–290 V AC, 1000 W; 90–176 V AC, 930 W (PoE: 740 W) |
RG-PA70IB: 70 W
RG-PA150IB-F: 150 W RG-PD150IB-F: 150 W |
RG-PA150IB-F: 150 W
RG-PD150IB-F: 150 W |
| Rated input voltage | RG-PA70IB: 100 V AC to 240 V AC
RG-PA150IB-F: 100 V AC to 240 V AC RG-PD150IB-F: -48 V DC to -60 V DC |
RG-PA600I-P-F: 200 V AC to 240V AC
RG-PD600I-P-F: -60V DC to -48V DC RG-PA1000I-P-F: 200 V AC to 240V AC |
RG-PA70IB: 100 V AC to 240 V AC
RG-PA150IB-F: 100 V AC to 240 V AC RG-PD150IB-F: -48 V DC to -60 V DC |
RG-PA600I-P-F: 200 V AC to 240 V AC
RG-PD600I-P-F: -48 V DC to -60 V DC RG-PA1000I-P-F: 200 V AC to 240V AC |
RG-PA70IB: 100 V AC to 240 V AC
RG-PA150IB-F: 100 V AC to 240 V AC RG-PD150IB-F: -48 V DC to -60 V DC |
RG-PA150IB-F: 100 V AC to 240 V AC
RG-PD150IB-F: -48 V DC to -60 V DC |
| Maximum input voltage | RG-PA70IB: 90 V AC to 264 V AC, 50 Hz to 60 Hz
RG-PA150IB-F: 90 V AC to 264 V AC, 50 Hz to 60 Hz RG-PD150IB-F: -75 V DC to -36 V DC |
RG-PA600I-P-F: 176AC to 264V AC, 50 Hz to 60 Hz
RG-PD600I-P-F: -75V DC to -38 V DC RG-PA1000I-P-F: 176AC to 264V AC, 50 Hz to 60 Hz |
RG-PA70IB: 90 V AC to 264 V AC, 50 Hz to 60 Hz
RG-PA150IB-F: 90 V AC to 264 V AC, 50 Hz to 60 Hz RG-PD150IB-F: -36 V DC to -75 V DC |
RG-PA600I-P-F: 176 V AC to 264 V AC, 50 Hz to 60 Hz
RG-PD600I-P-F: -38V DC to -75 V DC RG-PA1000I-P-F: 176 V AC to 264 V AC, 50 Hz to 60 Hz |
RG-PA70IB: 90 V AC to 264 V AC, 50 Hz to 60 Hz
RG-PA150IB-F: 90 V AC to 264 V AC, 50 Hz to 60 Hz RG-PD150IB-F: -36 V DC to -75 V DC |
RG-PA150IB-F: 90 V AC to 264 V AC, 50 Hz to 60 Hz
RG-PD150IB-F: -36 V DC to -75 V DC |
| Environment and Reliability | ||||||
| MTBF | 44.03 years (dual power modules) 24.85 years (single power module) | 40.67 years (dual power modules)
23.74 years (single power module) |
40.03 years (dual power modules)
23.53 years (single power module) |
35.97 years (dual power modules)
22.06 years (single power module) |
35.27 years (dual power modules)
21.08 years (single power module) |
33.03 years (dual power modules)
20.92 years (single power module) |
| Primary airflow | Left/Front-to-rear airflow | |||||
| Operating temperature | 0°C to 45°C (32°F to 113°F) | |||||
| Storage temperature | –40°C to +70°C (–40°F to +158°F) | |||||
| Operating humidity | 10% to 90% RH (non-condensing) | |||||
| Storage humidity | 5% to 95% RH (non-condensing) | |||||
| Operating altitude | 0 m to 5000 m (16404.20 ft.) | |||||
| Operating noise | < 56.5 dB | < 57.4 dB | < 52.4 dB | < 58.3 dB | < 53.7 dB | < 53.7 dB |
| Interface surge protection | Power port: 6 kV
Telecom port: 10 kV (MGMT port: 4 kV) |
Power port: 6 kV
Telecom port: 10 kV (MGMT port: 4 kV) |
Power port: 6 kV
Telecom port: 10 kV (MGMT port: 4 kV) |
Power port: 6 kV
Telecom port: 10 kV (MGMT port: 4 kV) |
Power port: 6 kV
Telecom port: 10 kV (MGMT port: 4 kV) |
Power port: 6 kV
Telecom port: 10 kV (MGMT port: 4 kV) |
Software Specifications
| RG-S5310-E Series | |
| Feature | Description |
| Ethernet Switching | IEEE 802.1Q (supporting 4K VLANs) |
| Jumbo frame (maximum length: 9,216 bytes) | |
| Maximum number of VLANs that can be created: 4,094 | |
| Voice VLAN | |
| Super VLAN and private VLAN | |
| MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment | |
| GVRP | |
| Basic QinQ and selective QinQ | |
| STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | |
| Auto errdisable recovery
BPDU filter BPDU guard Port fast Root guard |
|
| ERPS (G.8032) | |
| LLDP/LLDP-MED, LLDP IPv6, and LLDP-POE | |
| IP Service | Static and dynamic ARP, ARP proxy, and ARP entry timeout |
| DHCP client, DHCP relay, DHCP server, and DHCP snooping | |
| DHCPv6 client, DHCPv6 relay, DHCPv6 server, and DHCPv6 snooping | |
| DNS client, DNS proxy, and DNSv6 client | |
| MAC address filtering
Setting the MAC address aging time |
|
| Neighbor Discovery (ND), ND proxy, and ND snooping | |
| GRE tunnel | |
| IP Routing | IPv4 and IPv6 static routing |
| RIP and RIPng | |
| OSPFv2, OSPFv3, and GR | |
| IS-ISv4 and IS-ISv6 | |
| BGP4 and BGP4+ | |
| IPv4/IPv6 VRF | |
| IPv4/IPv6 PBR | |
| Multicast | IGMPv1/v2/v3 |
| IGMPv1/v2 snooping | |
| IGMP fast leave | |
| PIM-DM, PIM-SM, PIM-SSM, PIM SMv6, and PIM-SSMv6 | |
| MSDP for inter-domain multicast | |
| MLDv1/v2 and MLD proxy | |
| MLDv1/v2 snooping | |
| PIM-SMv6 | |
| Multicast source IP address check
Multicast source port check |
|
| Multicast querier | |
| ACL and QoS | Standard IP ACLs (hardware ACLs based on IP addresses) |
| Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers) | |
| Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) | |
| Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range) | |
| Time based ACLS, ACL 80, and IPv6 ACL | |
| Global ACLs | |
| ACL redirection | |
| Port traffic identification | |
| Port traffic rate limiting | |
| 802.1p/DSCP/ToS traffic classification | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, and SP+WFQ | |
| Congestion avoidance: tail drop, RED, and WRED | |
| Eight priority queues per port | |
| Rate limiting in each queue | |
| Security | Multiple AAA modes |
| RADIUS authentication and authorization | |
| RADIUS and TACACS+ | |
| IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication | |
| Web authentication | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| SSHv1 and SSHv2 | |
| Global IP-MAC binding | |
| ICMPv6 | |
| Port security | |
| IP source guard | |
| SAVI | |
| ARP spoofing prevention | |
| CPP and NFPP | |
| Multiple attack defense functions | |
| 3-tuple binding (IP address, MAC address, and port)
3-tuple binding (IPv6 address, MAC address, and port) Filtering of invalid MAC addresses Port- and MAC address-based 802.1x authentication MAB authentication Portal authentication and Portal 2.0 authentication ARP check DAI ARP packet rate limiting Gateway ARP spoofing prevention Broadcast storm suppression Hierarchical management of administrators and password protection BPDU guard Port protection |
|
| Reliability | REUP |
| RLDP | |
| RLDP, Layer 2 link connectivity detection, and unidirectional link detection | |
| DLDP | |
| IPv4 VRRP v2/v3, IPv6 VRRP, and super-VLAN for VRRP | |
| BFD, RAS, NSR, VRRR, VRRP+, and SDN loop detection | |
| Basic LACP
Inter-VSU AP |
|
| Link monitoring, fault notification, and remote loopback based on 802.3ah (EFM) | |
| Hot swapping of power modules | |
| Device virtualization | VSU
Local and remote stacking Inter-chassis link binding in a stack Virtualization through standard service interfaces |
| NMS and maintenance | RSPAN and ERSPAN |
| sFlow | |
| NTP client, NTP server, NTPv6 client, and NTPv6 server | |
| SNTP | |
| CLI (Telnet/Console) | |
| FTP client, FTP server, FTPv6 client, and FTPv6 server | |
| TFTP client, TFTP server, TFTPv6 client, and TFTPv6 server | |
| FTP and TFTP | |
| SNMP v1/v2/c3 | |
| Web | |
| Syslog/Debug | |
| RMON (1, 2, 3, 9)
Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, as well as private alarm extension groups RMON used to implement Ethernet statistics, historical statistics, and alarm functions |
|
| NETCONF | |
| MACC | |
| CWMP | |
| gRPC | |
| OpenFlow Special 1.3
Flow table analysis defined by all protocols Transmission of specified packets to the controller Configuring the controller’s IP address and port Notifying port status changes to the controller |
|
| RNS, configuration rollback, and 802.3ah | |
| 1:1 mirroring
N:1 mirroring 1:N mirroring Flow-based local and remote mirroring |
|
| VXLAN | VXLAN (authorized) |
| PoE | RG-S5310-24GT4XS-P-E and RG-S5310-48GTXS-P-E:
IEEE 802.3af and 802.3at power supply standards Automatic and energy-saving power supply management modes Uninterrupted power supply in hot start mode Scheduled power-on or power-off of PoE ports based on the time policy Port priority |
| Model | Description |
| RG-S5310-24GT4XS-E | 24 x 10/100/1000M BASE-T ports, 4 x 1G/10G SFP+ ports |
| RG-S5310-24GT4XS-P-E | 24 x 10/100/1000M BASE-T ports, 4 x 1G/10G SFP+ ports, supporting PoE and the maximum PoE output power of 740 W. |
| RG-S5310-48GT4XS-E | 48 x 10/100/1000M BASE-T ports, 4 x 1G/10G SFP+ ports |
| RG-S5310-48GT4XS-P-E | 48 x 10/100/1000M BASE-T ports, 4 x 1G/10G SFP+ ports, supporting PoE and the maximum PoE output power of 1440 W |
| RG-S5310-24SFP4XS-E | 24 x 1000M SFP ports, 4 x 1G/10G SFP+ ports |
| RG-S5310-48SFP4XS-E | 48 x 1000M SFP ports, 4 x 1G/10G SFP+ ports |
| RG-PA70IB | 70 W AC power module |
| RG-PA150IB-F | 150 W AC power module |
| RG-PA600I-P-F | 600 W AC power module, PoE power module |
| RG-PA1000I-P-F | 1,000 W AC power module, PoE power module |
| RG-VXLAN-MPLS-ENTRY-LIC | S5310E series, software license for VXLAN, MPLS, routing table, and ARP table |
| Mini-GBIC-GT | 1000BASE-GT mini GBIC module |
| Mini-GBIC-SX-MM850 | Single-port 1000BASE-SX mini GBIC module (LC) |
| Mini-GBIC-LX-SM1310 | Single-port 1000BASE-LX mini GBIC module (LC) |
| Mini-GBIC-LH40-SM1310 | Single-port 1000BASE-LH mini GBIC module (LC), supporting a transmission distance of 40 km |
| Mini-GBIC-ZX100-SM1550 | 1000BASE-ZX mini GBIC module, supporting a transmission distance of 100 km |
| XG-SFP-SR-MM850 | 10G LC interface module (62.5/125 μm: 33 m; 50/125 μm: 66 m; 300-meter transmission at modal bandwidth of 2000 MHz•km), applicable to SFP+ ports |
| XG-SFP-LR-SM1310 | 10G LC interface module (1310 nm), 10 km, applicable to SFP+ ports |
| XG-SFP-ER-SM1550 | 10G LC interface module (1550 nm), 40 km, applicable to SFP+ ports |
Note: The item marked with the asterisk (*) will be available in the future.
