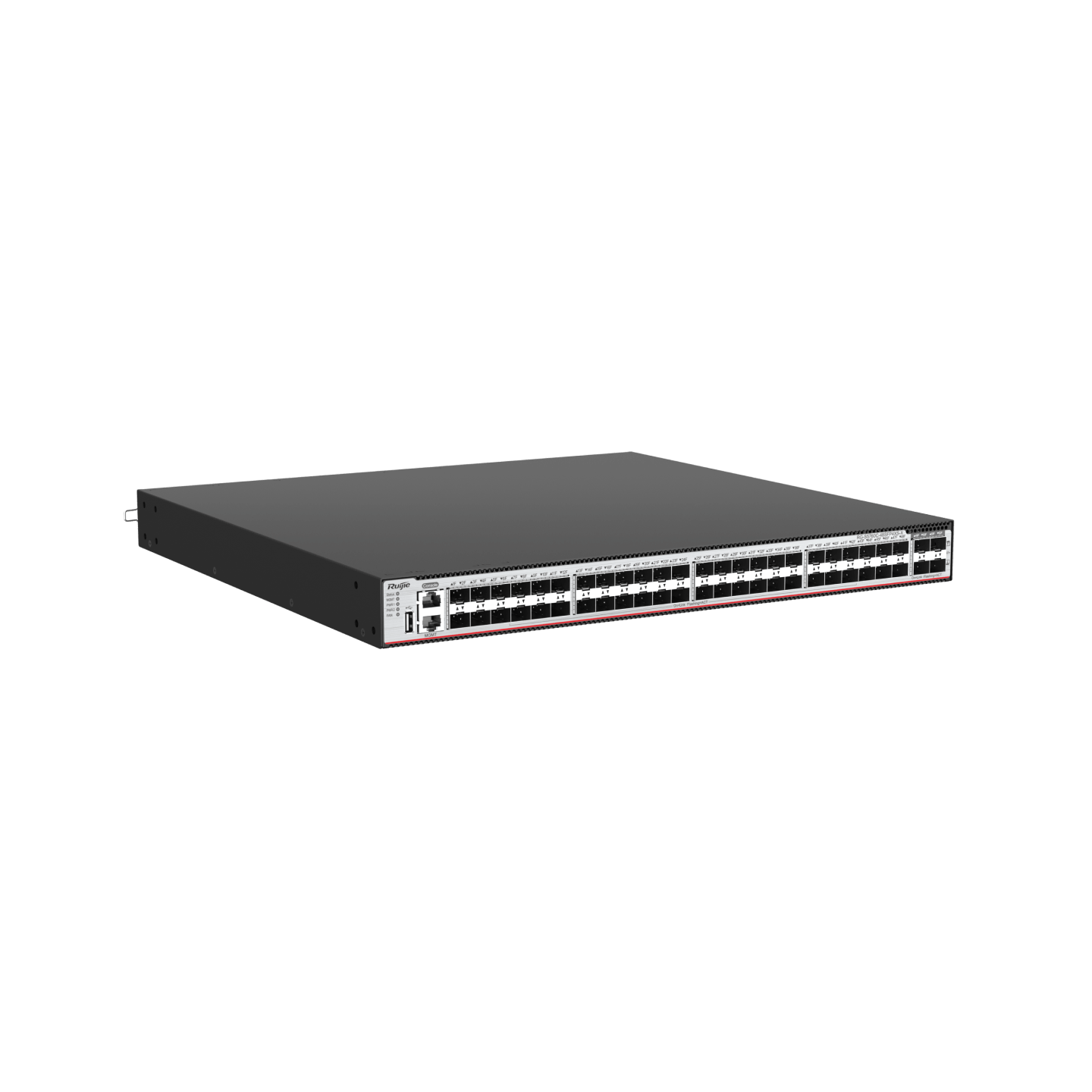

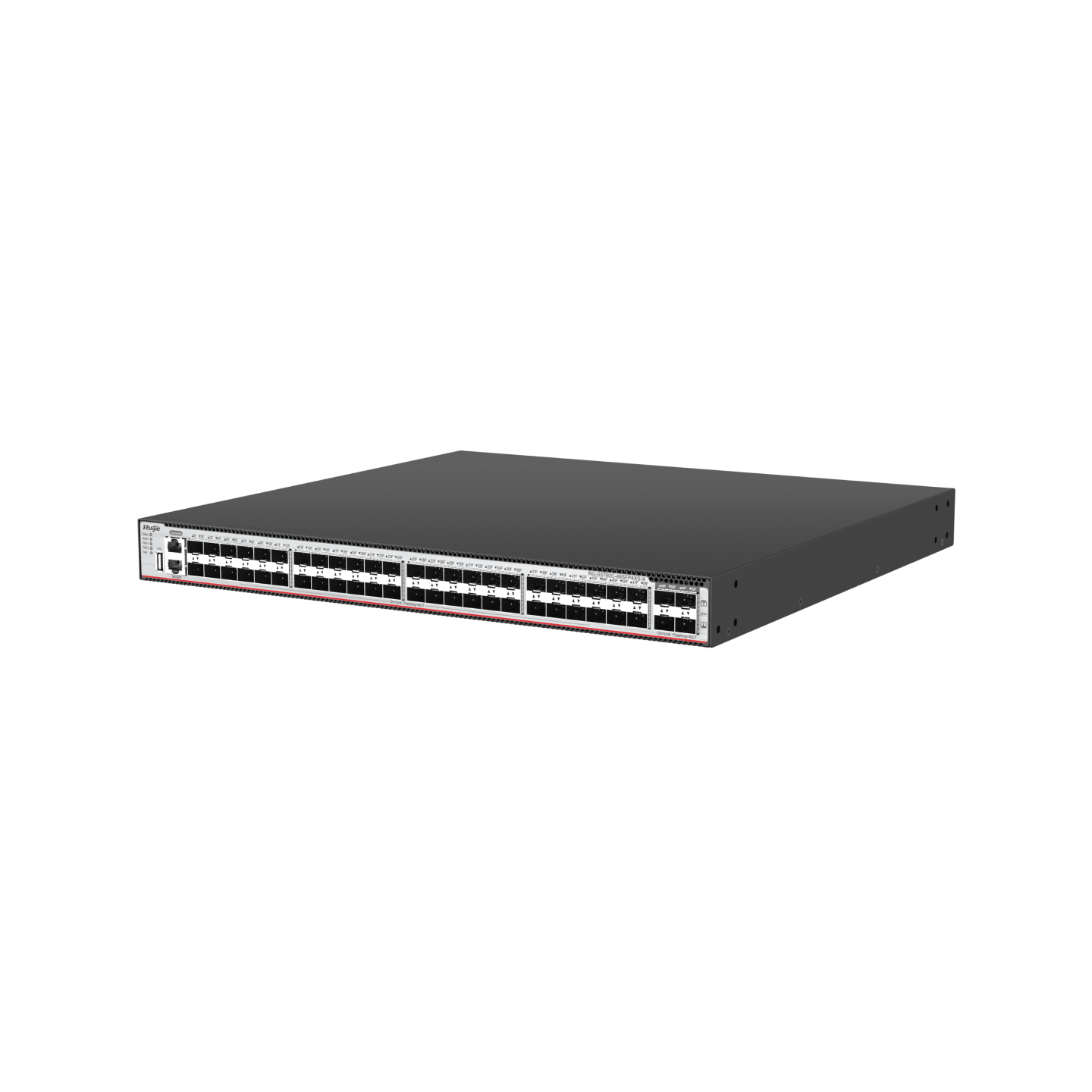

48-Port GE Optical Ports,Four 10G Optical Ports
Condition: NOB
RMA Warranty
Description
- Rich port types, 48 x SFP ports, and 4 × 10G optical ports for uplink
- Hardware redundancy, guaranteed service continuity and network connectivity
- VSU virtualization, flexible networking and high performance
- Layer 3 routing control, adaptive to multiple services, efficient and guaranteed data transmission
- Network security policies, real-time monitoring, CPP and NFPP, delivering enhanced network robustness
- SNMP, RMON, Syslog, USB log backup features, CLI, Eweb, telnet and other management modes, simplified and easy network maintenance
Hardware Specifications
| Hardware Specifications | RG-S5760C-24GT8XS-X | RG-S5760C-48GT4XS-X | RG-S5760C-24SFP8GT8XS-X | RG-S5760C-48SFP4XS-X | RG-S5760C-48GT4XS-HP-X |
| Interface Specifications | |||||
| Fixed port | 24 x 10/100/1000 Mbps electrical ports with auto-negotiation, 8 x 1GE/10GE SFP+ ports, 2 x power supply module slots | 48 x 10/100/1000 Mbps electrical ports with auto-negotiation, 4 x 1GE/10GE SFP+ ports, 2 x power supply module slots | 24 x 1000 Mbps SFP ports (Ports 1-16 are 100/1000 Mbps SFP ports), 8 x 10/100/1000 Mbps combo ports with auto-negotiation, 8 x 1GE/10GE SFP+ ports, 2 x power supply module slots | 48 x 1000 Mbps SFP ports, 4 x 1GE/10GE SFP+ ports, 3 x modular fans, 2 x power supply module slots | 48 x 10/100/1000 Mbps electrical ports with auto-negotiation, 4 x 1GE/10GE SFP+ ports, 2 x power supply module slots, supporting PoE/PoE+ |
| Fan module | Two built-in fan modules
Fan speed regulating and fault alarms |
Three pluggable fan modules | Two pluggable fan modules | ||
| Power module | Two power modules
The switch can be powered on by either one or dual power modules. If both power modules are used, the switch works in the power redundancy mode. |
||||
| Management port | One MGMT port, one console port, and one USB port, compliance with the USB2.0 standard | ||||
| Expansion slot | Two expansion slots are reserved for expansion modules and supervisor modules. One expansion slot is reserved on the RG-S5760C-48GT4XS-HP-X and RG-S5760C-48SFP4XS-X. | ||||
| System Specifications | |||||
| Packet forwarding rate | 512 Mpps | 488 Mpps | 512 Mpps | 488 Mpps | 488 Mpps |
| Switching capacity | 688 Gbps | 656 Gbps | 688 Gbps | 656 Gbps | 656 Gbps |
| Number of MAC addresses | 64,000 | 64,000 | 64,000 | 64,000 | 64,000 |
| ARP table size | 24,000 | 24,000 | 24,000 | 24,000 | 24,000 |
| Number of IPv4 unicast routes | 24,000 | 24,000 | 24,000 | 24,000 | 24,000 |
| Number of IPv4 multicast routes | 4,000
mmu-enhance: 3,000 |
4,000
mmu-enhance: 3,000 |
4,000
mmu-enhance: 3,000 |
4,000
mmu-enhance: 3,000 |
4,000
mmu-enhance: 3,000 |
| Number of IPv6 unicast routes | 14,000 | 14,000 | 14,000 | 14,000 | 14,000 |
| Number of IPv6 multicast routes | 2,000
mmu-enhance: 1,500 |
2,000
mmu-enhance: 1,500 |
2,000
mmu-enhance: 1,500 |
2,000
mmu-enhance: 1,500 |
2,000
mmu-enhance: 1,500 |
| Number of ACEs | In: 7,000
Out:1,500 |
||||
| Number of IGMP groups | 4,000 | ||||
| Number of MLD groups | 1,000 | ||||
| Number of VSU members | 4 | ||||
| Dimensions and Weight | |||||
| Dimensions (W x D x H) | 440 mm x 340 mm x 44 mm (17.32 in. x 13.39 in. x 1.73 in.) | 442 mm x 420 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.) | |||
| Weight | 4.4 kg (9.70 lbs) | 4.5 kg (9.92 lbs) | 4.3 kg (9.48 lbs) | 5.3 kg (11.68 lbs) | 5.5 kg (12.13 lbs) |
| CPU and Storage | |||||
| CPU | 1.2 GHz dual-core CPU | ||||
| Storage | Flash memory: 4 GB
SDRAM: 1 GB |
Flash memory: 4 GB
SDRAM: 2 GB |
|||
| Data packet buffer | 4MB | ||||
| Power and Consumption | |||||
| Maximum power consumption | < 60 W (excluding expansion modules)
< 85 W (including expansion modules) |
< 70 W (excluding expansion modules)
< 95 W (including expansion modules) |
< 77 W (excluding expansion modules)
< 102 W (including expansion modules) |
< 105 W (excluding expansion modules)
< 125 W (including expansion modules) |
Without PoE load: ≤ 110 W
With PoE full load: ≤ 1,590 W |
| Maximum output power | RG-PA70IB: 70 W
RG-PA150I-F: 150 W RG-PA150IB-F: 100 V to 240 V, 150 W RG-PD150IB-F: 48 V DC to 60 V DC, 150 W |
RG-PA70IB: 70 W
RG-PA150I-F: 150 W RG-PA150IB-F: 100 V to 240 V, 150 W RG-PD150IB-F: 48 V DC to 60 V DC, 150 W |
RG-PA150I-F: 150 W
RG-PA150IB-F: 100 V to 240 V, 150 W RG-PD150IB-F: 48 V DC to 60 V DC, 150 W |
RG-PA150I-F: 150 W
RG-PA150IB-F: 100 V to 240 V, 150 W RG-PD150IB-F: 48 V DC to 60 V DC, 150 W |
RG-PA600I-P-F: 600 W (PoE: 370 W)
RG-PD600I-P-F: 600 W (PoE: 370 W) RG-PA1000I-P-F: 176 V AC to 290 V AC, 1000 W; 90 V AC to 176 V AC, 930 W (PoE: 740 W) |
| Rated input voltage | AC input
Rated voltage range: 100 V to 240 V Frequency: 50 Hz/60 Hz HVDC input: Rated voltage range: 240 V LVDC input: Rated voltage range: 48 V DC to 60 V DC |
AC input
Rated voltage range: 200 V to 240 V Frequency: 50 Hz/60 Hz DC input: Rated voltage range: 48 V to 60 V |
AC input
Rated voltage range: 200 V to 240 V Frequency: 50 Hz/60 Hz DC input: Rated voltage range: 48 V to 60 V |
||
| Maximum input voltage | AC input
Maximum voltage range: 90 V to 264 V HVDC input: Maximum voltage range: 192 V to 288 V LVDC input: Maximum voltage range: 36 V DC to 75 V DC |
AC input
Maximum voltage range: 176 V to 264 V DC input: Maximum voltage range: 38 V to 75 V |
AC input
Maximum voltage range: 90 V to 264 V DC input: Maximum voltage range: 36 V to 75 V |
||
| Environment and Reliability | |||||
| MTBF | 120 years | 110 years | 94 years | 90 years | 95 years |
| Primary Airflow | Air intake from left and front panel, and air exhaust from right | Front-to-rear airflow | |||
| Operating temperature | 0°C to 45°C (32°F to 113°F)
V1.X+M5000X4XS2CQ: 0 to 40°C (32°F to 104°F) |
0°C to 45°C (32°F to 113°F) | |||
| Storage temperature | –40°C to +70°C (–40°F to +158°F) | ||||
| Operating humidity | 10% to 90% (non-condensing) | ||||
| Storage humidity | 5% to 95% (non-condensing) | ||||
| Operating altitude | 0 m to +5,000 m (0 ft. to +16404.20 ft.) | ||||
| Operating noise | 45°C (113°F): 56.2 dB | 45°C (113°F): 57.9 dB | 45°C (113°F): 57.1 dB | 27°C (80.6°F): 50 dB
45°C (113°F): 65 dB |
27°C (80.6°F): 53 dB
45°C (113°F): 68 dB |
| Interface surge protection | Power port: 6 kV
Telecom port: 10 kV (MGMT port: 4 kV) |
||||
Software Specifications
| RG-S5760-X Series | |
| Feature | Description |
| Ethernet switching | Jumbo frame (maximum length: 9,216 bytes) |
| IEEE 802.1Q (supporting 4K VLANs) | |
| Voice VLAN | |
| Super-VLAN and private VLAN | |
| MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment | |
| GVRP | |
| Basic QinQ and selective QinQ | |
| STP, RSTP, and MSTP | |
| ERPS (G.8032) | |
| LLDP/LLDP-MED | |
| LACP (IEEE 802.3ad) | |
| IP service | ARP |
| DHCP client, DHCP relay, and DHCP server | |
| DHCP snooping | |
| DNS | |
| DHCPv6 client, DHCPv6 server, and DHCPv6 relay | |
| DHCPv6 snooping | |
| Neighbor Discovery (ND) and ND snooping | |
| IPV6 addressing, ICMPv6, Stateless Address Auto-configuration (SLAAC), and path MTU discovery | |
| IP routing | Static routing |
| RIP and RIPng | |
| OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6 | |
| BGP4 and BGP4+ | |
| ECMP | |
| IPv4 and IPv6 VRF | |
| IPv4 and IPv6 PBR | |
| Multicast | IGMP v1/v2/v3 and IGMP proxy |
| IGMP v1/v2/v3 snooping | |
| IGMP filtering and IGMP fast leave | |
| PIM-DM, PIM-SM, and PIM-SSM | |
| MSDP | |
| MLD snooping v1/v2 | |
| PIM-SMv6 and PIM-SSM v6 | |
| MPLS | MPLS L3VPN |
| ACL and QoS | Standard IP ACLs
Extended IP ACLs Extended MAC ACLs Time-based ACLs Expert-level ACLs ACL80 IPv6 ACL |
| ACL redirection | |
| Port traffic identification | |
| Port traffic rate limiting | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ | |
| Congestion avoidance: tail drop, RED, and WRED | |
| 802.1p/DSCP/ToS traffic classification
Eight priority queues per port |
|
| Security | AAA |
| RADIUS and TACAS+ | |
| Port-based and MAC address-based 802.1X authentication | |
| Web authentication | |
| HTTPS | |
| SSHv1 and SSHv2 | |
| Global IP-MAC binding | |
| Port isolation and port security | |
| IP source guard | |
| SAVI | |
| CPP and NFPP | |
| Strict and loose RPF
uRPF ignoring default routes |
|
| 3-tuple binding (IP address, MAC address, and port)
3-tuple binding (IPv6 address, MAC address, and port) Filtering of unauthorized MAC addresses MAC address bypass (MAB) authentication Portal authentication and Portal 2.0 authentication ARP check Dynamic ARP Inspection (DAI) ARP packet rate limiting Gateway ARP anti-spoofing Broadcast storm suppression Hierarchical management of administrators and password protection AAA for device login management MAC Authentication Bypass (SSH) BPDU guard Port protection |
|
| Reliability | REUP, RLDP, and DLDP |
| IPv4 VRRP v2/v3 and IPv6 VRRP | |
| GR for RIP, OSPF, BGP, and other routing protocols | |
| BFD | |
| Link tracing, fault notification, and remote loopback based on 802.3ah (EFM) | |
| 1+1 power module redundancy | |
| Hot swapping of power modules and cables | |
| 3-level fan speed adjustment
Fan fault alarm |
|
| Device virtualization | VSU |
| NMS and maintenance | SPAN, RSPAN, and ERSPAN |
| sFlow | |
| NTP and SNTP | |
| FTP and TFTP | |
| SNMP v1/v2c/v3 | |
| RMON (1, 2, 3, 9) | |
| SSHv1 and SSHv2 | |
| Syslog | |
| NETCONF | |
| CWMP (TR-069) | |
| gRPC | |
| CLI (Telnet/Console), SNMP over IPv6, IPv6 MIB support for SNMP, SSHv6, Telnet v6, FTP/TFTP v6, DNS v6, NTP for IPv6, and Traceroute v6 | |
| PoE | RG-S5760C-48GT4XS-HP-E:
IEEE 802.3af and 802.3at, uninterruptible power supply upon hot start, and port priority |
| VXLAN | With VXLAN, a Layer 2 logical network can be built based on a Layer 3 network through software upgrade. |
Power Modules
| Model | Description |
| RG-S5760C-24GT8XS-X | 24 x 10/100/1000 Mbps electrical ports with auto-negotiation, 8 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x built-in fixed fans, 2 x power module slots
Purchase at least one RG-PA150IB-F module. |
| RG-S5760C-48GT4XS-X | 48 x 10/100/1000 Mbps electrical ports with auto-negotiation, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x built-in fixed fans, 2 x power module slots (Purchase at least one RG-PA150IB-F module.) |
| RG-S5760C-24SFP8GT8XS-X | 24 x 10/100/1000 Mbps SFP ports (Ports 1-16 are 100/1000 Mbps SFP ports), 8 x 10/100/1000 Mbps combo ports with auto-negotiation, 8 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x built-in fans, 2 x power module slots (Purchase at least one RG-PA150IB-F module.) |
| RG-S5760C-48SFP4XS-X | 48 x 1000 Mbps SFP ports, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 3 x modular fans, 2 x power module slots
Purchase at least one RG-PA150IB-F module. |
| RG-S5760C-48GT4XS-HP-X | 48 x 10/100/1000 Mbps electrical ports with auto-negotiation, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x modular fans, 2 x power module slots
Purchase at least one RG-PA600I-P-F/RG-PA1000I-P-F/RG-PD600I-P-F module. |
| M5000X-4XS2CQ | 4 x 10GE SFP+ ports and 2 x 100GE QSFP28 ports |
| RG-PA150IB-F | 150 W AC power module |
| RG-PA600I-P-F | 600 W PoE AC power module |
| RG-PA1000I-P-F | 1000 W PoE AC power module |
| RG-PD600I-P-F | 600 W PoE DC power module |
Optical Modules
| Model | Description |
| Mini-GBIC-GT | 1000BASE-GT mini GBIC module |
| MINI-GBIC-SX-MM850 | Single-port 1000BASE-SX mini GBIC module (LC connector) |
| MINI-GBIC-LX-SM1310 | Single-port 1000BASE-LX mini GBIC module (LC connector) |
| MINI-GBIC-LH40-SM1310 | Single-port 1000BASE-LH mini GBIC module (LC connector), supporting a transmission distance of 40 km (24.85 miles) |
| MINI-GBIC-ZX50-SM1550 | Single-port 1000BASE-ZX mini GBIC module (LC connector), supporting a transmission distance of 50 km (24.85 miles) |
| MINI-GBIC-ZX80-SM1550 | Single-port 1000BASE-ZX mini GBIC module (LC connector), supporting a transmission distance of 80 km (24.85 miles) |
| MINI-GBIC-ZX100-SM1550 | 1000BASE-ZX mini GBIC module, supporting a transmission distance of 100 km (62.14 miles) |
| XG-SFP-SR-MM850 | 10GE LC module (62.5/125 μm: 33 m (108.27 ft.); 50/125 μm: 66 m (216.54 ft); transmission for 300 m (984.25 ft.) when modal bandwidth is 2000 MHz*km), applicable to SFP+ ports |
| XG-SFP-LR-SM1310 | 10GE LC interface module (1310 nm), 10 km (6.21 miles), applicable to SFP+ ports |
| XG-SFP-ER-SM1550 | 10GE LC interface module (1550 nm), 40 km (24.85 miles), applicable to SFP+ ports |
| XG-SFP-AOC1M | 10GE SFP+ optical cable, 1 m (3.28 ft.), including one cable and two interface modules |
| XG-SFP-AOC3M | 10GE SFP+ optical cable, 3 m (9.84 ft.), including one cable and two interface modules |
| XG-SFP-AOC5M | 10GE SFP+ optical cable, 5 m (16.40 ft.), including one cable and two interface modules |
