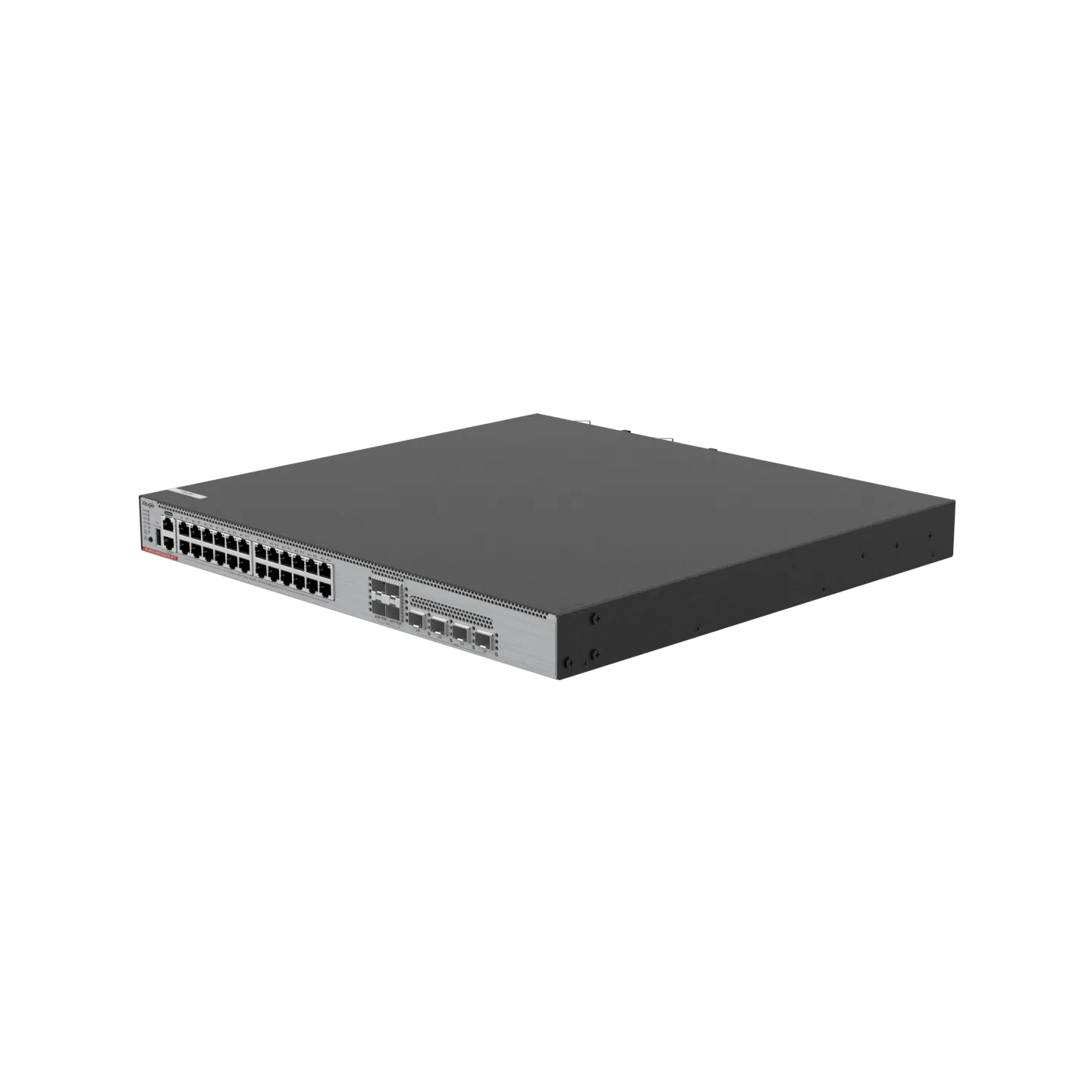

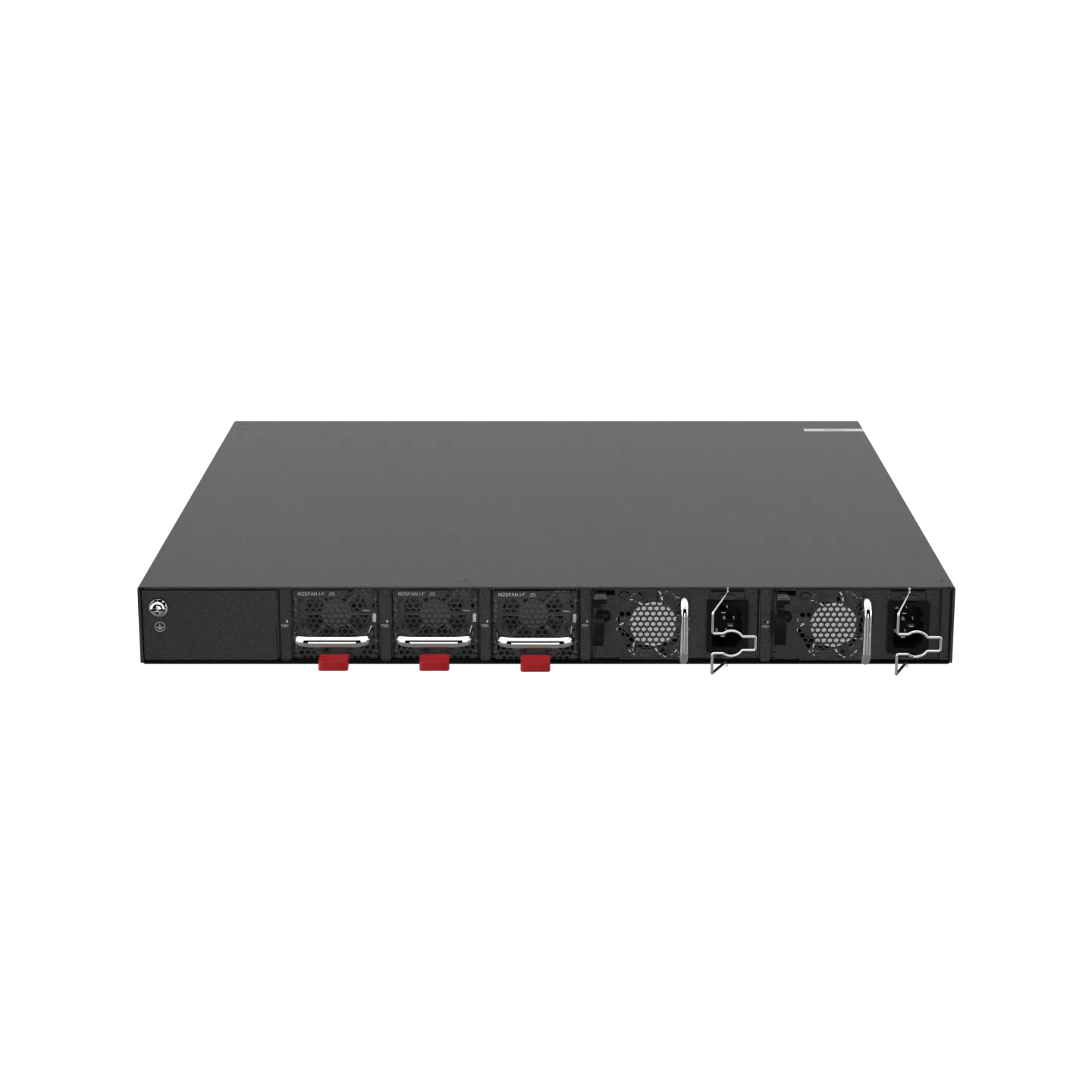

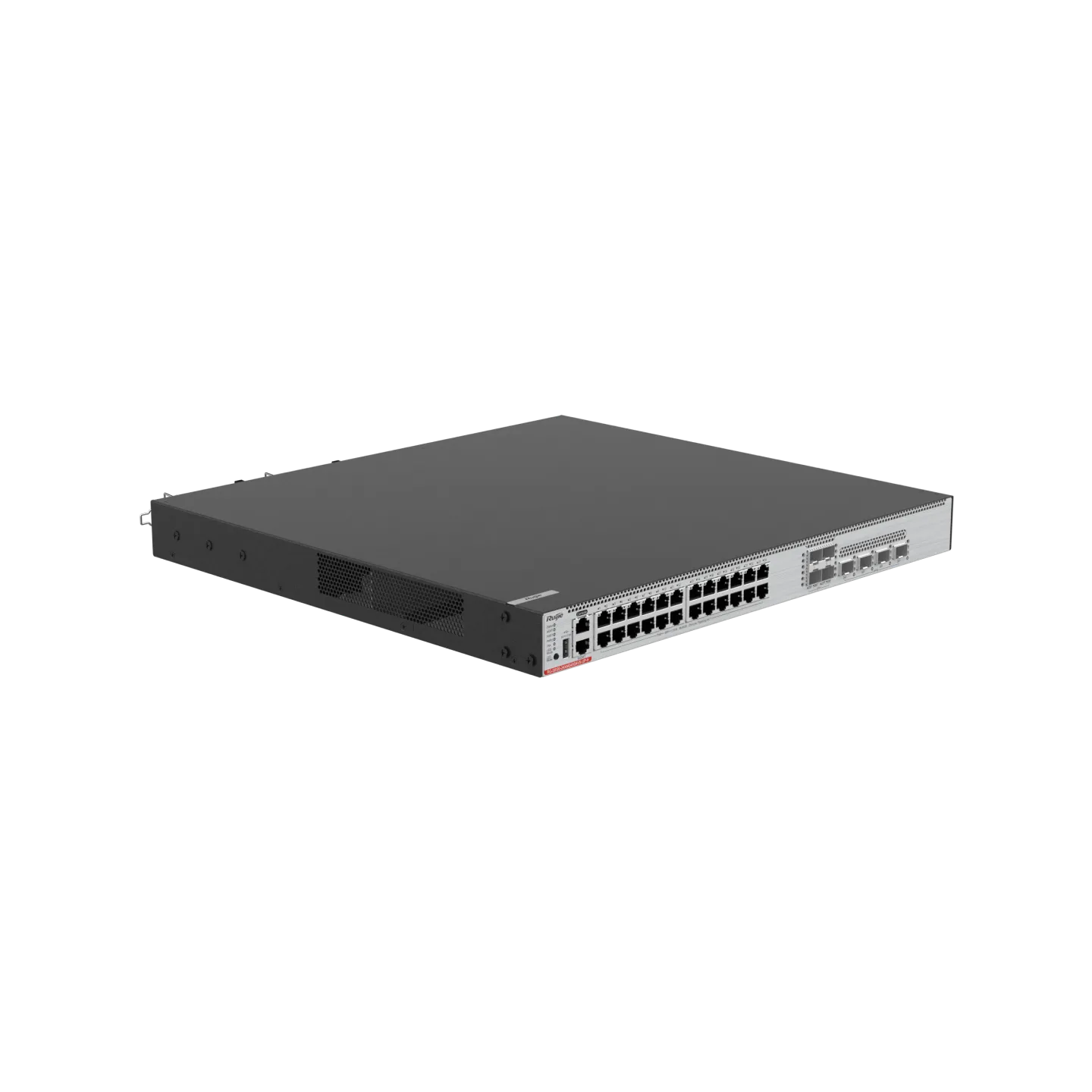

24 x 10G electrical ports, 4 x 10G optical ports, 4 x 25G optical ports
Condition: NOB
RMA Warranty
Description
- 24 x 10G/5G/2.5G/1G/100M Base-T Ethernet ports and 4 x 10G and 4 x 25G uplink ports, meeting high bandwidth demands of large campuses
- Multi-level hardware protection, ensuring continuous device operation and stable network connectivity
- VSU, delivering flexible networking capabilities and high performance
- Multiple network security policies and real-time monitoring, ensuring consistently high network performance
- Intelligent fan speed adjustment and auto port sleeping, reducing power consumption and noises
- Various network management methods, achieving simplified network maintenance
Hardware Specifications
| Hardware Specifications | RG-S6110-24MG4VS-UP | RG-S6110-48MG4VS2QXS-UP | RG-S6120-24XMG4XS4VS-UP-H | RG-S6120-48XMG4VS2QXS-UP-H |
| Interface Specifications | ||||
| Fixed port | 24 x 100M/1000M/2.5GE/5GE electrical ports with auto-negotiation
4 x 10GE/25GE SFP28 ports Ports 1 to 24 support PoE/PoE+ and HPoE power supply (maximum output power of a HPoE-capable port: 90 W) |
48 x 100M/1000M/2.5GE/5GE electrical ports with auto-negotiation
4 x 10GE/25GE SFP28 + 2 x 40GE QSFP+ ports Ports 1 to 48 support PoE/PoE+ power supply (ports 1 to 24 support HPoE power supply, maximum output power of a HPoE-capable port: 90 W) |
24 x 100M/1000M/2.5GE/5GE/10GE electrical ports with auto-negotiation 4 x 10GE SFP+ ports 4 x 25GE SFP28 ports Ports 1 to 24 support PoE/PoE+ and HPoE power supply (maximum output power of a HPoE-capable port: 90 W) |
48 x 100M/1000M/2.5GE/5GE/10GE electrical ports with auto-negotiation
4 x 10GE/25GE SFP28 + 2 x 40GE QSFP+ ports Ports 1 to 48 support PoE/PoE+ power supply (ports 1 to 24 support HPoE power supply, maximum output power of a HPoE-capable port: 90 W) |
| Fan module | 2 x fixed fan modules
Fan speed regulating and fault alarms |
3 x fan module slots
Fan speed regulating and fault alarms |
3 x fan module slots Fan speed regulating and fault alarms |
3 x fan module slots
Fan speed regulating and fault alarms |
| Power module | 1 x built-in power module | 2 x power module slots |
2 x power module slots |
2 x power module slots |
| Fixed management port | 1 x MGMT port, 1 x console port, and 1 x USB2.0 port | |||
| System Specifications | ||||
| Packet forwarding rate | 327 Mpps | 625 Mpps |
565 Mpps |
982 Mpps |
| System switching capacity | 440 Gbps | 840 Gbps |
760 Gbps |
1320 Gbps |
| Number of MAC addresses | Number of global MAC addresses: 32,768
Number of static MAC addresses: 1,000 |
Number of global MAC addresses: 32,768
Number of static MAC addresses: 1,000 |
Number of global MAC addresses: 32,768
Number of static MAC addresses: 1,000 |
Number of global MAC addresses: 32,768
Number of static MAC addresses: 1,000 |
| ARP table size | 16,000 | 16,000 |
16,000 |
16,000 |
| ND table size | 4,000 | 4,000 |
4,000 |
4,000 |
| Number of IPv4 unicast routes | 16,000 | 16,000 |
16,000 |
16,000 |
| Number of IPv4 multicast routes | 4,000 | 4,000 |
4,000 |
4,000 |
| Number of IPv6 unicast routes | 16,000 | 16,000 |
16,000 |
16,000 |
| Number of IPv6 multicast routes | 2,000 | 2,000 |
2,000 |
2,000 |
| Number of IGMP groups | 4,000 | |||
| Number of MLD groups | 1,000 | |||
| Number of ACEs | Ingress: 2,500
Egress: 1,000 |
|||
| Number of VSU members | 2 | 2 |
2 |
2 |
| Dimensions and Weight | ||||
| Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm (17.40 in. x 8.66 in. x 1.72 in.) | 442 mm x 420 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.) |
442 mm x 420 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.) |
442 mm x 420 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.) |
| Weight (chassis and fan modules) | 3.65 kg (8.05 lbs) | 6.11 kg (13.47 lbs) |
6.11 kg (13.47 lbs) |
6.11 kg (13.47 lbs) |
| CPU and Storage | ||||
| CPU | 1.2 GHz single-core processor | 1.2 GHz single-core processor |
1.2 GHz single-core processor |
1.2 GHz single-core processor |
| Storage | 1 GB DDR4
1 GB flash memory |
2 GB DDR4
1 GB flash memory |
1 GB DDR4 1 GB flash memory |
2 GB DDR4
1 GB flash memory |
| Data packet buffer | 4 MB | 4 MB |
4 MB |
4 MB |
| Power and Consumption | ||||
| Maximum power consumption | Without PoE: < 120 W
Full PoE load: < 370 W |
Without PoE: < 240 W
Full PoE load: < 1,600 W |
Without PoE: < 120 W Full PoE load: < 1,650 W |
Without PoE: < 240 W
Full PoE load: < 1,600 W |
| Maximum output power | Built-in power: 460 W (370 W for PoE output power supply and 90 W for the chassis) | RG-PA600I-P-F: 600 W (400 W/450 W for PoE output power supply and 150 W/200 W for the chassis)
RG-PA1000I-P-F: 1,000 W (800 W/850 W for PoE output power supply and 150 W/200 W for the chassis) |
RG-PA600I-P-F: 600 W (400 W/450 W for PoE output power supply and 150 W/200 W for the chassis) RG-PA1000I-P-F: 1,000 W (800 W/850 W for PoE output power supply and 150 W/200 W for the chassis) |
RG-PA600I-P-F: 600 W (400 W/450 W for PoE output power supply and 150 W/200 W for the chassis)
RG-PA1000I-P-F: 1,000 W (800 W/850 W for PoE output power supply and 150 W/200 W for the chassis) |
| Rated input voltage | AC input: 100 V AC to 240 V AC
Frequency: 50/60 Hz Rated current per circuit: 6 A |
RG-PA600I-P-F:
● AC input: 100 V AC to 240 V AC ● Frequency: 50/60 Hz ● Rated current per circuit: 8 A RG-PA1000I-P-F: ● AC input: 100 V AC to 240 V AC ● Frequency: 50/60 Hz ● Rated current per circuit: 8 A
|
||
| Maximum input voltage | 90 V AC to 264 V AC | |||
| Environment and Reliability | ||||
| MTBF | 22.18 years | 27.02 years |
22.18 years |
27.02 years |
| Primary airflow | Front/Left-to-rear airflow | Front/Left-to-rear airflow |
Front/Left-to-rear airflow |
Front/Left-to-rear airflow |
| Operating temperature | 0°C to 45°C (32°F to 113°F) | |||
| Storage temperature | –40°C to +70°C (–40°F to +158°F) | |||
| Operating humidity | 10% to 90% RH (non-condensing) | |||
| Storage humidity | 5% to 90% RH (non-condensing) | |||
| Operating altitude | –500 m to +3000 m (–1640.42 ft. to +9842.52 ft.) | –500 m to +3000 m (–1640.42 ft. to +9842.52 ft.) |
–500 m to +3000 m (–1640.42 ft. to +9842.52 ft.) |
–500 m to +3000 m (–1640.42 ft. to +9842.52 ft.) |
| Operating noise | Typical value: < 40 dBA@27°C (80.6°F)
Maximum value < 78 dBA |
Typical value: < 60 dBA@27°C (80.6°F)
Maximum value < 78 dBA |
Typical value: < 60 dBA@27°C (80.6°F) Maximum value < 78 dBA |
Typical value: < 60 dBA@27°C (80.6°F)
Maximum value < 78 dBA |
| Interface surge protection | 6 kV | |||
Software Specifications
| RG-S6100 Series | |
| Feature | Description |
| Ethernet switching | Jumbo frame (maximum length: 9,216 bytes) |
| IEEE 802.1Q (supporting 4K VLANs) | |
| Maximum number of VLANs that can be created: 4,094 | |
| Voice VLAN | |
| Super-VLAN and private VLAN | |
| MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment | |
| GVRP | |
| Basic QinQ and selective QinQ | |
| STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | |
| ERPS (G.8032) | |
| LACP (IEEE 802.3ad) | |
| LLDP/LLDP-MED | |
| IP service | Static and dynamic ARP |
| DHCP server, DHCP client, DHCP relay, and DHCP snooping | |
| DNS | |
| DHCPv6 server, DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping | |
| Neighbor Discovery (ND) and ND snooping | |
| IP routing | Static routing |
| RIP and RIPng | |
| OSPFv2 and OSPFv3 | |
| GR | |
| IS-ISv4 and IS-ISv6 | |
| BGP4 and BGP4+ | |
| Equal and Weighted Cost Multi-Path (ECMP) | |
| Packet-based and flow-based load balancing | |
| Stateless Auto Configuration | |
| IPv4/IPv6 VRF | |
| IPv4/IPv6 PBR | |
| Multicast | IGMPv1/v2/v3 and IGMP proxy |
| IGMPv1/v2/v3 snooping | |
| IGMP filtering and IGMP fast leave | |
| PIM-DM, PIM-SM, and PIM-SSM | |
| PIM-SSM for IPv4 and IPv6 | |
| MSDP to achieve inter-domain multicast | |
| MLDv1/v2 | |
| MLD snooping | |
| MSDP | |
| PIM-SMv6 | |
| Multicast source IP address check
Multicast source port check |
|
| Multicast querier | |
| ACL and QoS | Standard IP ACLs (hardware ACLs based on IP addresses) |
| Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers) | |
| Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) | |
| Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range) | |
| Time-based ACLs | |
| ACL80 and IPv6 ACL | |
| Applying ACLs globally (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range) | |
| ACL redirection | |
| Port traffic identification | |
| Port traffic rate limiting | |
| 802.1p/DSCP/ToS traffic classification | |
| Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences | |
| Traffic classification based on ToS values | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ | |
| Congestion avoidance: tail drop, RED, and WRED | |
| Eight queues on each port | |
| Rate limiting in each queue | |
| Security | Multi-AAA |
| RADIUS and TACAS+ | |
| Filtering of invalid MAC addresses
Broadcast storm suppression Hierarchical management of administrators and password protection BPDU guard |
|
| RADIUS authentication and authorization | |
| Port- and MAC address-based 802.1x authentication | |
| IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication | |
| Web authentication | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| SSHv1 and SSHv2 | |
| Global IP-MAC binding | |
| ICMPv6 | |
| Port security | |
| IP source guard | |
| SAVI | |
| ARP spoofing prevention | |
| CPP and NFPP | |
| Various attack defense functions including NFPP, ARP anti-spoofing, DHCP/DHCPv6 attack defense, ICMP attack defense, ND attack defense, IP scanning attack defense, and customizing attack defense packet types | |
| Loose and strict RPF
uRPF ignoring default routes |
|
| Reliability | REUP |
| ERPS (G.8032) | |
| Rapid Link Detection Protocol (RLDP), Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control | |
| Data Link Detection Protocol (DLDP) | |
| IPv4 VRRP v2/v3 and IPv6 VRRP | |
| BFD | |
| GR for RIP, OSPF, and BGP | |
| Power modules in 1+1 redundancy mode | |
| Hot swapping of power modules and fan modules (not supported by the RG-S6110-24MG4VS-UP) | |
| Device virtualization | VSU |
| NMS and maintenance | SPAN, RSPAN, and ERSPAN |
| sFlow | |
| NTP and SNTP | |
| FTP and TFTP | |
| SNMP v1/v2/c3 | |
| RMON (1, 2, 3, 9) | |
| Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, as well as private alarm extension groups
RMON used to implement Ethernet statistics, historical statistics, and alarm functions |
|
| NETCONF | |
| Flow-based mirroring, and N:1 and 1:N port mirroring | |
| CWMP | |
| gRPC | |
| OpenFlow Special 1.3
Flow table analysis defined by all protocols Transmission of specified packets to the controller Configuring the controller’s IP address and port Notifying port status changes to the controller |
|
| CLI (Telnet/console), SSH, Syslog, SNMP over IPv6, Telnet v6, FTP/TFTP v6, DNS v6, and NTP for IPv6 | |
| Ruijie Could-based management | |
Note: The item marked with the asterisk (*) will be available in the future.
Follow the steps to order an RG-S6100 multi-GE switch:
- Select a model of RG-S6100 series switches. The device is fully equipped with fan modules that do not need to be purchased separately.
- Select power modules based on switch models. At least one power module is required.
- Select optical modules based on optical interfaces of the switch.
Models marked with asterisks (*) in Ordering Information will be available in the future.
The switch, expansion module, power module, and other components can be ordered as needed. Before ordering an expansion module or power module, contact the online customer service personnel for the latest support information about the module.
Switches and Power Modules
| Model | Description |
| RG-S6110-24MG4VS-UP | 24 x 100M/1000M/2.5GE/5GE electrical ports with auto-negotiation
4 x 10GE/25GE SFP28 ports |
| RG-S6110-48MG4VS2QXS-UP | 48 x 100M/1000M/2.5GE/5GE electrical ports with auto-negotiation
4 x 10GE/25GE SFP28 + 2 x 40GE QSFP+ ports |
|
RG-S6120-24XMG4XS4VS-UP-H
|
24 x 100M/1000M/2.5GE/5GE/10GE electrical ports with auto-negotiation
4 x 10GE SFP+ ports 4 x 25GE SFP28 ports |
| RG-S6120-48XMG4VS2QXS-UP-H | 48 x 100M/1000M/2.5GE/5GE/10GE electrical ports with auto-negotiation
4 x 10GE/25GE SFP28 + 2 x 40GE QSFP+ ports |
| RG-PA600I-P-F | 600 W AC power module |
| RG-PA1000I-P-F | 1000 W AC power module |
| RG-PA150I-F | 150 W AC power module |
GE Optical Module
| Model | Description |
| Mini-GBIC-GT | 1000BASE-GT mini GBIC module |
| MINI-GBIC-SX-MM850 | 1000BASE-SX, SFP transceiver, SM (850 nm, 500 m, LC). |
| MINI-GBIC-LX-SM1310 | 1000BASE-LX, SFP transceiver, SM (1310 nm, 10 km, LC) |
| MINI-GBIC-LH40-SM1310 | 1000BASE-LH, SFP transceiver, SM (1310 nm, 40 km, LC) |
| MINI-GBIC-ZX80-SM1550 | 1000BASE-ZX80, SFP transceiver, SM (1550 nm, 80 km, LC) |
| GE-SFP-LX20-SM1310-BIDI | SFP BIDI Transceiver-TX1310/RX1550, 20 km, LC |
| GE-SFP-LX20-SM1550-BIDI | SFP BIDI Transceiver-TX1550/RX1310, 20 km, LC |
| GE-SFP-LH40-SM1310-BIDI | SFP BIDI Transceiver-TX1310/RX1550, 40 km, LC |
| GE-SFP-LH40-SM1550-BIDI | SFP BIDI Transceiver-TX1550/RX1310, 40 km, LC |
10GE Optical Modules
| Model | Description |
| XG-SFP-SR-MM850 | 10GE LC connector module, applicable to the SFP+ port
62.5 μm/125 μm: 33 m 50 μm/125 μm: 66 m Modal bandwidth of 2000 MHz·km for a link length of up to 300 meters |
| XG-SFP-LR-SM1310 | 10GE LC connector module with a link length of up to 40 km, 1310-nm wavelength, applicable to the SFP+ port |
| XG-SFP-ER-SM1550 | 10GE LC connector module with a link length of up to 40 km, 1550-nm wavelength, applicable to the SFP+ port |
| XG-SFP-AOC1M | 10GE SFP+ port cable, 1 m, including one cable and two interface modules |
| XG-SFP-AOC3M | 10GE SFP+ port cable, 3 m, including one cable and two interface modules |
| XG-SFP-AOC5M | 10GE SFP+ port cable, 5 m, including one cable and two interface modules |
25GE Optical Modules
| Model | Description |
| VG-SFP-SR-MM850 | 25GE SR, SFP28, 850-nm wavelength, 100 m over MMF |
| VG-SFP-LR-SM1310 | 25GE LR, SFP28, 1310-nm wavelength, 10 km over SMF |
| VG-SFP-AOC5M | 25GE SFP+ active optical cable, 5 m, including two modules |
40GE Optical Modules
| Model | Description |
| 40G-QSFP-SR-MM850 | 40GE SR, QSFP+ transceiver, applicable to QSFP+ ports
OM3 and OM4 MMF, MPO, 8-core, 850-nm wavelength, 100 m over OM3 MMF or 150 m over OM4 MMF |
| 40G-QSFP-LR4 SM1310 | 40GE LR4, QSFP+ transceiver, LC, 1310-nm wavelength, 2-core, 10 km over SMF, applicable to QSFP+ ports |
| 40G-AOC-5M | 40GE QSFP+ active optical cable, 5 m, including one cable and two interface modules |
| 40G-AOC-10M | 40GE QSFP+ active optical cable, 10 m, including one cable and two interface modules |
Ryder (verified owner) –
The product is firmly packed.
