IPv4/IPv6 host routing table entries: 740K/140K
Condition: NOB
RMA Warranty
Description
Support EVPN-VXLAN data center top-of-rack access switch, 4.8Tbps/96Tbps switching capacity, support 100G smooth evolution
Product Features:
- High-density 100G switch, 48 10G SFP+ ports, 8 100G QSFP28 ports for uplink
- Multiple hardware-level protections ensure continuous operation of the device and stable network connection
- Virtualization technology enables device-level redundancy and flexible networking with high reliability
- Supports VXLAN tunnel technology, unlimited data transmission, and more flexible resource allocation
- Telemetry network monitoring and automated operation and maintenance make management simple and efficient
Hardware specifications

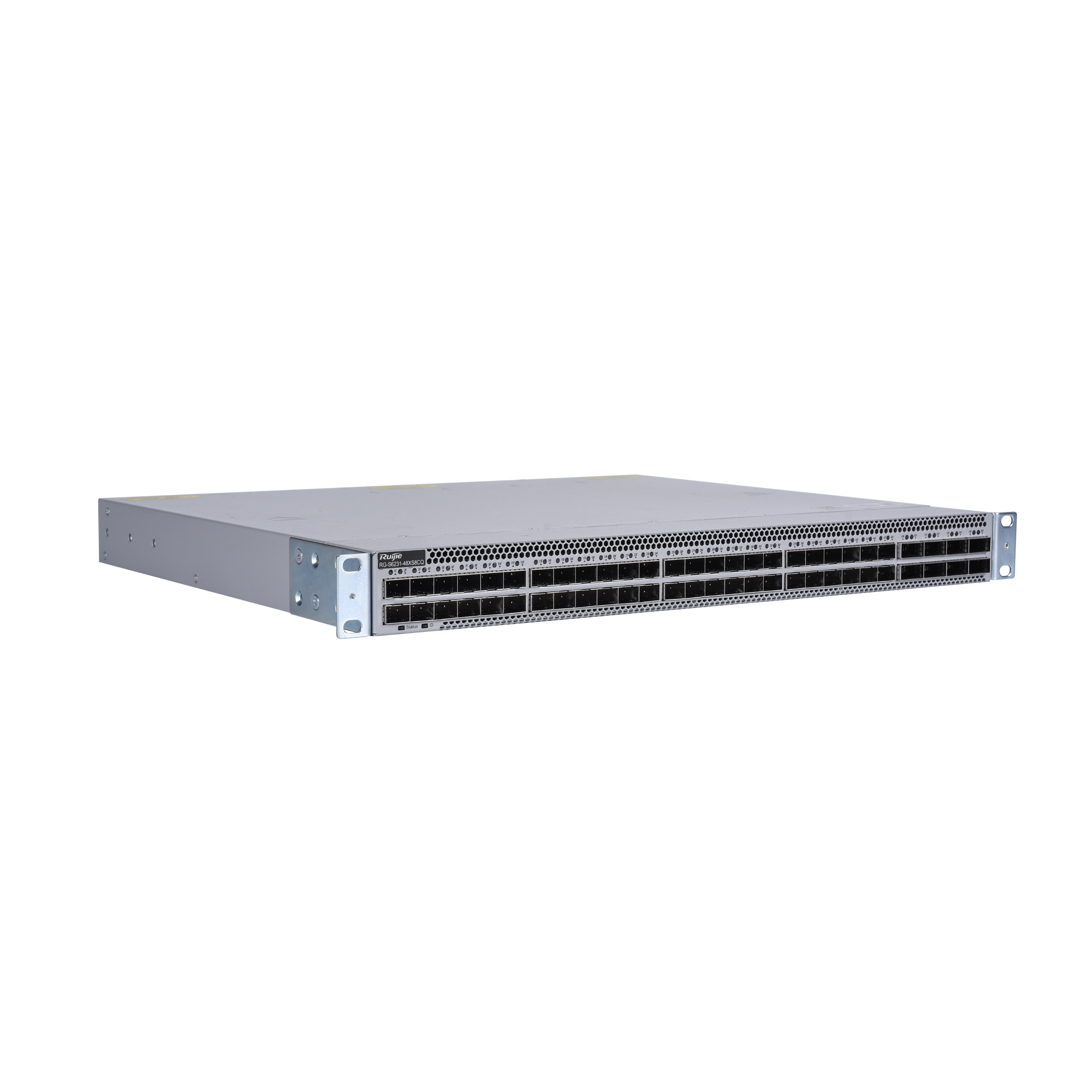

RG-S6231-48XS8CQ
| System Specifications | ||
| Switching capacity | 4.8Tbps/96Tbps | |
| Packet forwarding rate | 2000Mpps | |
| Interface specifications | ||

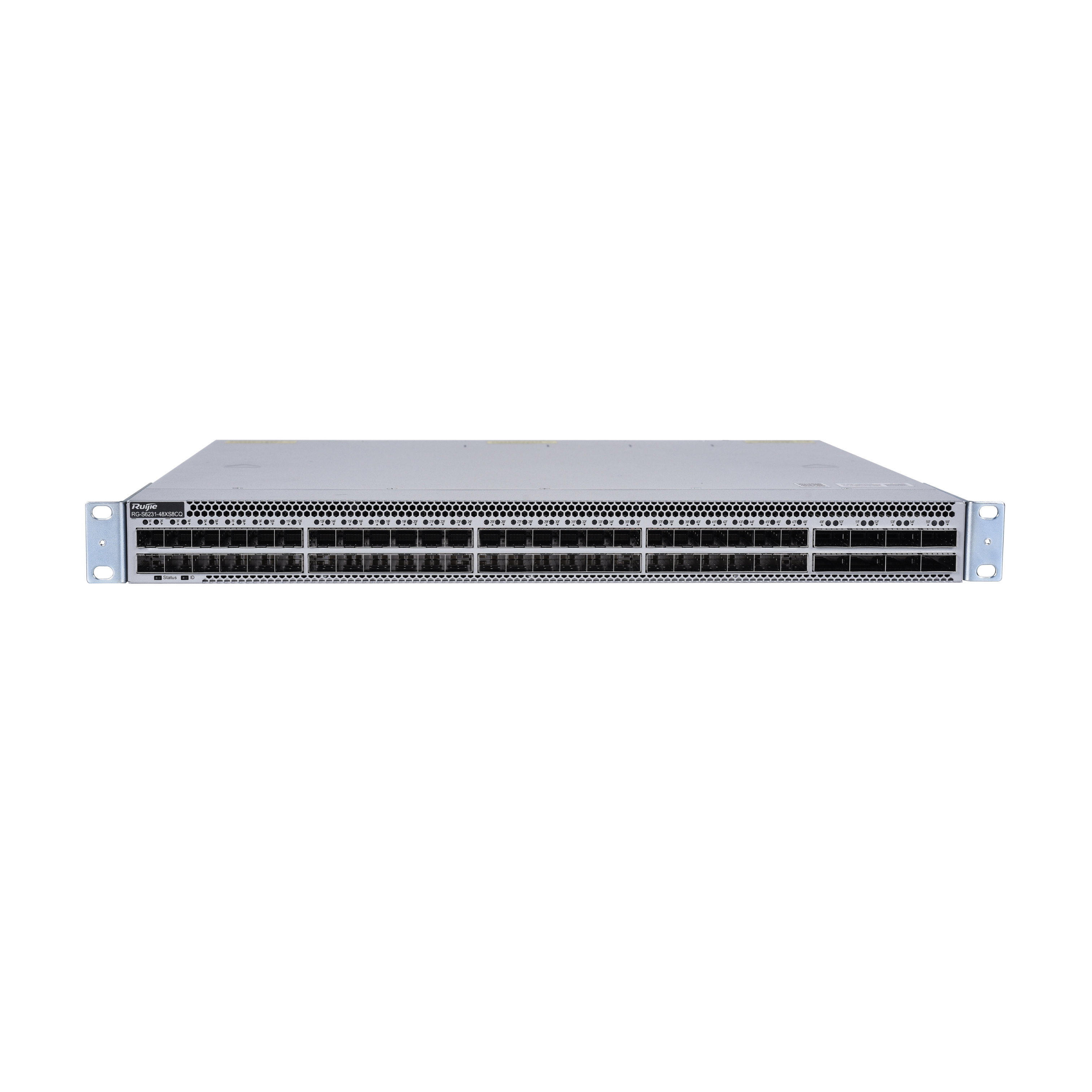

| Port form | 48 10G, SFP+ ports, 8 100G, QSFP28 ports | |

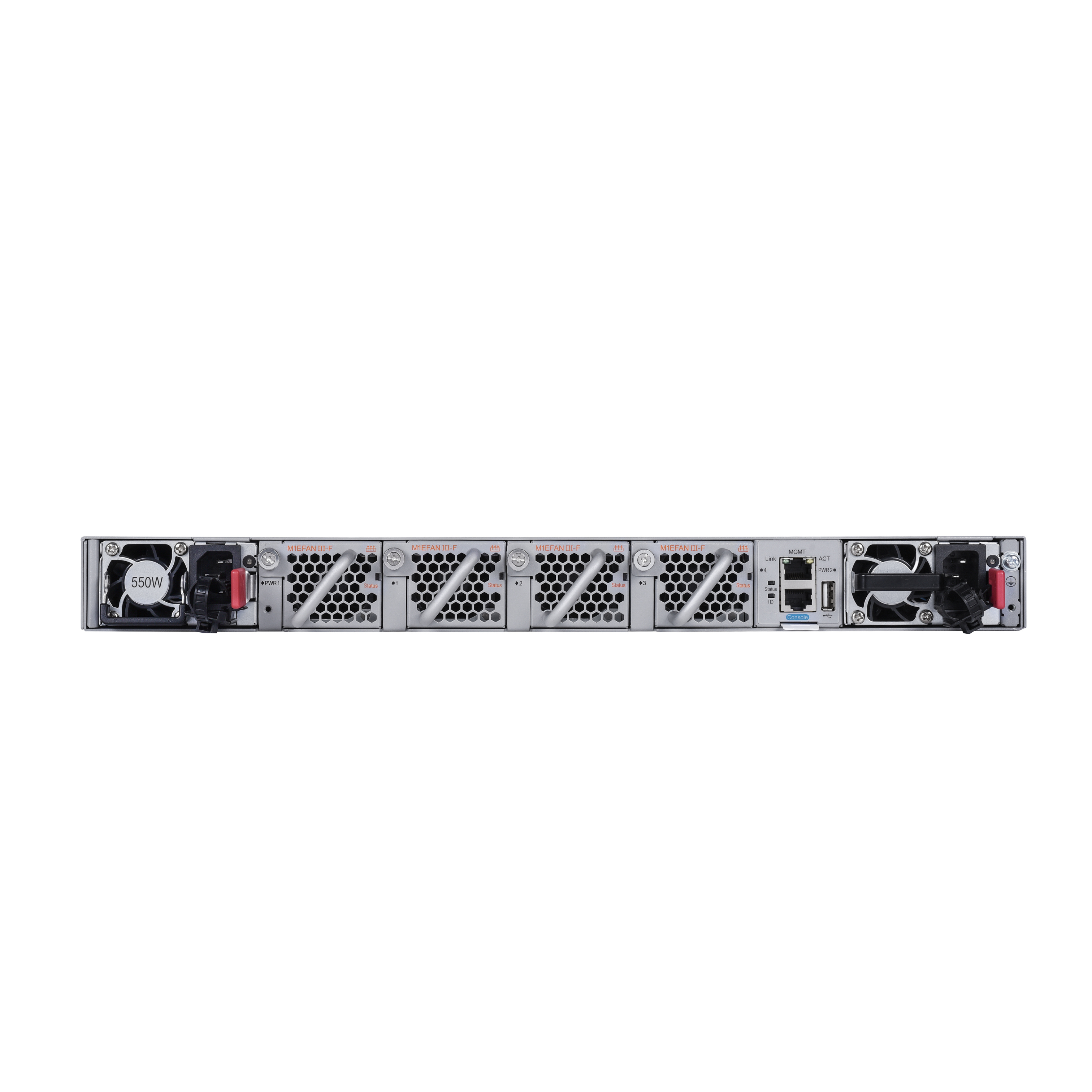

| Extension modules | 2 power module slots, supporting 1+1 redundancy
4 fan module slots, supporting 3+1 redundancy |
|
| Management port | 1 MGMT port, 1 Console port, 1 USB port, compliant with USB2.0 standards | |
| Size and weight | ||
| Product Size
(W x D x H ) |
442 mm x 387 mm x 44 mm (1RU) | |
| weight | About 10kg (including 2 power supplies and 4 fan modules) | |
| Power supply and power consumption | ||
| AC input | Support rated voltage 110V/220V
Rated voltage range: 100~240V (50Hz~60Hz) Maximum voltage range: 90~264V (47Hz~63Hz) Rated input current: 7.2A~3.5A |
|
| High voltage DC input | Rated voltage range: 240V DC
Maximum voltage range: 180~310V DC Rated input current: 3.6A |
|
| Low voltage DC input | N/A | |
| Power consumption | ● Maximum power consumption: 268W
Typical power consumption: 136W ● Static power consumption: 80.9W |
|
| Environment and reliability | ||
| Operating temperature | 0℃~40℃ | |
| Working humidity | 10%~90%RH (non-condensing) | |
Software Specifications
RG-S6231-48XS8CQ
| L2 Protocol | IEEE802.3ae (10GBase), IEEE802.3ak, IEEE802.3an, IEEE802.3x, IEEE802.3ad (link aggregation), IEEE802.1p, IEEE802.1Q,
IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, MLD Snooping, Jumbo Frame (9Kbytes), IEEE802.1ad (QinQ, Flexible QinQ), GVRP |
|||||||||||||||||||||||||||
| IEEE 802.3ab, ERPS | ||||||||||||||||||||||||||||
| Layer 3 protocol (IPv4) | BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing, Route-policy, ECMP, WCMP, VRRP, IGMP v1/v2/v3, PIM-SSM/SM/DM, MSDP, Any-RP | |||||||||||||||||||||||||||
| IPv6 basic protocols | ND (Neighbor Discovery), ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 Redirect, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping /Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS | |||||||||||||||||||||||||||
| IPv6 Features | Static routing, equal-cost routing, policy routing, OSPFv3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, manual tunnel, automatic tunnel, IPv4 over IPv6 tunnel, ISATAP tunnel, etc. | |||||||||||||||||||||||||||
| Data Center Features | Support VXLAN routing and VXLAN bridging
Support EVPN VXLAN (Ethernet VPN-based Virtual Extensible LAN) Support IPV6 VXLAN over IPV4 Support M-LAG feature Support OpenFlow 1.3 *Support PFC, ECN |
|||||||||||||||||||||||||||
| Visualization | Support gRPC communication protocol
Support sFLOW sampling |
|||||||||||||||||||||||||||
| QoS | Support 802.1p, DSCP, ToS and other priority mappings,
Support ACL flow classification, support priority mark/remark, Supports multiple queue scheduling mechanisms such as SP, WRR, DRR, SP+WRR, SP+DRR, etc. Support congestion avoidance mechanisms such as WRED and tail drop |
|||||||||||||||||||||||||||
| MPLS | Support MPLS VPN | |||||||||||||||||||||||||||
| Virtualization | Support VSU (virtualization technology, virtualizing multiple devices into one) | |||||||||||||||||||||||||||
| Cache Management | Supports cache status monitoring and management, and identifies traffic micro-bursts | |||||||||||||||||||||||||||
| High reliability design | Support GR for RIP/OSPF/BGP and other routing protocols, support BFD detection, support DLDP,
Support REUP dual-link fast switching technology, support RLDP unidirectional link detection technology, Supports 1+1 redundant power supply, redundant fan design, and hot-swappable function for all boards and power modules |
|||||||||||||||||||||||||||
| security function | Supports Network Foundation Protection Policy (NFPP), CPP,
Supports anti-DDoS attack, illegal data packet detection, data encryption, anti-source IP spoofing, anti-IP scanning, Support RADIUS/TACACS, Supports IPv4/v6 ACL message filtering based on standards, extensions, and VLANs. Supports plain text and MD5 cipher text authentication of OSPF, RIPv2 and BGPv4 messages. Supports Telnet login and password mechanisms for restricted IP addresses, uRPF, Support broadcast message suppression, DHCP Snooping, anti-gateway ARP spoofing, ARP Check, Support user hierarchical management |
|||||||||||||||||||||||||||
| Management | Support SNMP v1/v2c/v3,
Support Telnet, Console, MGMT, RMON, SSHv1/v2, FTP/TFTP file upload and download management, Support NTP clock, Syslog, SPAN/RSPAN/ERSPAN, and Telemetry. Support ZTP, NETCONF, Python, Supports fan, power supply alarms, abnormal temperature alarms, and configuration rollback |
|||||||||||||||||||||||||||
| Other protocols | DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP relay, ARP Proxy, Syslog | |||||||||||||||||||||||||||
| Compatible with multiple cloud platforms |
Cloud vendor name Cloud platform name Notes (Compatible product models)
(names not listed in order) |
|||||||||||||||||||||||||||
* indicates future support features
The steps for selecting RG-S6200 series equipment are as follows:
Select the host to be configured according to the product model, and fully equip the host with power supply and fan.
Host
| Product number | Product Description |
| RG-S6231-48XT8CQ | RG-S6231-48XT8CQ host, 48 10G (10GBASE-T) Ethernet electrical ports, 8 100G QSFP28 optical ports, 2 power supply slots, 4 fan slots, the host is fully equipped with 2 RG-PA550I-F power supplies/4 M1EFAN III-F fans |
| RG-S6231-48XS8CQ | RG-S6231-48XS8CQ host, fixed 48 10G SFP+ Ethernet optical ports, 8 100G QSFP28 optical ports, 2 power supply slots, 4 fan slots, the host is fully equipped with 2 RG-PA550I-F power supplies/4 M1EFAN III-F fans. |
| RG-S6232-48XS8CQ | RG-S6232-48XS8CQ host, fixed 48 10G SFP+ Ethernet optical ports, 8 100G QSFP28 optical ports, 2 power supply slots, 4 fan slots, the host is fully equipped with 2 RG-PA550I-F power supplies/4 M1EFAN III-F fans. |
| RG-S6250-48XS8CQ | RG-S6250-48XS8CQ host, fixed 48 10G SFP+ Ethernet optical ports, 8 100G QSFP28 optical ports, 2 power supply slots, 4 fan slots, the host is fully equipped with 2 RG-PA550I-F power supplies/4 M1EFAN II-F fans. |
power supply
| Product number | Product Description |
|
RG-PA550I-F |
550W switching power module (supports AC and 240V high-voltage DC). |
|
RG-PD800I-F |
800W switching power module (supports 48V low-voltage DC), suitable for RG-S6250-48XS8CQ and RG-S6510-48VS8CQ products. |
fan
| Product number | Product Description |
|
M1EFAN II-F |
Switch fan module (port-side air intake), applicable to RG-S6250-48XS8CQ product. |
|
M1EFAN III-F |
Switch fan module (port-side air intake), applicable to RG-S6231-48XT8CQ, RG-S6231-48XS8CQ, RG-S6232-48XS8CQ, RG-S6501-48VS8CQ products. |
40G Optical Module
| Product number | Product Description |
|
40G-AOC-5M |
40G QSFP+ Active Optical Cable, 5m |
|
40G-AOC-30M |
40G QSFP+ Active Optical Cable, 30m |
|
40G-QSFP-SR-MM850 |
40G SR optical module, QSFP+ package, MPO interface, must be used with multi-mode optical fiber, the maximum transmission distance is 150m |
|
40G-QSFP-LSR-MM850 |
40G SR optical module, QSFP+ package, MPO interface, must be used with multi-mode optical fiber, the maximum transmission distance is 400m |
|
40G-QSFP-LR4-SM1310 |
40G LR4 optical module, QSFP+ package, dual LC interface, needs to be used with single-mode optical fiber, the maximum transmission distance is 10Km |
| 40G-QSFP-iLR4-SM1310 |
40G iLR4 optical module, QSFP+ package, dual LC interface, requires single-mode fiber, maximum transmission distance is 2Km |
|
40G-QSFP-LX4-SM1310 |
40G LX4 optical module, QSFP+ package, dual LC interface, can be used with multi-mode optical fiber, the maximum transmission distance using OM3/OM4 multi-mode optical fiber is 150m. The maximum transmission distance using single-mode optical fiber is 2Km |
100G Optical Module
| Product number | Product Description |
| 100G-AOC-5M | 100G AOC cable, QSFP28 package, length 5M |
| 100G-AOC-10M | 100G AOC cable, QSFP28 package, length 10M |
| 100G-QSFP-SR-MM850 | 100G SR optical module, QSFP28 package, MPO interface, wavelength 850nm, must be used with multi-mode optical fiber, maximum transmission distance is 100m |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 optical module, QSFP28 package, dual LC interface, wavelength 1310nm, needs to be used with single-mode optical fiber, and the maximum transmission distance is 2Km |
| 100G-QSFP-LR4-SM1310 | 100G LR4 optical module, QSFP28 package, dual LC interface, wavelength 1310nm, needs to be used with single-mode optical fiber, the maximum transmission distance is 10Km |
| 100G-QSFP-ER4-SM1310 | 100G ER4 optical module, QSFP28 package, dual LC interface, using wavelength 1310nm, needs to be used with single-mode optical fiber, the maximum transmission distance is 40Km |
Gigabit optical module
| Product number | Product Description |
|
GE-SFP-LH40-SM1310-BIDI |
1G LH optical module, SFP package, BIDI LC interface, needs to be used with a single optical fiber, the maximum transmission distance is 40Km |
|
GE-SFP-LX20-SM1310-BIDI |
1G LX optical module, SFP package, BIDI LC interface, needs to be used with a single optical fiber, the maximum transmission distance is 20Km |
|
GE-SFP-LX20-SM1550-BIDI |
1G LX optical module, SFP package, BIDI LC interface, needs to be used with a single optical fiber, the maximum transmission distance is 20Km |
|
MINI-GBIC-LH40-SM1310 |
1G LH optical module, SFP package, dual LC interface, needs to be used with single-mode optical fiber, the maximum transmission distance is 40Km |
|
MINI-GBIC-LX-SM1310 |
1G LX optical module, SFP package, dual LC interface, must be used with single-mode optical fiber, the maximum transmission distance is 10Km |
|
MINI-GBIC-SX-MM850 |
1G SR optical module, SFP package, dual LC interface, must be used with multi-mode optical fiber, the maximum transmission distance is 550m |
|
MINI-GBIC-ZX80-SM1550 |
1G ZX optical module, SFP package, dual LC interface, needs to be used with a single optical fiber, the maximum transmission distance is 80Km |
Gigabit power module
| Product number | Product Description |
|
Mini-GBIC-GT(F) |
1G optical-to-electrical module, SFP package, RJ45 interface, must be used with Cat 5e/6/6a, maximum transmission distance is 100m. For RG-S6200 series products, Mini-GBIC-GT(F) module is only applicable to RG-S6250-48XS8CQ. |
|
Mini-GBIC-GT |
1G optical-to-electrical module, SFP package, RJ45 interface, must be used with Cat 5e/6/6a, maximum transmission distance is 100m |
10G optical module
| Product number | Product Description |
|
XG-SFP-SR-MM850 |
10G SR optical module, SFP+ package, dual LC interface, must be used with multi-mode optical fiber, the maximum transmission distance is 300m |
|
XG-SFP-LR-SM1310 |
10G LR optical module, SFP+ package, dual LC interface, needs to be used with single-mode optical fiber, the maximum transmission distance is 10Km |
|
XG-SFP-ER-SM1550 |
10G ER optical module, SFP+ package, dual LC interface, needs to be used with single-mode optical fiber, the maximum transmission distance is 40Km |
|
XG-SFP-ZR-SM1550 |
10G ZR optical module, SFP+ package, dual LC interface, needs to be used with single-mode optical fiber, the maximum transmission distance is 80Km |
|
XG-LR-SM1310 |
10G LR optical module, SFP+ package, dual LC interface, needs to be used with single-mode optical fiber, the maximum transmission distance is 10Km |
|
XG-SFP-AOC1M |
10G AOC cable, SFP+ package, length 1m |
|
XG-SFP-AOC3M |
10G AOC cable, SFP+ package, length 3m |
|
XG-SFP-AOC5M |
10G AOC cable, SFP+ package, length 5m |
|
XG-SR-MM850 |
10G SR optical module, SFP+ package, dual LC interface, must be used with multi-mode optical fiber (MMF), the maximum transmission distance is 300m |
