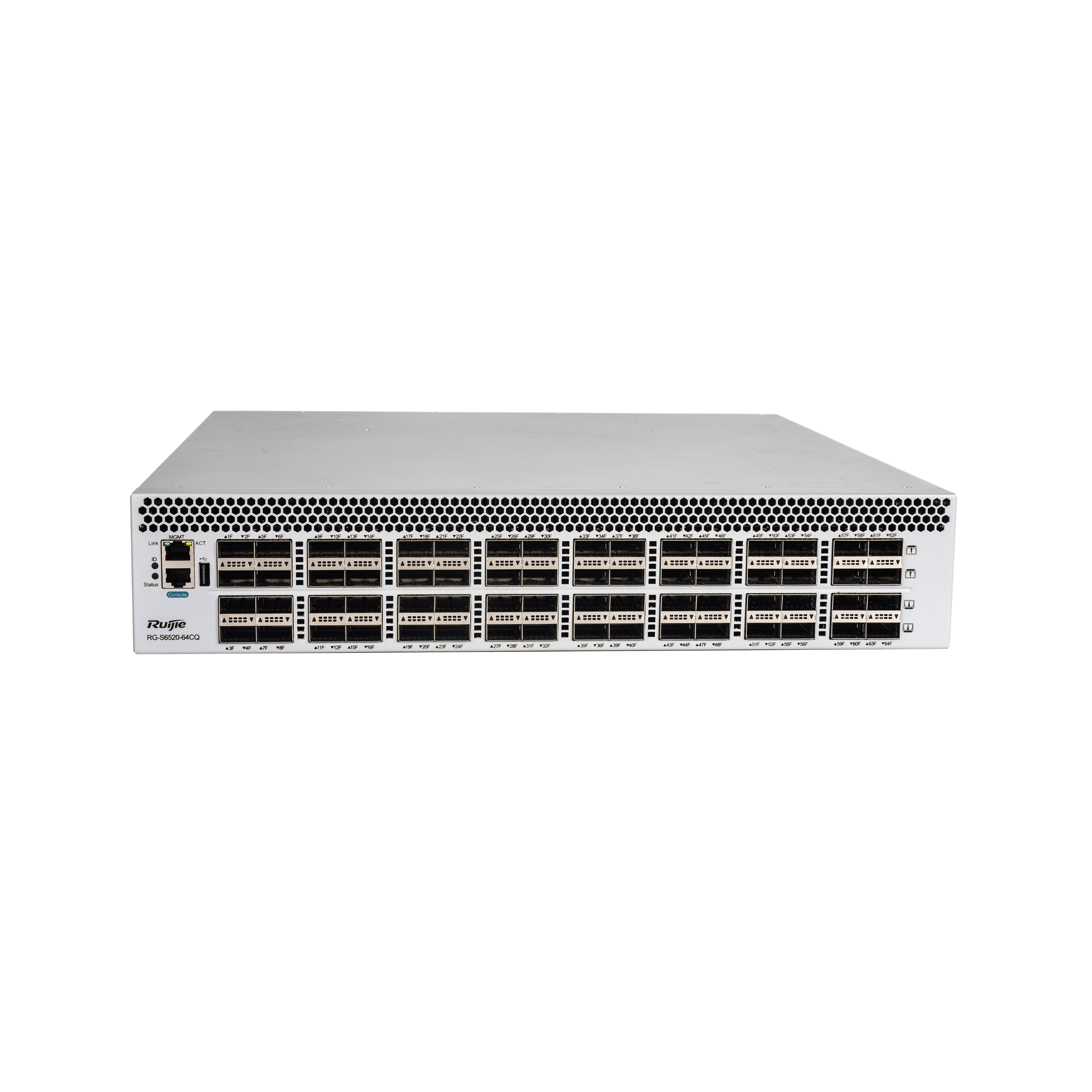

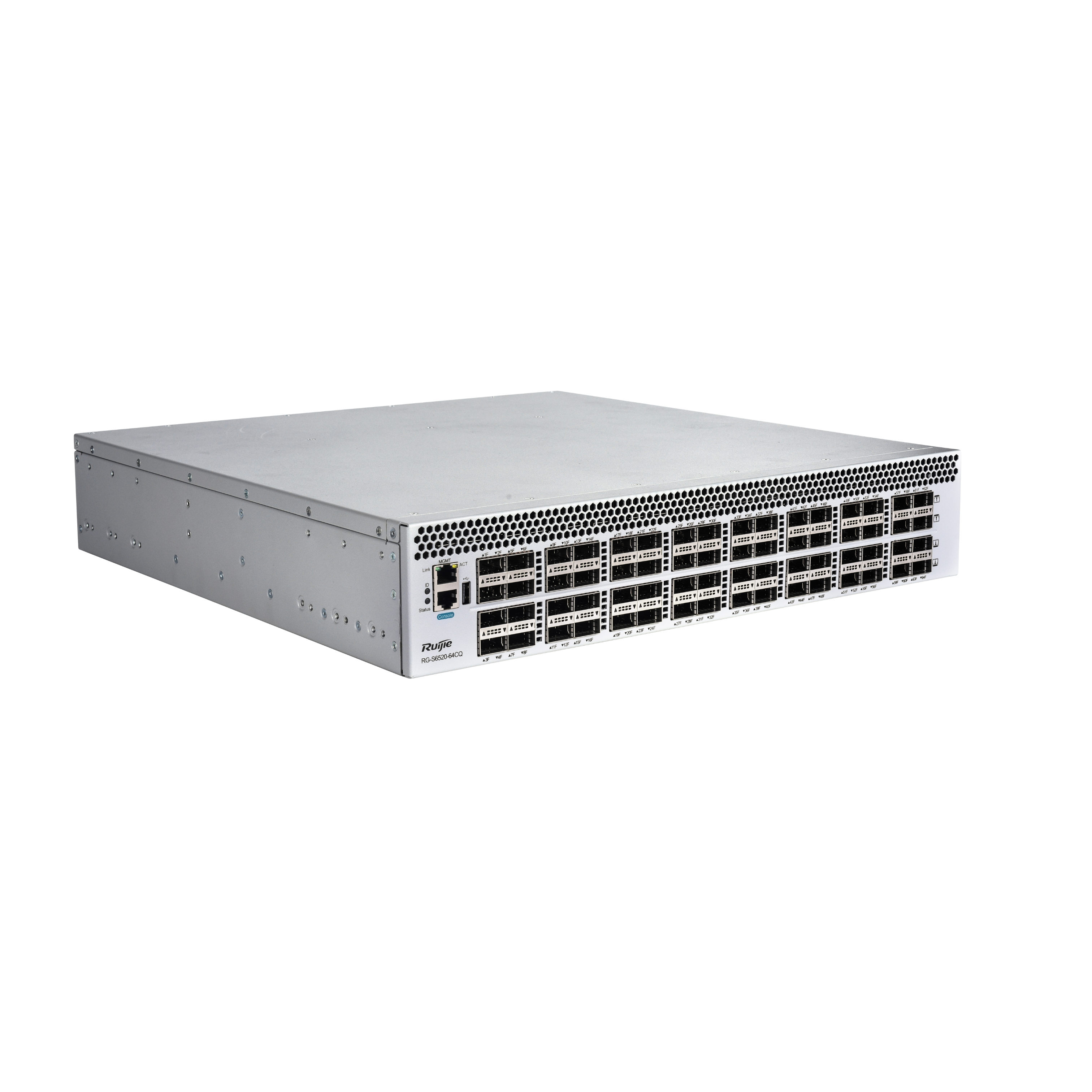

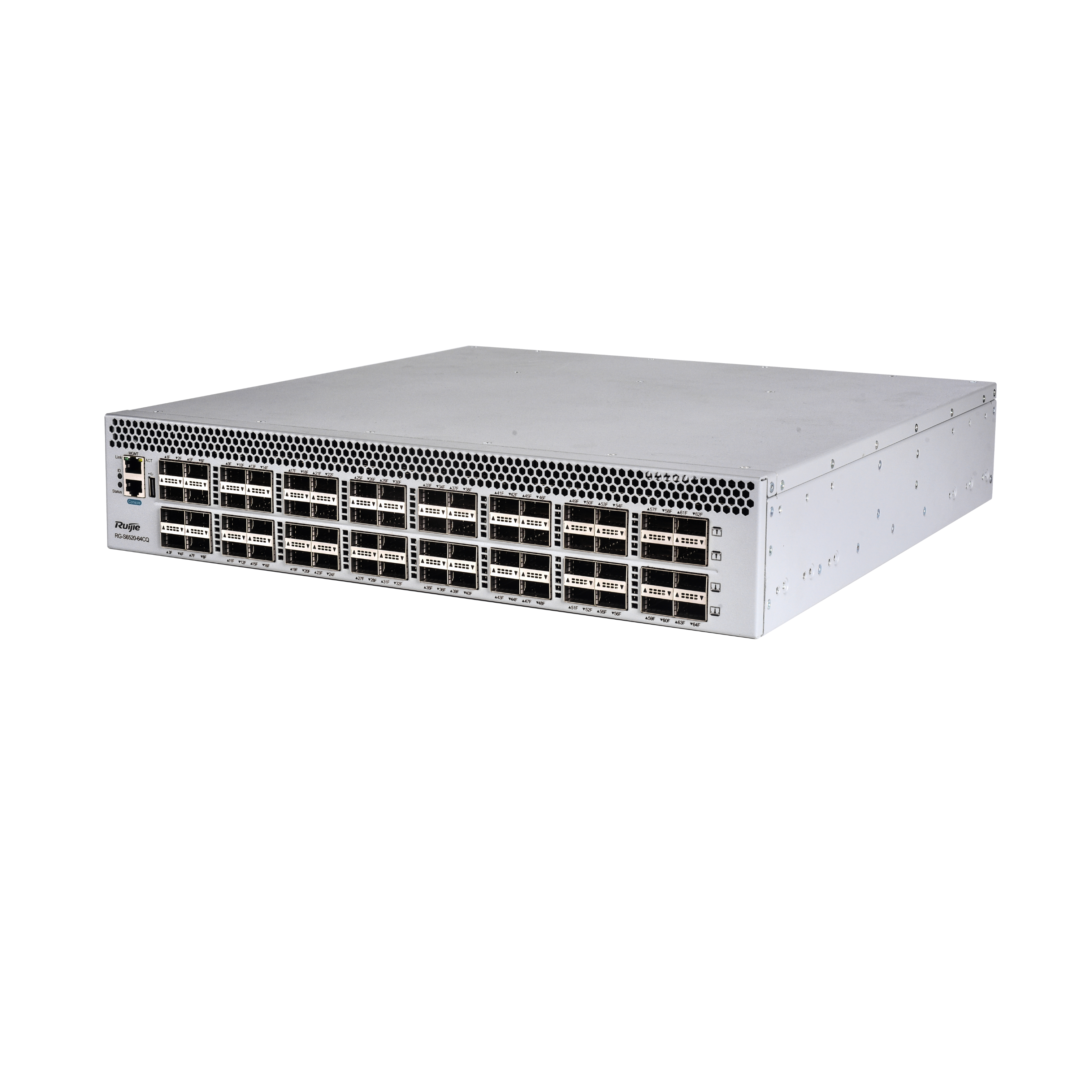

64 x 100GE ports
Condition: NOB
RMA Warranty
Description
Recommended for large-scale Spine-Leaf three-tier DCI scenarios, M-LAG/VSU/de-stacking for higher availability
Highlight Features
- 64 x 100GE QSFP28 ports housed in a 2 RU enclosure
- Cross-device link aggregation (De-stacking/M-LAG/VSU), device-level redundancy, flexible networking, and high reliability
- Lossless Ethernet, ensuring zero packet loss during RDMA E2E communication
- Telemetry/gRPC/sFlow/SPAN-based network monitoring and automated O&M, making management simple and efficient
Hardware Specifications
| System Specifications | RG-S6520-64CQ |
| Ports | 64 × 100GE ports |
| Expansion Module Slots | Power supply module slots
Fan module slots |
| Management Port | One management port, one console port, and one USB port, compliant with the USB2.0 standard |
| Switching Capacity | 12.8 Tbps |
| Packet Forwarding Rate | 4482 Mpps |
| 802.1Q VLAN | 4094 |
| Dimensions and Weight | RG-S6520-64CQ |
| Dimensions (W × D × H) |
442 mm × 450 mm × 88 mm, 2 RU |
| Weight | About 20 kg (including two power supply modules and three fan modules) |
| Power Supply and Consumption | RG-S6520-64CQ |
| AC | Rated voltage range: 100 VAC to 240 VAC
Maximum voltage range: 90 VAC to 264 VAC Frequency: 50 Hz to 60Hz Rated Current: 11.7 A |
| High-voltage DC | Input voltage range: 192 VDC to 288 VDC
Rated input voltage: 240 VDC Input current range: < 4.5 A |
| Maximum Power Consumption | 600 W |
| Environment and Reliability | RG-S6520-64CQ |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113°F) |
| Storage temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Humidity | 10% to 90%RH |
| Storage humidity | 5% to 95% RH (non-condensing) |
| Working altitude | Operating altitude: up to 5000 m (16,404.20 ft.)
Storage altitude: up to 5000 m (16,404.20 ft.) |
Software Specifications
| Software Specifications | RG-S6520-64CQ |
| L2 Protocols | IEEE802.3ad (Link Aggregation Control Protocol), IEEE802.1p, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, MLD Snooping, Jumbo Frame (9 KB), IEEE802.1ad (QinQ and selective QinQ), GVRP |
| L3 Protocols (IPv4) | BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing (PBR), Route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP, IGMP v1/v2/v3, PIM-SSM/SM/DM, MSDP, Any-RP |
| IPv6 Basic Protocols | Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS |
| IPv6 Features | Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, manual tunnel, automatic tunnel, IPv4 over IPv6 tunnel, and ISATAP tunnel |
| Multicast | IGMPv1, v2, v3、IGMP Host Behavior、Member Query and Response、Querier Election、IGMP Proxy、Multicast Static Routing、MSDP、PIM-DMv4(PIM-DM)、PIM-SMv4(PIM-SM/PIM-SSM/Enabling PIM on Layer-3 Subinterface)、PIM-SMv6、MLD v1 and v2、MLD Proxy、Enabling PIMv6 on Layer-3 Subinterface |
| ACL | Standard IP-based ACL、Extended MAC/IP-based ACL、Expert-level ACL、ACL 80、IPv6 ACL、When the same ACL is applied to different physical interfaces or SVIs, resources can be multiplexed.、ACL Logging、ACL Counter (Ingress and egress counters are supported in interface or global configuration modes)、ACL Re-marking、Global ACL、ACL-based Redirection、Displaying ACL Resources、Processing First Packet of TCP Handshake When Binding the ACL to Restrict SIP、Matching Against 5-Tuple of Pass-by VXLAN Inner IP Packets、The expert-level ACL supports matching the IP flag and DSCP fields of VXLAN inner packets、Ingress/Egress ACLs |
| Data Center Features | PFC, ECN, and other data center features
M-LAG RDMA |
| Visualization | gRPC
sFLOW sampling |
| QoS | Mapping of IEEE 802.1p, DSCP, and ToS priorities ACL-based traffic classification Priority marking/remarking Multiple queue scheduling mechanisms, including SP, WRR, DRR, SP+WRR, and SP+DRR |
| Virtualization | Virtual Switching Unit |
| Cache Management | Cache status monitoring and management, and identification of burst traffic |
| HA Design | GR for RIP/OSPF/BGP, BFD, REUP dual-link fast switching and RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power supply modules |
| Security Features | Network Foundation Protection Policy (NFPP), CPP, DDoS attack defense, illegitimate data packet detection, data encryption, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, RIPv2, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, uRPF, broadcast packet suppression, DHCP Snooping, ARP spoofing prevention, and ARP check |
| Management Mode | SNMP v1/v2/v3, Netconf, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP clock, syslog, SPAN/RSPAN/ERSPAN, and configuration rollback |
| Other Protocols | DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP relay, ARP Proxy, and Syslog |
Safety and Regulatory Compliance
| Specifications | RG-S6520-64CQ |
| Safety | ● IEC 62368-1
● EN 62368-1 ● NM EN 62368-1 ● NM CEI 62368-1 ● BS EN 62368-1 ● GB 4943.1 |
| Electromagnetic Compatibility (EMC) | ● EN 55032
● EN 55035 ● NM EN 55035 ● BS EN55032 ● BS EN 55035 ● BS EN 61000-3-2 ● BS EN61000-3-3 ● EN IEC 61000-3-3 ● EN IEC 61000-3-2 ● NM EN 61000-3-2 ● NM EN 61000-3-3 ● EN 300 386 ● VCCI-CLSPR 32 ● GB/T 9254.1 |
| Environment | ● 2011/65/EU EN 50581
● 2012/19/EU EN 50419 ● (EC) No.1907/2006 ● GB/T 26572 |
*For more country-specific regulatory information and approvals, contact your local sales agency.
Order Information
The configuration procedure for the RG-S6520 series switches is as follows:
● Select the switch.
● Select the fan and power supply modules.
● Select optical transceivers based on port requirements.
Chassis, Fan, and Power Supply Modules
| Product Model | Description |
| RG-S6520-64CQ | 64 × 100GE ports Two power supply module slots and three fan module slots The power supply model is RG-PA800I-F, and the fan model is M6520-FAN-F. |
| RG-PA800I-F | Power supply module, supporting 1+1 redundancy, hot swapping, and front-to-rear ventilation design |
| M6520-FAN-F | Fan module, supporting 2+1 redundancy, hot swapping, and front-to-rear ventilation design |
100GBASE Series Optical Modules
| Product Model | Description |
| 100G-QSFP-SR-MM850 | 100G SR module, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over MMF |
| 100G-QSFP-LR4-SM1310 | 100G LR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
| 100G-QSFP-ER4-SM1310 | 100G ER4 module, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.59 ft.) over SMF |
| 100G-AOC-10M | 100G QSFP28 AOC cable, 10 m (32.81 ft.) |
| 100G-AOC-5M | 100G QSFP28 AOC cable, 5 m (16.40 ft.) |
40GBASE Series Optical Modules
| Product Model | Description |
| 40G-QSFP-SR-MM850 | 40G SR module, QSFP+ form factor, MPO, 150 m (492.13 ft.) over MMF |
| 40G-QSFP-LR4-SM1310 | 40G LR4 module, QSFP+ form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF |
| 40G-QSFP-LSR-MM850 | 40G LSR module, QSFP+ form factor, MPO, 400 m (1,312.34 ft.) over MMF |
| 40G-QSFP-LX4-SM1310 | 40G LX4 module, QSFP+ form factor, Duplex LC connector, 150 m (492.13 ft.) over OM3/OM4 MMF, or 2 km (6,561.68 ft.) over SMF |
| 40G-QSFP-iLR4-SM1310 | 40G iLR4 module, QSFP+ form factor, Duplex LC, 2 km (6,561.68 ft.) over SMF |
| 40G-AOC-30M | 40G QSFP+ AOC cable, 30 m (98.43 ft.) |
| 40G-AOC-5M | 40G QSFP+ AOC cable, 5 m (16.40 ft.) |
