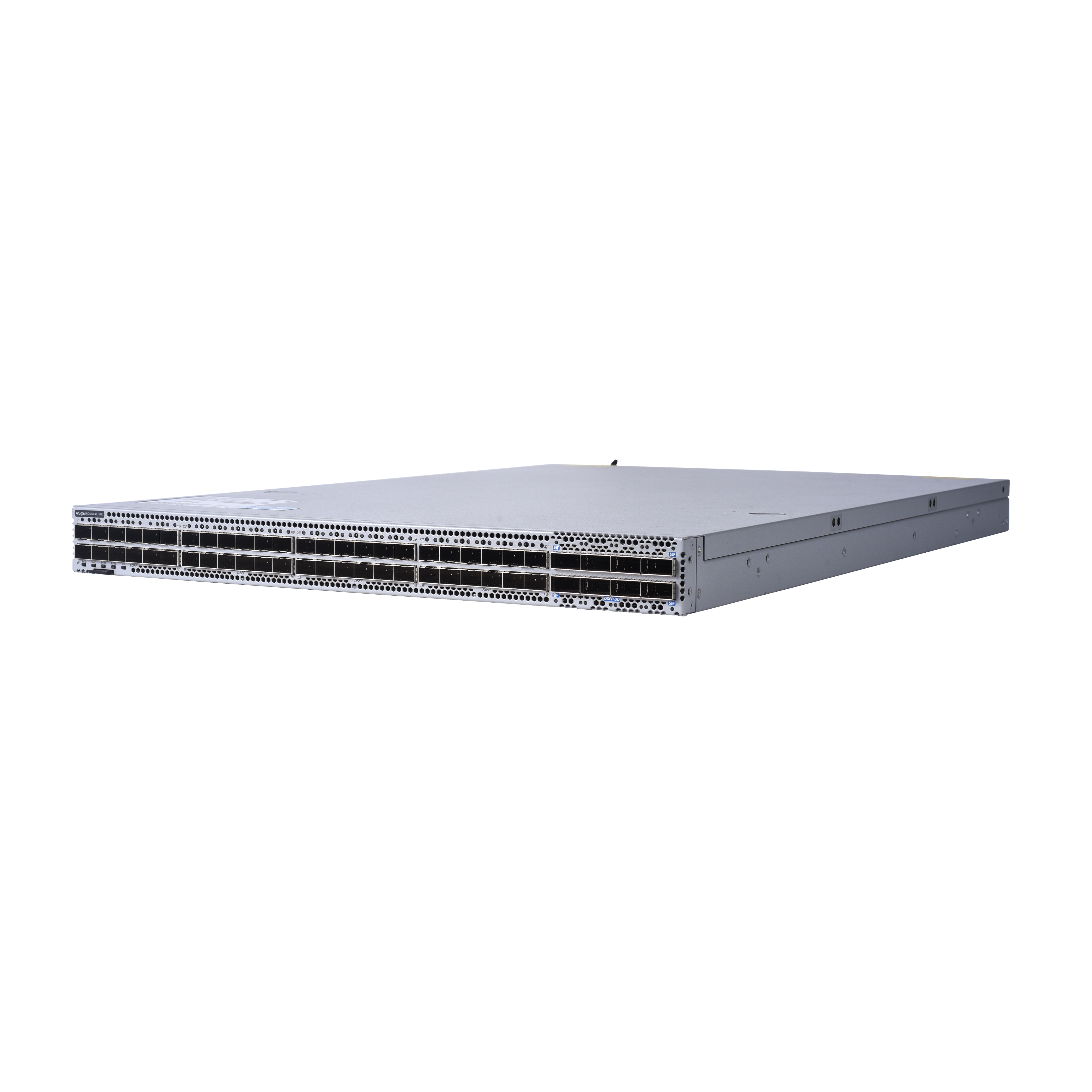

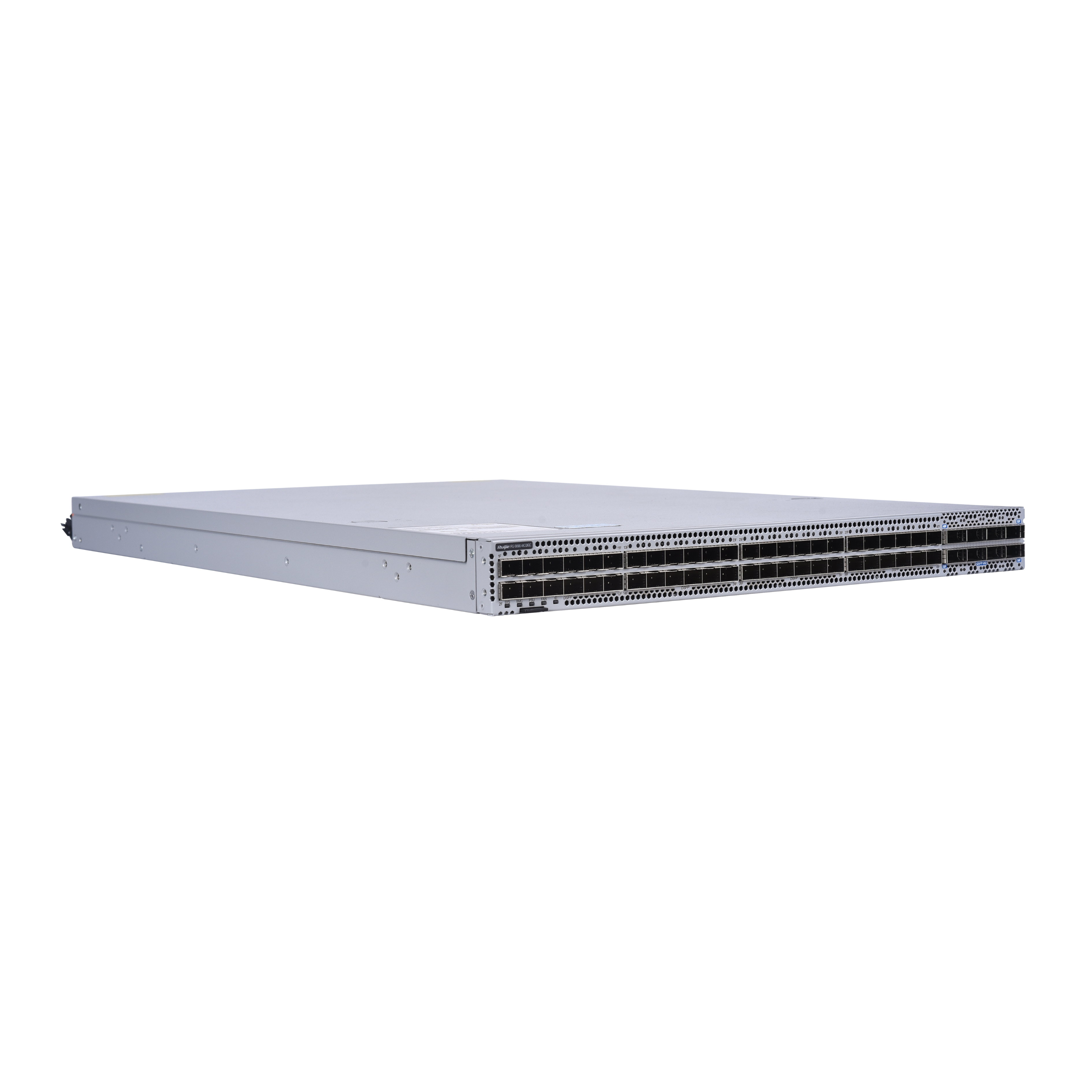

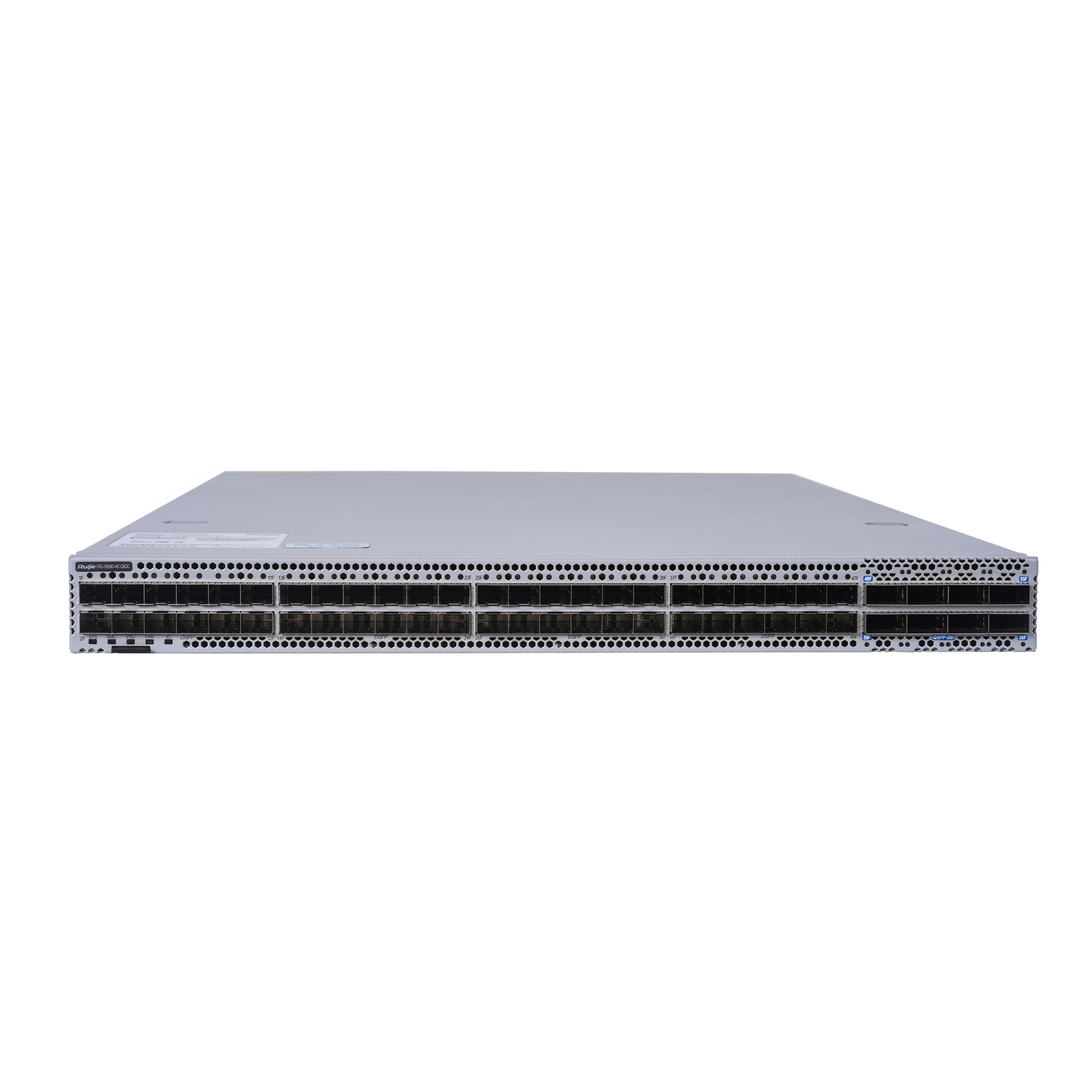

48 x 100GE ports and 8 x 400GE ports
Condition: NOB
RMA Warranty
Description
High-density 400GE/100GE ports, supporting high-bandwidth and large-capacity server access
Highlight Features
- Various ports, and 48 x 100GE DSFP and 8 x 400GE QSPF-DD ports, supporting flexible networking
- Hardware-level redundancy, ensuring nonstop services
- Lossless Ethernet, ensuring zero packet loss in RDMA E2E communication
- Telemetry network monitoring and automatic O&M, making management simple and efficient
Hardware Specifications
| System Specifications | RG-S6580-48CQ8QC | |
| Ports | 48 × 100GE ports (DSFP) + 8 × 400GE ports (QSFP-DD) | |
| Expansion Modules | Not supported | |

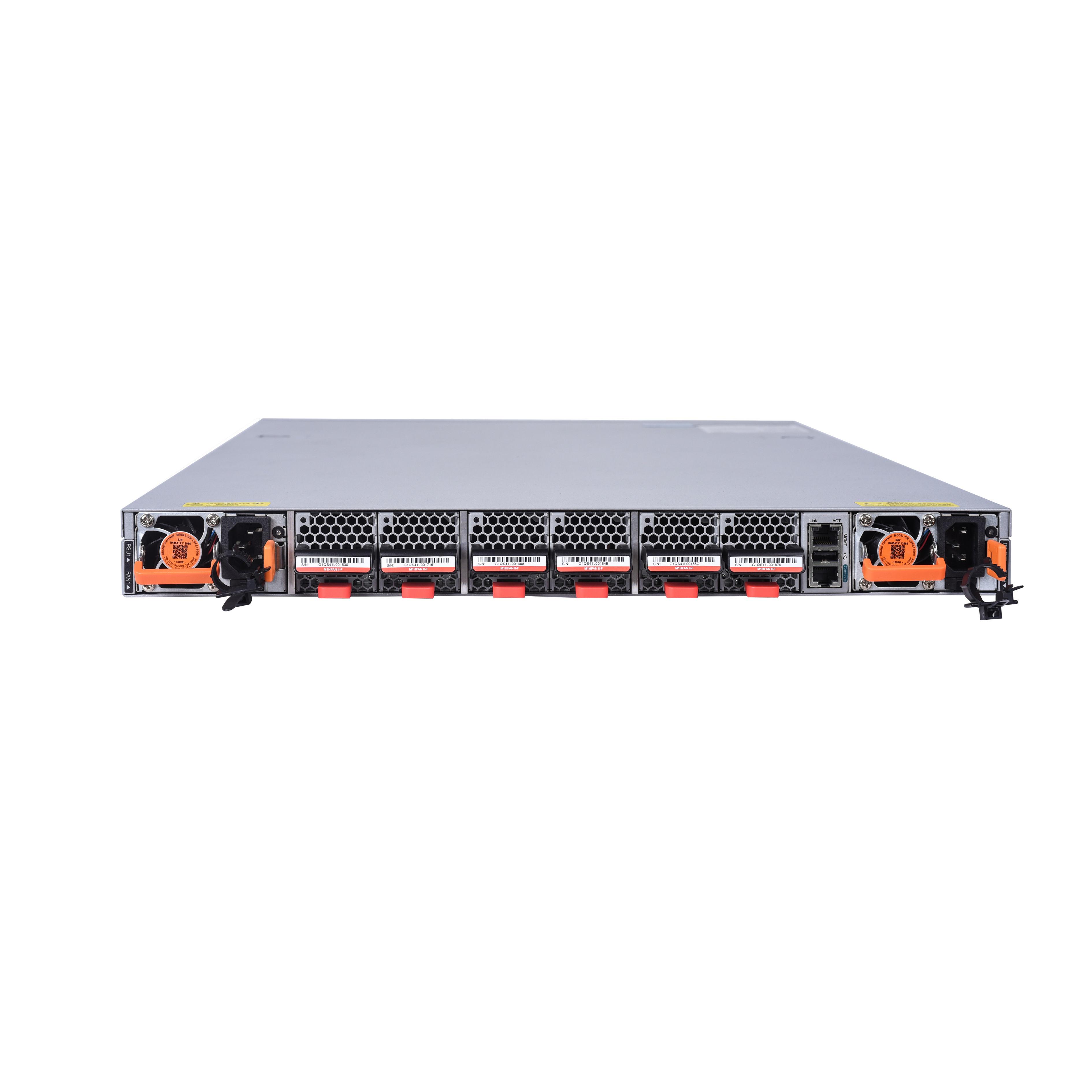

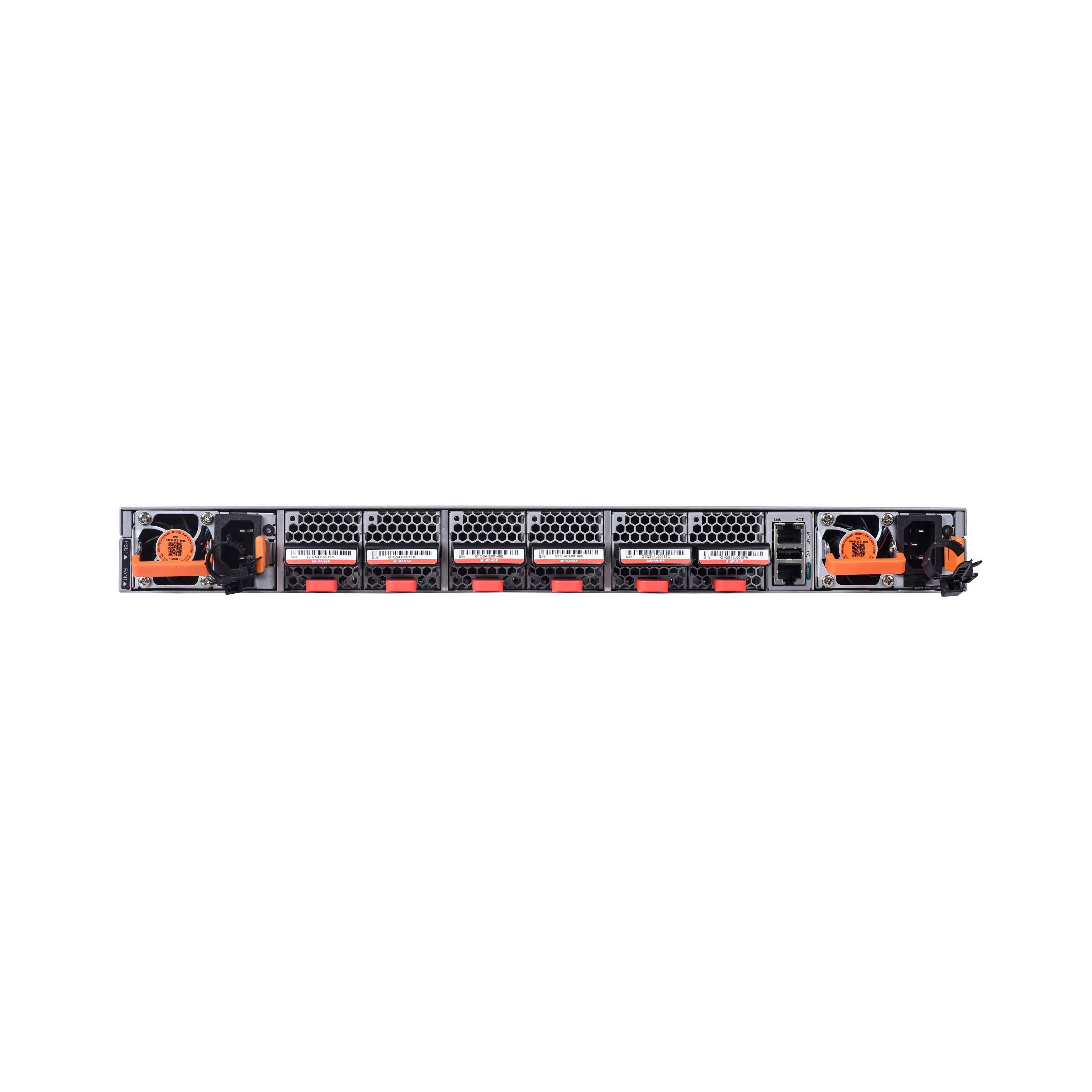

| Expansion Module Slots | Two power supply module slots (1+1 redundancy)
Six fan module slots (5+1 redundancy; the system needs at least 5 fan modules) |
|
| Management Port | One management port, one console port, and one USB port, compliant with the USB2.0 standard | |
| Switching Capacity | 16.0 Tbps | |
| Packet Forwarding Rate | 5350 Mpps | |
| 802.1Q VLAN | 4094 | |
| Dimensions | RG-S6580-48CQ8QC | |
| Dimensions (W × D × H) | 442 mm × 700 mm × 44 mm, 1 RU | |
| Weight | About 11.5 kg (including six fan modules and two power supply modules) | |
| Power Supply and Consumption | RG-S6580-48CQ8QC | |
| Power Input | AC input:
Rated voltage range: 200 VAC to 240 VAC Maximum voltage range: 90 VAC to 264 VAC Frequency: 50 Hz to 60 Hz Rated input current: 8 A HVDC input: Input voltage range: 192 VDC to 288 VDC Rated input current: 6.5 A |
|
| Maximum Power Consumption | 742W | |
| Environment and Reliability | RG-S6580-48CQ8QC | |
| Temperature Alarm | Temperature alarms and overheat protection | |
| Operating Temperature | 0ºC to 40ºC (32ºF to 104ºF) | |
| Storage Temperature | –40°C to 70°C (-40 °F to 158 °F) | |
| Operating Humidity | 10% to 90% RH (non-condensing) | |
| Storage humidity | 5% to 95% RH (non-condensing) | |
| Working altitude | Operating altitude: up to 5000 m (16,404.20 ft.)
Storage altitude: up to 5000 m (16,404.20 ft.) |
|
Software Specifications
| Software Specifications | RG-S6580-48CQ8QC | |
| L2 Protocols | IEEE 802.3x, IEEE 802.3ad (Link Aggregation Control Protocol), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), Jumbo Frame (9 KB) | |
| L3 Protocols (IPv4) | BGP4, OSPFv2, RIPv1, RIPv2, LPM routing, Policy-based Routing (PBR), route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP | |
| IPv6 Basic Protocols | Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS | |
| IPv6 Features | Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+ | |
| ACL | ACL 80、ACL-based Redirection、IPv6 ACL、Extended/Standard IP/MAC-based ACL、Time-based ACL、Global ACL、When an ACL is applied to different physical interfaces or SVIs, resources can be shared.、ACL Counter、ACL Counter Only、ACL Logging、Diplaying ACL Resource Usage、Expert-level ACL、IPv4 UDF ACL、Global ACL Counter Only、Matching Against the Inner 5-Tuple of the VXLAN、IPv6 UDF ACL、Matching Against the Inner 5-Tuple of the Passing VXLAN、Ingress/Egress ACLs | |
| Data Center Features | PFC, ECN, and other data center features
RDMA |
|
| Visualization | gRPC
sFlow sampling |
|
| QoS | Mapping of IEEE 802.1p, DSCP, and ToS priorities ACL-based traffic classification Priority marking/remarking Multiple queue scheduling mechanisms, including SP, WRR, WFQ, DRR, SP+WRR, SP+WFQ, and SP+DRR Congestion avoidance mechanisms such as WRED and tail discarding |
|
| HA Design | GR for RIP/OSPF/BGP, BFD, DLDP, REUP dual-link fast switching, RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power supply modules | |
| Security Features | Network foundation protection policy (NFPP), CPP, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, broadcast packet suppression, hierarchical user management | |
| Management Mode | SNMP v1/v2c/v3, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, syslog, SPAN/RSPAN/ERSPAN, ZTP, NETCONF, Python, fan and power alarm, and temperature alarm | |
| Other Protocols | DHCP client, DHCP relay, DHCP server, DNS client, ARP proxy, and Syslog | |
Safety and Regulatory Compliance
| Specifications | RG-S6580-48CQ8QC | |
| Safety | ● IEC 62368-1
● EN 62368-1 ● BS EN 62368-1 ● GB 4943.1 |
|
| Electromagnetic Compatibility (EMC) | ● EN 55032
● BS EN 55032 ● EN 55035 ● BS EN 55035 ● EN 61000-3-2 ● EN 61000-3-3 ● BS EN 61000-3-2 ● BS EN 61000-3-3 ● EN 300 386 ● GB/T 9254.1 |
|
| Environment | ● 2011/65/EU EN 50581
● 2012/19/EU EN 50419 ● (EC) No.1907/2006 ● GB/T 26572 |
|
*For more country-specific regulatory information and approvals, contact your local sales agency.
Order Information
The configuration procedure for RG-S6580-48CQ8QC is as follows:
● Select the switch.
● Select the fan and power supply modules.
● Select optical modules based on port requirements.
Switch, Fan, and Power Supply
| Product Model | Description |
| RG-S6580-48CQ8QC | 48 × 100G ports + 8 × 400G ports
Two power slots and six fan slots |
| RG-PA1200I-F | Standard power supply for RG-S6580-48CQ8QC, supporting 1+1 redundancy, hot swap, and front-to-rear ventilation channel design |
| M1HFAN II-F | RG-S6580-48CQ8QC fan module, supporting 5+1 redundancy, hot swap, and front-to-rear ventilation channel design |
400GBASE Series Optical Modules
| Product Model | Description |
| 400G-QDD-SR8-MM850 | 400G SR8 module, QSFP-DD form factor, MPO-16 APC, 850 nm, 100 m (328.08 ft.) over MMF |
| 400G-QDD-DR4-SM1310 | 400G DR4 module, QSFP-DD form factor, MPO-12 APC, 1310 nm, 500 m (1,640.42 ft.) over SMF |
| 400G-QDD-FR4-SM1310 | 400G FR4 module, QSFP-DD form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
100GBASE Series Optical Modules
| Product Model | Description |
| 100G-AOC-5M | 100G QSFP28 AOC cable, 5 m (16.40 ft.) |
| 100G-AOC-10M | 100G QSFP28 AOC cable, 10 m (32.81 ft.) |
| 100G-QSFP-SR-MM850 | 100G SR module, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over MMF |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
| 100G-QSFP-LR4-SM1310 | 100G LR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF |
| 100G-QSFP-ER4-SM1310 | 100G ER4 module, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.59 ft.) over SMF |
