Three Service Slots, and 100GE and 400GE Ports
Condition: NOB
RMA Warranty
Description
16 GB buffer that supports high-performance routing connections, and future evolution to 400GE data center network
Highlight Features
-
Various ports, 100GE line cards, and up to 96 x 100GE ports
-
Hardware-level redundancy, ensuring service continuity
-
Telemetry-based network monitoring and automated O&M, making management simple and efficient
-
Support of IPv4/IPv6 dual-stack protocols, providing flexible networking
Hardware Specifications
| System Specifications | RG-S6910-3C |
| Ports | 100GE/400GbE ports |
| Slots | 4 |
| Expansion Module Slots | Three expansion slots, each slot supporting the line card with 32 x 100GbE ports or 8 x 400GbE ports |
| Expansion module | Four power module slots
Six fan module slots |
| Management Port | One management port, one console port, and one USB port |
| Switching Capacity | 19.2 Tbps |
| Packet Forwarding Rate | 4000 Mpps |
| 802.1Q VLAN | 4094 |
| Dimensions and Weight | RG-S6910-3C |
| Dimensions
(W × D × H) |
442 mm x 735 mm × 173.6 mm (17.40 in. x 28.94 in. x 6.83 in.,4 RU) |
| Weight | About 42 kg (92.59 lbs., including four power modules, six fans, and three subcard modules) |
| Power Supply and Consumption | RG-S6910-3C |
| AC | ● Rated voltage: 110 V AC/ 220 V AC
● Rated voltage range: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Max voltage range: 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| High-voltage DC | Input voltage range: 180 V DC to 300 V DC |
| Maximum Power Consumption | ● Max: 2046 W
● Typical: 1092 W ● Static: 760 W |
| Environment and Reliability | RG-S6910-3C |
| Operating Temperature | 0ºC to 40ºC (32ºF to 104ºF) |
| Storage temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Operating Humidity | 10% RH to 90% RH (Non-condensing) |
| Storage humidity | 5% to 95% RH (non-condensing) |
| Working altitude | Operating altitude: up to 5000 m (16,404.20 ft.)
Storage altitude: up to 5000 m (16,404.20 ft.) |
Software Specifications
| Software Specifications | RG-S6910-3C |
| Device virtualization | Docker
gRPC APIs in Docker |
| L2 Protocols | IEEE 802.3ae (10GBase), IEEE 802.3ak, IEEE 802.3an, IEEE 802.3x, IEEE 802.3ad (link aggregation), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IGMP Snooping, Jumbo Frame (9 KB), IEEE 802.1ad (QinQ), GVRP |
| L3 Protocols (IPv4) | BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing, Route-policy, ECMP, WCMP, VRRP, IGMP v1/v2/v3, PIM-SSM/SM/DM, MSDP, Any-RP |
| IPv6 Basic Protocols | Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS |
| IPv6 Features | Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, manual tunneling, IPv4 over IPv6 tunneling |
| Visualization | gRPC
sFLOW and IPFIX |
| Multicast | IGMP Proxy、IGMP v1, v2, v3、IGMP Host Behavior、Querier Election、Member Query and Response、Static Multicast Route、IGMP Fast Leave、IGMP Filter、Layer-2 Multicast Forwarding Without Packet Loss、IGMPv1 and IGMPv2 Snooping、IVGL Mode、Querier、Source IP Address Check、Source Port Check、MLD Proxy、MLD v1 and v2、MLD Snooping、Coping with Traffic Burst Without Packet Loss、Layer-2 Multicast Forwarding Without Packet Loss、Source Port Check、MSDP、PIM-DM、PIM-SMv6、PIM-SSMv6、PIM-SM、PIM-SSM |
| ACL | ACL 80、Dual-stack Networking、ACL-based Redirection、IPv6 ACL、Standard IP-based ACL、Extended IP-based ACL、Extended MAC-based ACL、Ingress/Egress ACLs、Time-based ACL、Global ACL、ACL Counter、ACL Logging、ACL Re-marking、Displaying ACL Resource Usage、Expert-level ACL |
| QoS | Mapping of 802.1p, DSCP, and ToS priorities, ACL-based traffic classification, priority marking/remarking, multiple queue scheduling mechanisms available including SP, WFQ, and SP+WRR |
| Data center features | The MMU queue ID ranges from 0 to 7.
Buffer Occupation/Queue Traffic Statistics/Packet Loss Report Through gRPC Flow Suspension Prevention MMU Displaying Lost Packets and Alarms Due to Buffer Congestion on an Interface Real-Time Buffer Monitoring Reading Statistics of Unicast Packet Loss Due to Buffer Congestion Through MIB |
| HA Design | GR for RIP/OSPF/BGP, BFD, REUP dual-link fast switching and RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swap for all cards and power modules |
| Security Features | Network foundation protection policy, CPP, DDoS attack defense, illegitimate packet detection, data encryption, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, RIPv2, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, uRPF, broadcast packet suppression |
| Management Mode | SNMP v1/v2c/v3, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, syslog, and SPAN/RSPAN/ERSPAN |
| Other Protocols | DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP relay, ARP Proxy, and Syslog |
Safety and Regulatory Compliance
| Specification | RG-S6910-3C |
| Safety | ● UL 62368-1
● CSA C22.2 No. 62368-1 ● IEC 62368-1 ● EN 62368-1 ● BS EN 62368-1 ● GB 4943.1 |
| Electromagnetic Compatibility (EMC) | ● EN 55032
● EN 55035 ● EN 61000-3-2 ● EN 61000-3-3 ● BS EN55032 ● BS EN 55035 ● BS EN 61000-3-2 ● BS EN61000-3-3 ● EN 300 386 ● ANSI C63.4 ● 47 CFR FCC Part 15 Subpart B ● ICES-003 Issue 7 ● GB/T 9254.1 |
| Environment | ● 2011/65/EU EN 50581
● 2012/19/EU EN 50419 ● (EC) No.1907/2006 ● GB/T 26572 |
*For more country-specific regulatory information and approvals, contact your local sales agency.
Order Information
Chassis, Expansion Cards, Fan Modules, and Power Modules
| Model | Description |

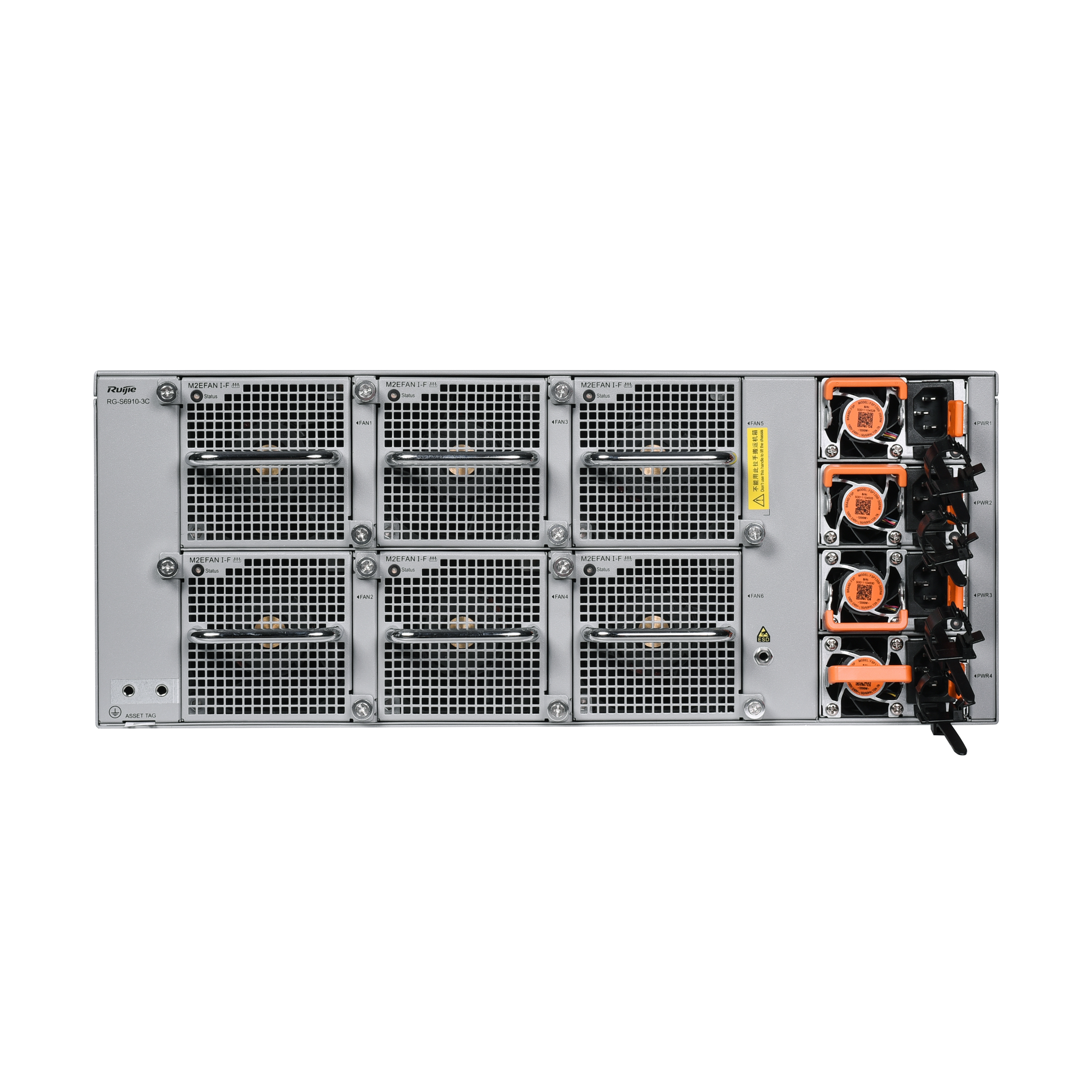

| RG-S6910-3C | Three expansion slot, four power module slots, and six fan module slots
The power module model is RG-PA1200I-F and the fan model is M2EFAN I-F. |
| M6900-32CQ | 32-port 100GbE card |
| RG-PA1200I-F | RG-S6910-3C power module, supporting 2+2 redundancy, hot swapping, and front-to-rear ventilation design |
| M2EFAN I-F | RG-S6910-3C fan module, supporting 5+1 redundancy, hot swapping, and front-to-rear ventilation design |
100GBASE Series Optical Modules
| Product Model | Description |
| 100G-QSFP-SR-MM850 | 100G SR module, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over MMF |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
| 100G-QSFP-LR4-SM1310 | 100G LR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF |
| 100G-QSFP-ER4-SM1310 | 100G ER4 module, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.59 ft.) over SMF |
| 100G-AOC-5M | 100G QSFP28 AOC cable, 5 m (16.40 ft.) |
| 100G-AOC-10M | 100G QSFP28 AOC cable, 10 m (32.81 ft.) |
40GBASE Series Optical Modules
| Product Model | Description |
| 40G-QSFP-iLR4-SM1310 | 40G iLR4 module, QSFP+ form factor, Duplex LC, 2 km (6,561.68 ft.) over SMF |
| 40G-QSFP-LR4-SM1310 | 40G LR4 module, QSFP+ form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF |
| 40G-QSFP-LSR-MM850 | 40G LSR module, QSFP+ form factor, MPO, 400 m (1,312.34 ft.) over MMF |
| 40G-QSFP-SR-MM850 | 40G SR module, QSFP+ form factor, MPO, 150 m (492.13 ft.) over MMF |
| 40G-QSFP-LX4-SM1310 | 40G LX4 module, QSFP+ form factor, Duplex LC connector, 150 m (492.13 ft.) over OM3/OM4 MMF, or 2 km (6,561.68 ft.) over SMF |
| 40G-AOC-30M | 40G QSFP+ AOC cable, 30 m (98.43 ft.) |
| 40G-AOC-5M | 40G QSFP+ AOC cable, 5 m (16.40 ft.) |
