Two Service Slots, and 100GE/200GE Line Cards
Condition: NOB
RMA Warranty
Description

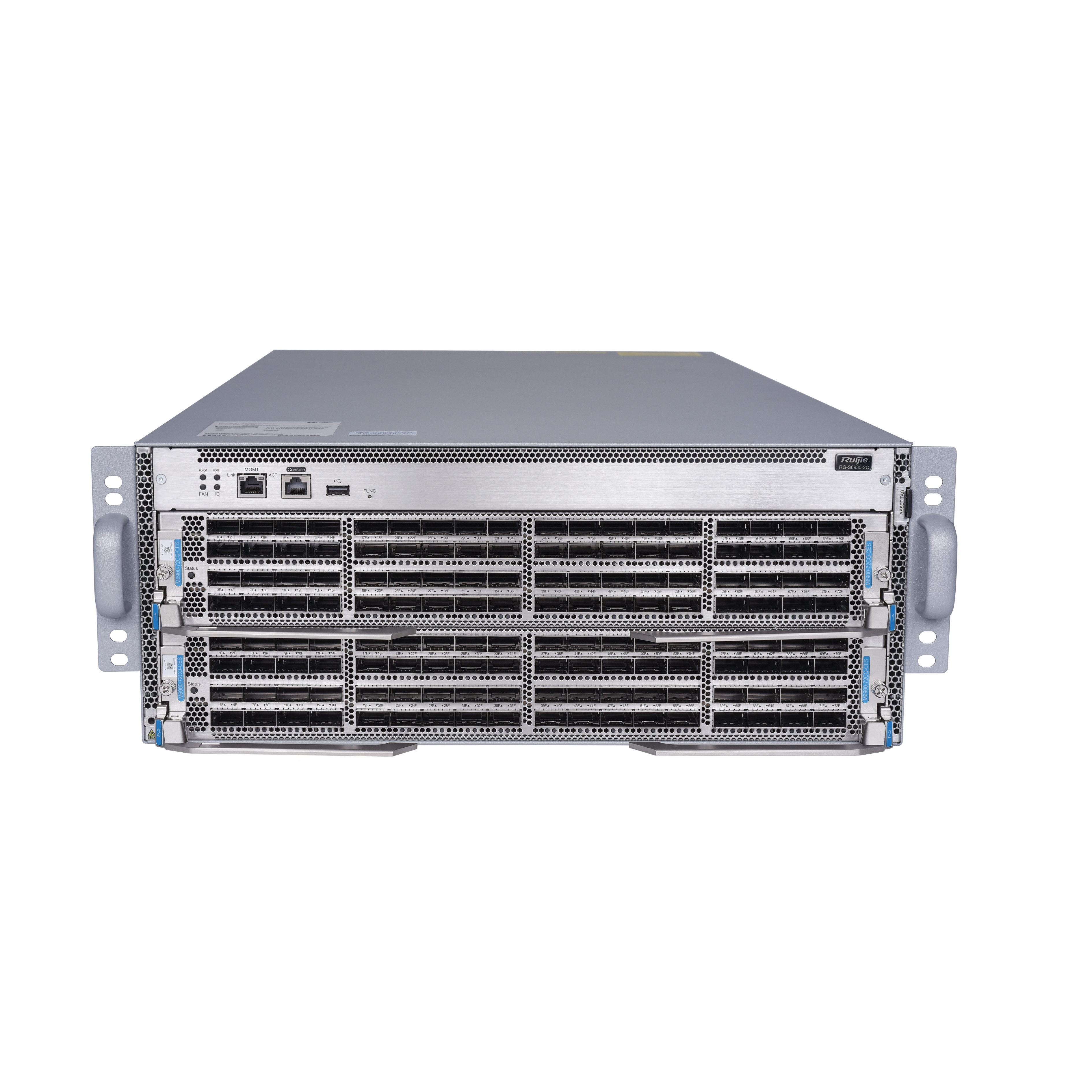

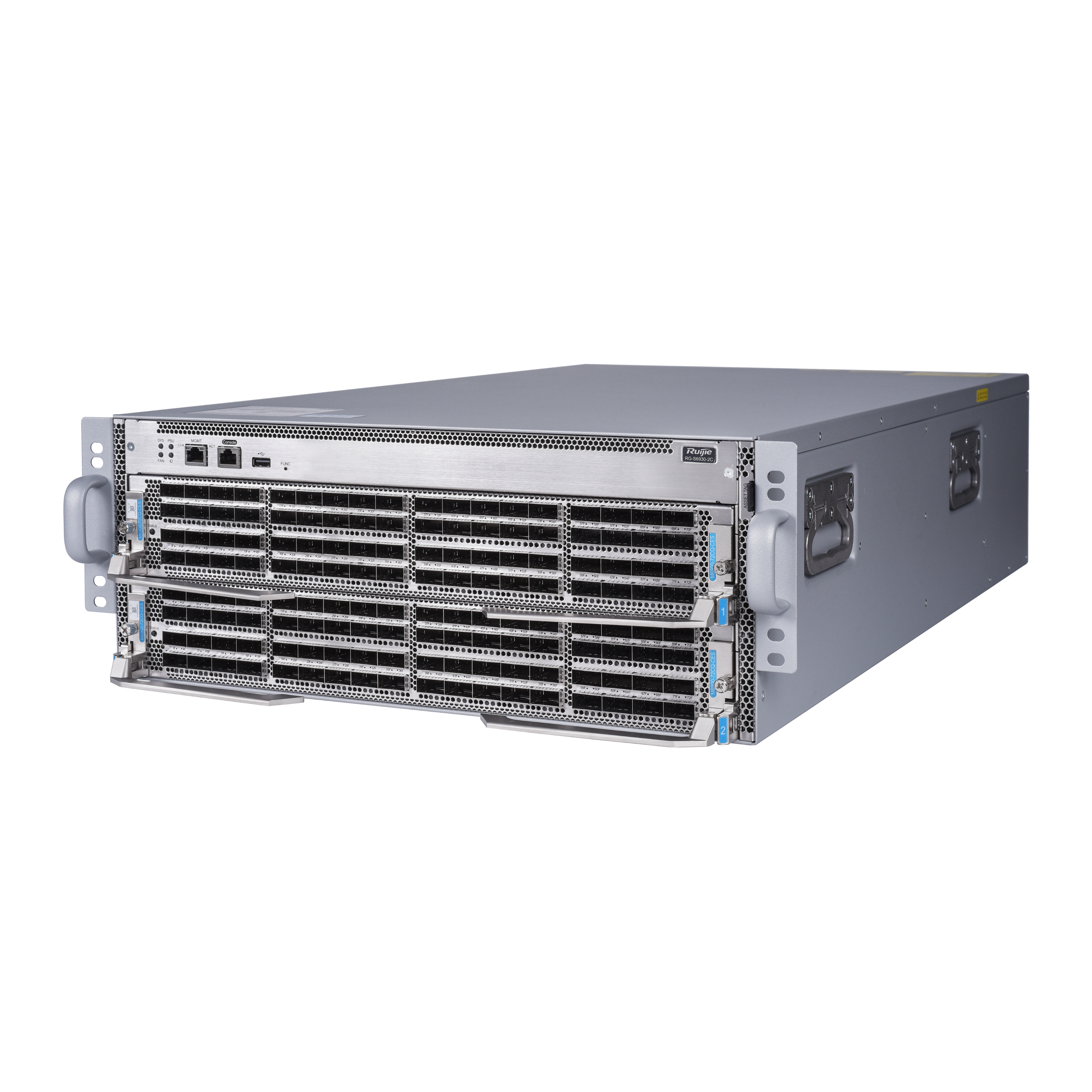

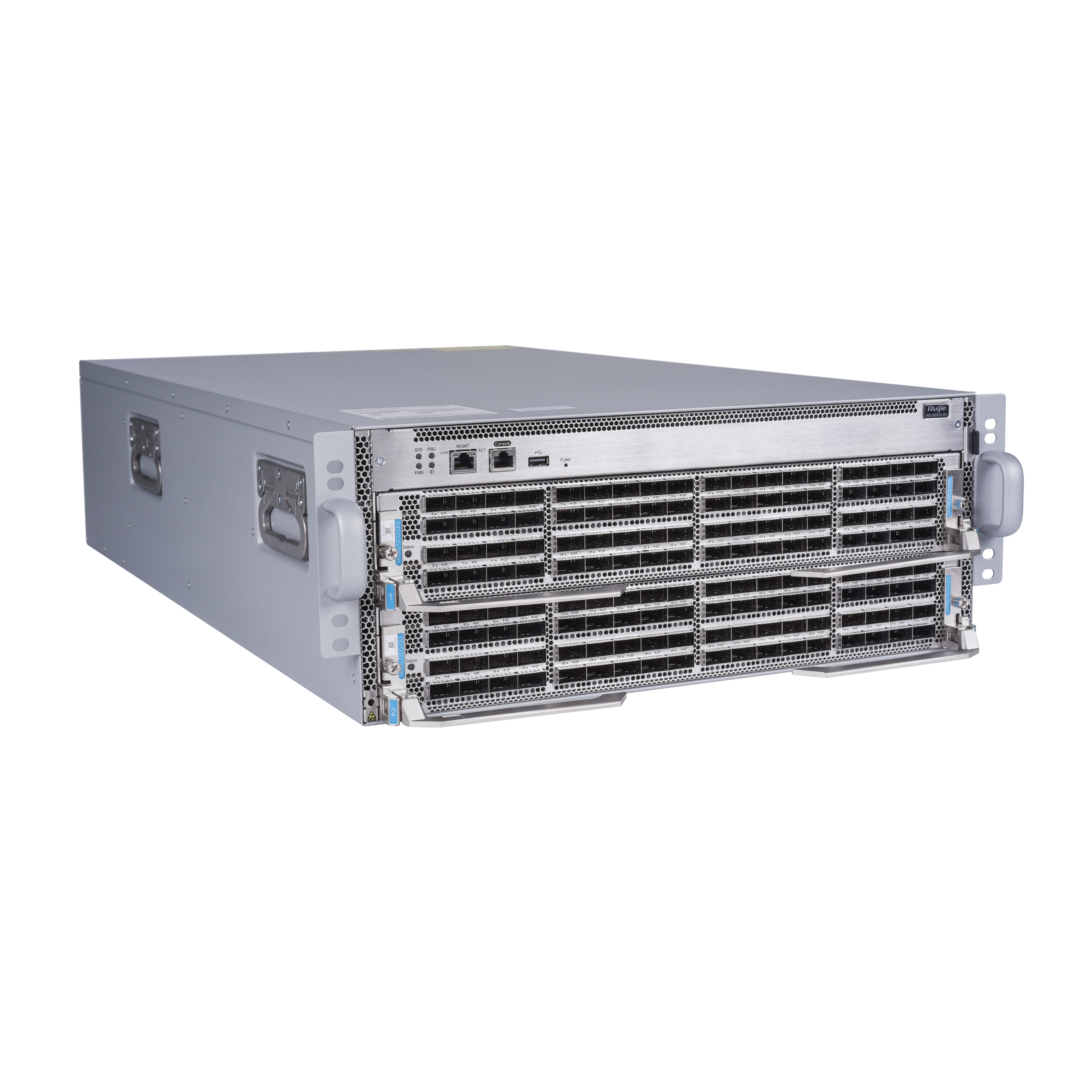

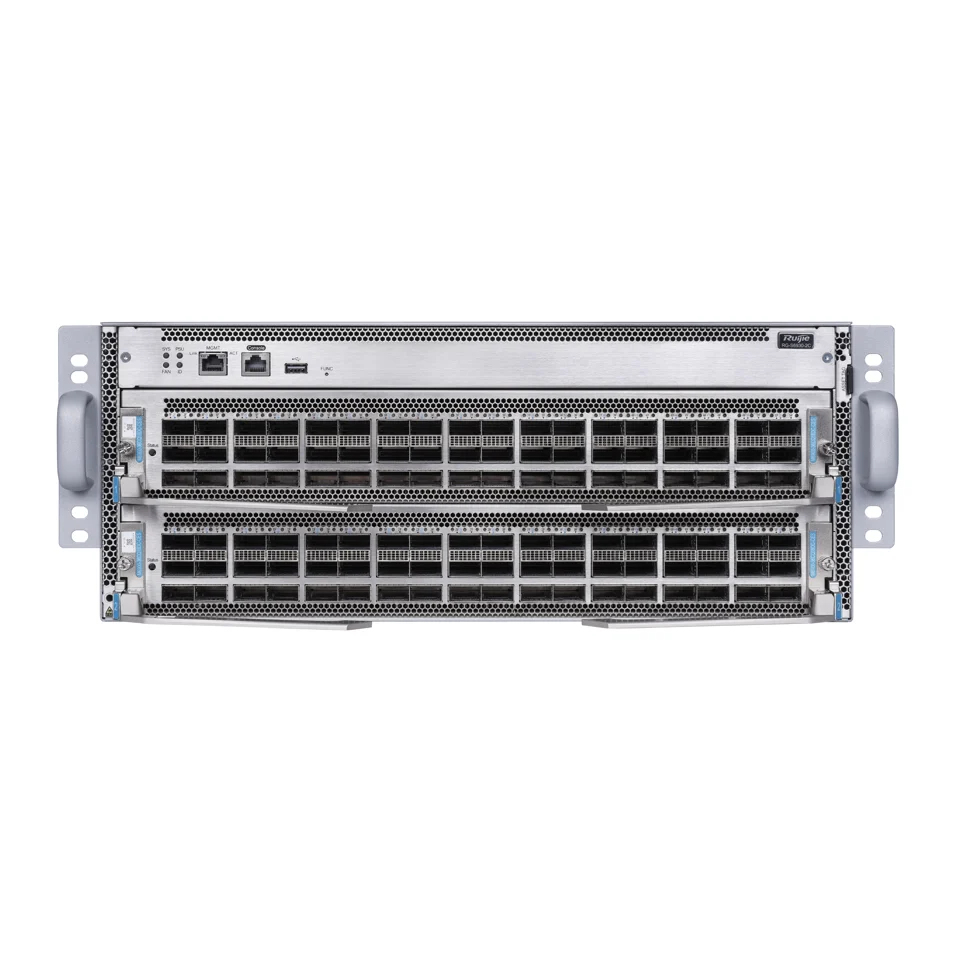

Centralized modular core switch with large buffer and high-density ports in the 4-RU space, which is recommended for the data center gateway zone, MAN, and DCI
Highlight Features
- 100GE and 200GE line cards, and up to 144 x 100GE or 72 x 200GE ports
- Hardware-level redundancy, ensuring nonstop services and data center network stability
- MACsec data encryption and transmission, effectively protecting service data security
- Telemetry-based network monitoring and automated O&M, making management simple and efficient
- Straight front-to-rear airflow design, enhancing the cooling efficiency
Hardware Specifications
| System Specifications | RG-S6930-2C | |
| Switching Capacity | 28.8 Tbps | |
| Packet Forwarding Rate | 5400 Mpps | |
| Port Specifications | RG-S6930-2C | |
| Ports | 100GE/200GE ports | |
| Expansion Slots | Two, each slot supporting up to 72 × 100GE ports or 36 × 200GE ports | |

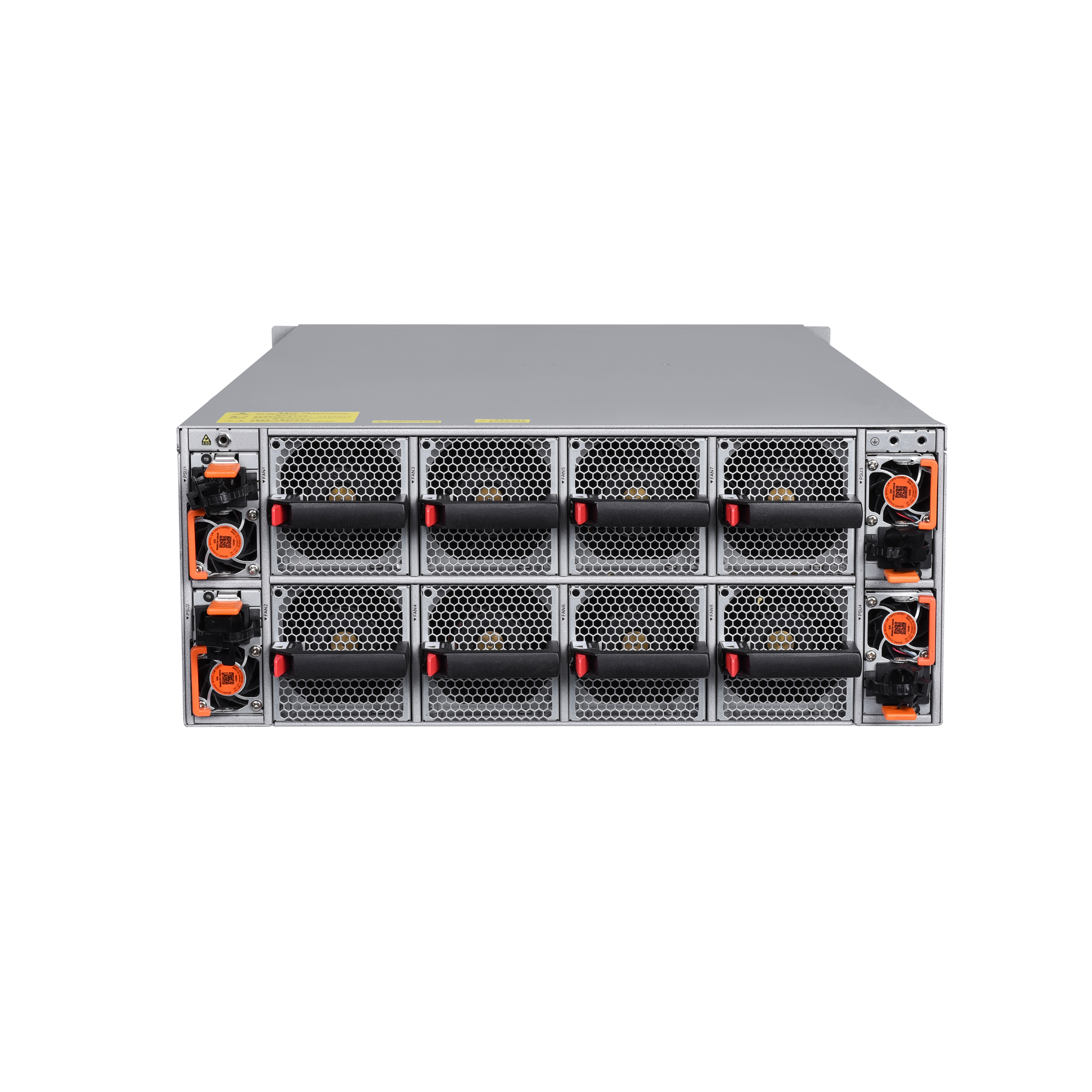

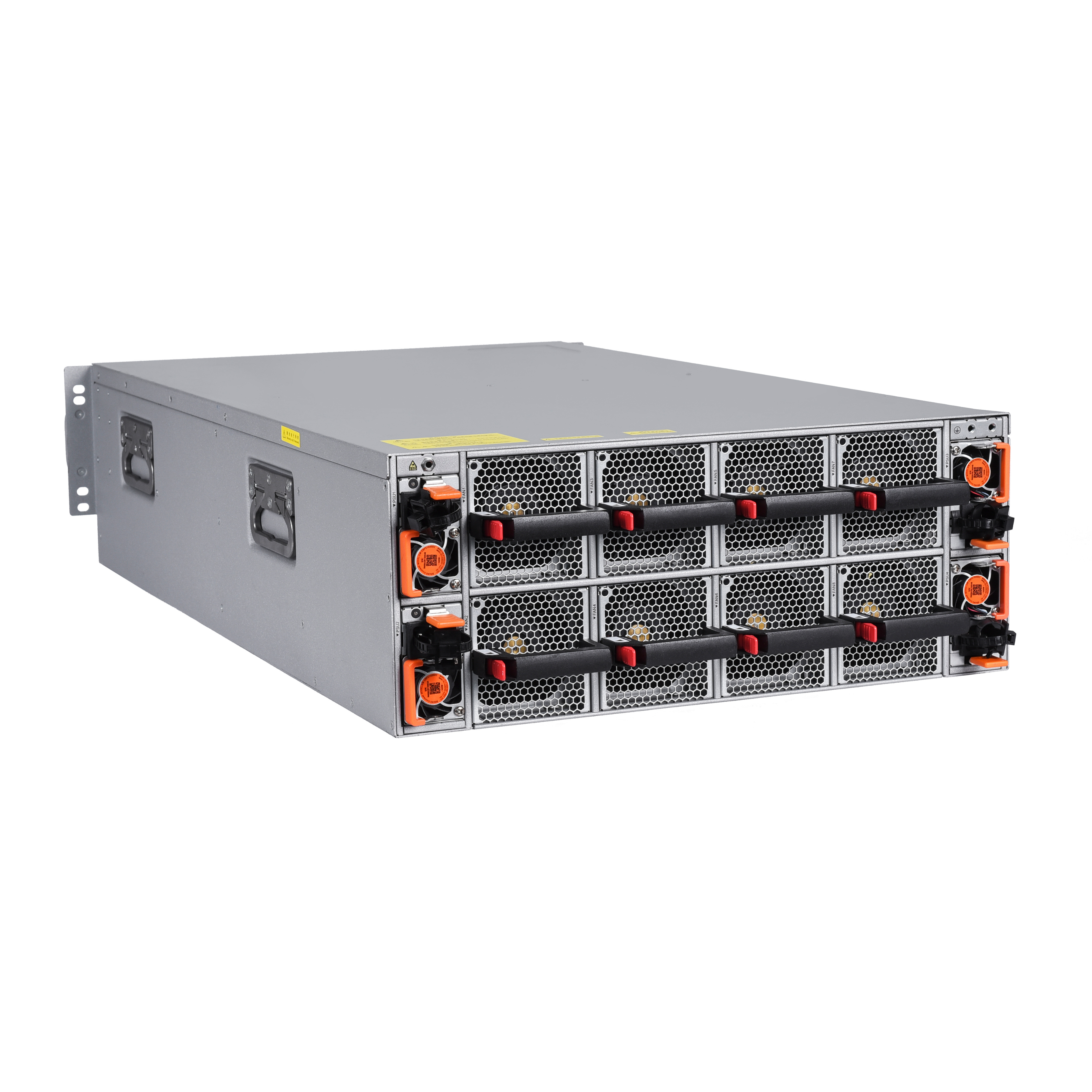

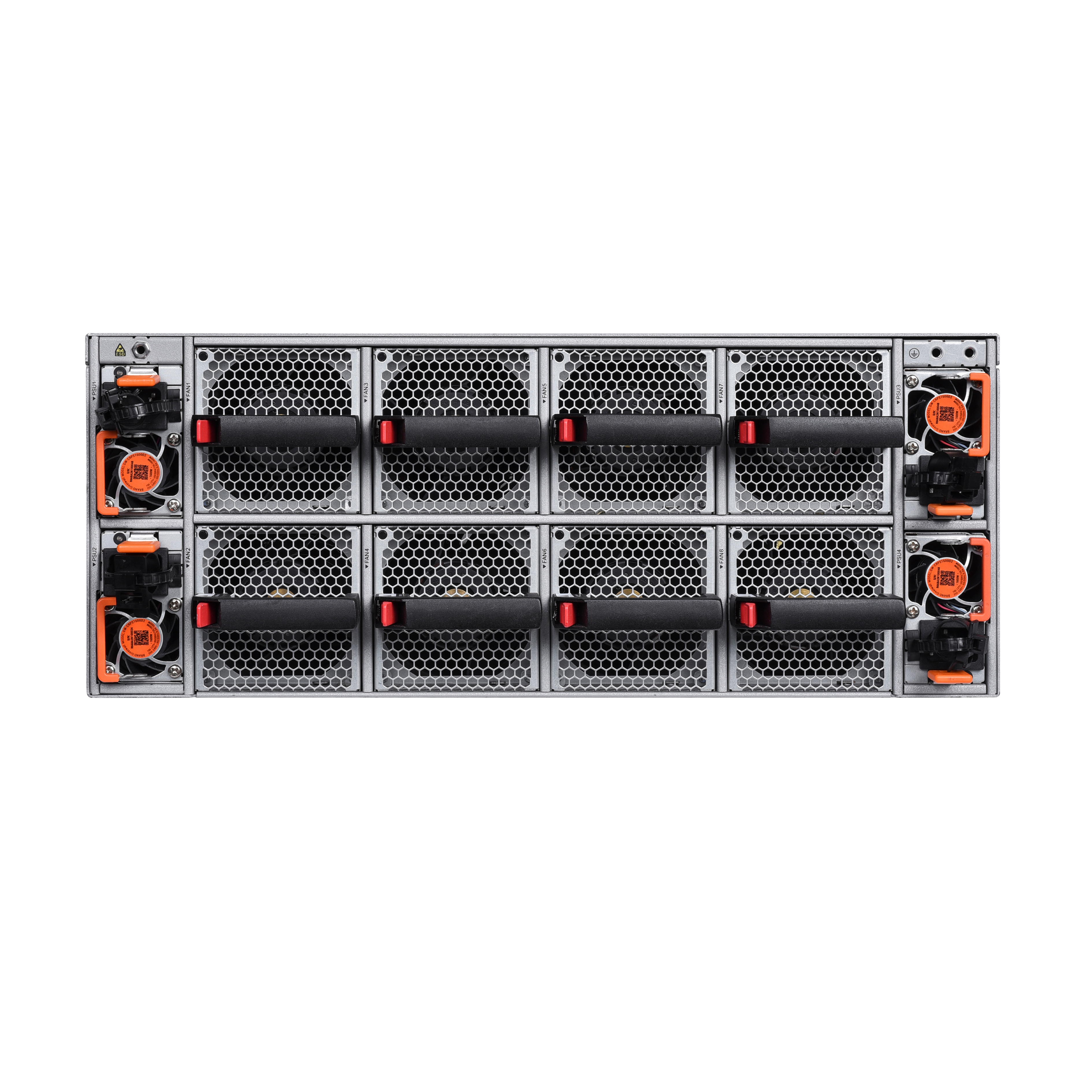

| Expansion Modules | Four power module slots, supporting 2+2 redundancy
Eight fan module slots, supporting 7+1 redundancy |
|
| Management Ports | One management port, one Console port, and one USB port | |
| Dimensions and Weight | RG-S6930-2C | |
| Dimensions (W × D × H) | 442 × 760 × 175 (17.40 in. × 29.92 in. × 6.89 in.), 4 RU | |
| Weight | 33.55 kg (73.97 lbs., including eight fan modules and four power supply modules) | |
| Power Supply and Consumption | RG-S6930-2C | |
| Input Voltage | AC | ● Rated voltage range: 200 V AC to 240 V AC
● Frequency: 50 Hz to 60 Hz ● Rated input current: 9.5 A (max) |
| HVDC | ● Rated voltage: 240 V DC
● Rated input current: 9.5 A |
|
| Maximum Power Consumption | 2934W | |
| Environment and Reliability | RG-S6930-2C | |
| Operating Temperature | 0ºC to 40ºC (32ºF to 104ºF) | |
| Storage Temperature | –40ºC to +70ºC (–40ºF to +158ºF) | |
| Operating Humidity | 10% to 90% RH (non-condensing) | |
| Storage humidity | 5% RH to 95% RH (non-condensing) | |
| Working altitude | Operating altitude: up to 5000 m (16,404.20 ft.)
Storage altitude: up to 5000 m (16,404.20 ft.) |
|
Software Specification
| Software Specification | RG-S6930-2C |
| 802.1Q VLAN | 4094 |
| L2 Protocols | IEEE802.3ad (Link Aggregation Control Protocol), IEEE802.1p, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, MLD Snooping, Jumbo Frame (9 KB), IEEE802.1ad (basic QinQ and *selective QinQ), and GVRP |
| L3 Protocols
(IPv4) |
BGP4, OSPFv2, IS-IS, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing, Routing Policy, ECMP, WCMP, VRRP, IGMP v1/v2/v3, PIM-SSM/SM/DM, MSDP, and Any-RP |
| Basic IPv6 Protocols | Neighbor Discovery, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, and IPv6 QoS |
| IPv6 Features | Static routing, ECMP, PBR, BGP4+, OSPFv3, IS-ISv6, RIPng, MLDv1/v2, PIM-SMv6, manual tunnel, *automatic tunnel, IPv4 over IPv6 tunnel, and * ISATAP tunnel |
| Visualization | gRPC
sFlow and IPFIX sampling |
| Data center features | Reporting buffer usage, queue traffic statistics, and packet drop statistics through gRPC
Hang prevention MMU Querying queue peak time Displaying packet drop caused by insufficient buffer Displaying the number of buffer alarms Real-time buffer monitoring Reading unicast packet drop caused by buffer congestion through MIB |
| Multicast | IGMP Proxy、IGMP v1, v2, v3、IGMP host behavior、Querier election、Membership query and response、Static multicast route、IGMP fast leave、IGMP filter、IGMP v1 and v2 snooping、IVGL mode、Querier、Source IP address check、MLD proxy、MLDv1, v2、MLD snooping、MSDP、PIM-DM、PIM-SM v6(PIM-SM v6/PIM-SSM v6)、PIM-SMv4(PIM-SM/PIM-SSM) |
| ACL | ACL80、Dual-stack support for ACL、ACL-based redirection、IPv6 ACL、Standard IP ACL、Extended IP ACL、Extended MAC ACL、Ingress/Egress ACLs、Time-based ACL、Global ACL、Resource sharing in the case of applying an ACL on different physical ports or SVIs、ACL counter、ACL counter only、ACL logging、ACL re-marking、IPv4/IPv6 user-defined function(UDF) ACL、Displaying ACL resource usage、Expert-level ACL |
| QoS | 802.1p, DSCP, and ToS priority mapping ACL-based traffic classification Priority marking and remarking Queue scheduling mechanisms, including SP, WFQ, and SP+WFQ |
| HA Design | GR for RIP/OSPF/BGP, BFD, REUP dual-link fast switching, RLDP unidirectional link detection, 2+2 power redundancy, fan redundancy, and hot swapping for all line cards and power supply modules |
| Security Features | MACSec, Network foundation protection policy (NFPP), CPU Protection Policy (CPP), DDoS attack defense, unauthorized data packet detection, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 authentication for OSPF, RIPv2, and BGPv4 packets, uRPF, broadcast packet suppression, Telnet login and password mechanisms for restricted IP addresses |
| Management Modes | SNMP v1/v2/v3, Telnet, Console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, syslog, and SPAN/RSPAN/ERSPAN |
| Other Protocols | DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP Relay, ARP Proxy, and Syslog |
| *MPLS | MPLS L3VPN, SR, and SRv6 |
* indicates that the feature will be supported in the future.
Safety and Regulatory Compliance
| Specification | RG-S6930-2C |
| Safety | ● GB 4943.1 |
| Electromagnetic Compatibility (EMC) | ● GB/T 9254.1 |
| Environment | ● 2011/65/EU EN 50581
● 2012/19/EU EN 50419 ● (EC) No.1907/2006 ● GB/T 26572 |
*For more country-specific regulatory information and approvals, contact your local sales agency.
Order Information
Take the following steps to configure an RG-S6930-2C switch:
● Select an RG-S6930-2C chassis fully equipped with power supply and fan modules.
● Select one or two line cards based on service requirements.
Chassis and Supervisor Engine
| Model | Description |
| RG-S6930-2C | RG-S6930-2C chassis equipped with four RG-PA1600II-F power supply modules and eight M2EFAN II-F fan modules
Two expansion slots, four power supply module slots, and eight fan module slots |
Power Supply Modules
| Model | Description |
| RG-PA1600II-F | 1600 W power supply module (AC and 240 V HVDC) |
Fan Modules
| Model | Description |
| M2EFAN II-F | Fan module (port-side intake) |
Line Cards
| Model | Description |
| M6900-36CQ18DC-CES | 36 x 100GE QSFP28 ports and 18 x 200GE QSFP56 ports |
| M6900-72CQ-CES | 72 x 100GE QSFP28 ports |
200GBASE Series Optical Modules
| Model | Description |
| 200G-Q56-SR4-MM850 | 200G SR4 module, QSFP56 form factor, MPO-12 connector, 100 m (328.08 ft.) over OM4 MMF |
100GBASE Series Optical Modules
| Model | Description |
| 100G-QSFP-LR4-SM1310 | 100G LR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
| 100G-QSFP-SR-MM850 | 100G SR module, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over MMF |
| 100G-QSFP-ER4-SM1310 | 100G ER4 module, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.59 ft.) over SMF |
| 100G-AOC-10M | 100G QSFP28 AOC cable, 10 m (32.81 ft.) |
| 100G-AOC-5M | 100G QSFP28 AOC cable, 5 m (16.40 ft.) |
40GBASE Series Optical Modules
| Model | Description |
| 40G-QSFP-iLR4-SM1310 | 40G iLR4 module, QSFP+ form factor, Duplex LC, 2 km (6,561.68 ft.) over SMF |
| 40G-QSFP-LR4-SM1310 | 40G LR4 module, QSFP+ form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF |
| 40G-QSFP-LSR-MM850 | 40G LSR module, QSFP+ form factor, MPO, 400 m (1,312.34 ft.) over MMF |
| 40G-QSFP-SR-MM850 | 40G SR module, QSFP+ form factor, MPO, 150 m (492.13 ft.) over MMF |
| 40G-QSFP-LX4-SM1310 | 40G LX4 module, QSFP+ form factor, Duplex LC connector, 150 m (492.13 ft.) over OM3/OM4 MMF, or 2 km (6,561.68 ft.) over SMF |
| 40G-AOC-30M | 40G QSFP+ AOC cable, 30 m (98.43 ft.) |
| 40G-AOC-5M | 40G QSFP+ AOC cable, 5 m (16.40 ft.) |
