64 x 400GE Ports
Condition: NOB
RMA Warranty
Description
High-density 400GE Fixed Switch with 400GE ZR/ZR+ Optical Modules, Supporting Long-Distance Interconnection
-

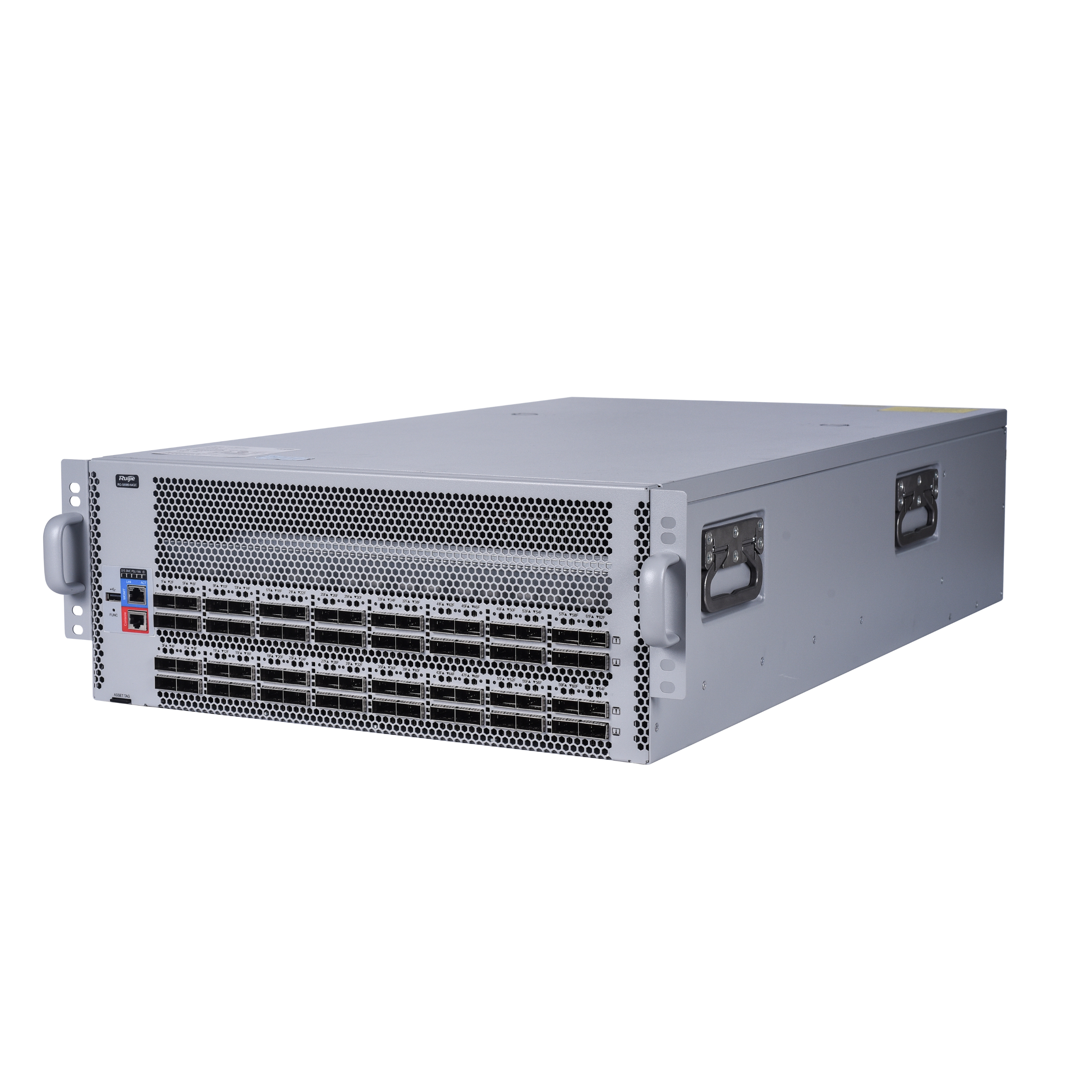

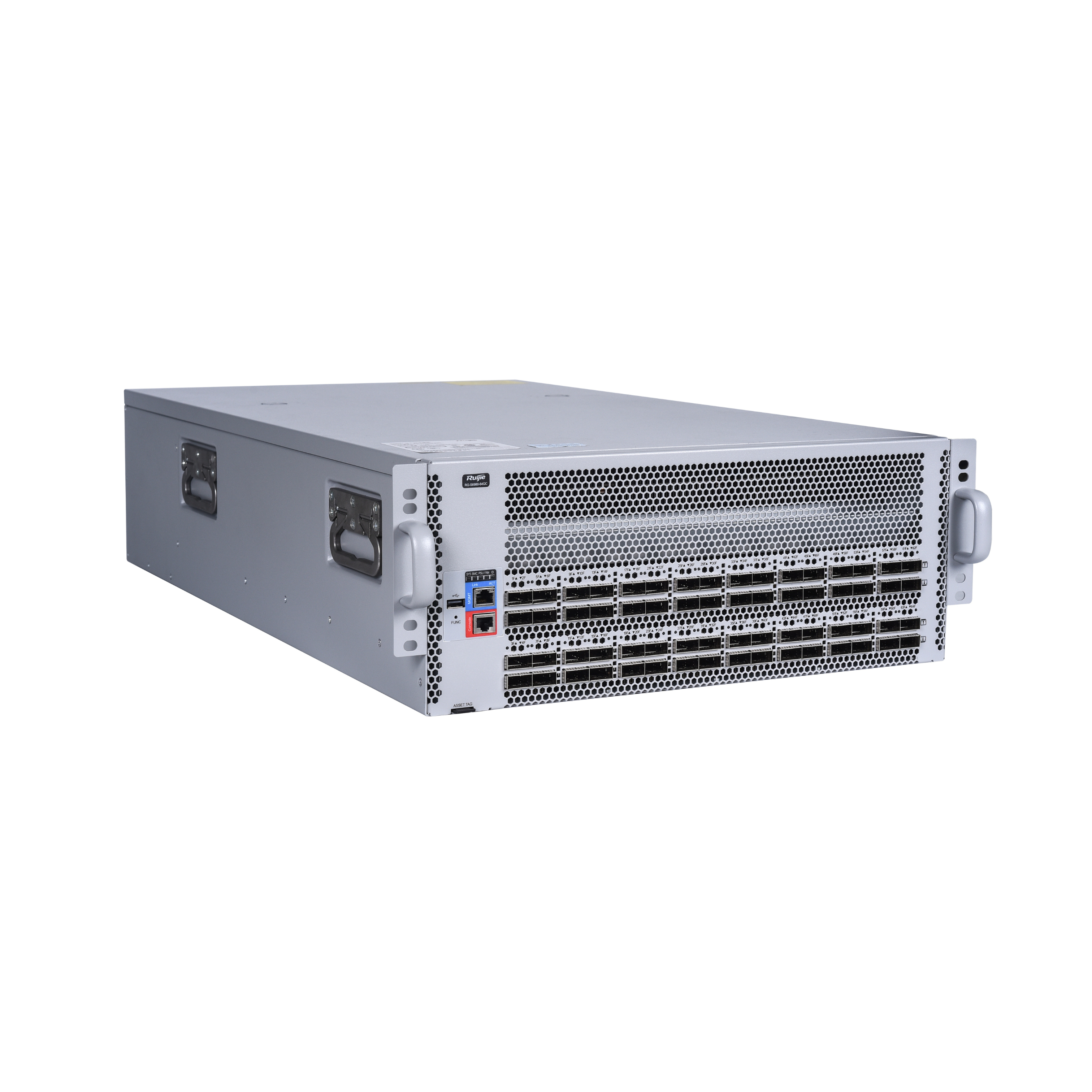

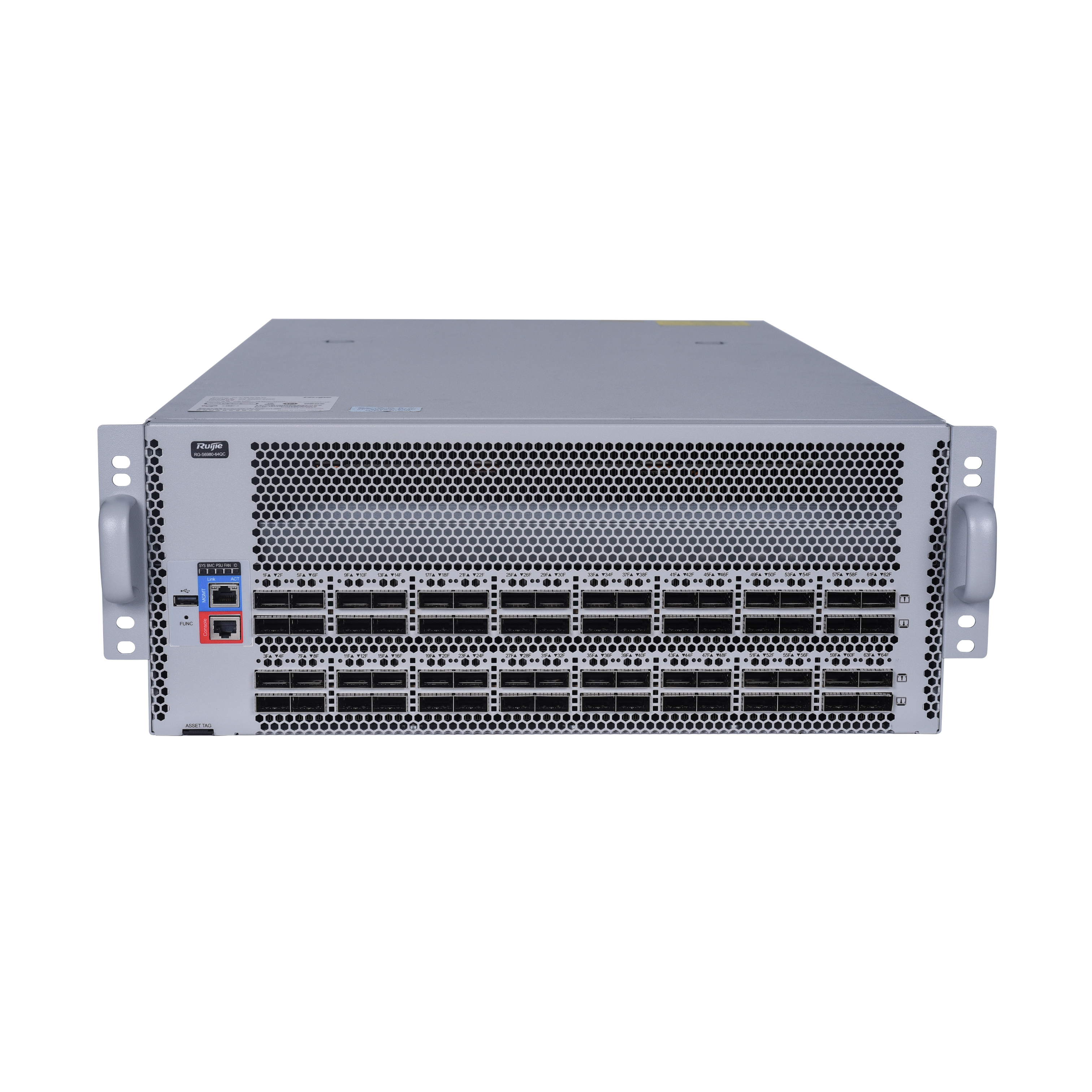

High-density 400GE switch with 64 x 400GE QSFP-DD ports in the 4-RU space
-
Hardware-level redundancy, ensuring service continuity
-
400GE QSFP-DD ports, interconnection at the distance of up to 120 km, and smooth and rapid data communication
-
Lossless Ethernet, ensuring zero packet loss during RDMA E2E communication
-
Telemetry-based network monitoring and automated O&M, making management simple and efficient
Hardware Specifications
| System Specifications | RG-S6980-64QC |
| Ports | Fixed 64 × 400GE ports (QSFP-DD) |
| Expansion Modules | Not supported |

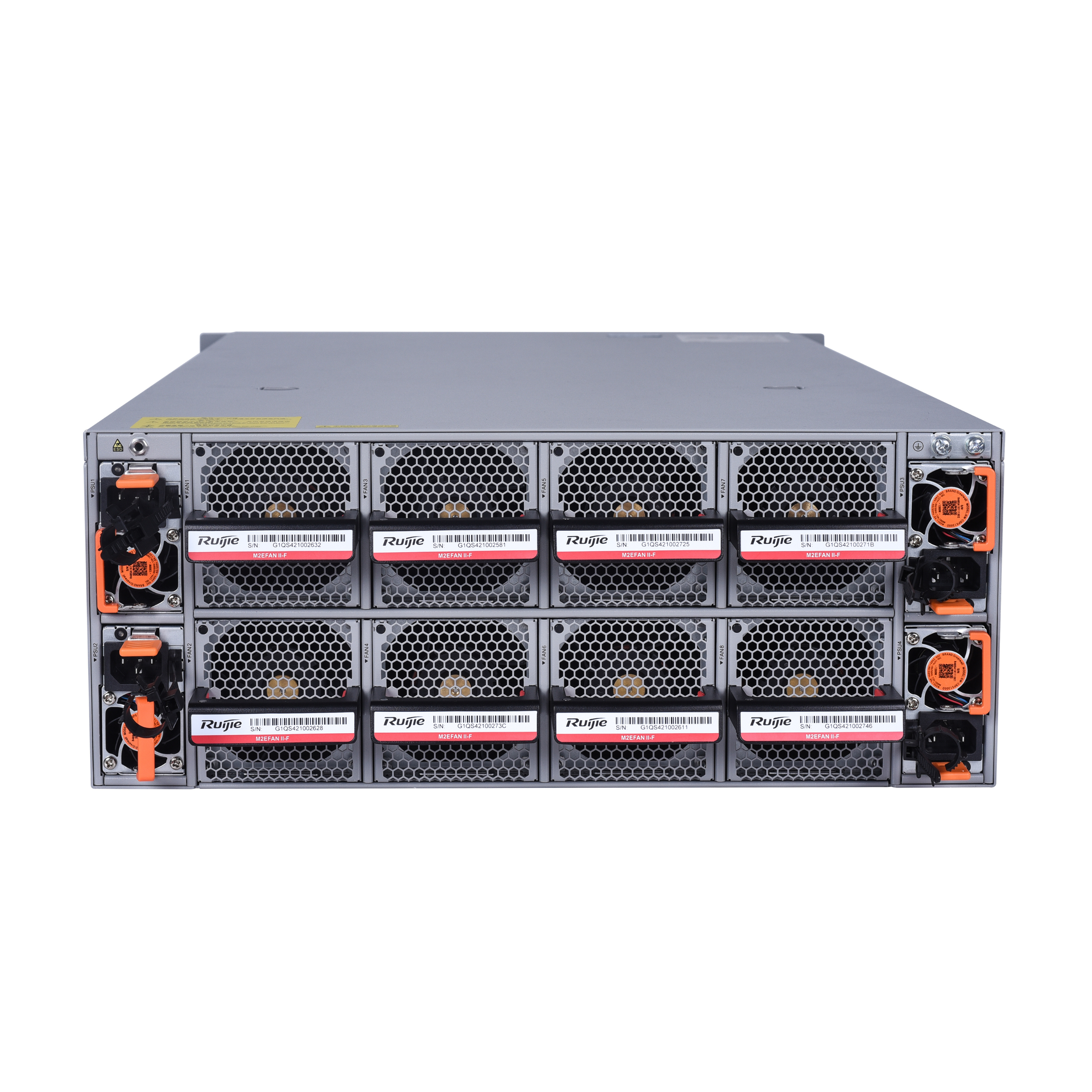

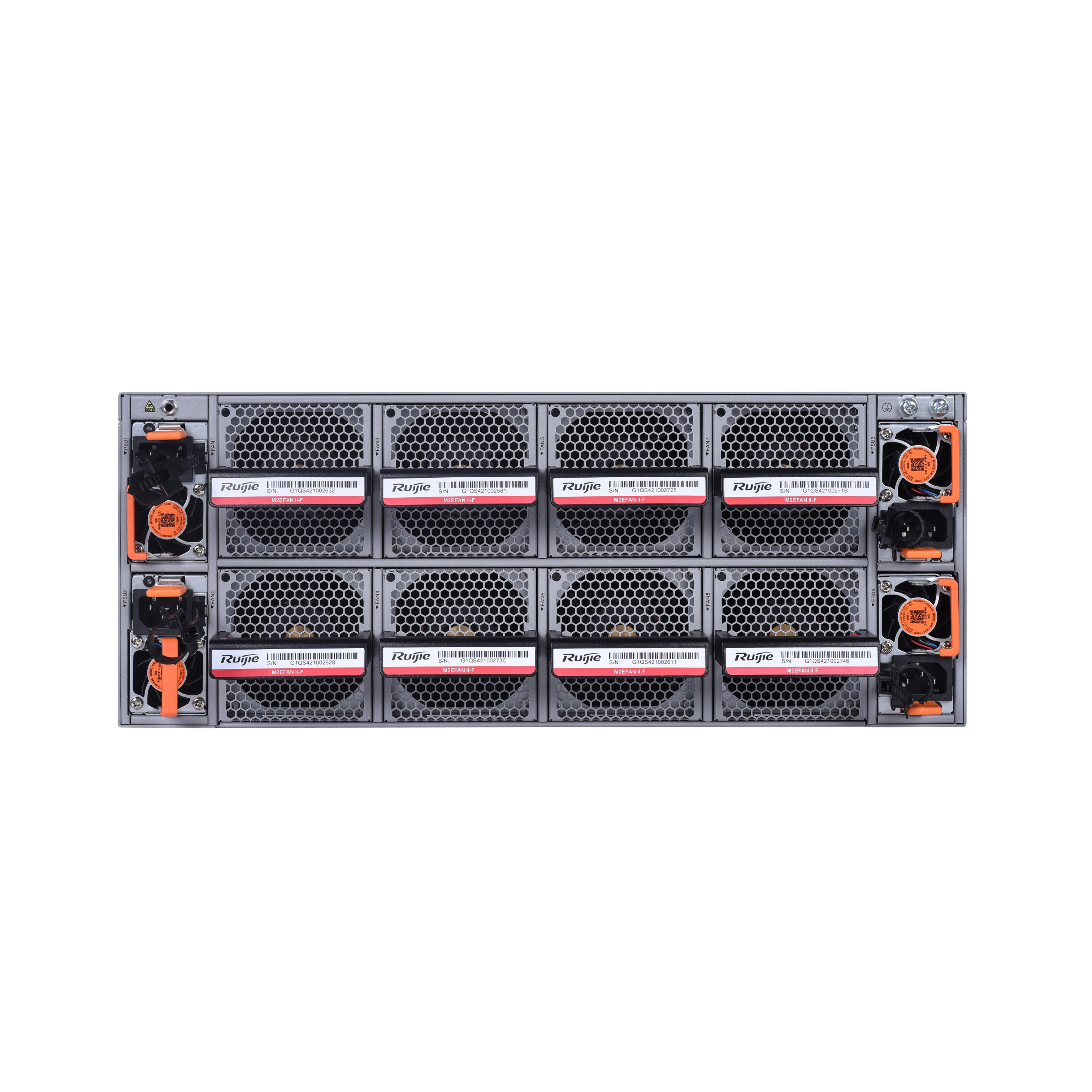

| Expansion Slots | Four power supply module slots
Eight fan module slots |
| Management Port | One management port, one console port, and one USB port, compliant with the USB2.0 standard |
| Switching Capacity | 51.2 Tbps |
| Packet Forwarding Rate | 10300 Mpps |
| 802.1Q VLAN | 4094 |
| Dimensions and Weight | RG-S6980-64QC |
| Dimensions (W × D × H) | 442 mm × 760 mm × 175 mm, 4 RU |
| Weight | About 38 kg (including eight fan modules and four power supply modules) |
| Power Supply and Consumption | RG-S6980-64QC |
| Maximum Power Consumption | 2524 W |
| AC | AC input:
Rated voltage range: 100 VAC to 127 VAC Frequency: 50 Hz to 60 Hz Rated input current: 12 A (max) Rated voltage range: 200 VAC to 240 VAC Frequency: 50 Hz to 60 Hz Rated input current: 8 A (max) |
| High-voltage DC | HVDC input:
Rated voltage: 240 VDC Rated input current: 6.5 A |
| Environment and Reliability | RG-S6980-64QC |
| Operating Temperature | 0ºC to 40ºC (32ºF to 104ºF) |
| Storage temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Storage humidity | 5% to 95% RH (non-condensing) |
| Working altitude | Operating altitude: up to 5000 m (16,404.20 ft.)
Storage altitude: up to 5000 m (16,404.20 ft.) |
Software Specifications
| Software Specifications | RG-S6980-64QC |
| L2 Protocols | IEEE 802.3ae (10GBase), IEEE 802.3ak, IEEE 802.3an, IEEE 802.3x, IEEE 802.3ad (Link Aggregation Control Protocol)), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), Jumbo Frame (9 KB) |
| L3 Protocols (IPv4) | BGP4, OSPFv2, RIPv1, RIPv2, LPM routing, Policy-based Routing (PBR), route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP |
| IPv6 Basic Protocols | Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS |
| IPv6 Features | Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+ |
| Data Center Features | PFC, ECN, and other data center features
RDMA |
| Visualization | gRPC
sFLOW sampling |
| QoS | Mapping of IEEE 802.1p, DSCP, and ToS priorities ACL-based traffic classification Priority marking/remarking Multiple queue scheduling mechanisms, including SP, WRR, WFQ, DRR, SP+WRR, SP+WFQ, and SP+DRR Congestion avoidance mechanisms such as WRED and tail discarding |
| ACL | ACL 80、ACL-based Redirection、IPv6 ACL、Standard/Extended IP/MAC-based ACL、Time-based ACL、Global ACL、ACL Counter、ACL Counter Only、ACL Logging、ACL Re-marking、Displaying ACL Resource Usage、Expert-level ACL、IPv4 UDF ACL、Global ACL Counter Only、Matching Against the Inner 5-Tuple of the VXLAN、IPv6 UDF ACL、Matching Against the Inner 5-Tuple of the Passing VXLAN、Ingress/Egress ACLs |
| HA Design | GR for RIP/OSPF/BGP, BFD, DLDP, REUP dual-link fast switching, RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power supply modules |
| Security Features | Network foundation protection policy (NFPP), CPP, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, RIPv2, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, broadcast packet suppression, hierarchical user management |
| Management Mode | SNMP v1/v2/v3, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, Syslog, SPAN/RSPAN/ERSPAN, ZTP, NETCONF, Python, fan and power alarm, and temperature alarm |
| Other Protocols | DHCP client, DHCP relay, DHCP server, DNS client, ARP proxy, and Syslog |
Safety and Regulatory Compliance
| Specification | RG-S6980-64QC |
| Safety | ● IEC 62368-1
● EN 62368-1 ● BS EN 62368-1 ● GB 4943.1 |
| Electromagnetic Compatibility (EMC) | ● EN 55032
● EN 55035 ● EN 61000-3-2 ● EN 61000-3-3 ● BS EN55032 ● BS EN 55035 ● BS EN 61000-3-2 ● BS EN 61000-3-3 ● EN 300 386 ● GB/T 9254.1 |
| Environment | ● 2011/65/EU EN 50581
● 2012/19/EU EN 50419 ● (EC) No.1907/2006 ● GB/T 26572 |
*For more country-specific regulatory information and approvals, contact your local sales agency.
Order Information
The configuration procedure for the RG-S6980-64QC switch is as follows:
● Select the switch.
● Select the fan and power supply modules.
● Select optical transceivers based on port requirements.
Chassis, Fan, and Power Supply Modules
| Product Model | Description |
| RG-S6980-64QC | Fixed 64 × 400GE ports, four power supply module slots, and eight fan slots |
| RG-PA1200I-F | Power supply module, supporting 2+2 redundancy, hot swapping, and front-to-rear ventilation design |
| M2EFAN II-F | Fan module, supporting 7+1 redundancy, hot swapping, and front-to-rear ventilation design |
400GBASE Series Optical Modules
| Product Model | Description |
| 400G-QDD-SR8-MM850 | 400G SR8 module, QSFP-DD form factor, MPO-16 APC, 850 nm, 100 m (328.08 ft.) over MMF |
| 400G-QDD-FR4-SM1310 | 400G FR4 module, QSFP-DD form factor, Duplex
LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
| 400G-QDD-DR4-SM1310 | 400G DR4 module, QSFP-DD form factor, MPO-12 APC, 1310 nm, 500 m (1,640.42 ft.) over SMF |
100GBASE Series Optical Modules
| Product Model | Description |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
| 100G-QSFP-LR4-SM1310 | 100G LR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF |
| 100G-QSFP-SR-MM850 | 100G SR module, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over MMF |
| 100G-QSFP-ER4-SM1310 | 100G ER4 module, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.59 ft.) over SMF |
| 100G-AOC-5M | 100G QSFP28 AOC cable, 5 m (16.40 ft.) |
| 100G-AOC-10M | 100G QSFP28 AOC cable, 10 m (32.81 ft.) |
