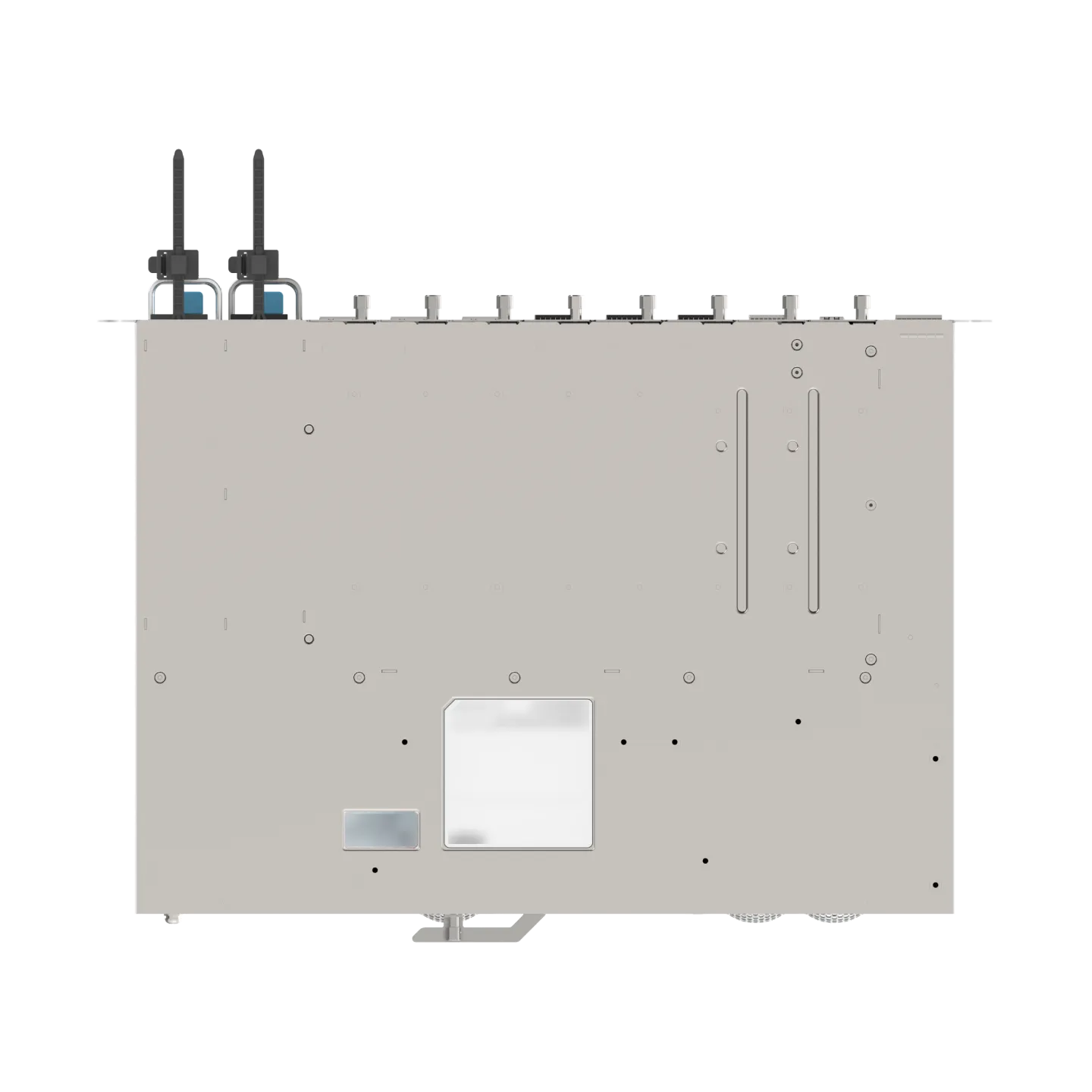

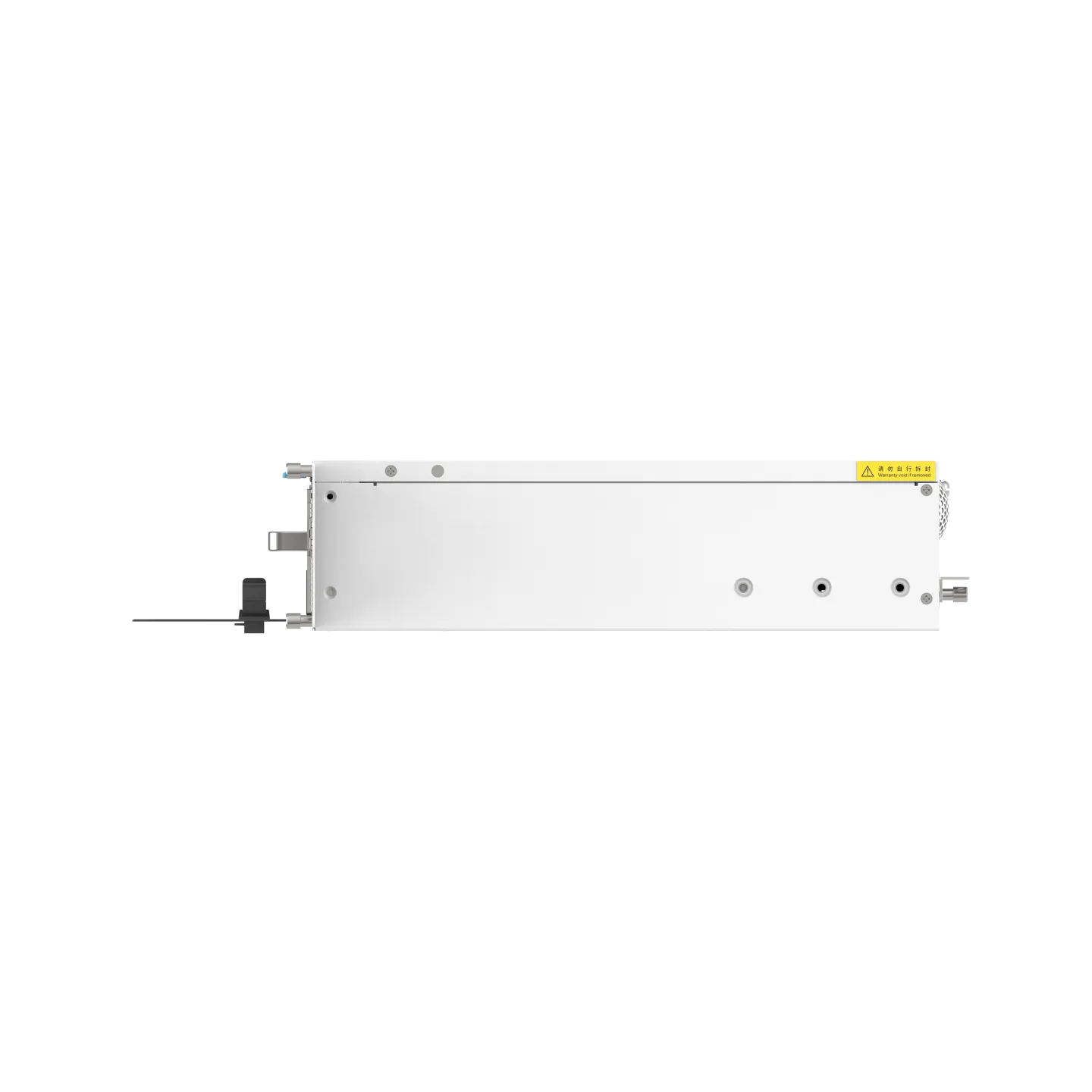

RG-SG7008L

2 x multi-service module slots (slots 7 and 8)

2 x power module slots (slots PWR1 and PWR2)

1 x hard disk slot

Built-in switch fabric unit (SFU) and dual fan modules

Chassis with cable management arm (3 U): 442 mm x 406 mm x 131.5 mm (17.40 in. x 15.98 in. x 5.18 in.)

Input: 90 V–290 V AC

Output power: 180 W (12 V/180 W)

RG-PA650I-P-F:

Input: 90 V–290 V AC

Output power: 650 W (12 V/130 W, 54.5 V/520 W)

Power modules of different models can be used together.

Fan speed adjustment and fan failure alarming are supported.

Note: At an altitude from 1800 m (5906 ft) to 5000 m (16404 ft), the maximum temperature decreases by 1°C (1.8°F) each time the altitude increases by 220 m (722 ft).

● Operating altitude: up to 5000 m (16404 ft)

Storage altitude: up to 5000 m (16404 ft)

Port-based VLAN

Private VLAN

Voice VLAN

GVRP

Flexible QinQ

DHCP client

DHCP snooping

DHCP relay

IPv6 DHCP server

IPv6 DHCP snooping

IPv6 DHCP client

IPv6 DHCP relay

BGP4 and BGP4+

OSPFv2, OSPFv3, IS-ISv4, and IS-ISv6

Packet-based and flow-based load balancing

PIM-DM, PIM-SM, and PIM-SSM

MLD Snooping and MLD

PIM for IPv6

Standard IP ACLs (IP-based hardware ACLs)

Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers)

MAC-based extended ACLs

Time-based ACLs

Expert-level ACLs

IPv6 ACL

Filtering of unauthorized MAC addresses

802.1x authentication based on the port number and MAC address

Portal authentication and Portal 2.0 authentication

ARP check, ARP packet rate limiting, gateway-targeted ARP spoofing prevention

Port protection

Broadcast storm suppression

Hierarchical management and password protection of administrators

RADIUS and TACAS+

AAA for device login management

SSHv2 to provide a secure, encrypted connection for user login

BPDU Guard

CPP and NFPP

Attack defense, DoS/DDoS defense, fragmentation attack defense, SYN attack defense, and IP spoofing attack defenseL2TP, IPsec VPN, GRE

CLI configurations including the console port, auxiliary port, Telnet, or SSH

File transfer protocols such as FTP, TFTP, and XMODEM

sFlow, which utilizes the random sampling technology to sample flow information on the traffic of a switch

WIS-based management

Static routing, RIPv1/RIPv2, OSPFv2, BGP, IS-IS, PBR, and routing policies

VRRP, FTP, and TFTP

ECMP and WCMP

Static and dynamic NAT, static and dynamic NAPT, and VPN NAT

DNS resolution and smart DNS

NTP server and NTP client

Static routing, RIPng, OSPFv3, BGP4+, IS-ISv6, ECMP, and PBR

VRRPv3, BFDv6, and 6VPE

IPv6 ACL, NAT64, NAT-PT, DHCPv6, DNSv6, FTPv6, and TFTPv6

Manual tunnel, automatic tunnel, ISATAP, and GRE tunnel

MPLS VPN inter-AS option A/B/C

Egress routing, ISP address library, Reverse Path Limited (RPL), domain name-based routing, and multi-link load balance (MLLB)

DNS proxy, reverse DNS proxy, and DNS redirect

Flow table-based attack prevention, single-user session limit, flow attack log, and flow table memory optimization

Configuration backup and one-click recovery

Flow log and URL log

Security zone division based on the logical interface

Attack defense domain (global protection policies, protocol policies, and domain policies)

Security audit (attack defense domain log audit, security zone log audit, and management log audit)

Automatic remote upgrade of URL library through HTTP

Local storage of logs and storage on external log servers (including NAT logs, flow logs, and URL logs)

LAN attack prevention and WAN attack prevention

Secure address binding

Port scan attack prevention

Segmentation packet attack prevention

ICMP flood attack prevention

Smurf attack prevention

Teardrop attack prevention

ICMP redirect attack prevention

ICMP unreachable attack prevention

P2P applications

Streaming media software

Chat software

Game software

Internal enterprise applications

IM audit

BBS forum content audit

Search engine audit

● Maximum storage altitude: 5000 m

For the altitude in the range of 1800 m (5905.51 ft.) to 5000 m (16404.20 ft.), every time the altitude increases by 200 m (656.17 ft.), the operating temperature is decreased by 1°C (1.8ºF).

With captive screws: 86 mm x 220 mm x 38 mm (3.39 in. x 8.66 in. x 1.50 in.)

SFP modules and SFP BIDI modules

SFP+ modules, SFP+ cables, and SFP+ BIDI modules

● Maximum storage altitude: 5000 m

For the altitude in the range of 1800 m (5905.51 ft.) to 5000 m (16404.20 ft.), every time the altitude increases by 200 m (656.17 ft.), the operating temperature is decreased by 1°C (1.8ºF).

With captive screws: 86 mm x 220 mm x 38 mm (3.39 in. x 8.66 in. x 1.50 in.)

● Maximum storage altitude: 5000 m

For the altitude in the range of 1800 m (5905.51 ft.) to 5000 m (16404.20 ft.), every time the altitude increases by 200 m (656.17 ft.), the operating temperature is decreased by 1°C (1.8ºF).

● Maximum storage altitude: 5000 m

For the altitude in the range of 1800 m (5905.51 ft.) to 5000 m (16404.20 ft.), every time the altitude increases by 200 m (656.17 ft.), the operating temperature is decreased by 1°C (1.8ºF).

With captive screws: 210 mm x 86 mm x 38 mm (8.27 in. x 3.39 in. x 1.50 in.)

Note

The PoE+ port conforms to the PoE (IEEE802.3af) and PoE+ (IEEE802.3at) standards.

The maximum number of PoE devices supported by the device is subject to the available PoE consumption of the device and the actual PoE consumption of each device.

The PoE port is compliant with Alternative A.

● Maximum storage altitude: 5000 m

For the altitude in the range of 1800 m (5905.51 ft. to 5000 m (16404.20 ft.), every time the altitude increases by 200 m (656.17 ft.), the operating temperature is decreased by 1°C (1.8ºF).

With captive screws: 210 mm x 86 mm x 38 mm (8.27 in. x 3.39 in. x 1.50 in.)

● Maximum storage altitude: 5000 m

For the altitude in the range of 1800 m (5905.51 ft.) to 5000 m (16404.20 ft.), every time the altitude increases by 200 m (656.17 ft.), the operating temperature is decreased by 1°C (1.8ºF).

With captive screws: 210 mm 86 mm x 38 mm (8.27 in. x 3.39 in. x 1.50 in.)
