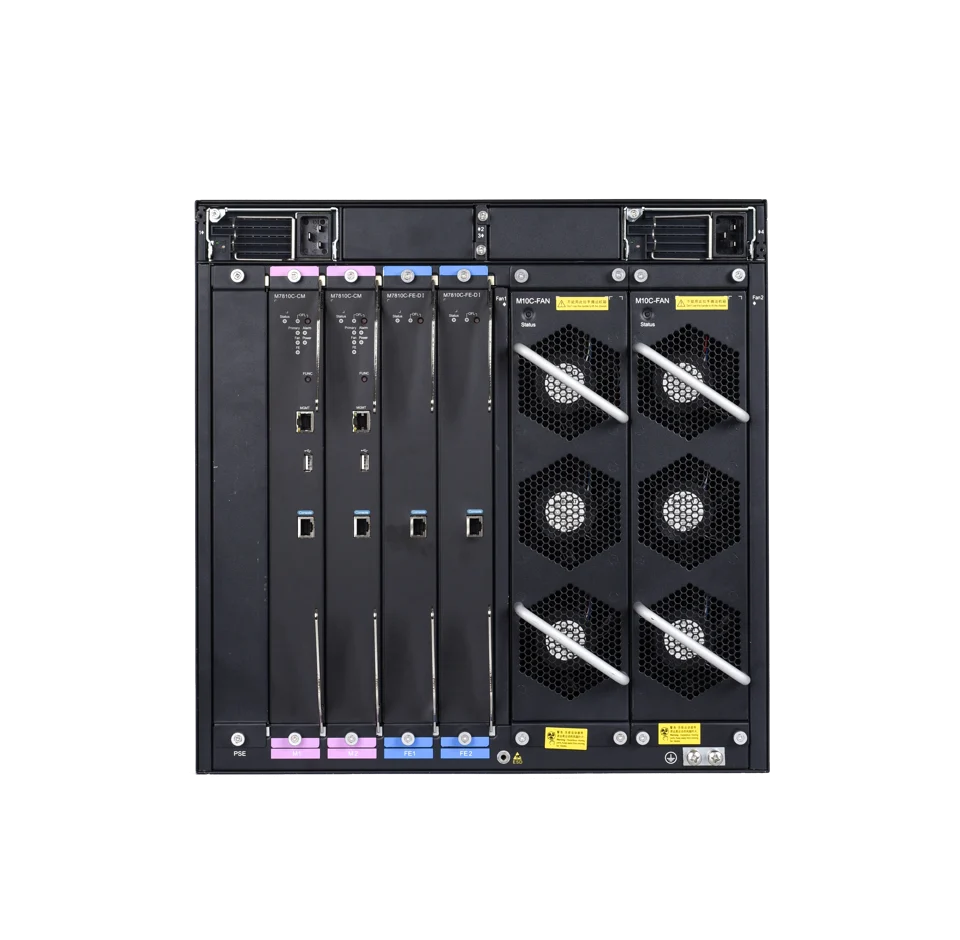

8 x line card slots, 10 RU
Condition: NOB
RMA Warranty
Description
- Orthogonal Clos architecture, providing a backplane-free design and ensuring non-blocking packet forwarding and high-speed transmission without packet loss
- Security defense policies, ensuring network robustness
- VSU, delivering flexible networking capabilities and high performance
- Hardware-level multi-protection, delivering carrier-grade reliability
- SOE management software INC, enabling simplified and efficient O&M
Hardware Specifications
| Hareware Specifications | S7805C | S7808C | S7810C |
| Interface Specifications | |||
| Power module | 2 | 2 | 4 |
| Supervisor module slot | 2 | 2 | 2 |
| Line card slot | 3 | 6 | 8 |
| Switch fabric module slot | Built-in | 2 (integrated with supervisor modules) | 4 (2 are integrated with supervisor modules) |
| System Specifications | |||
| Packet forwarding rate | 4,500 Mpps | 9,000 Mpps | 12,000 Mpps |
| System switching capacity | 6 Tbps | 12 Tbps | 16 Tbps |
| MAC address | ● Number of global MAC addresses
EB card: 64,000 DA card: 96,000 (default) and 288,000 (max.) FA card: 80,000 FB card: 96,000 ● Number of static MAC addresses EB card: 4,000 DA card: 10,000 FA card: 4,000 ● FB card: 40,000 |
||
| ARP table | EB card: 10,000 (default and recommended)
DA card: underlay: 75,000; overlay: 0 (default and recommended) FA card: underlay: 30,000; overlay: 0 FB card: underlay: 50,000; overlay: 0 (default and recommended) |
||
| Number of IPv4 unicast routes | EB card: 12,000 (default and recommended, shared with IPv6 routes)
DA card: 12,000 (default and recommended, shared with IPv6 routes) FA card: 12,000 (default and recommended, shared with IPv6 routes) FB card: 134,000 (default and recommended, shared with IPv6 routes) |
||
| Number of IPv4 multicast routes | EB card: 8,000
DA card: 16,000 FA card: 8,000 FB card: 16,000 |
||
| Number of IPv6 unicast routes | EB card: 6,000 (shared with IPv4 routes)
DA card: 6,000 (shared with IPv4 routes) FA card: 6,000 (shared with IPv4 routes) FB card: 50,000 (shared with IPv4 routes) |
||
| Number of IPv6 multicast routes | EB card: 4,000
DA card: 8,000 FA card: 4,000 FB card: 8,000 |
||
| Number of ACEs | ● Ingress
EB card: 3,500 DA card: 8,000 FA card: 5,000 FB card: 4,500 ● Egress EB card: 1,000 DA card: 1,000 FA card: 1,000 ● FB card: 2,000 |
||
| Number of VSU members | 2 | 2 | 2 |
| Dimensions and Weight | |||
| Dimensions (W x D x H) | 442 mm x 451 mm x 175 mm (17.40 in. x 17.76 in. x 6.89 in., 4 RU) | 442 mm x 465mm x 441.7 mm (17.40 in. x 18.31 in. x 17.39 in., 10 RU) | 442.5 mm x 560 mm x 442 mm (17.42 in. x 22.05 in. x 17.40 in., 10 RU) |
| Weight (empty chassis and fan modules) | 32.35 kg (71.32 lbs) | 35.6 kg (78.48 lbs) | 43.6 kg (96.12 lbs) |
| CPU and Storage | |||
| CPU | ● Supervisor module
M7805C-CM II: 1.5 GHz quad-core processor ● Service module EA/EB card: 1.0 GHz quad-core processor DA/F card: 1.5 GHz quad-core processor |
● Supervisor module
M7808C-CM II: 1.5 GHz quad-core processor ● Service module EA/EB card: 1.0 GHz quad-core processor DA/F card: 1.5 GHz quad-core processor |
● Supervisor module
M7808C-CM II: 1.5 GHz quad-core processor ● Service module EB card: 1.0 GHz quad-core processor DA/F card: 1.5 GHz quad-core processor ● Switch fabric module M7810C-FE-D I/M7810C-FE-F I: 1.5 GHz quad-core processor |
| Storage | Flash memory
M7805C-CM II: 1 GB EA card: 512 MB EB card: 512 MB DA/F card: 8 GB SDRAM M7805C-CM II: DDRIII 4 GB EA card: DDR3 1 GB EB card: DDRIII 1 GB DA card: DDR4 1 GB F card: DDR4 2 GB |
Flash memory
Supervisor module: M7808C-CM II: 8 GB Service module: EA card: 512 MB EB card: 512 MB DA/F card: 8 GB SDRAM Supervisor module: M7808C-CM II: DDR4 4 GB Service module: EB card: DDR3 1 GB DA card: DDR4 1 GB F card: DDR4 2 GB |
Flash memory
Supervisor module: M7810C-CM/M7810C-CM-F: 8 GB Service module: EB card: 512 MB DA/F card: 8 GB Switch fabric module: M7810C-FE-D I: 8 GB M7810C-FE-F I: 8 GB SDRAM Supervisor module: M7810C-CM/M7810C-CM-F: DDR4 4 GB Service module: EB card: DDR3 1 GB DA card: DDR4 1 GB F card: DDR4 2 GB Switch fabric module: M7810C-FE-D I card: DDR4 1 GB M7810C-FE-F I: DDR4 2 GB |
| Power and Consumption | |||
| Maximum power consumption | Chassis
RG-S7805C: < 80 W Supervisor module: M7805C-CM II: < 21 W Service module: M7800C-24SFP/12GT4XS-EB: < 85 W M7800C-48GT4XS-EB: < 70 W M7800C-48SFP4XS-EB: < 101 W M7800C-24GT24SFP4XS-EB: < 88 W M7800C-32XS4QXS-DA: < 210 W M7800C-48GT-FA: < 75 W M7800C-48SFP-FA: < 95 W M7800C-48XS-FB: < 160 W M7800C-8CQ-FB: < 130 W |
Chassis
RG-S7808C: < 176 W Supervisor module: M7808C-CM II: < 50 W Service module: M7800C-24SFP/12GT4XS-EB: < 85 W M7800C-48GT4XS-EB: < 70 W M7800C-48SFP4XS-EB: < 101 W M7800C-24GT24SFP4XS-EB: < 88 W M7800C-32XS4QXS-DA: < 210 W M7800C-48GT-FA: < 75 W M7800C-48SFP-FA: < 95 W M7800C-48XS-FB: < 160 W M7800C-8CQ-FB: < 130 W |
Chassis
RG-S7810C: < 432 W Supervisor module: M7810C-CM: < 50 W M7810C-CM-F: < 110 W Service module: M7800C-24SFP/12GT4XS-EB: < 85 W M7800C-48GT4XS-EB: < 70 W M7800C-48SFP4XS-EB: < 101 W M7800C-24GT24SFP4XS-EB: < 88 W M7800C-32XS4QXS-DA: < 210 W M7800C-48GT-FA: < 75 W M7800C-48SFP-FA: < 95 W M7800C-48XS-FB: < 160 W M7800C-8CQ-FB: < 130 W Switch fabric module: M7810C-FE-D I: < 50 W M7810C-FE-F I: < 105 W |
| Maximum output power | ● RG-PA300I-F: 90 V to 180 V; Power: 300 W
180 V to 264 V; Power: 300 W
● RG-PA460I-F: 90 V to 180 V; Power: 460 W 180 V to 264 V; Power: 460 W |
● RG-PA600I-F: 600 W
● RG-PA1600I-F: 90 V to 180 V: 12,00 W 180 V to 264 V: 1,600 W
|
● RG-PA600I: 600 W
● RG-PA1600I: 90 V to 180 V: 1,200 W 180 V to 264 V: 1,600 W |
| Environment and Reliability | |||
| MTBF | > 200,000 hours | ||
| Primary Airflow | ● Supervisor module
Right-to-left airflow ● Service module Right-to-rear airflow ● System power module Built-in fan modules drawing air outward Front-to-rear airflow |
● Supervisor module /Service module
Right-to-rear airflow ● System power module Front-to-rear airflow |
● Line card
Side-to-rear airflow ● Supervisor module/FE Front-to-rear airflow |
| Operating temperature | 0°C to 50°C (32°F to 122°F) | ||
| Storage temperature | –40°C to +70°C (–40°F to +158°F) | ||
| Operating humidity | 10% to 90% RH (non-condensing) | ||
| Storage humidity | 5% to 95% RH (non-condensing) | ||
| Operating altitude | –500 m to +5,000 m (–1640.42 ft. to +16404.20 ft.) | ||
| Operating noise | 55.9 dB at the temperature of 35°C (95°F)
73.4 dB at the temperature of 50°C (122°F) |
||
| Interface surge protection | All electrical ports support 4 kV surge protection in common mode or 1 kV surge protection in differential mode. | Power port: 6 kV
Telecom port: 4 kV (MGMT port) |
|
Software Specifications
| RG-S7800C Series | |
| Feature | Description |
| Ethernet switching | Jumbo frame (maximum length: 9,216 bytes) |
| 802.3az EEE | |
| Maximum number of VLANs that can be created: 4,094 | |
| Voice VLAN | |
| Super-VLAN and private VLAN | |
| MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment | |
| GVRP | |
| Basic QinQ and selective QinQ | |
| STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | |
| ERPS (G.8032) | |
| LLDP/LLDP-MED | |
| IP service | Static and dynamic ARP |
| DHCP client | |
| DHCP relay | |
| DHCP server | |
| DHCP snooping | |
| DNS | |
| DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping | |
| Neighbor Discovery (ND) and ND snooping | |
| Manual tunnel, automatic tunnel, and ISATAP tunnel for IPv6 | |
| GRE tunnel | |
| IP routing | Static routing |
| RIP and RIPng | |
| OSPFv2 and OSPFv3 | |
| GR | |
| IPv4/IPv6 IS-IS | |
| BGP4 and BGP4+ | |
| EVPN | |
| IPv4/IPv6 VRF | |
| Policy-based routing (PBR) | |
| IPv4 and IPv6 ECMP | |
| Multicast | IGMP v1/v2/v3 |
| IGMP snooping v1/v2/v3 | |
| IGMP proxy | |
| IGMP fast leave | |
| PIM-DM, PIM-SM, and PIM-SSM | |
| PIM-SSM for IPv4 and IPv6 | |
| MSDP to achieve inter-domain multicast | |
| MLDv1 and MLDv2 | |
| Multicast static routing | |
| MLD v1/v2 snooping | |
| PIM-SMv6 | |
| Multicast source IP address check
Multicast source port check |
|
| MPLS | MPLS IPv6 |
| MPLS L3VPN | |
| MPLS 6VPE | |
| MPLS MIB (RFC 1273, RFC 4265, and RFC 4382) | |
| ACL and QoS | Standard IP ACLs (hardware ACLs based on IP addresses) |
| Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers) | |
| Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) | |
| Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range) | |
| ACL80 and IPv6 ACL | |
| Applying ACLs globally (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range) | |
| ACL redirection | |
| Port traffic identification | |
| Port-based rate limiting | |
| 802.1p | |
| Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences | |
| CAR | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ | |
| Congestion avoidance: tail drop, RED, and WRED | |
| Eight queues on each port | |
| Security | AAA |
| RADIUS authorization and accounting | |
| TACACS+ | |
| Portal authentication, RADIUS, and TACACS+ login authentication | |
| IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication | |
| Web authentication | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| SSHv1 and SSHv2 | |
| Global IP-MAC binding | |
| ICMP | |
| Port security | |
| IP source guard | |
| DAI | |
| SAVI | |
| ARP spoofing prevention | |
| CPU Protect Policy (CPP) and NFPP | |
| Various attack defense functions, including NFPP and ARP anti-attack | |
| uRPF
Login authentication and password security Unknown multicast packets are not sent to the CPU, and unknown unicast packets can be suppressed. |
|
| Reliability | Rapid Ethernet Uplink Protection (REUP) |
| Rapid Link Detection Protocol (RLDP), Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control | |
| Data Link Detection Protocol (DLDP) | |
| IPv4 VRRP v2/v3 and IPv6 VRRP | |
| VRRP for the super-VLAN | |
| BFD | |
| 1+1 redundancy for supervisor modules and fan modules, and N+M redundancy for power modules | |
| Hot swapping of components | |
| Hot patch and online installation of patches | |
| GR for OSPF/IS-IS/BGP | |
| BFD for VRRP/OSPF/BGP4/ISIS/ISISv6/static routing | |
| Device virtualization | VSU |
| NMS and maintenance | SPAN, RSPAN, and ERSPAN |
| sFlow | |
| NTP | |
| SNTP | |
| FTP, TFTP, and Xmodem | |
| SNMP v1/v2c/v3 | |
| RMON (1, 2, 3, 9) | |
| NETCONF | |
| CWMP | |
| gRPC | |
| OpenFlow Special 1.3
Flow table analysis defined by all protocols Transmission of specified packets to the controller Configuring the controller’s IP address and port Notifying port status changes to the controller |
|
| Web-based NMS | |
| Console/Telnet/SSH2.0 CLI configuration
Fault alarms and auto-recovery System operation logging |
|
| VXLAN | Layer 2 and Layer 3 VXLAN gateways |
Note: The item marked with the asterisk (*) will be available in the future.
Switches and Supervisor Modules
| Model | Description |
| S7805C | RG-S7805C switch, which can accommodate three line cards and two supervisor modules |
| S7808C | RG-S7808C switch, which can accommodate six line cards and two supervisor modules |
| S7810C | RG-S7810C switch, which can accommodate eight service cards, two supervisor modules, and two switch fabric modules |
| M7805C-CM II | S7805C high-performance 2nd-generation supervisor module |
| M7808C-CM II | S7808C high-performance 2nd-generation supervisor module |
| M7810C-CM | S7810C high-performance 1st-generation supervisor module |
| M7810C-CM-F | S7810C high-performance 2nd-generation supervisor module |
| Model | Description |
| RG-PA300I-F | S7805C power module (AC, 300 W, 10 A) |
| RG-PA460I-F | S7805C power module (available for redundancy, AC, 460 W, 10 A) |
| RG-PA600I-F | S7808C power module (available for redundancy, AC, 600 W, 10 A) |
| RG-PA1600I-F | S7808C power module (available for redundancy, AC, 1600 W, 16 A) |
| RG-PA600I | S7810C power module (available for redundancy, AC, 600 W, 10 A) |
| RG-PA1600I | S7810C power module (available for redundancy, AC, 1600 W, 16 A) |
Notes:
- Different models cannot be interchanged.
- Mandatory item, 1+1 redundancy supported, and at least one supervisor module must be configured.
Power Modules and Fan Modules
| Model | Description |
| M7810C-FE-D I | RG-S7810C switch fabric module I |
| M7810C-FE-F I | RG-S7810C 2nd-generation switch fabric module |
| Model | Description |
| M7800C-48XS-FB | 48 x 10GE optical ports (SFP+ and LC) |
| M7800C-8CQ-FB | 8 x 100G Ethernet optical ports (QSFP28 and LC) |
| M7800C-48GT-FA | 48 x GE electrical ports (RJ45) |
| M7800C-48SFP-FA | 48 x GE optical ports (SFP+ and LC) |
| M7800C-32XS4QXS-DA | 32 x 10GE optical ports (SFP+ and LC) + 4 x 40G Ethernet optical ports (QSFP+ and MPO) |
| M7800C-24GT24SFP4XS-EB | 24 × GE electrical ports (RJ45) + 24 x GE optical ports (SFP and LC) + 4 x 10GE optical ports (SFP+ and LC) |
| M7800C-24SFP/12GT4XS-EB | 24 x GE optical ports (SFP and LC) + 12 x GE electrical combo ports (RJ45) + 4 x 10GE optical ports (SFP+ and LC) |
| M7800C-48GT4XS-EB | 48 x GE electrical ports (RJ45) + 4 x 10GE optical ports (SFP+ and LC) |
| M7800C-48SFP4XS-EB | 48 x GE optical ports (SFP and LC) + 4 x 10GE optical ports (SFP+ and LC) |
Switch Fabric Modules
| Model | Description |
| M7800C-48XS-FB | 48 x 10GE optical ports (SFP+ and LC) |
| M7800C-8CQ-FB | 8 x 100G Ethernet optical ports (QSFP28 and LC) |
| M7800C-48GT-FA | 48 x GE electrical ports (RJ45) |
| M7800C-48SFP-FA | 48 x GE optical ports (SFP+ and LC) |
| M7800C-32XS4QXS-DA | 32 x 10GE optical ports (SFP+ and LC) + 4 x 40G Ethernet optical ports (QSFP+ and MPO) |
| M7800C-24GT24SFP4XS-EB | 24 × GE electrical ports (RJ45) + 24 x GE optical ports (SFP and LC) + 4 x 10GE optical ports (SFP+ and LC) |
| M7800C-24SFP/12GT4XS-EB | 24 x GE optical ports (SFP and LC) + 12 x GE electrical combo ports (RJ45) + 4 x 10GE optical ports (SFP+ and LC) |
| M7800C-48GT4XS-EB | 48 x GE electrical ports (RJ45) + 4 x 10GE optical ports (SFP+ and LC) |
| M7800C-48SFP4XS-EB | 48 x GE optical ports (SFP and LC) + 4 x 10GE optical ports (SFP+ and LC) |
Line Cards
| Model | Description |
| M7800C-48XS-FB | 48 x 10GE optical ports (SFP+ and LC) |
| M7800C-8CQ-FB | 8 x 100G Ethernet optical ports (QSFP28 and LC) |
| M7800C-48GT-FA | 48 x GE electrical ports (RJ45) |
| M7800C-48SFP-FA | 48 x GE optical ports (SFP+ and LC) |
| M7800C-32XS4QXS-DA | 32 x 10GE optical ports (SFP+ and LC) + 4 x 40G Ethernet optical ports (QSFP+ and MPO) |
| M7800C-24GT24SFP4XS-EB | 24 × GE electrical ports (RJ45) + 24 x GE optical ports (SFP and LC) + 4 x 10GE optical ports (SFP+ and LC) |
| M7800C-24SFP/12GT4XS-EB | 24 x GE optical ports (SFP and LC) + 12 x GE electrical combo ports (RJ45) + 4 x 10GE optical ports (SFP+ and LC) |
| M7800C-48GT4XS-EB | 48 x GE electrical ports (RJ45) + 4 x 10GE optical ports (SFP+ and LC) |
| M7800C-48SFP4XS-EB | 48 x GE optical ports (SFP and LC) + 4 x 10GE optical ports (SFP+ and LC) |
| Model | Description |
| M7800C-48XS-FB | 48 x 10GE optical ports (SFP+ and LC) |
| M7800C-8CQ-FB | 8 x 100G Ethernet optical ports (QSFP28 and LC) |
| M7800C-48GT-FA | 48 x GE electrical ports (RJ45) |
| M7800C-48SFP-FA | 48 x GE optical ports (SFP+ and LC) |
| M7800C-32XS4QXS-DA | 32 x 10GE optical ports (SFP+ and LC) + 4 x 40G Ethernet optical ports (QSFP+ and MPO) |
| M7800C-24GT24SFP4XS-EB | 24 × GE electrical ports (RJ45) + 24 x GE optical ports (SFP and LC) + 4 x 10GE optical ports (SFP+ and LC) |
| M7800C-24SFP/12GT4XS-EB | 24 x GE optical ports (SFP and LC) + 12 x GE electrical combo ports (RJ45) + 4 x 10GE optical ports (SFP+ and LC) |
| M7800C-48GT4XS-EB | 48 x GE electrical ports (RJ45) + 4 x 10GE optical ports (SFP+ and LC) |
| M7800C-48SFP4XS-EB | 48 x GE optical ports (SFP and LC) + 4 x 10GE optical ports (SFP+ and LC) |
Notes:
- EB series line card only interchanged with D series line cards.
- D series line card only interchanged with EB series line cards.
- F series line card cannot be interchanged with other line cards.
Tyler (verified owner) –
Good service.
