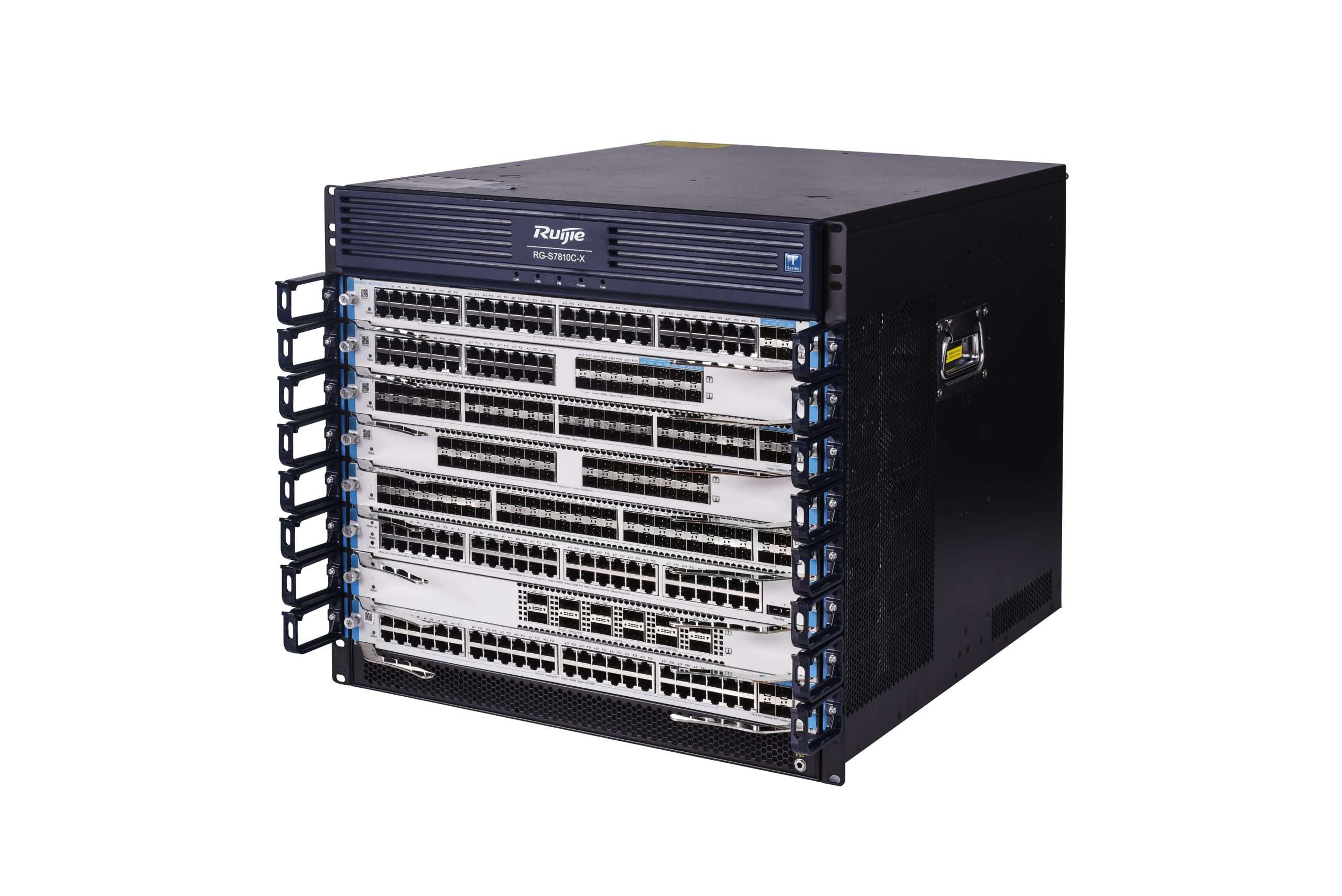

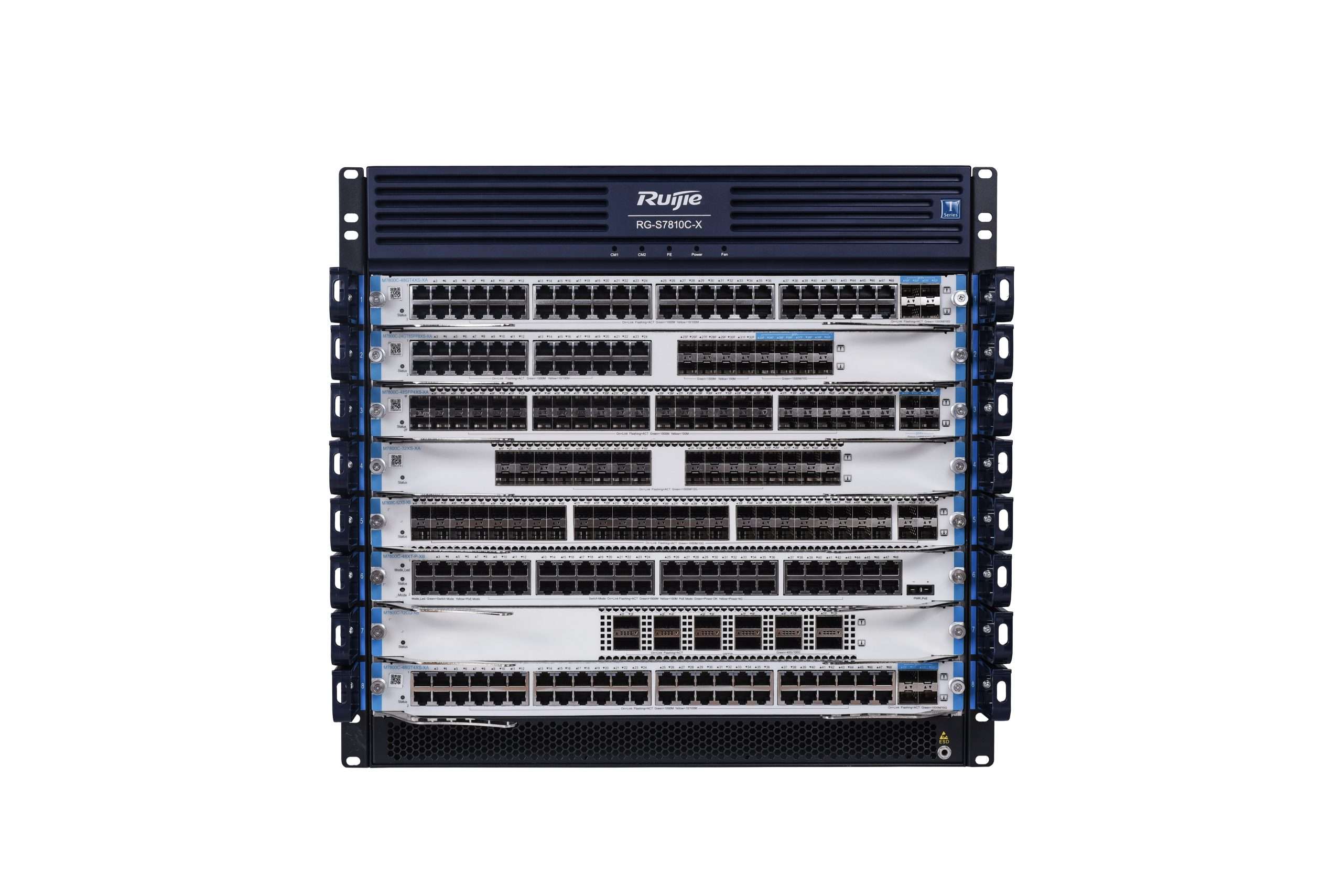

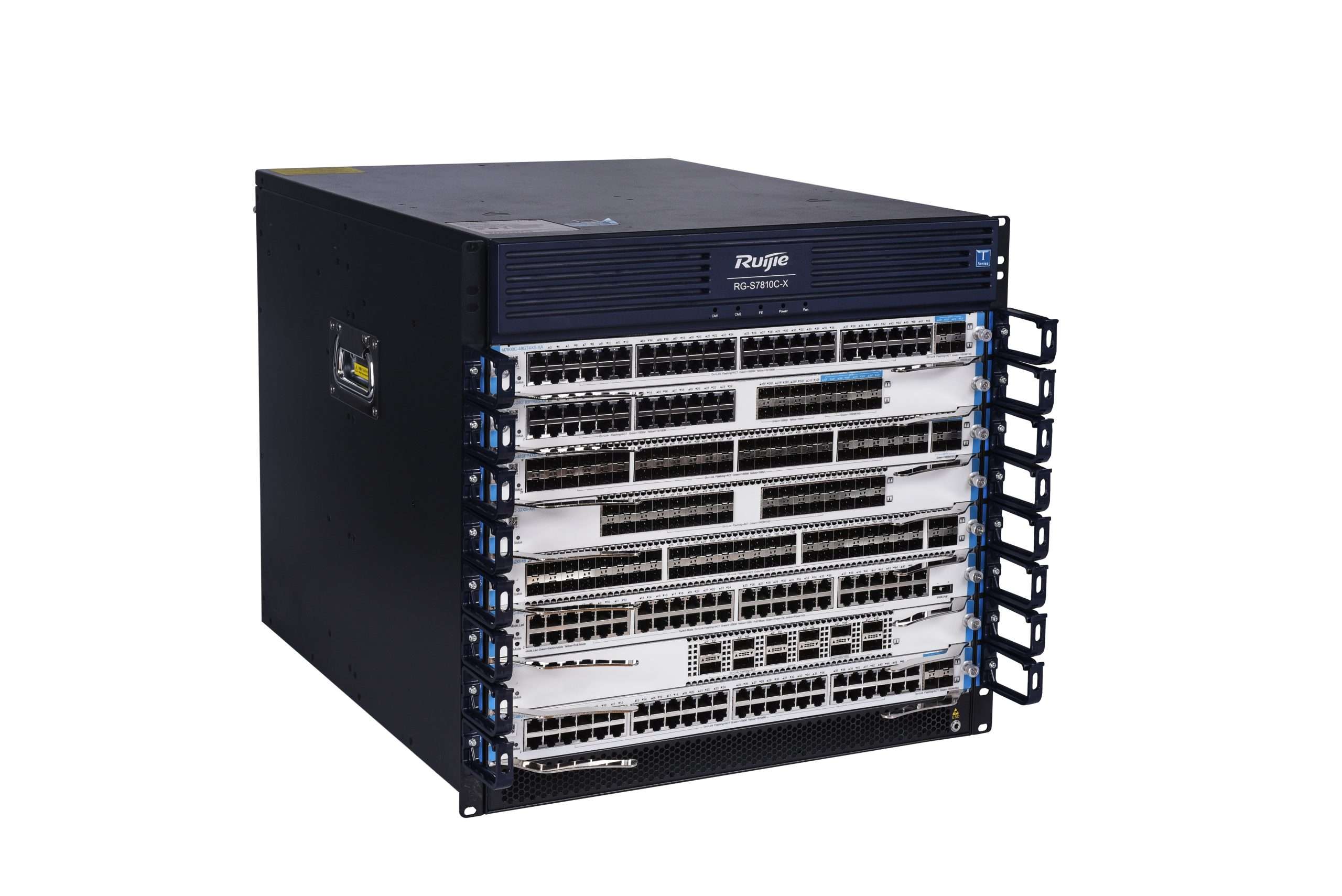

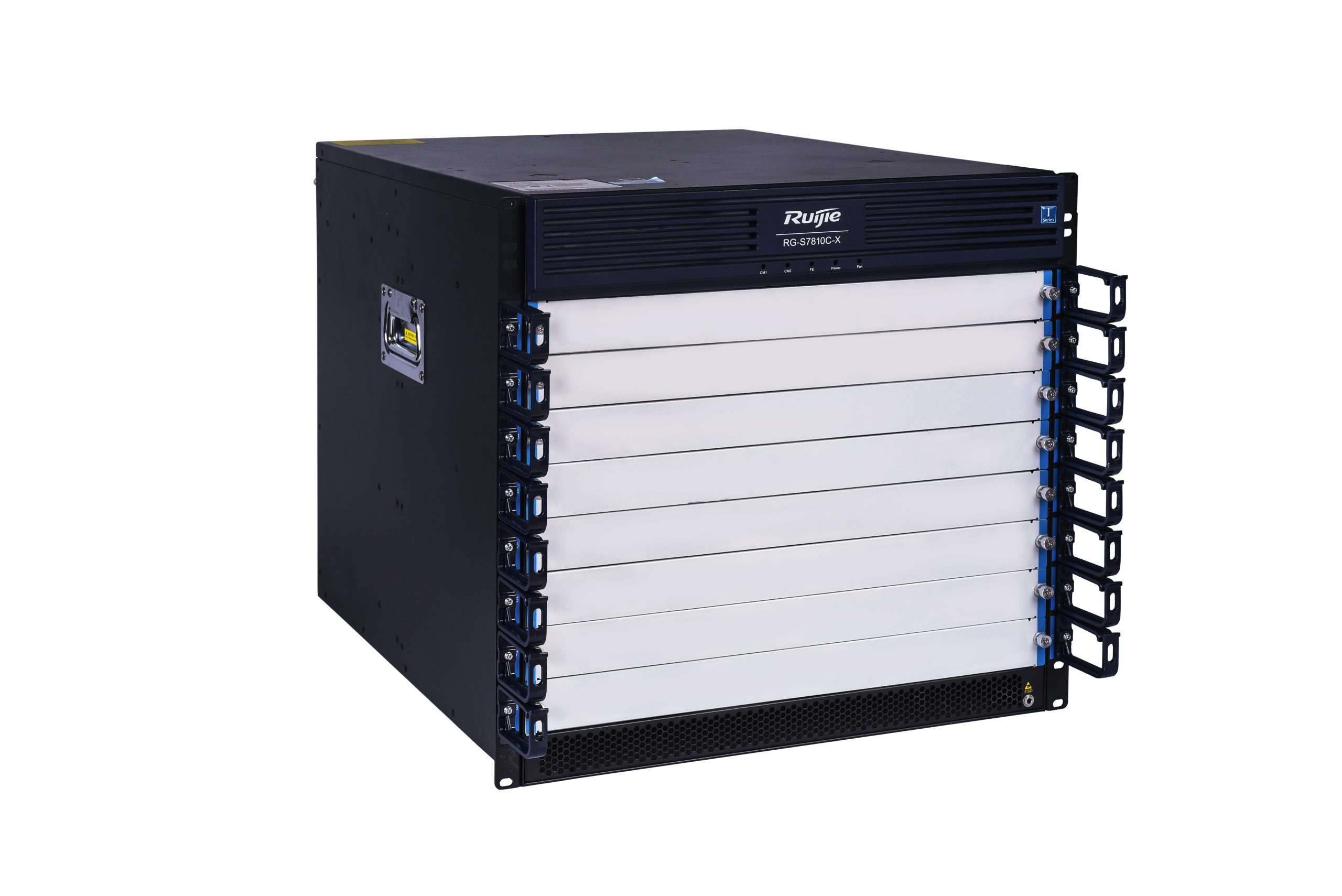

8 x line card slots, 10 RU
Condition: NOB
RMA Warranty
Description
- Compact chassis design with a height of 10 RU, improving cabinet space utilization
- Orthogonal Clos architecture, providing a backplane-free design and ensuring non-blocking packet forwarding and high-speed transmission without packet loss
- VSU, delivering flexible networking capabilities and high performance
- Hardware-level multi-protection, delivering carrier-grade reliability
- SOE management software INC, enabling simplified and efficient O&M
Hardware Specifications
| Hardware Specifications | RG-S7805C | RG-S7808C | RG-S7810C-X | ||
| Interface Specifications | |||||
| Power module | 2 | 4 | 4 | ||
| Supervisor module slot | 2 | 2 | 2 | ||
| Line card slot | 3 | 6 | 8 | ||
| Switch fabric module slot | – | – | 4 | ||
| System Specifications | |||||
| Switching Capacity | 6 Tbps | 12 Tbps | 19.2 Tbps | ||
| Packet Forwarding Rate | 4500 Mpps | 9000 Mpps | 14300 Mpps | ||
| MAC address | ● M7800C-8SFX-XB: 256000
● M7800C-8SFG-XB: 256000 ● XA card: 96000 ● XB card: 256000 |
||||
| ARP table | ● M7800C-8SFX-XB: 9600
● M7800C-8SFG-XB: 9600 ● XA card: 4000 ● XB card: 9600 |
||||
| Number of IPv4 unicast routes | ● M7800C-8SFX-XB: 350000 (shared with IPv4 routes)
● M7800C-8SFG-XB:350000 (shared with IPv4 routes) ● XA card:64000 (shared with IPv4 routes) ● XB card: 350000 (shared with IPv4 routes) |
||||
| Number of IPv4 multicast routes | 4000 | ||||
| Number of IPv6 unicast routes | ● M7800C-8SFX-XB: 65000 (shared with IPv4 routes)
● M7800C-8SFG-XB:15000 (shared with IPv4 routes) ● XA card: 65000 (shared with IPv4 routes) ● XB card: 65000 (shared with IPv4 routes) |
||||
| Number of IPv6 multicast routes | 2000 | ||||
| Number of ACEs | ● Ingress
M7800C-8SFX-XB: 2800 M7800C-8SFG-XB: 2800 XA card: 7000 XB card: 2800 ● Egress M7800C-8SFX-XB: 4000 M7800C-8SFG-XB: 4000 XA card: 1500 XB card: 4000 |
||||
| Number of VSU members | 2 | 2 | 2 | ||
| Dimensions and Weight | |||||
| Dimensions (W x D x H) | 442 mm × 451 mm × 175 mm (17.40 in. x 17.76 in. x 6.89 in.) | 442 mm × 465 mm × 441.7 mm (17.40 in. x 18.31 in. x 17.39 in.) | 442.5 mm × 560 mm × 442 mm (17.42 in. x 22.05 in. x 17.40 in.) | ||
| Weight (empty chassis and fan modules) | 32.35 kg | 35.6 kg | 43.55 kg | ||
| Rack Size | 4 RU | 10 RU | 10 RU | ||
| CPU and Storage | |||||
| CPU | 2.2 GHz quad-core processor | 2.2 GHz quad-core processor | 2.2 GHz quad-core processor | ||
| Storage | Flash Memory：8 GB
SDRAM：DDR4 4 GB |
Flash Memory：8 GB
SDRAM：DDR4 4 GB |
Flash Memory：8 GB
SDRAM：DDR4 4 GB |
||
| Power Supply and Consumption | |||||
| Max. Output Power | ● RG-PA300I-F:
90 V AC to 180 V AC; Power: 300 W 180 V AC to 264 V AC; Power: 300 W ● RG-PA460I-F: 90 V AC to 180 V AC; Power: 460 W 180 V AC to 264 V AC; Power: 460 W ● RG-PA1000I-F: 90 V AC to 176 V AC; Power: 800 W 176 V AC to 264 V AC; Power: 1000 W |
● RG-PA600I-F:
90 V AC to 180 V AC; Power: 600 W 180 V AC to 264 V AC; Power: 600 W ● RG-PA1600I-F: 90 V AC to 180 V AC; Power: 1200 W 180 V AC to 264 V AC; Power: 1600 W |
● RG-PA1600I:
90 V AC to 180 V AC; Power: 1200 W 180 V AC to 264 V AC; Power: 1600 W ● RG-PA600I: 90 V AC to 180 V AC; Power: 600 W 180 V AC to 264 V AC; Power: 600 W ● RG-PD600I: –40 V DC to –75 V DC; Power: 600 W ● RG-PA1600I-PL: 90 V AC to 176 V AC; Power: 1200 W 176 V AC to 264 V AC; Power: 1600 W |
||
| Maximum output power | ● M7805C-CM-X：< 40 W
● M7800C-12CQ-XB：< 240 W ● M7800C-24GT8SFP8XS-XA：< 95 W ● M7800C-32XS-XA：< 149 W ● M7800C-48XT-P-XB：< 300 W ● M7800C-48GT4XS-XA：< 85 W ● M7800C-48SFP4XS-XA：< 117 W ● M7800C-52XS-XB：< 250 W ● M7800C-8SFG-XB：< 250 W ● M7800C-8SFX-XB：< 250 W |
● M7808C-CM-X：< 62 W
● M7800C-12CQ-XB：< 240 W ● M7800C-24GT8SFP8XS-XA：< 95 W ● M7800C-32XS-XA：< 149 W ● M7800C-48XT-P-XB：< 300 W ● M7800C-48GT4XS-XA：< 85 W ● M7800C-48SFP4XS-XA：< 117 W ● M7800C-52XS-XB：< 250 W ● M7800C-8SFG-XB：< 250 W ● M7800C-8SFX-XB：< 250 W |
● M7810C-CM-X：< 60 W
● M7800C-12CQ-XB：< 240 W ● M7800C-24GT8SFP8XS-XA：< 95 W ● M7800C-32XS-XA：< 149 W ● M7800C-48XT-P-XB：< 300 W ● M7800C-48GT4XS-XA：< 85 W ● M7800C-48SFP4XS-XA：< 117 W ● M7800C-52XS-XB：< 250 W ● M7800C-8SFG-XB：< 250 W ● M7800C-8SFX-XB：< 250 W ● M7810C-FE-X I：< 50 W ● M7810C-FE-X II：< 160 W |
||
| Environment and Reliability | |||||
| MTBF | > 200,000 hours | ||||

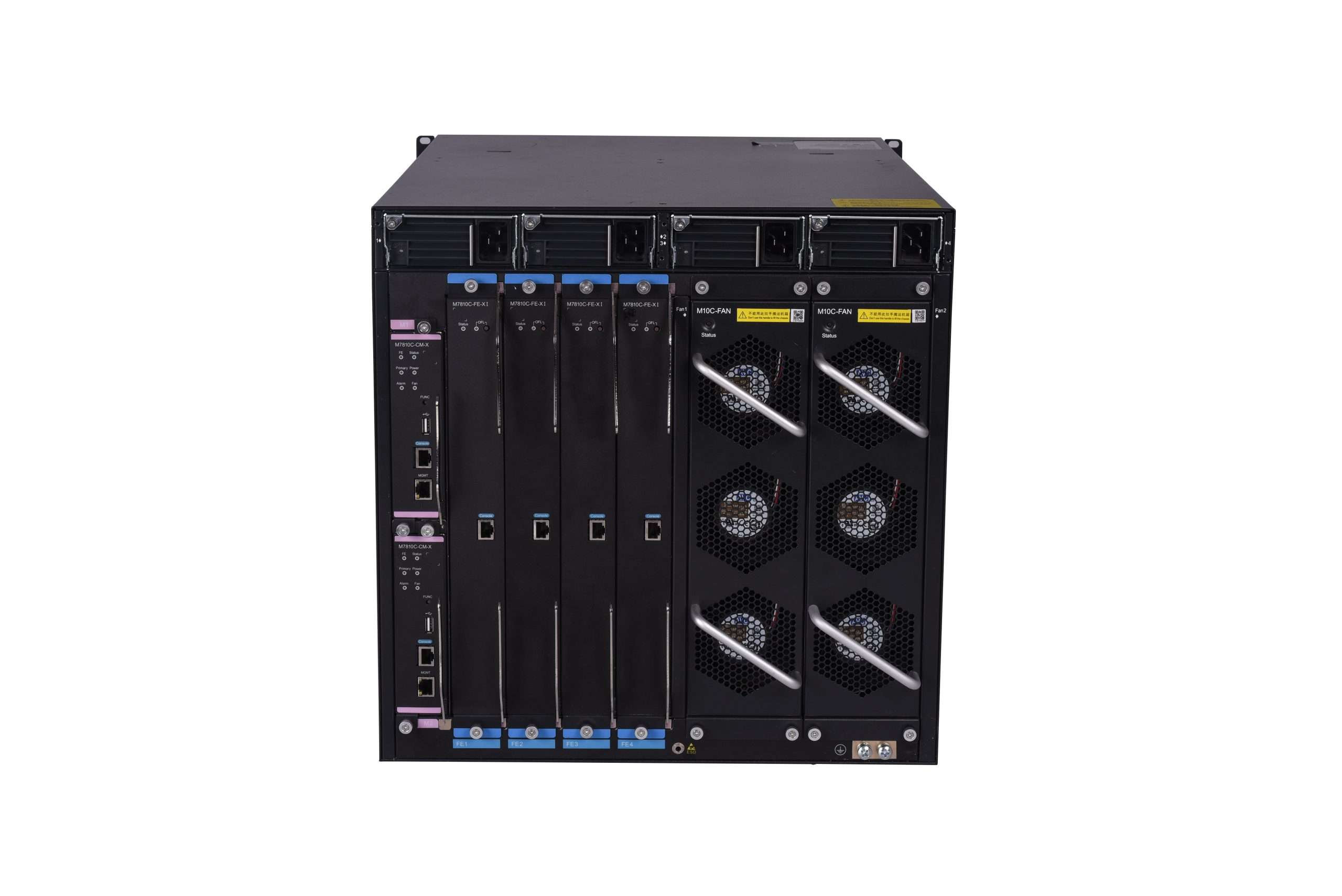

| Primary Airflow | ● Supervisor module: air intake from the right and exhaust from back
● Service module: air intake from the right and exhaust from back ● System power module: drawing air outward with built-in fans, air intake from the front panel and exhaust from back |
● Supervisor module /Service module: air intake from the right and exhaust from back, drawing air outward to form convection for heat dissipation
● System power module: air intake from the front panel and exhaust from back, drawing air inward to form convection for heat dissipation |
● Line card: air intake from the side and exhaust from back
● Supervisor module/Switch fabric module: air intake from the front panel and exhaust from back |
||
| Operating Temperature | 0°C to 50°C (32°F to 122°F) | ||||
| Storage Temperature | –40°C to +70°C (–40°F to +158°F) | ||||
| Operating Humidity | 10% to 90% RH (non-condensing) | ||||
| Storage Humidity | 5% to 95% RH | ||||
| Operating Altitude | –500 m to +5000 m (–1,640.41 ft. to +16,404.20 ft.) | ||||
| Surge Protection of Communication Ports | 6 kV | ||||
Software Specifications
| Software Specifications | RG-S7805C | RG-S7808C | RG-S7810C-X |
| Ethernet switching | Jumbo frame (maximum length: 9,216 bytes) | ||
| 802.3az EEE | |||
| Maximum number of VLANs that can be created: 4,094 | |||
| Voice VLAN | |||
| GVRP | |||
| IP subnet-based VLAN | |||
| MAC VLAN | |||
| Port-based VLAN | |||
| Private VLAN | |||
| protocol-based VLAN | |||
| Super-VLAN | |||
| Basic QinQ and selective QinQ | |||
| STP (IEEE 802.1.d) | |||
| RSTP (IEEE 802.1w) | |||
| MSTP (IEEE 802.1s) | |||
| ERPS (G.8032) | |||
| LLDP/LLDP-MED | |||
| Device Virtualization | VSU | ||
| SDN | OpenFlow 1.3
NETCONF |
||
| IP service | Static and dynamic ARP | ||
| DHCP client | |||
| DHCP relay | |||
| DHCP server | |||
| DHCP snooping | |||
| DNS | |||
| DHCPv6 client | |||
| DHCPv6 relay | |||
| DHCPv6 snooping | |||
| Neighbor Discovery (ND) and ND snooping | |||
| FTP Server | |||
| FTP Client | |||
| NTP server | |||
| NTP Client | |||
| SNTP Client | |||
| TFTP Client | |||
| TFTP Server | |||
| IP routing | Static routing | ||
| BGP4 | |||
| BGP4+ | |||
| IS-ISv4 | |||
| IS-ISv6 | |||
| OSPFv2 | |||
| OSPFv3 | |||
| RIP | |||
| RIPng | |||
| GR | |||
| Routing Policy | |||
| ECMP | |||
| IPv4/IPv6 VRF | |||
| Policy-based routing (PBR) | |||
| Multicast | IGMP v1/v2/v3 | ||
| IGMP snooping v1/v2 | |||
| IGMP proxy | |||
| IGMP fast leave | |||
| PIM-DM | |||
| PIM-SM | |||
| PIM-SSM for IPv4 and IPv6 | |||
| MSDP to achieve inter-domain multicast | |||
| MLDv1 and MLDv2 | |||
| Multicast static routing | |||
| MLD v1/v2 snooping | |||
| PIM-SMv6 | |||
| Multicast source IP address check | |||
| Multicast source port check | |||
| MPLS | MPLS L3VPN | ||
| MPLS 6VPE | |||
| MPLS IPv6 | |||
| MPLS forwarding | |||
| LDP | |||
| LSP | |||
| VXLAN | VXLAN Layer 2 bridge | ||
| VXLAN Layer 3 gateway | |||
| EVPN VXLAN | |||
| ACL and QoS
|
Standard IP ACL | ||
| extended IP ACL | |||
| extended MAC ACL | |||
| Layer 2 and Layer 3 port ACL | |||
| VLAN ACL | |||
| Expert-level ACL | |||
| ACL 80 | |||
| IPv6 ACL | |||
| Applying ACLs globally | |||
| ACL COUNTER | |||
| ACL LOGGING | |||
| ACL REMARK | |||
| 802.1P | |||
| SP | |||
| WRR | |||
| SP+WFR | |||
| other queue scheduling mechanisms | |||
| RED/WRED | |||
| Rate limiting based on the inbound or outbound interface | |||
| MPLS QOS | |||
| Reliability | 1+1 redundancy for supervisor modules | 1+1 redundancy for supervisor modules | |
| Hot swapping of all components | N+M redundancy for power supply | ||
| – | 1+1 fan redundancy | ||
| – | Hot swapping of all components | ||
| Hot patching function for online patch upgrade | |||
| GR | |||
| BFD | |||
| VRRP | |||
| VRRP+ | |||
| Faulty optical port isolation | |||
| Dual physical chips for boot systems | |||
| Security | NFPP | ||
| CPP | |||
| DAI | |||
| port security | |||
| IP source guard | |||
| 802.1X authentication | |||
| MAC address-based authentication | |||
| Portal authentication | |||
| RADIUS | |||
| TACACS+ login authentication | |||
| uRPF | |||
| SSHv2 | |||
| IPv6 SAVI | |||
| Login authentication and password security | |||
| providing encrypted security channels for user login | |||
| Unknown multicast packets are not sent to the CPU, and unknown unicast packets can be suppressed. | |||
| NMS and maintenance | Console/AUX Modem/Telnet/SSH2.0 CLI configuration | ||
| File upload and download management using FTP, TFTP, and Xmodem | |||
| SNMP V1/V2c/V3 | |||
| RMON | |||
| CWMP | |||
| GRPC | |||
| Fault alarm and auto-recovery | |||
| System operation logging | |||
| sFlow | |||
| SPAN | |||
| RSPAN | |||
| ERSPAN | |||
| VLAN mirroring | |||
| Web-based NMS | |||
| Energy-Saving Design | IEEE 802.3az Energy Efficient Ethernet | ||
Switches and Supervisor Modules
| Model | Description |
| RG-S7810C-X | RG-S7810C-X switch, which can accommodate eight line cards, two supervisor modules, and four switch fabric modules |
| S7808C | RG-S7808C switch, which can accommodate six line cards and two supervisor modules. When the M7808C-CM-X supervisor module is used, you can select line cards of the RG-S7800C-X series. |
| S7805C | RG-S7805C switch, which can accommodate six line cards and two supervisor modules. When the M7805C-CM-X supervisor module is used, you can select line cards of the RG-S7800C-X series. |
| M7810C-CM-X | RG-S7810C-X high-performance supervisor module |
| M7805C-CM-X | RG-S7805C high-performance supervisor module |
| M7808C-CM-X | RG-S7808C high-performance supervisor module |
Notes:
- Different models cannot be interchanged.
- Mandatory item, 1+1 redundancy supported, and at least one supervisor module must be configured.
Power Modules and Fan Modules
| Model | Description |
| RG-PA300I-F | S7805C power module (AC, 300 W, 10 A) |
| RG-PA460I-F | S7805C power module (available for redundancy, AC, 460 W, 10 A) |
| RG-PA600I-F | S7808C power module (available for redundancy, AC, 600 W, 10 A) |
| RG-PA1000I-F | S7805C Power module (support redundancy, AC, 1000W,10 A) |
| RG-PA1600I-F | S7808C power module (available for redundancy, AC, 1600 W, 16 A) |
| RG-PA1600I-PL | Common PoE power module (available for redundancy, AC, 1600 W, 16 A) |
| RG-PA600I | S7810C-X power module (available for redundancy, AC, 600 W, 10 A) |
| RG-PD600I | S7810C-X power module (available for redundancy, DC, 600 W, 20 A) |
| RG-PA1600I | S7810C-X power module (available for redundancy, AC, 1600 W, 16 A) |
| M78-PSE-X | Common PoE power chassis, used together with RG-PA1600I-PL |
Switch Fabric Modules
| Model | Description |
| M7810C-FE-X I | RG-S7810C-X 1st-generation switch fabric module |
| M7810C-FE-X II | RG-S7810C-X 2nd-generation switch fabric module |
Line Cards
| Model | Description |
| M7800C-32XS-XA | 32 x 10GE optical ports (SFP+ and LC connector) |
| M7800C-24GT8SFP8XS-XA | 24 x GE electrical ports (RJ45), 8 x GE optical ports (SFP and LC connector), and 8 x 10GE optical ports (SFP+ and LC connector) |
| M7800C-48GT4XS-XA | 48 x GE electrical ports (RJ45) and 4 x 10GE optical ports (SFP+ and LC connector) |
| M7800C-48SFP4XS-XA | 48 x GE optical ports (SFP and LC connector) and 4 x 10GE optical ports (SFP+ and LC connector) |
| M7800C-52XS-XB | 52 x 10GE optical ports (SFP+ and LC connector) |
| M7800C-12CQ-XB | 12 x 100GE/40GE optical ports (QSFP+ and MPO/LC connector) |
| M7800C-48XT-P-XB | 48 x 100M/GE/2.5GE/5GE/10GE electrical ports (RJ45 and PoE/PoE+) |
| M7800C-8SFG-XB | CWDM line card for RG-S7800C-X series switches, supporting eight SFG GE ports |
| M7800C-8SFX-XB | CWDM line card for RG-S7800C-X series core switches, supporting eight SFX 10GE ports with each port backward compatible with the Gigabit rate |
