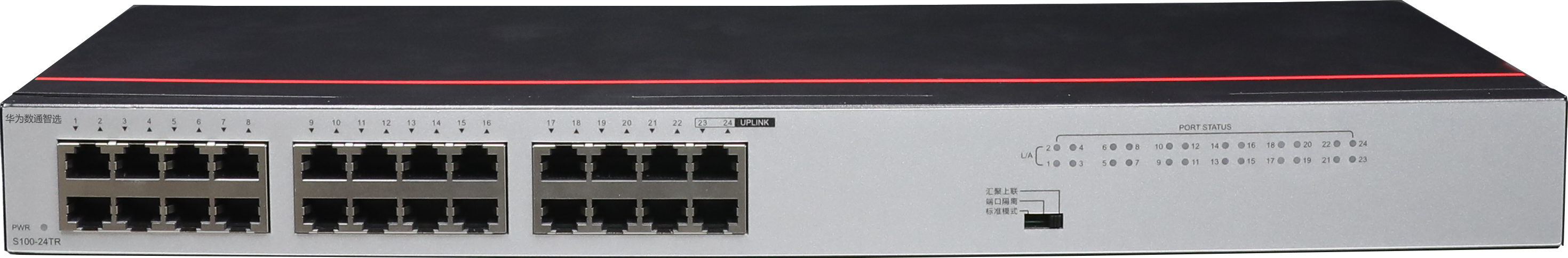

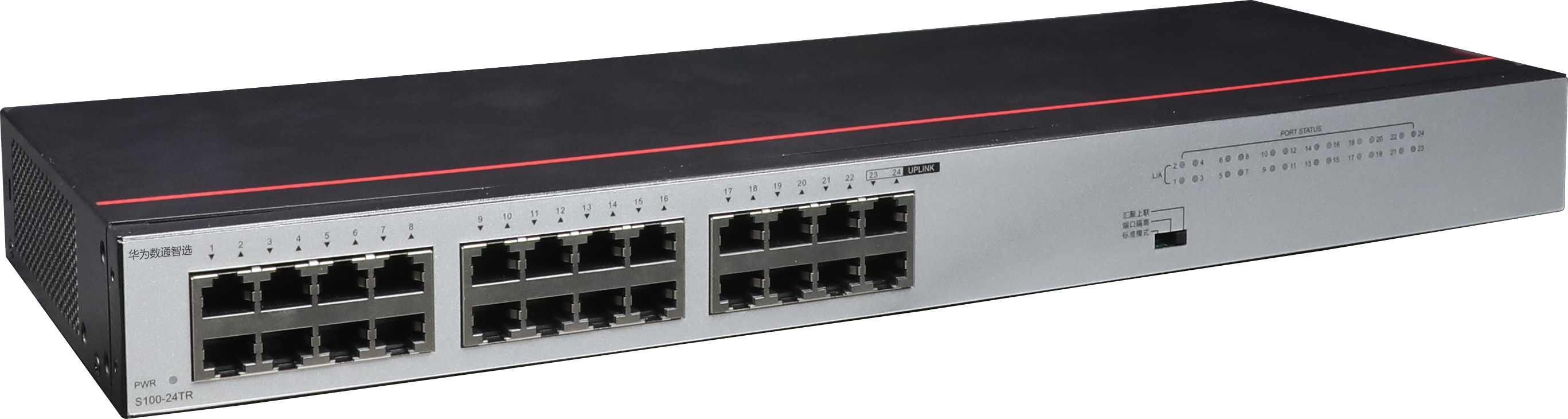

24 * 10/100/1000BASE-T Ethernet ports, AC power supply
Condition: NOB
RMA Warranty
Description
Technical indicators
|
Specification |
parameter |
|---|---|
|
Overall dimensions (width x depth x height) |
440.0mm×160.0mm×43.6mm |
|
Dimensions (W x D x H, including packaging) |
510.0mm×270.0mm×85.0mm |
|
Weight (including packaging material) |
2.5kg |
|
Business port lightning protection specifications |
Common mode ±6kV |
|
Power port lightning protection specifications |
Differential mode ±4kV, common mode ±4kV |
|
PoE |
not support |
|
Rated voltage range |
AC input: 100V AC ~ 240V AC; 50/60Hz |
|
Maximum voltage range |
AC input: 90V AC ~ 290V AC; 45Hz ~ 65Hz |
|
Maximum power consumption (100% flow) |
14.23W |
|
Static power consumption (no traffic) |
4.55W |
|
range of working temperature |
-5°C～+45°C (0m～1800m above sea level)
illustrate:
1800 m to 5000 m: The maximum temperature specification decreases by 1°C every time the altitude increases by 220 m. The device does not support startup when the ambient temperature is below 0°C. |
|
Storage temperature range |
-40°C～+70°C |
|
Noise at normal temperature (27°C, sound power) |
Fanless, silent |
|
Relative humidity range |
5%RH～95%RH, non-condensing |
|
Working altitude |
0m～5000m |
