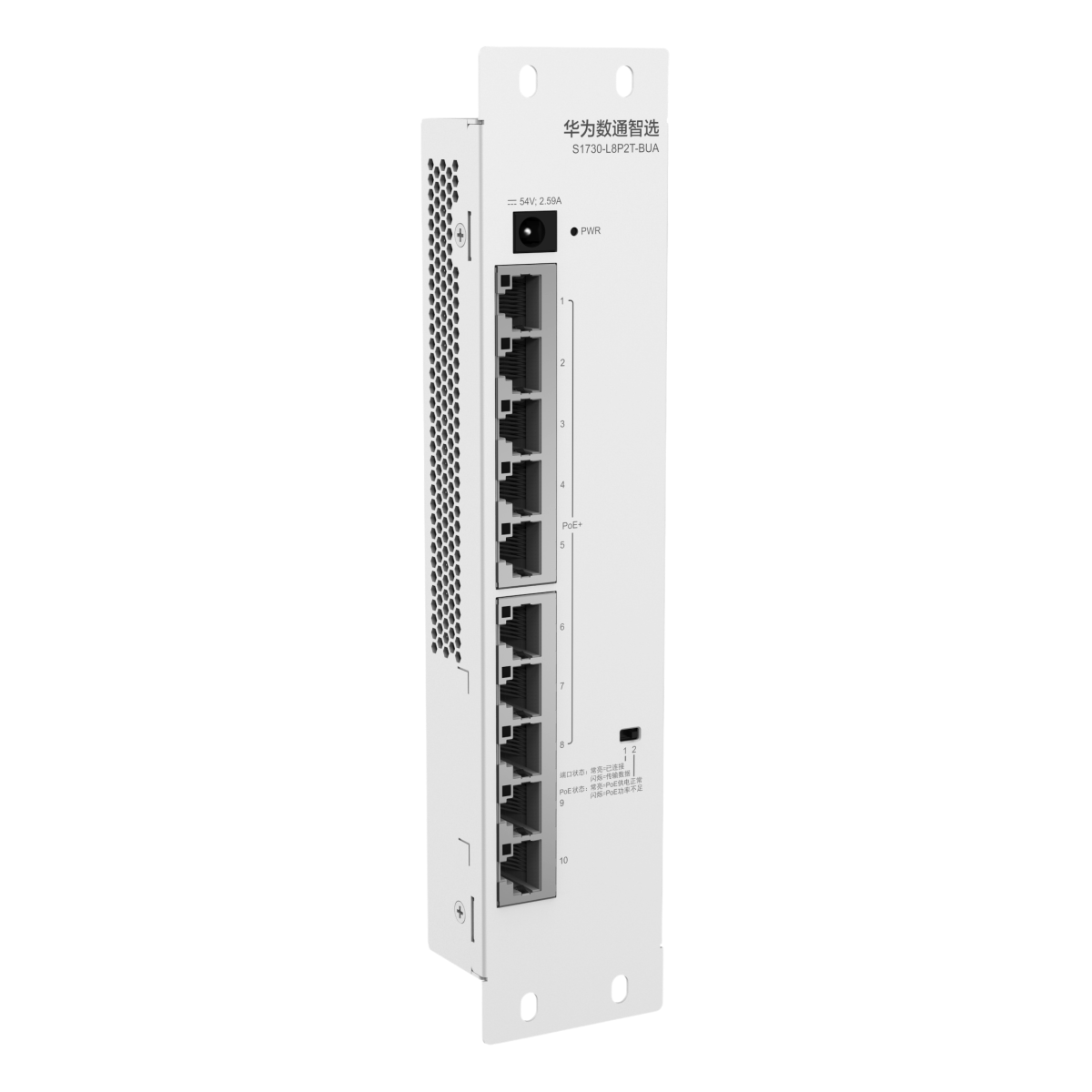

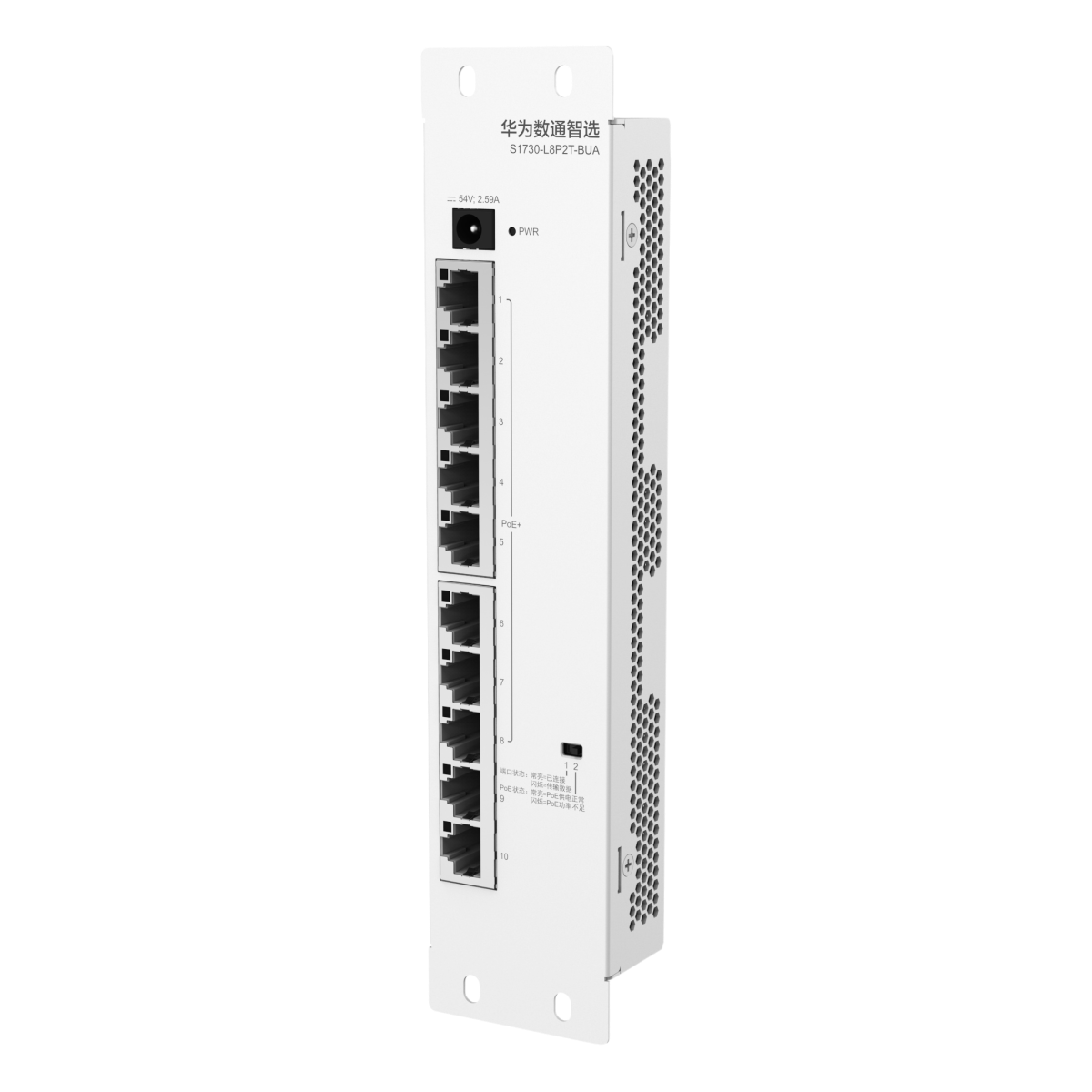

FutureMatrix S1730S-L series switch (hereinafter referred to as “S1730S-L”) is an unmanaged Ethernet switch for the SOHO office market. The equipment is plug and play, no configuration management is required, and many models adopt fanless design, quiet and energy saving. It also provides flexible Ethernet networking, convenient installation methods, and rich service features to help users build a secure, reliable, and high-performance network. It can be widely used in desktop access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.
Condition: NOB
RMA Warranty
Description
Flexible networking capabilities
- The S1700 switch provides 10/100/1000BASE-T Ethernet electrical interfaces, 1000BASE-X Ethernet optical interfaces, and 10GE SFP+ Ethernet optical interfaces.
- The S200 switch provides 10/100/1000BASE-T Ethernet electrical interfaces and 1000BASE-X Ethernet optical interfaces.
- For Gigabit fiber connection, the switch provides pluggable SFP (Small Form-Factor Pluggable) type optical modules. For 10 Gigabit fiber connection, the switch provides pluggable SFP+ (Small Form-Factor Pluggable plus) type optical modules. The fiber length can be flexibly selected according to the user’s requirements for transmission distance.
- The S200 and S1700 managed switches support protocols such as STP, RSTP, and MSTP to eliminate loops and provide loop protection.
Rich security access mechanism
- The S200 and S1700 managed switches support port-based MAC filtering to prevent hackers from attacking user devices or networks through MAC addresses.
- S200 and S1700 managed switches support RADIUS authentication, 802.1x authentication, and MAC address authentication to prevent illegal users from accessing the network.
- The S200 and S1700 fully managed switches also support a comprehensive DHCP Snooping function, which prevents common network security threats such as IP message forgery, man-in-the-middle attacks, and private connection of DHCP servers by monitoring the MAC/IP address, lease period, VLANID, interface, and other information of the access user, thereby ensuring network access security.
Green energy-saving design
- Some S1700 models use natural heat dissipation to save fan power consumption and eliminate noise pollution.
- When no device connected to the opposite end of the service port is detected, that is, the port is idle, it enters power saving mode.
- The use of low-power chips and intelligent device management system not only improves system performance but also reduces the power consumption of the entire machine.
Advanced lightning protection technology
The patented built-in lightning protection technology can effectively resist overvoltage caused by induced lightning strikes. In harsh application environments, even in scenarios where effective grounding cannot be achieved, it can also greatly reduce the lightning damage rate of equipment.
Technical indicators
| project | describe |
|---|---|
| Dimensions (W x D x H, excluding packaging) [mm] | Basic dimensions (depth is the distance excluding the protruding structural parts of the front and rear panels): 49.5mm×29.0mm×230.0mm
Maximum size (depth is the maximum distance from the protruding port on the front panel to the protruding structure on the rear panel): 49.5mm×29.5mm×230.0mm |
| Dimensions (W x D x H, including packaging) [mm] | 280.0mm×200.0mm×90.0mm |
| Chassis height [U] | 5.17U |
| Chassis material | Metal |
| Weight (excluding packaging materials) [kg] | 1.08kg |
| Weight (including packaging) [kg] | 1.31kg |
| Typical power consumption [W] | 8W |
| Typical heat dissipation value [BTU/hour] | 27.28BTU/hour |
| Maximum power consumption [W] | Without PoE: 8W
PoE full load: 167W (PoE: 124W) |
| Maximum heat dissipation value [BTU/hour] | Without PoE: 27.28
PoE full load: 569.47 |
| Static power consumption [W] | 3W |
| MTBF [years] | 95.66years |
| MTTR [hours] | 2hours |
| Availability | > 0.99999 |
| Noise at room temperature (sound power) [dB(A)] | No fan, silent, <30 |
| Noise at normal temperature (sound pressure) [dB(A)] | No fan, silent, <20 |
| Number of card slots | 0 |
| Number of power supply slots | 0 |
| Number of fan modules | 0 |
| Switching capacity | If you need this specification, please check the product brochure or contact the product salesperson to obtain it. |
| Packet forwarding rate | If you need this specification, please check the product brochure or contact the product salesperson to obtain it. |
| Power redundancy | Not supported |
| Long-term working environment temperature [°C] | 0°C～+40°C (0m～1800m above sea level) |
| Operating environment temperature change limit [°C] | 1800 m to 5000 m: The maximum temperature specification decreases by 1°C every time the altitude increases by 220 m. |
| Storage temperature [°C] | -40°C～+70°C |
| Long-term working environment relative humidity [RH] | 5%RH～95%RH, non-condensing |
| Long-term working altitude [m] | 0m～5000m |
| Storage altitude [m] | 0m～5000m |
| Power supply type | Power adapter |
| Rated input voltage [V] | Power adapter input: 100V AC ~ 240V AC; 50/60Hz
Power adapter output: 56V DC |
| Input voltage range[V] | Power adapter input: 90V AC ~ 264V AC; 47Hz ~ 63Hz |
| Maximum input current [A] | 2.68A |
| Memory | – |
| Flash | – |
| Console Interface Type | Not supported |
| Eth management network port type | Not supported |
| USB interface | Not supported |
| Real-time Clock (RTC) | Not supported |
| RPS Input | Not supported |
| Business port lightning protection [kV] | Common mode ±4kV |
| Power port lightning protection [kV] | Differential mode ±2kV, common mode ±4kV |
| Triple protection (dustproof/waterproof) | IP20 |
| Fan Type | Fanless |
| Cooling method | Natural cooling |
| Airflow direction | – |
| PoE Function | support |
| Product Certification | Support EMC certification
Support safety certification Support production certification |
