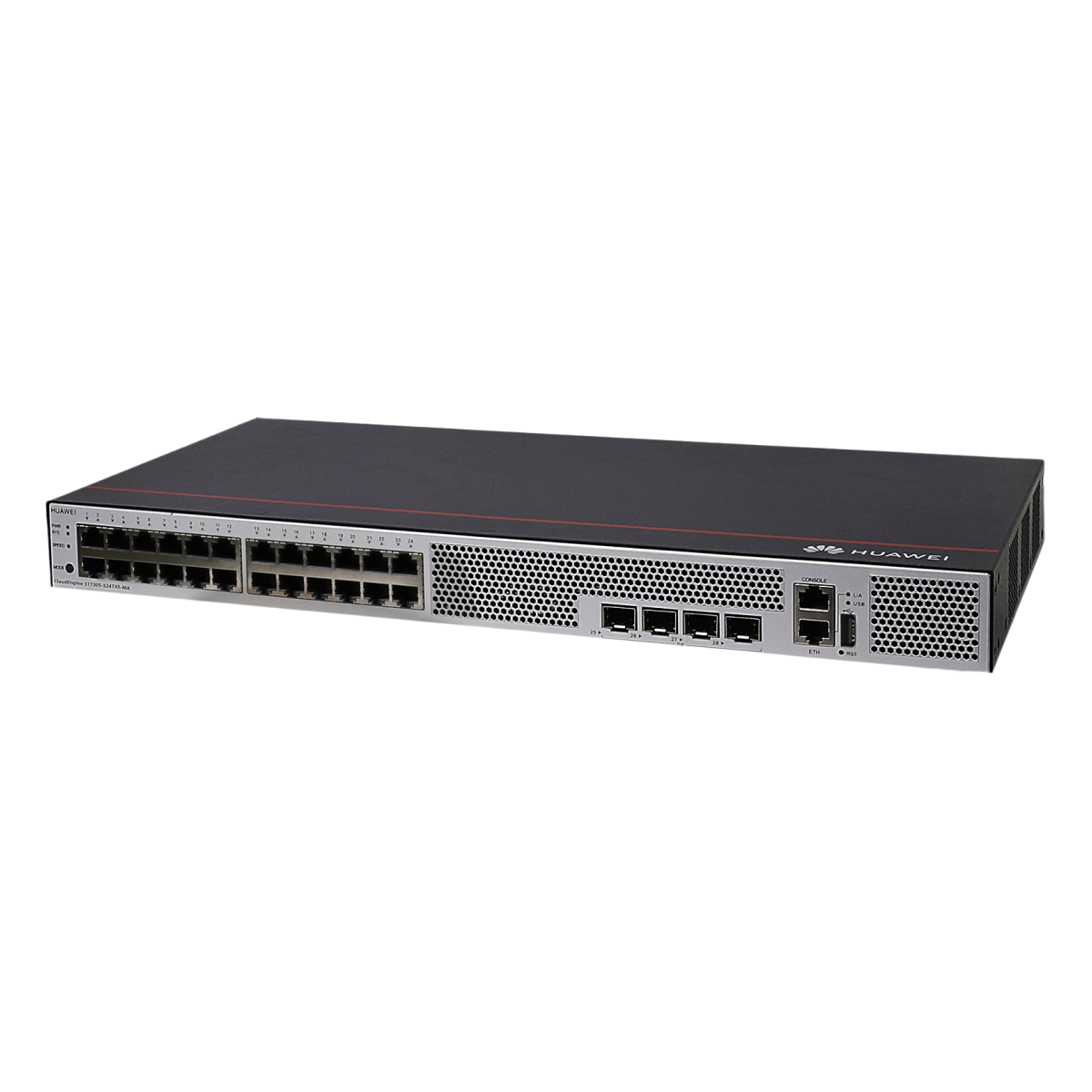

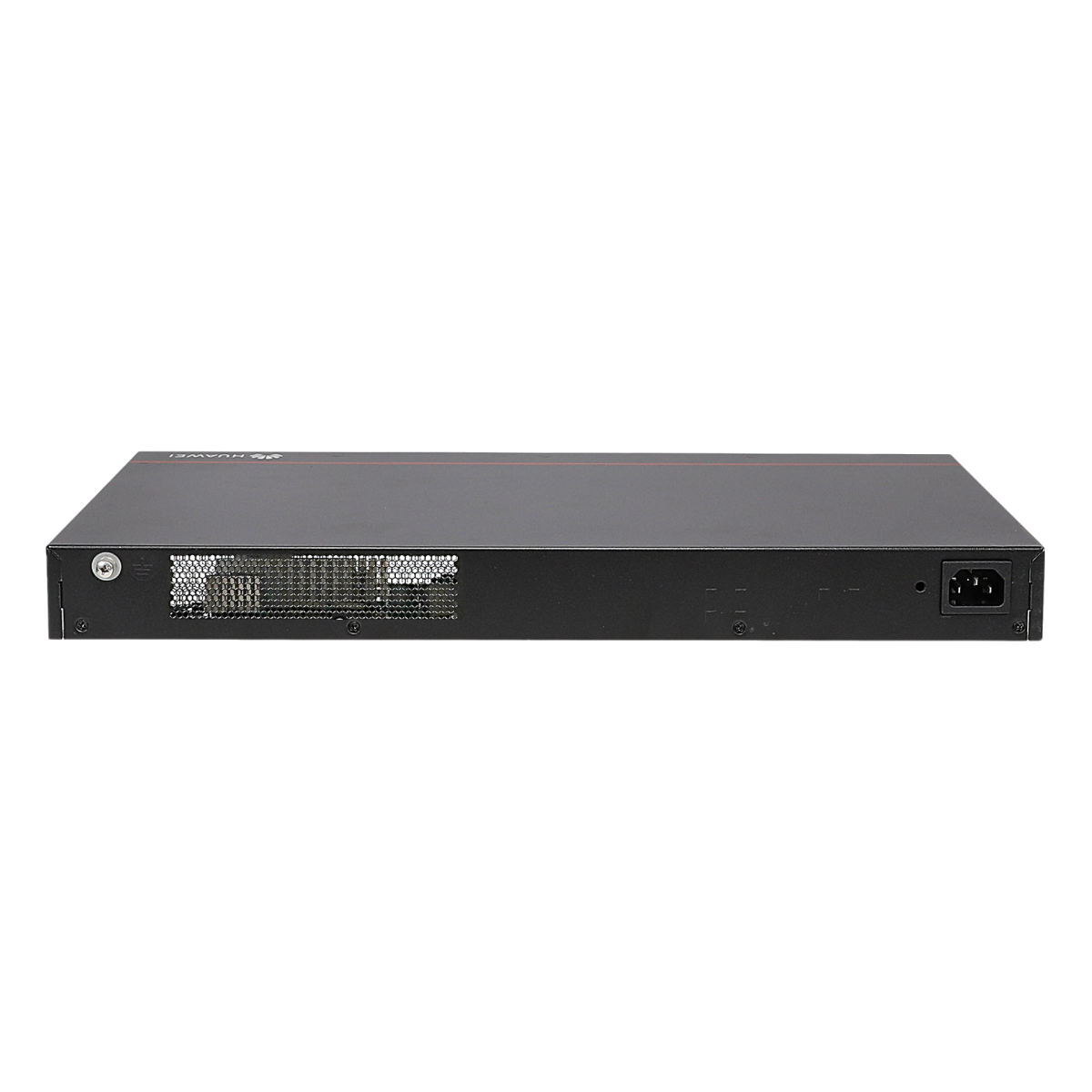

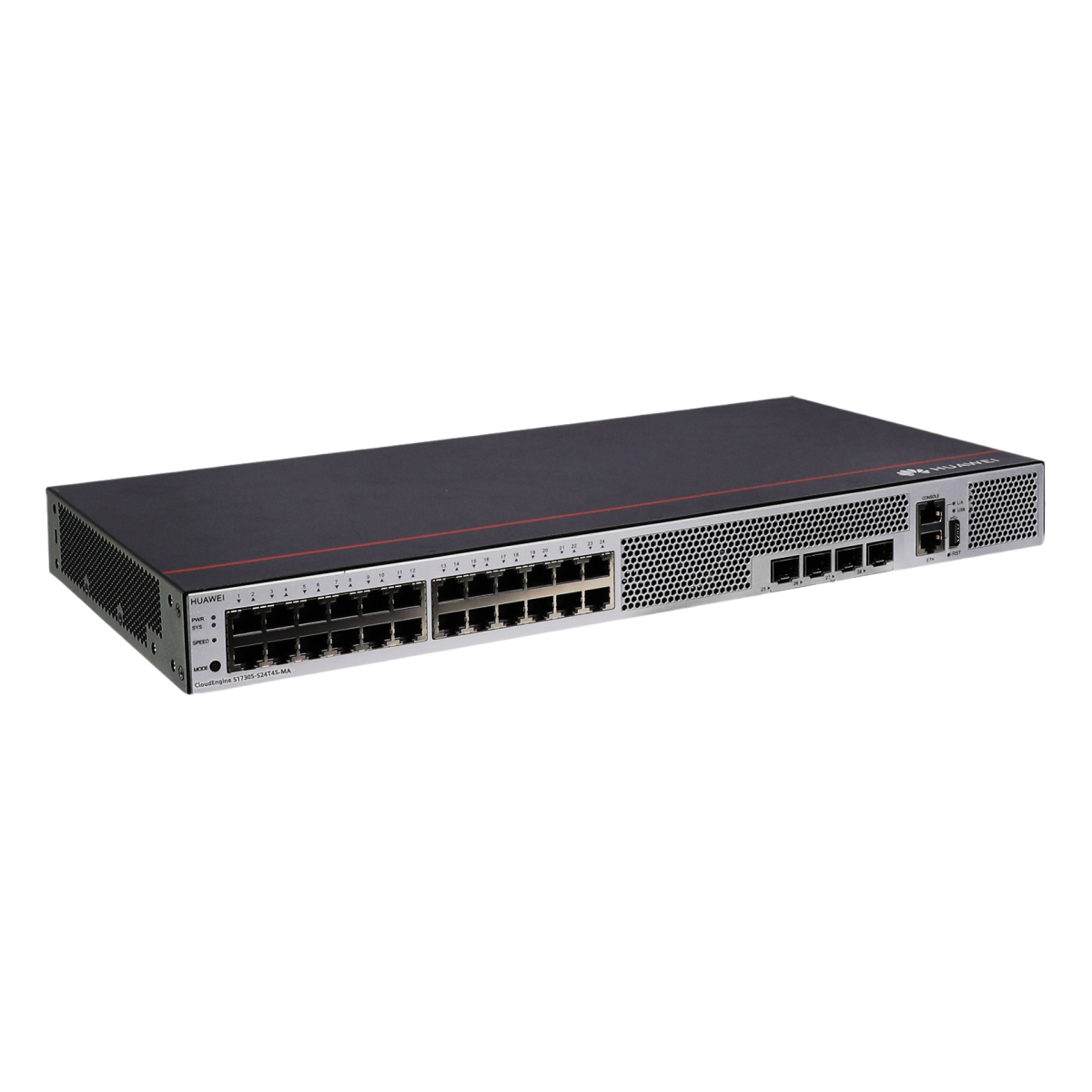

S1730S-S24T4S-MA(24 10/100/1000BASE-T Ethernet ports, 4 Gigabit SFP, AC power supply)
Condition: NOB
RMA Warranty
Description
The S1700 series switches are next-generation energy-saving Ethernet access switches. They provide easy installation and maintenance methods and various service features to help users build secure, reliable, and high-performance networks. The S1700 series switches can be widely used in Ethernet access scenarios such as small- and medium-sized enterprises, Internet cafes, hotels, and schools.
| Model | S1730S-S24T4S-MA |
| Memory (RAM) | 1 GB |
| Flash | 512 MB |
| Mean time between failures (MTBF) | 92.82 years |
| Mean time to repair (MTTR) | 2 hours |
| Maximum power consumption | 34 W |
S1730S-S24T4S-MA Specification |
|
| Item | Description |
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total |
| Mean time between failures (MTBF) | 92.82 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection | ±6 kV in differential mode, ±6 kV in common mode |
| Dimensions (H x W x D) |
|
| Stack ports | Not supported |
| RTC | Not supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range |
|
| Maximum voltage range |
|
| Maximum power consumption (100% throughput) | 34 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard, with EEE enabled) | 28 W |
| Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | Noise-free (no fans) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification |
|
