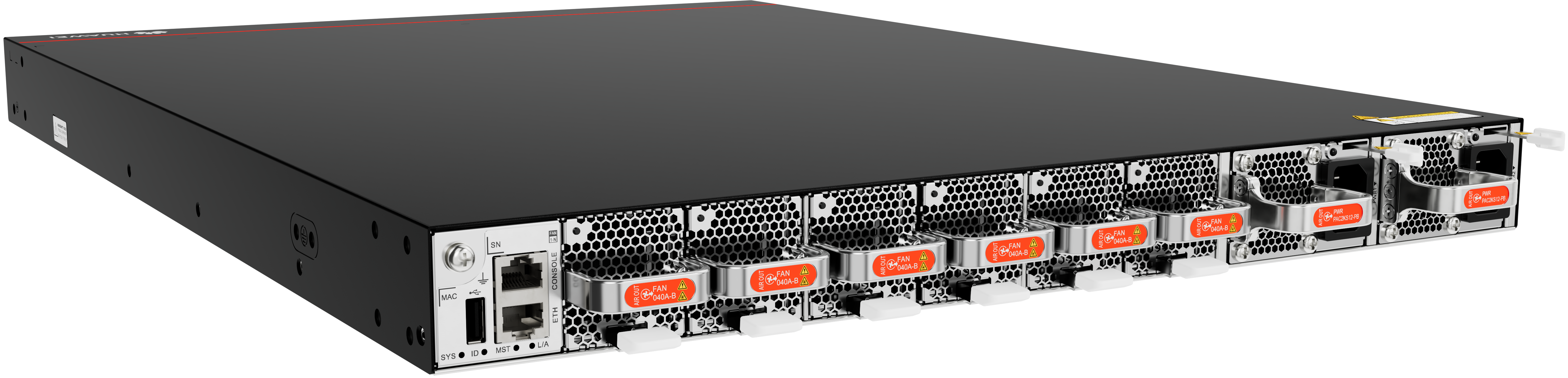

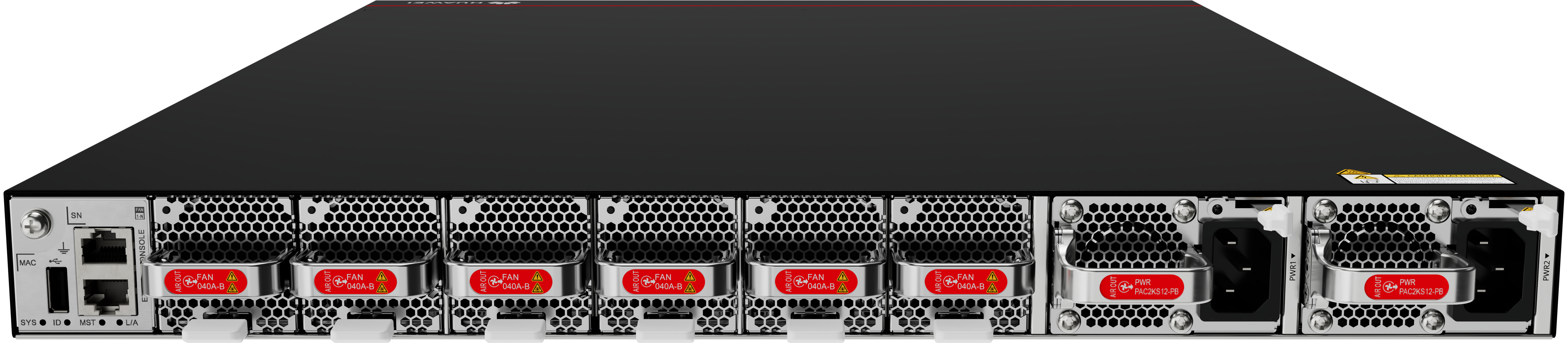

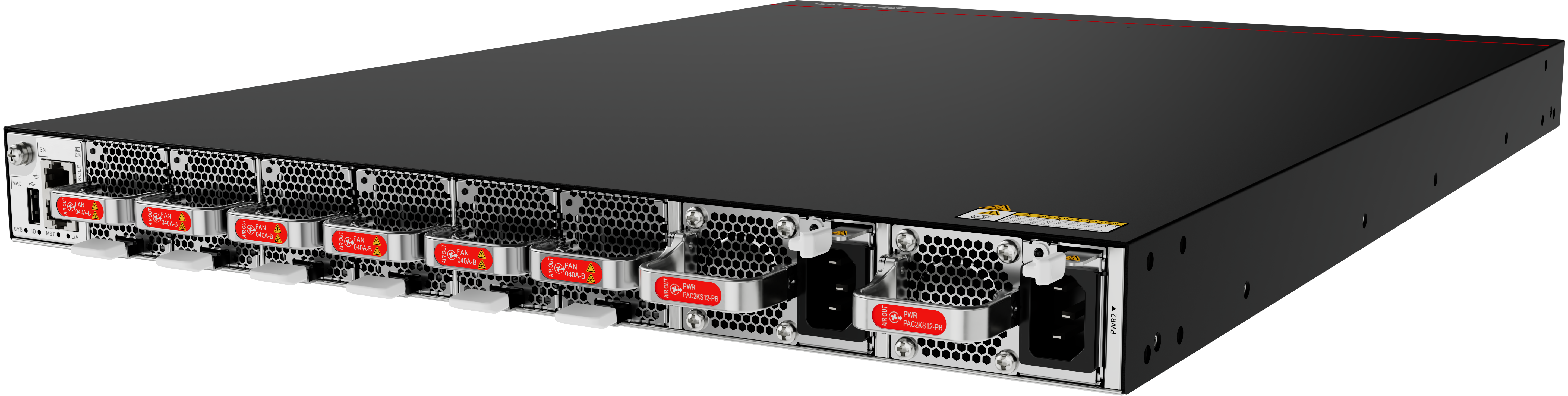

32*400GE QSFP-DD, 2*AC Power Modules, 6*Fans, Port-side Intake
Condition: NOB
RMA Warranty
Description
A series of high port density switches, CloudEngine 8800 brings a combination of both high performance and low latency to cloud-oriented data center networks and high-end campus networks alike. Additionally, the series supports an extensive range of data center features, Software-Defined Networking (SDN) capabilities, and high performance stacking technologies. With 10, 25, 40, 100, 200, and 400 GE ports, as well as flexible plug-in cards, CloudEngine 8800 is well suited for both the core and aggregation layers. The series is also compatible with CloudEngine 16800, 12800, 6800, and 5800 series switches, helping enterprises build networks that are scalable, simplified, open — and secure.
| Basic Information | |
| Description | XH8210-32DQ switch (32*400GE QSFP-DD, Without Fan and Power Modules) |
| Part Number | 02355YSQ |
| Model | XH8210-32DQ |
| First supported version | V300R023C11 |
| Other part numbers | 02355YSR(XH8210-32DQ switch (32*400GE QSFP-DD, 2*AC Power Modules, 6*Fans, Port-side Intake)) |
| Short Name | XH8210 |
| Technical Specifications | |
| Dimensions with packaging (H x W x D) [mm (in.)] | 260 mm x 590 mm x 790 mm (10.24 in. x 23.23 in. x 31.10 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | – Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442 mm x 600 mm (1.72 in. x 17.40 in. x 23.62 in.) – Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 633.4 mm (1.72 in. x 17.40 in. x 24.94 in.) |
| Weight without packaging [kg (lb)] | 9.94 kg (21.91 lb), excluding optical modules, power modules, and fan modules |
| Weight without packaging (full configuration) [kg (lb)] | 12.78 kg (28.17 lb) (including AC power modules and fan modules but excluding optical modules. If the device supports multiple models of modules, the heaviest modules are used for the measurement.) |
| Weight with packaging [kg (lb)] | 15.16 kg (33.42 lb) |
| Weight with packaging (full configuration) [kg (lb)] | 18 kg (39.68 lb) |
| Chassis height [U] | 1 |
| Installation Type | Cabinet installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | 16-core, 2 GHz |
| Memory | DRAM: 16 GB |
| NOR Flash | 64 MB x 2 |
| SSD Flash | 4GB SSD |
| USB | It can be used for log backup and USB-based deployment. This function is reserved. |
| Power supply mode | AC,DC,HVDC |
| Console port | RJ45 |
| Downlink Service interface | 32 x 400GE QSFP-DD + 2 x 10GE SFP+ |
| Service port supporting the stack function | Reserved function. This function is not enabled. |
| RTC | Supported |
| Typical power consumption [W] | 528 W (100% traffic load, copper cables on half of ports, normal temperature, dual AC power modules) 689 W (100% traffic load, short-distance optical modules on half of ports, normal temperature, dual AC power modules) |
| Typical heat dissipation [BTU/hour] | – 1802 BTU/hour (100% traffic load, copper cables on half of ports, normal temperature, dual AC power modules) – 2351 BTU/hour (100% traffic load, short-distance optical modules on half of ports, normal temperature, dual AC power modules) |
| Static power consumption [W] | 453 W |
| Static heat dissipation [BTU/hour] | 1546 BTU/hour |
| Maximum power consumption [W] | 943 W (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 1340 W (100% traffic load, long-distance optical modules on all ports, 40°C or 104°F, dual AC power modules) |
| Maximum heat dissipation [BTU/hour] | – 3218 BTU/hour (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) – 4572 BTU/hour (100% traffic load, long-distance optical modules on all ports, 40°C or 104°F, dual AC power modules) |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Rated input voltage [V] | – 2000 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC – 2200 W DC power module: –48 V DC to –60 V DC; +48 V DC – 2000 W high-voltage DC power module: 336 V DC |
| Input voltage range [V] | – 2000 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC – 2200 W DC power module: –38.4 V DC to –72 V DC; +38.4 V DC to +57 V DC – 2000 W high-voltage DC power module: 260 V DC to 400 V DC |
| Maximum input current [A] | – 2000 W AC&240 V DC power module: 10 A (100 V AC to 240 V AC); 10 A (240 V DC) – 2200 W DC power module: 63 A (–48 V DC to –60 V DC); 63 A (+48 V DC) – 2000 W high-voltage DC power module: 10 A (336 V DC) |
| Rated output power [W] | – 2000 W AC&240 V DC power module: 2000 W (220 V AC to 240 V AC&240 V DC), 1800 W (200 V AC to 220 V AC), 900 W (100 V AC to 130 V AC) – 2200 W DC power module: 2200 W – 2000 W high-voltage DC power module: 2000 W |
| Certification | – Compliance with safety standards – Compliance with EMC standards – Compliance with environment and environmental protection standards |
| Power supply surge protection [kV] | AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode |
| Types of fans | Pluggable |
| Number of fans | 6 |
| Redundant fans | The device supports 5+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Port-side air intake |
| Availability | 0.9999934176 |
| MTBF [year] | 26.01 years |
| MTTR [hour] | 1.5 hours |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Back-to-front airflow: 63.5 dB(A) on average (maximum: 70.7 dB(A)) |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Back-to-front airflow: 83.5 dB(A) on average (maximum: 90.5 dB(A)) |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
| System Management>Hardware management>Device Management>Board management>Device restart | |
| Device restart | Y |
