CE6863-48S6CQ-KB
Brand H3C
4.9Verified

CE6863-48S6CQ-KB

Model (MPN)
CE6863-48S6CQ-KB
Condition
Factory Sealed
Original Packaging (NIB)
Out of Stock

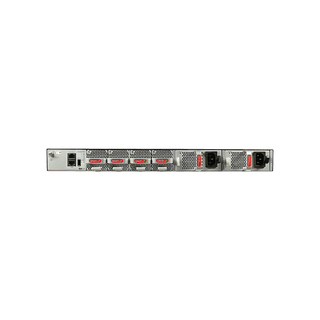

CE6863-48S6CQ-KB switch (48 * 25G SFP28, 6 * 100G qsfp28, 2 * AC power supply, port side air)

Volume & Framework Pricing

B2B Only
QuantityUnit PriceEst. Savings
1 Unit$272.20-
2 - 9 Units Request Quote 5 - 10%
10+ / Project Framework Match Tier-1 Access
Global Framework Support Available Get Global Discount
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock

Need configuration help?

Our CCIE certified engineers can help you verify compatibility.

Secure Payment
VISA
Pay
WIRE

Fast Dispatch

Global logistics network aiming for same-day handover.

48hrs
Avg. Shipping
99%
On-Time

Guaranteed Quality

Every unit undergoes rigorous 38-point inspection test.

3Year
Warranty
0.1%
RMA Rate

Global Reach

Trusted by enterprise clients across 6 continents.

85+
Countries
20k+
Clients

Expert Support

Certified network engineers ready to assist with configuration.

24/7
Assistance
CCIE
Certified

Product Overview

CE6863-48S6CQ-B Overview

CloudEngine 6800 is well suited to both the core and aggregation layers, and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.

Quick Specs

Table 1 shows the Quick Specs.

Product Code CE6863-48S6CQ-B
Processor 1.4 GHz, four-core
DRAM memory 4 GB
NOR Flash 64 MB
NAND Flash 4 GB
Mean time between failures (MTBF) 47.81 years
Mean time to repair (MTTR) 1.95 hours
Availability 0.9999962836
Hot swap Supported by all power modules and fan modules

Supported Transceivers

Table 2 shows the recommended models.

Model Description
OMXD30000 Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)
SFP-GE-LX-SM1310 Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
OMXD30009 Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10
ESFP-GE-SX-MM850 Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC)

CE6863-48S6CQ-B Specification

CE6863-48S6CQ-B Specification
Item Description
Physical specifications
  • Dimensions (H x W x D)
    • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
    • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.4 in. x 17.6 in.)
Environment parameters Temperature
  • Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)

NOTE:

When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C)
  • Back-to-front airflow: < 58 dBA
  • Front-to-back airflow: < 57 dBA
Power specifications Power source type AC/DC/HVDC
AC power input
  • Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
  • Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input
  • Rated voltage range: -48 V DC to -60 V DC
  • Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input
  • 600 W AC&240 V DC power module (PAC600S12 series):
    • Rated voltage range: 240 V DC
    • Maximum voltage range: 190 V DC to 290 V DC
  • 1200 W high-voltage DC power module (PHD1K2S12 series):
    • Rated voltage range: 240 V DC to 380V DC
    • Maximum voltage range: 190 V DC to 400 V DC
Rated input current
  • 600 W AC&240 V DC power module (PAC600S12 series):
    • 8 A (100 V AC to 240 V AC)
    • 4 A (240V DC)
  • 1000 W DC power module (PDC1000S12 series): 30 A (-48 V DC to -60 V DC)
  • 1200 W high-voltage DC power module (PHD1K2S12 series): 8 A
Chassis power consumption Maximum power consumption 384 W
Typical power consumption
  • 226 W (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules)
  • 261 W (100% throughput, short-distance optical modules on all optical ports, double power modules)
Chassis heat dissipation Maximum heat dissipation 1310 BTU/hr
Typical heat dissipation
  • 771 BTU/hr (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules)
  • 891 BTU/hr (100% throughput, short-distance optical modules on all optical ports, double power modules)
Surge protection Power module:

  • AC: 6 kV in common mode and 6 kV in differential mode
  • DC: 4 kV in common mode and 2 kV in differential mode
  • HVDC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation Heat dissipation mode Air cooling
Airflow Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability Power module backup 1+1 backup
Fan module backup The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 47.81 years
Mean time to repair (MTTR) 1.95 hours
Availability 0.9999962836
Technical specifications Processor 1.4 GHz, four-core
DRAM memory 4 GB
NOR Flash 64 MB
NAND Flash 4 GB
Stack Service port supporting the stacking function 25GE optical ports, and 100GE optical ports
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance
