CloudEngine 9800 series switches are high-performance 100G Ethernet switches designed for data center networks, featuring high-density 100 GE ports and low latency. Compatible with a range of other CloudEngine series switches (CE 16800, 12800, 8800, 6800, and 5800), the CloudEngine 9800 series can be used to build an elastic, virtualized, high-quality fabric that meets the demanding requirements of cloud-computing data centers. Using an advanced hardware structure, the switches provide high-density 100 GE/40 GE ports to support various data center features, and can function as core or aggregation switches on data center networks.
| Basic Information | |

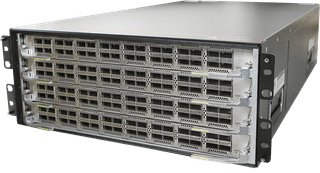

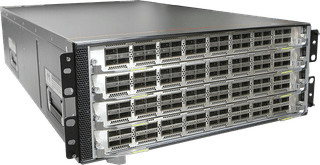

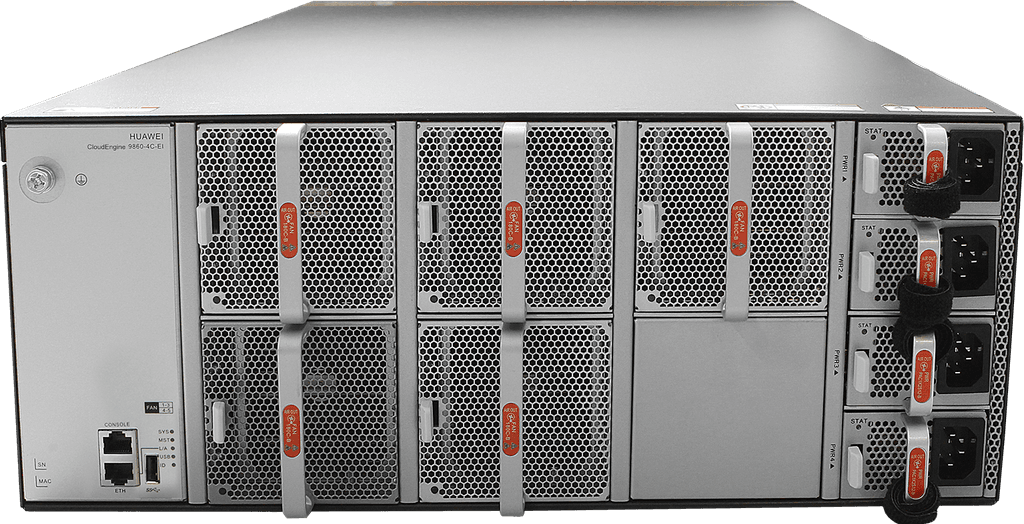

| Description | CE9860-4C-EI mainframe (4*subcard slots, without fan and power modules) |
| Part Number | 02352HQC |
| Model | CE9860-4C-EI |
| First supported version | V200R020C00 |
| Other part numbers | 02352HQD (CE9860-4C-EI-B mainframe ,4*subcard slots, 4*AC power modules, 5*fan modules, port-side intake) |
| Short Name | CE9860EI |
| Technical Specifications | |
| Dimensions with packaging (H x W x D) [mm (in.)] | 370 mm x 635 mm x 1025 mm (14.57 in. x 25.00 in. x 40.35 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | – Basic dimensions (the depth excludes the parts protruding from the body): 175 mm x 442 mm x 765 mm (6.89 in. x 17.40 in. x 30.12 in.) – Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 175 mm x 442 mm x 809.3 mm (6.89 in. x 17.40 in. x 31.86 in.) |
| Weight without packaging [kg (lb)] | 26.0 kg (57.32 lb) |
| Weight without packaging (full configuration) [kg (lb)] | 35.5 kg (78.26 lb) (with four power modules and five fan modules) |
| Weight with packaging [kg (lb)] | 51.0 kg (112.43 lb) |
| Weight with packaging (full configuration) [kg (lb)] | 60.5 kg (133.38 lb) (with four power modules and five fan modules) |
| Chassis height [U] | 4 |
| Installation Type | Cabinet Installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | 4-core, 2.2 GHz |
| Memory | DRAM: 16 GB |
| NOR Flash | 32 MB x 2 |
| SSD Flash | 64 GB |
| USB | Supported |
| Power supply mode | AC,DC,HVDC |
| Console port | RJ45 |
| Downlink Service interface | The device does not have fixed ports and provides four card slots. Currently, the device supports the following cards: CE98-D32CQ: 32 x 100GE QSFP28 (100GE ports can be used as 40GE ports and cannot be split into 4 x 25GE and 4 x 10GE ports.) CE98-D8DQ: 8 x 400GE QSFP-DD (In V200R021C00, such ports can only work at 400 Gbit/s, cannot be used as 200GE, 100GE, or 40GE ports, and cannot be split. Specifically, they do not support the following split modes: 4 x 100GE, 2 x 200GE, 2 x 100GE, 2 x 40GE, 8 x 50GE, 8 x 25GE, 8 x 10GE, 4 x 50GE, 4 x 25GE, and 4 x 10GE. Auto-negotiation of 400GE copper cables is not supported and such cables can be used only for peer-link. In V200R021C10, such a 400GE port can be dynamically split into 2 x 200GE ports. Currently, only 2 x 200GE 5 m AOCs and 2.5 m copper cables are supported. By default, negotiation is disabled and cannot be enabled for copper cables. If an unsupported module is inserted into such a port, the system displays a message indicating a medium mismatch.) |
| RTC | Supported |
| Typical power consumption [W] | Configured with four CE98-D32CQ cards: 1231 W (50% throughput, short-distance QSFP28 optical modules on 64 ports and long-distance QSFP28 optical modules on 64 ports, double power modules) Configured with four CE98-D8DQ cards: 1289 W (50% throughput, short-distance QSFPDD optical modules on 32 ports, double power modules) |
| Typical heat dissipation [BTU/hour] | Configured with four CE98-D32CQ cards: 4202 BTU/hour (50% throughput, short-distance QSFP28 optical modules on 64 ports and long-distance QSFP28 optical modules on 64 ports, double power modules) Configured with four CE98-D8DQ cards: 4400 TU/hour (50% throughput, short-distance QSFPDD optical modules on 32 ports, double power modules) |
| Static power consumption [W] | Configured with four CE98-D32CQ cards: 377 W Configured with four CE98-D8DQ cards: 548 W |
| Static heat dissipation [BTU/hour] | Configured with four CE98-D32CQ cards: 1505 BTU/hour Configured with four CE98-D8DQ cards: 1871 BTU/hour |
| Maximum power consumption [W] | Configured with four CE98-D32CQ cards: 1627 W (ambient temperature: 40°C or 104°F; fan speed: 70%) Configured with four CE98-D8DQ cards: 1717 W (ambient temperature: 40°C or 104°F; fan speed: 100%) |
| Maximum heat dissipation [BTU/hour] | Configured with four CE98-D32CQ cards: 5553 BTU/hour (ambient temperature: 40°C or 104°F; fan speed: 70%) Configured with four CE98-D8DQ cards: 5861 BTU/hour (ambient temperature: 40°C or 104°F; fan speed: 100%) |
| Number of power modules | 4 |
| Redundant power supply | 2+2 backup |
| Rated input voltage [V] | – Rated input voltage range of 1200 W AC&240 V DC power modules: 100 V AC to 240 V AC; 50/60 Hz, DC: 240 V DC – 1200 W DC power module: -48 V DC: -48 V DC to -60 V DC, +48 V DC: +48 V DC |
| Input voltage range [V] | – 1200 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC – 1200 W DC power module: -48 V DC: -38.4 V DC to -72 V DC; +48 V DC: +38.4 V DC to +60 V DC |
| Maximum input current [A] | – 1200 W AC&240 V DC power module: 10 A (100 V AC to 130 V AC); 8 A (200 V AC to 240 V AC); 8 A (240 V DC) – 1200 W DC power module: 38 A (–48 V DC to –60 V DC); 38 A (+48 V DC) |
| Rated output power [W] | – 1200 W AC&240 V DC power module: 1200 W – 1200 W DC power module: 1200 W |
| Maximum output power [W] | 1200 W AC&240 V DC 1200 W -48 V DC |
| Certification | – Compliance with safety standards – Compliance with EMC standards – Compliance with environment and environmental protection standards |
| Power supply surge protection [kV] | AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode |
| Types of fans | Pluggable |
| Number of fans | 5 |
| Redundant fans | The device supports 4+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Back-to-front airflow: Air flows into the chassis from the port side and flows out from the power supply side. |
| Availability | 0.9999934738 |
| MTBF [year] | 21.91 years |
| MTTR [hour] | 3.43 hours |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Back-to-front airflow: < 59 dB(A) |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Back-to-front airflow: < 76 dB(A) |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, noncondensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40°C to +70°C (-40°F to +158°F) |
