- High-power remote power supply, allowing energy to pass through the network.
- Network cable and wire in one, simple deployment.
- From equipment to power supply to network, the three-dimensional integration ensures security and stability.
- Remote restart for easy O&M.
Hardware Specifications
| Hardware Specifications | RG-S2910-24GT4SFP-UP-H | RG-S2910-24GT4XS-UP-H |
| Ports | ||
| Fixed service port | 24 x 10/100/1000M electrical ports supporting auto negotiation + 4 x 1GE SFP ports | 24 x 10/100/1000M electrical ports supporting auto negotiation + 4 x 10GE/1GE SFP+ ports |
| System | ||
| Switching capacity | 56 Gbps | 128 Gbps |
| Packet forwarding rate | 42 Mpps | 96 Mpps |
| Dimensions and Weight | ||
| Dimensions (W x D x H) | 440 mm x 260 mm x 44 mm (17.32 in. x 10.24 in. x 1.73 in.) | 440 mm x 260 mm x 44 mm (17.32 in. x 10.24 in. x 1.73 in.) |
| Power Supply and Consumption | ||
| Rated input voltage | AC input: rated voltage range 100 V to 240 V, frequency 50/60 Hz | |
| Maximum input voltage | AC input: rated voltage range 90 V to 264 V, frequency 50/60 Hz | |
| Input voltage | High voltage DC (HVDC) input: input voltage range 192 V to 290 V | |
| PoE power supply | 24 x electrical ports supporting PoE and PoE+ | 24 x electrical ports supporting PoE and PoE+ |
| Maximum output power of a PoE interface | Maximum PoE/PoE+ output power: 370 W | Maximum PoE/PoE+ output power: 370 W |
| Environment and Reliability | ||
| Fan monitoring | Fan speed adjustment and fault alarms | |
| Operating temperature | 0°C to 50°C (32°F to 122°F) | |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) | |
| Operating humidity | 10% to 90% RH | |
| Storage humidity | 5% to 95% RH | |
| Operating altitude | –500 m to +5000 m (–1640.42 ft to +16404.20 ft) | |
Software Specifications
| Software Specifications | RG-S2910-24GT4SFP-UP-H | RG-S2910-24GT4XS-UP-H |
| VLAN | 4K VLANs
Interface-based VLAN assignment MAC address-based VLAN assignment Protocol-based VLAN assignment Private VLAN Voice VLAN IP subnet-based VLAN GVRP |
|
| QinQ | Basic QinQ
Selective QinQ |
|
| ACL | Standard IP ACL
Extended IP ACL Extended MAC ACL (hardware ACL based on the source MAC address, destination MAC address, and optional Ethernet type) Time range-based ACL Expert-level ACL (hardware ACL based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port ID, protocol type, and time range) ACL 80 IPv6 ACL Global ACL ACL redirection |
|
| QoS | Rate limiting on an interface based on the ingress or egress
Flow-based rate limiting on the ingress or egress 802.1p/DSCP/ToS traffic classification Eight priority queues per interface SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR, and RED/WRED scheduling |
|
| Mirroring | Common service interfaces and aggregate interfaces that can be configured as source and destination interfaces of mirroring
1:1, 1:N, N:1, and flow-based local and remote mirroring RSPAN and ERSPAN Cross-device traffic mirroring |
|
| DHCP | DHCP server
DHCP client DHCP snooping DHCP relay IPv6 DHCP snooping IPv6 DHCP client IPv6 DHCP relay |
|
| Layer 2 protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.1Q (GVRP), IEEE 802.1d, IEEE 802.1w, IEEE 802.1s IEEE 802.1s, and IGMP snooping v1/v2 | |
| Security | 3-tuple binding (IP address, MAC address, and interface)
3-tuple binding (IPv6 address, MAC address, and interface) Invalid MAC address filtering Interface- and MAC address-based 802.1X authentication MAC address bypass authentication (MAB) Portal and Portal 2.0 authentication ARP check DAI Trusted ARP ARP spoofing prevention Broadcast or multicast storm suppression Unknown multicast suppression and multicast bandwidth suppression Hierarchical management and password protection RADIUS and TACAS+ AAA (IPv4/IPv6) for device login management SSH and SSHv2.0 BPDU guard IP source guard CPP and NFPP Port protection |
|
| Cable diagnostics | Cable detection | |
| Energy Efficient Ethernet (EEE) | IEEE 802.3az-compliant EEE: When EEE is enabled, power consumption of interfaces is significantly reduced. | |
| Port sleeping | Port sleeping | |
| PoE | IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt
Automatic and energy-efficient power supply management modes Warm start to implement uninterrupted power supply Interface priority Compatibility with non-standard PDs Scheduled power-on/off of PoE interfaces |
|
| IP routing | IPv4/ IPv6 static route
RIP, RIPng, OSPFv2, and OSPFv3 Routing policy |
|
| IPv6
Basic protocols |
IPv6 addressing, Neighbor Discovery (ND), IPv6 ACL, ICMPv6, IPv6 ping, and IPv6 tracert | |
| VSU features | VSU
Local and remote stacking Cross-chassis link bundling within the stack |
|
| Zero Touch Provisioning (ZTP) | CWMP (TR-069) standard protocol | |
| Management features | SNMP, CLI (Telnet/console), RMON, SSH, Syslog/debugging, NTP/SNTP, FTP, TFTP, web, and sFlow | |
Perform the following steps to configure an RG-S2910-H:
● Purchase the chassis.
● Select optical modules based on interface requirements.
Models marked with asterisks (*) in the ordering information are available later.
Chassis
| Model | Description |
| RG-S2910-24GT4SFP-UP-H | 24 x 10/100/1000M auto-negotiation electrical ports, 4 x 1000M non-multiplexed SFP ports, PoE/PoE+ remote power supply (mandatory) |

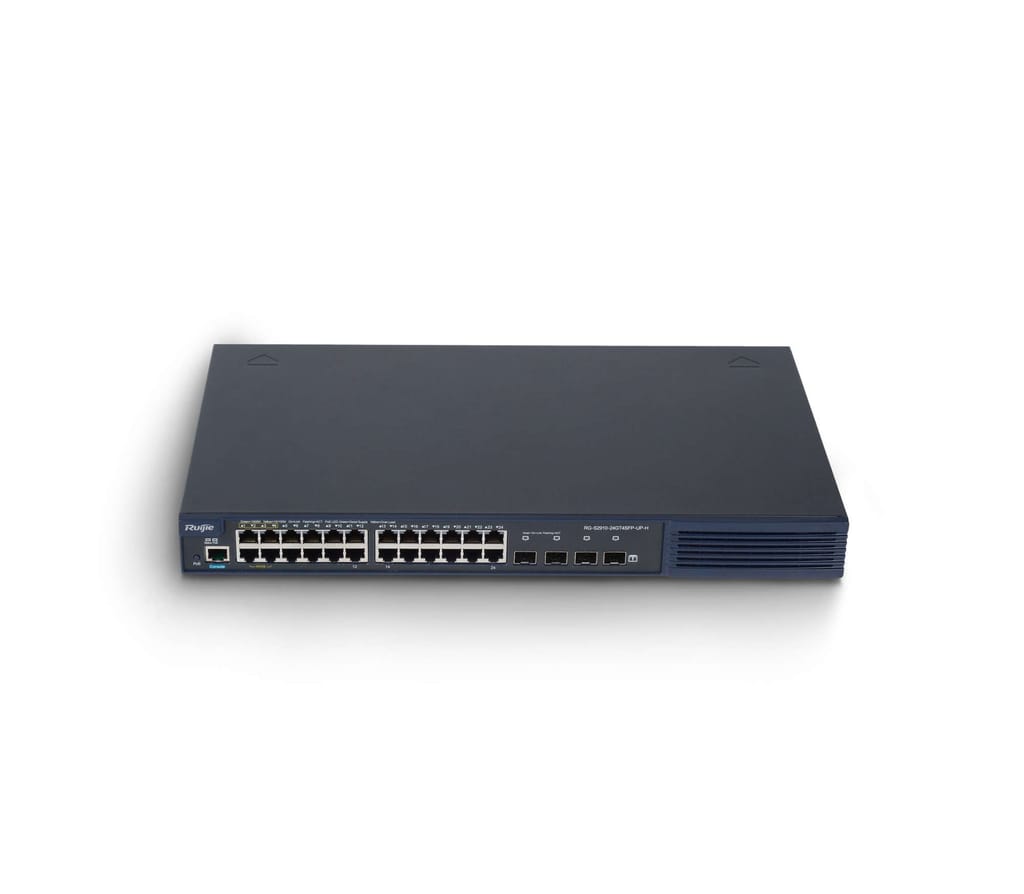

| RG-S2910-24GT4XS-UP-H | 24 x 10/100/1000M auto-negotiation electrical ports, 4 x 1GE/10GE non-multiplexed SFP ports, PoE/PoE+ remote power supply (mandatory) |
