Overview
The RG-S6910-3C is Ruijie Networks’ latest high-density modular switch, engineered for exceptional performance. With a compact 4U design, it offers a remarkable 96 ports at 100G, making it an ideal solution for both small and large data center networks.

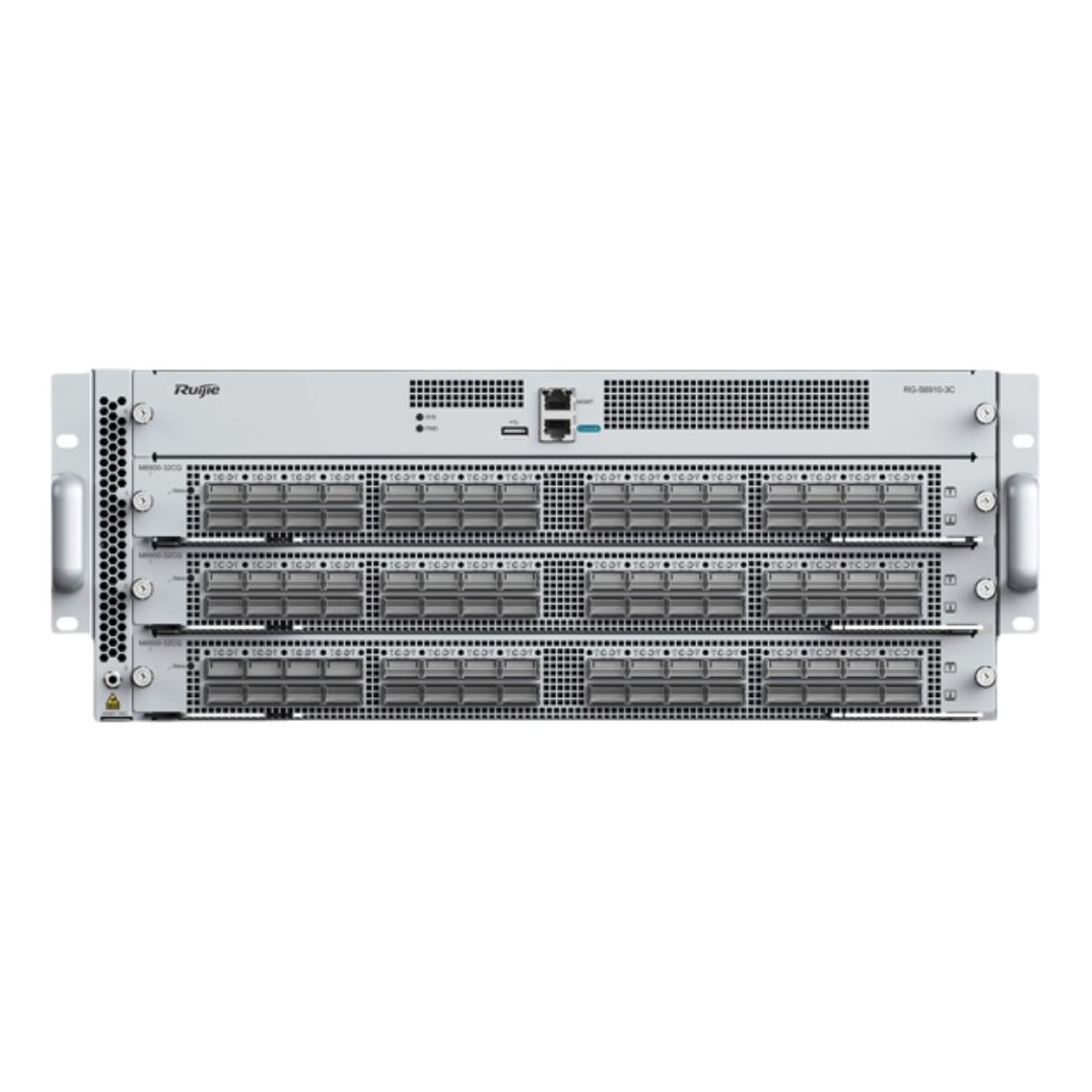

Product Appearance
Features
Advanced Data Center Networking
Designed to meet the challenges of modern data centers, the RG-S6910-3C provides:
- 96 x 100G ports or 24 x 400G ports within just 4U of rack space.
- 16GB of port buffering to handle demanding data traffic efficiently.
Robust Reliability
This switch is built for reliability, featuring:
- 2+2 power redundancy and 5+1 fan redundancy.
- Hot-swappable components that ensure continuous operation during maintenance.
With built-in fault detection and automatic fan speed adjustment based on temperature, it adapts seamlessly to varying data center conditions.
Dual-Stack Protocol Support
The RG-S6910-3C supports both IPv4 and IPv6, enabling effective multi-layer switching. It handles diverse tunneling technologies, including manual and automatic configurations, to facilitate flexible communication in IPv6 networks.
Routing protocols available:
- IPv4: Static routing, RIP, OSPF, IS-IS, BGP4.
- IPv6: Static routing, RIPng, OSPFv3, BGP4+.
Enhanced Traffic Insights
Harnessing advanced chip technology, the RG-S6910-3C allows for comprehensive traffic visualization across complex networks. This feature enhances the ability to monitor and troubleshoot network paths efficiently.
Comprehensive Management Capabilities
Equipped with various management interfaces—Console, MGMT, USB—the RG-S6910-3C supports:
- SNMP versions 1, 2c, and 3.
- GRPC for streamlined communication.
- CLI command-line and Telnet for flexible device management.
Features like SPAN/RSPAN/ERSPAN facilitate in-depth traffic analysis, empowering users to optimize their network performance.
Technical Specifications
Hardware Details
- System Model: RG-S6910-3C
- Port Configuration: Supports **100G/*400G ports
- Expansion Slots: 3 slots (32 x 100G or 8 x *400G each)
- Management Interfaces: 1 MGMT port, 1 Console port, 1 USB port
- Switching Capacity: 19.2T
- Forwarding Rate: 4000Mpps
- VLAN Capability: 4K
Dimensions and Weight
- Dimensions: 442mm × 735mm × 173.6mm (4RU)
- Weight: Approximately 42 kg (fully equipped)
Power Specifications
- Maximum Power Consumption: 2046W
- Typical Power Consumption: 1092W
- Static Power Consumption: 760W
- Voltage Range: Supports 110V/220V AC
Environmental Conditions
- Operating Temperature: 0℃ to 40℃
- Humidity Range: 10%RH to 90%RH (non-condensing)
Software Features
- Layer 2 Protocols: Supports IEEE802.3 standards, IGMP Snooping, Jumbo Frames, GVRP.
- Layer 3 Protocols: BGP4, OSPF, RIPv2, and IPv6 functionalities.
- Security Protocols: Protects against DDoS, illegal packet detection, with support for RADIUS/TACACS.
- Management Methods: SNMP, Telnet, Console, RMON, Syslog.
Cloud Compatibility
The RG-S6910-3C seamlessly integrates with various cloud platforms, including JD Cloud.
Configuration Steps
- Select the main unit and expansion cards.
- Choose the appropriate fan and power modules.
- Pick optical modules based on your interface requirements.
Ordering Information
Main Unit, Expansion Cards, Fan Modules, Power Modules
| Product Model | Description |
|---|---|
| RG-S6910-3C | Supports 3 expansion slots, 4 power slots, 6 fan slots; compatible with RG-PA1200I-F and M2EFAN I-F |
| M6900-32CQ | 32-port 100G module |
| RG-PA1200I-F | Power module with 2+2 redundancy, hot-swappable |
| M2EFAN I-F | Fan module with 5+1 redundancy, hot-swappable |
Optical Modules
40G Options
| Product Model | Description |
|---|---|
| 40G-QSFP-iLR4-SM1310 | 40G iLR4 module, QSFP+ package, 2Km range with single-mode fiber |
| 40G-QSFP-LR4-SM1310 | 40G LR4 module, QSFP+ package, 10Km range with single-mode fiber |
| 40G-QSFP-LSR-MM850 | 40G SR module, QSFP+ package, MPO interface, 400m range with multi-mode fiber |
| 40G-QSFP-SR-MM850 | 40G SR module, QSFP+ package, MPO interface, 150m range with multi-mode fiber |
| 40G-QSFP-LX4-SM1310 | 40G LX4 module, QSFP+ package, dual LC interface, max transmission distance 150m (OM3/OM4), max 2Km with single-mode fiber |
| 40G-AOC-30M | 40G QSFP+ active optical cable, 30m |
| 40G-AOC-5M | 40G QSFP+ active optical cable, 5m |
100G Options
| Product Model | Description |
|---|---|
| 100G-QSFP-SR-MM850 | 100G SR module, QSFP28 package, 100m range with multi-mode fiber |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 module, QSFP28 package, 2Km range with single-mode fiber |
| 100G-QSFP-LR4-SM1310 | 100G LR4 module, QSFP28 package, 10Km range with single-mode fiber |
| 100G-QSFP-ER4-SM1310 | 100G ER4 module, QSFP28 package, 40Km range with single-mode fiber |
| 100G-AOC-5M | 100G AOC cable, QSFP28 package, length 5m |
| 100G-AOC-10M | 100G AOC cable, QSFP28 package, length 10m |
