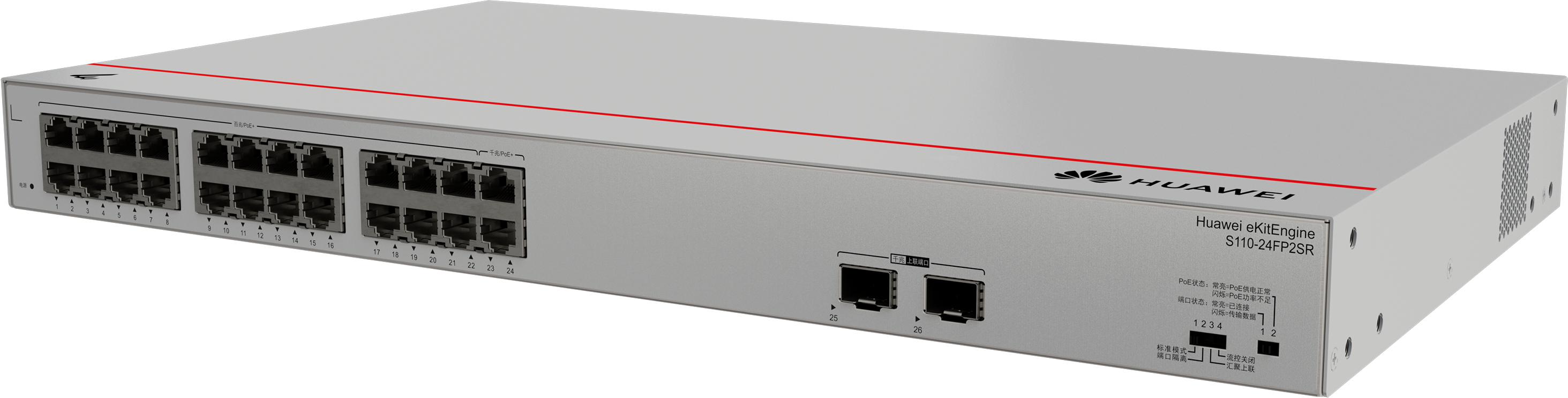

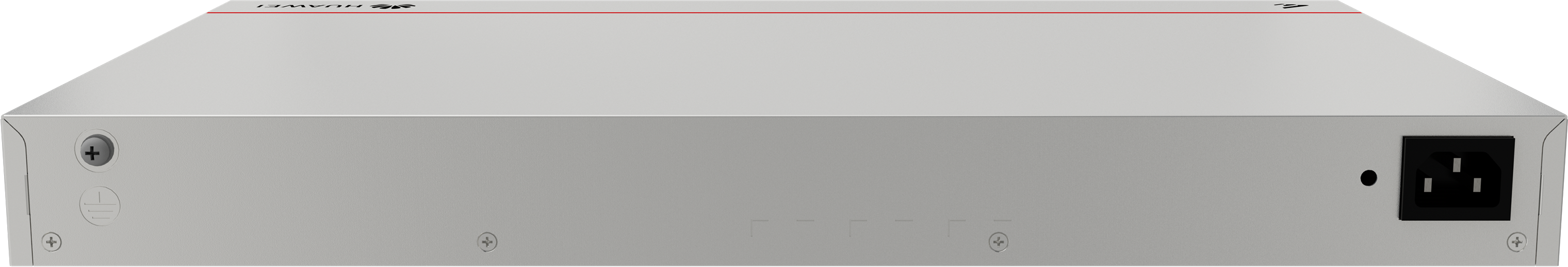

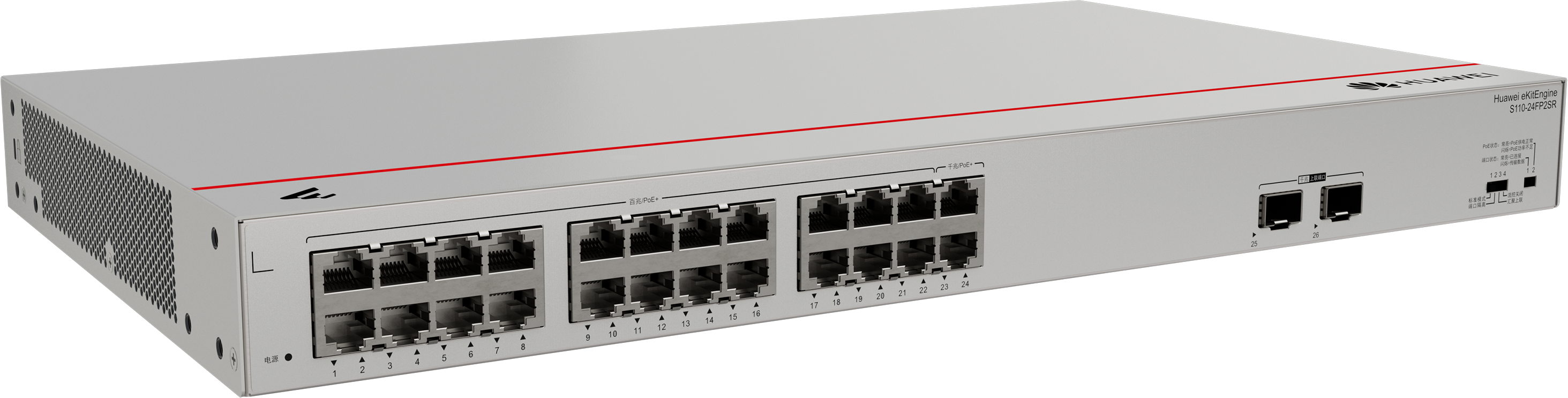

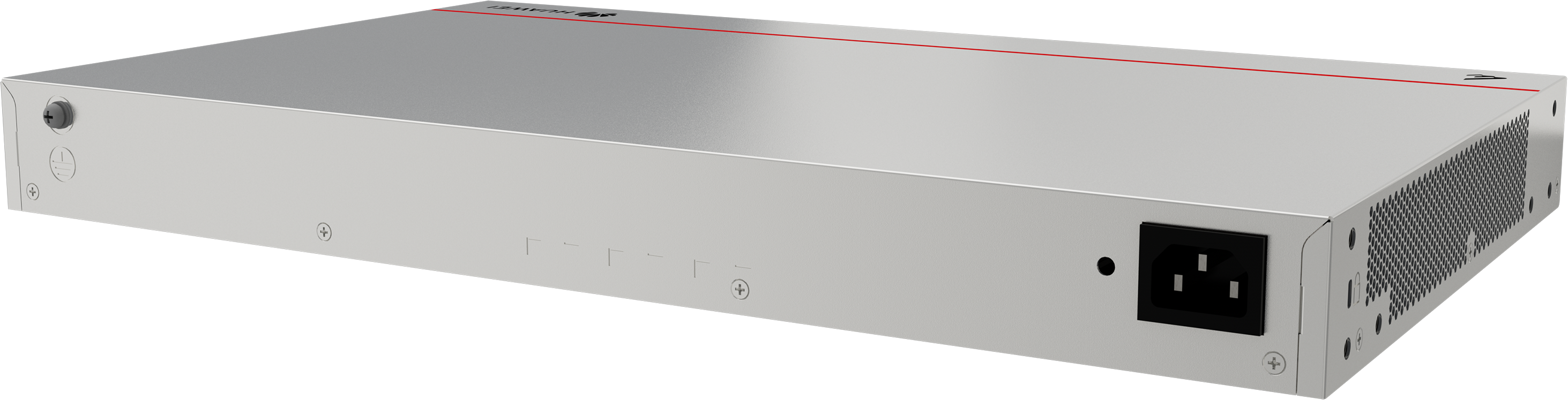

S110-24FP2SR technical specifications
| Project | Describe |
|---|---|
| Dimensions (W x D x H, excluding packaging) [mm] | Basic dimensions (depth is the distance excluding the protruding structural parts of the front and rear panels): 442.0mm×260.0mm×43.6mm
Maximum size (depth is the maximum distance from the protruding port on the front panel to the protruding structure on the rear panel): 442.0mm×267.0mm×43.6mm |
| Dimensions (W x D x H, including packaging) [mm] | 550.0mm×395.0mm×90.0mm |
| Chassis height [U] | 1U |
| Chassis material | Metal |
| Weight (excluding packaging materials) [kg] | 3.40kg |
| Weight (including packaging) [kg] | 4.20kg |
| Typical power consumption [W] | 21.0W |
| Typical heat dissipation value [BTU/hour] | 71.65BTU/hour |
| Maximum power consumption [W] | Without PoE: 21W
PoE full load: 443W (PoE: 370W) |
| Maximum heat dissipation value [BTU/hour] | Without PoE: 71.65
PoE full load: 1511.56 |
| Static power consumption [W] | 17.0W |
| MTBF [years] | 40.92years |
| MTTR [hours] | 2hours |
| Availability | > 0.99999 |
| Noise at room temperature (sound power) [dB(A)] | 55dB(A) |
| Noise at normal temperature (sound pressure) [dB(A)] | 46dB(A) |
| Number of card slots | 0 |
| Number of power supply slots | 0 |
| Number of fan modules | 1 |
| Switching capacity | If you need this specification, please check the product brochure or contact the product salesperson to obtain it. |
| Packet forwarding rate | If you need this specification, please check the product brochure or contact the product salesperson to obtain it. |
| Operating mode | Standard mode, port isolation, aggregation uplink, flow control off |
| Number of MAC addresses | 8K |
| Power redundancy | not support |
| Long-term working environment temperature [°C] | 0°C～+45°C (0m～1800m above sea level) |
| Operating environment temperature change limit [°C] | 1800 m to 5000 m: The maximum temperature specification decreases by 1°C every time the altitude increases by 220 m. |
| Storage temperature [°C] | -40°C～+70°C |
| Long-term working environment relative humidity [RH] | 5%RH～95%RH, non-condensing |
| Long-term working altitude [m] | 0m～5000m |
| Storage altitude [m] | 0m～5000m |
| Power supply type | Built-in AC power supply |
| Rated input voltage [V] | AC input: 110V AC ~ 240V AC; 50/60Hz |
| Input voltage range[V] | AC input: 100V AC ~ 264V AC; 45Hz ~ 65Hz |
| Maximum input current [A] | 6A |
| Memory | – |
| Flash | – |
| Console Interface Type | not support |
| Eth management network port type | not support |
| USB interface | not support |
| Real-time Clock (RTC) | not support |
| RPS Input | not support |
| Business port lightning protection [kV] | Common mode ±6kV |
| Power port lightning protection [kV] | Differential mode ±2kV, common mode ±4kV |
| Triple protection (dustproof/waterproof) | IP20 |
| Fan Type | Built-in fan |
| Cooling method | Air cooling, intelligent speed regulation |
| Airflow direction | Air in from the left, air out from the right |
| PoE Function | support |
| certified product | Support EMC certification
Support safety certification Support production certification |
