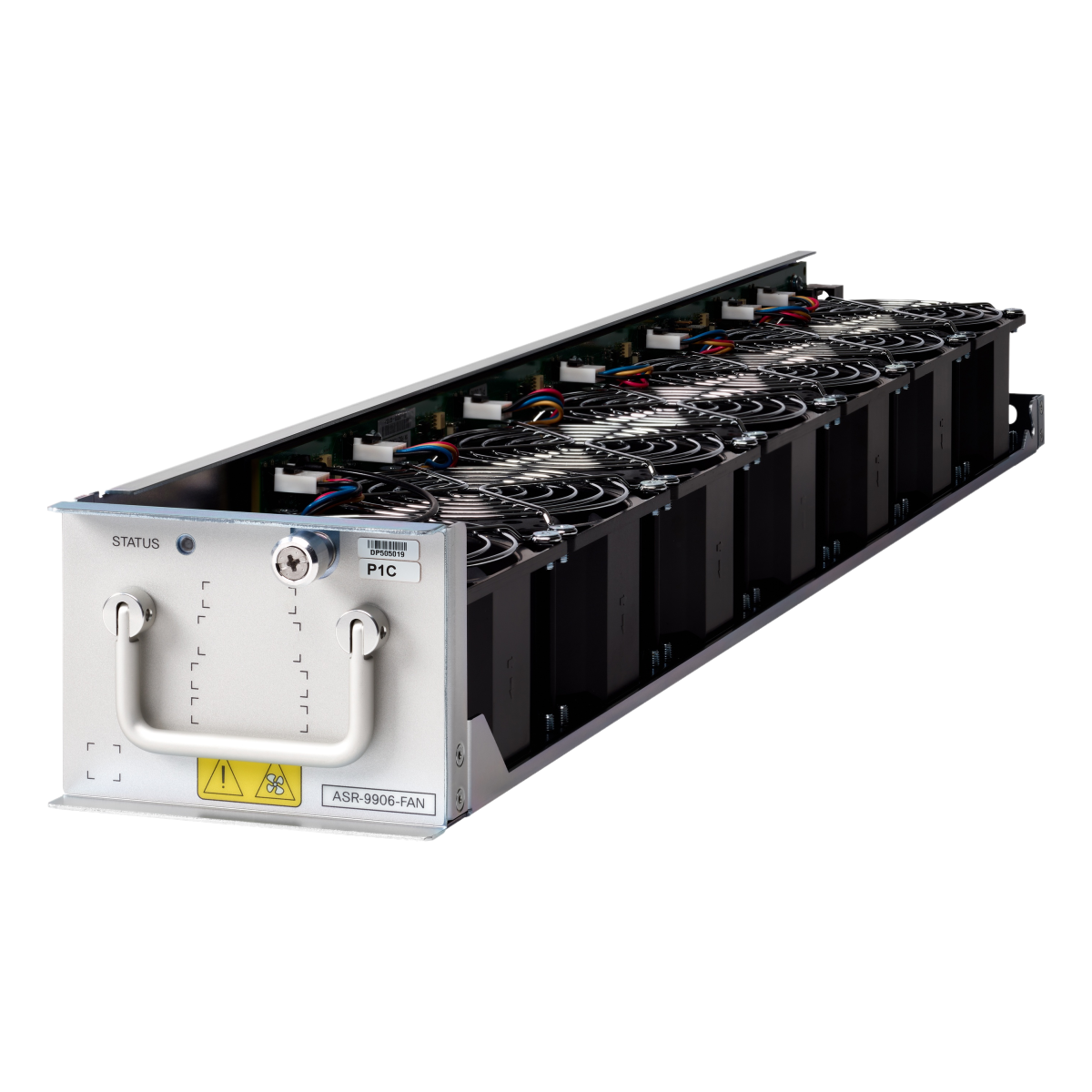

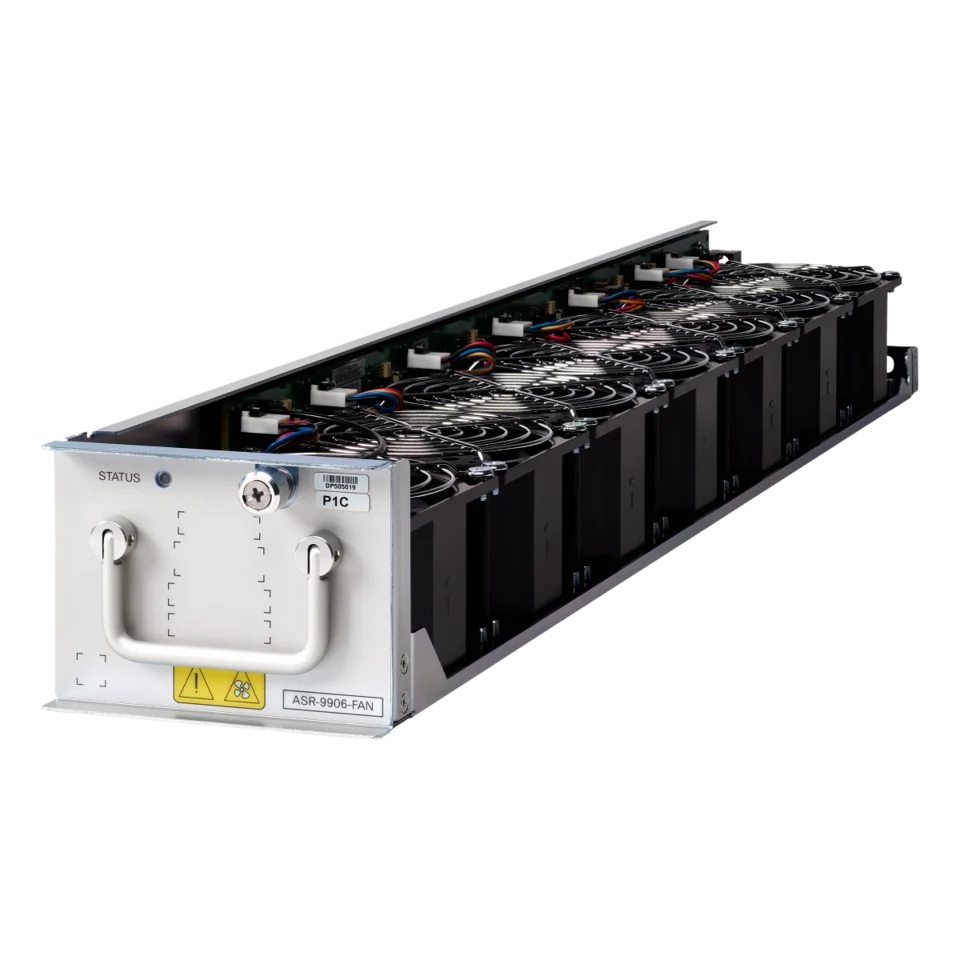

The Cisco ASR-9906-FAN is the dedicated fan tray for the Cisco ASR 9906 Router chassis, delivering carrier-class cooling performance essential for high-density 100 Gigabit Ethernet line cards and the Route Switch Processor 880-LT (RSP880-LT). Designed for the Cisco ASR 9000 Series, it accommodates demanding wireline, Data-Center-Interconnect (DCI), and Radio Access Network (RAN) aggregation applications. The ASR 9906 chassis, supported exclusively by RSP880-LT, benefits from 230 Gbps fabric capacity per RSP, ensuring exceptional scale, service flexibility, and high availability for video, cloud, and mobile services.

System Architecture and Performance

The integrated switch fabric architecture features a distributed, multistage low-latency nonblocking design with service intelligence and traffic prioritization. It provides superior network-timing capabilities, including Centralized Building Integrated Timing Supply (BITS), Precision Time Protocol (PTP) or IEEE 1588-2008 via dedicated 10-Mbps or 100-Mbps Ethernet port, and Bidirectional Time of Day (ToD) with 10-MHz and 1-pps interfaces. This ensures reliable operation in the ASR 9906 environment with the RSP880-LT.

Route Switch Processor Variants for ASR 9906

  • RSP880-LT-TR: Packet Transport optimized, 16 GB DRAM, 4 cores at 2.4 GHz, two 128 GB SSDs.
  • RSP880-LT-SE: Service Edge optimized, 32 GB DRAM, 4 cores at 2.4 GHz, two 128 GB SSDs.

These processors offer higher memory for large-scale service deployments, backward compatibility with second-generation line cards, and support for mixing service-optimized and transport-optimized cards.

Key Features and Capabilities

  • Highly scalable fabric designed for high 1-, 10-, and 100-Gbps port densities with built-in investment protection.
  • Memoryless switch fabric for transparent nonblocking, low-latency packet forwarding.
  • Virtual output queuing and arbitration for service intelligence, traffic prioritization (unicast and multicast), and efficient congestion management avoiding head-of-line blocking.
  • Centralized arbiter with efficient credit mechanism for transparent switchover with zero packet loss.
  • IEEE 1588 support for efficient timing services over packet networks.
  • Two independent clock source connections: BITS/SSU and DTI for redundant centralized synchronization.
  • Solid-State Drives (SSDs) for core dumps storage, reducing Mean Time To Repair (MTTR).
  • Embedded eUSB and front-panel USB 2.0 for software image storage, upgrades, and recovery.
  • Front-panel LEDs for status (active/standby), power, SSD activity.
  • Management ports: console, auxiliary, two 100/1000BASE-T Ethernet.

Software and Services Support

Powered by Cisco IOS XR Software with true modularity, protected memory processes, distributed route processing, Software Maintenance Updates (SMU), and Field-Programmable Device (FPD) upgrades without service interruption. Supports L2VPN, L3VPN, IPTV, CDNs, mobile backhaul, MPLS TE-FRR, MC-LAG, NSF/NSR, PTPv2, GPS, SyncE, and more. Multiservice Edge (MSE) and Ethernet MSE (E-MSE) for enterprise VPNs with high scale in VRFs, routes, BFD, BGP.

Compatibility

Optimized for ASR 9906 chassis with RSP880-LT. Supports extensive 5th, 3rd, and 2nd generation line cards including A9K-8HG-FLEX series, A99-12X100GE, A9K-8X100GE, A99-48X10GE-1G, A9K-MOD400, and more for 400G, 100G, 10G densities.

High Availability and Redundancy

No single point of failure, 1+1 RSP redundancy (same type), software redundancy. Timing synchronization via PTPv2, GPS, DTI, BITS on RSP, SyncE on line cards.

Specifications

Features and Benefits
Highly scalable fabricDesigned to support high 1-, 10-, and 100-Gbps port densities. Provides built-in scalability for investment protection
Fabric capacity880 GB non redundant (ASR9904, ASR9010 and ASR9006); 440 GB redundant (ASR9904, ASR9010 and ASR9006); 230Gbps per RSP on ASR9910 and ASR9906
Distributed forwarding-plane architectureAllows line cards to support independent forwarding for enhanced performance and scale
Memoryless switch fabricProvides transparent nonblocking, low-latency packet forwarding
Virtual output queuing and arbitrationOffers service intelligence with prioritization of traffic (unicast and multicast). Provides efficient congestion-management mechanism and avoids problems related to head-of-line blocking
Centralized arbiterUses an efficient credit mechanism to help ensure transparent switchover with zero packet loss
IEEE 1588 supportDelivers timing services over the packet network efficiently and reliably
Two independent clock source connections: BITS and Synchronization Supply Unit (SSU), DTIOffers redundant, centralized network synchronization support
Solid-State Drives (SSDs)RSP880 provides two 32GB SSD’s while RSP880-LT offers two 128GB SSD which allows storing of core dumps and helps reduce the system Mean Time To Repair (MTTR)
Embedded Universal Series Bus (eUSB) memory portProvides access to onboard Universal Serial Bus (USB) flash-memory devices for software image storing and upgrades
Front-panel external USB 2.0 portProvides access to USB flash-memory devices for quick software image loading and recovery
Front-panel LEDsProvides visual indication of route switch processor status (active or standby), power management, and activity on SSD
Management portsProvides easy access to system console
ProcessorRSP880 has 8 cores, 1.9 GHz while RSP880-LT has 4 cores, 2.4Ghz
Hardware Products
A9K-RSP880-TRASR 9000 Route Switch Processor 880 for Packet Transport 16G
A9K-RSP880-SEASR 9000 Route Switch Processor 880 for Service Edge 32G
A9K-RSP880-LT-TRASR 9000 Route Switch Processor 880-LT for Packet Transport 16G
A9K-RSP880-LT-SEASR 9000 Route Switch Processor 880-LT for Service Edge 32G
Technical Specifications - Internal Memory
ControlControl of up to seven Cisco ASR 9000 Series switch fabric cards with RSP880-LT
ASR 9000 RSP 880 for Packet Transport 16G (A9K-RSP880-TR, A9K-RSP880-LT-TR)16-GB Error-Correcting Code (ECC)-protected DRAM
ASR 9000 RSP 880 for Service Edge 32G (A9K-RSP880-SE, A9K-RSP880-LT-SE)32-GB ECC-protected DRAM
Solid-state diskRSP 880 - Two 32-GB SSDs, RSP880-LT – Two 128GB SSD
Embedded USB8-GB embedded USB
USBUSB 2.0 Type A receptacle
Technical Specifications - Timing System
TimingTwo independent clock source connections
IEEE 1588 supportCopper 10-Mbps and 100-Mbps RJ-45 Ethernet port
GPSToD (RS-422 and RS-232); 1-pps RS-422 or 1.0/2.3 50-ohm RF connector; 10-MHz in/out 1.0/2.3 50-ohm RF connector
Technical Specifications - Management
LAN management portsTwo 100/1000BASE-T (RJ-45) LAN management ports
Console portOne console port
Auxiliary portOne auxiliary port
Technical Specifications - Alarms and LEDs
Alarm outputsCritical alarm (CR), major alarm (MJ), and minor alarm (MN)
LEDsAmber Alarm Cutoff (ACO) and lamp test; System Synchronization Alarm (SYNC); GPS; Fabric-card fault indicator; SSD
Supported Chassis
ChassisASR 9904 Chassis; ASR 9006 Chassis; ASR 9010 Chassis; ASR 9910 Chassis (RSP880-LT and A99-RSP); ASR 9906 Chassis (RSP880-LT and A99-RSP)
Supported Route Switch Processors
Route switch processorsA9K-RSP880-TR; A9K-RSP880-SE; A9K-RSP880-LT-TR; A9K-RSP880-LT-SE
Supported Line Cards - 5th Generation
5th GenerationA9K-8HG-FLEX-FC; A9K-8HG-FLEX-SE; A9K-8HG-FLEX-TR; A99-4HG-FLEX-FC; A99-4HG-FLEX-SE; A99-4HG-FLEX-TR; A9K-4HG-FLEX-FC; A9K-4HG-FLEX-SE; A9K-4HG-FLEX-TR
Supported Line Cards - 3rd Generation
3rd GenerationA99-12X100GE-FC; A99-12X100GE; A99-12X100GE-CM; A99-8X100GE-FC; A99-8X100GE-SE; A99-8X100GE-TR; A99-8X100GE-CM; A9K-8X100GE-FC; A9K-8X100GE-SE; A9K-8X100GE-TR; A9K-8X100GE-CM; A9K-8X100G-LB-SE; A9K-8X100G-LB-TR; A9K-4X100GE-FC; A9K-4X100GE-SE; A9K-4X100GE-TR; A9K-400GE-LAN-FC; A9K-4X100GE; A99-48X10GE-1G-FC; A99-48X10GE-1G-SE; A99-48X10GE-1G-TR; A9K-48X10GE-1G-FC; A9K-48X10GE-1G-SE; A9K-48X10GE-1G-TR; A9K-48X10GE-1G-CM; A9K-24X10GE-1G-FC; A9K-24X10GE-1G-SE; A9K-24X10GE-1G-TR; A9K-24X10GE-1G-CM; A9K-MOD400-FC; A9K-MOD400-SE; A9K-MOD400-TR; A9K-MOD400-CM; A9K-MOD200-FC; A9K-MOD200-SE; A9K-MOD200-TR; A9K-400G-DWDM-TR
Supported Line Cards - 2nd Generation
2nd GenerationA9K-2X100GE-SE; A9K-2X100GE-TR; A9K-1X100GE-SE; A9K-1X100GE-TR; A9K-36X10GE-SE; A9K-36X10GE-TR; A9K-24X10GE-SE; A9K-24X10GE-TR; A9K-4T16GE-SE; A9K-4T16GE-TR; A9K-40GE-SE; A9K-40GE-TR; A9K-MOD160-SE; A9K-MOD160-TR; A9K-MOD80-SE; A9K-MOD80-TR; A9K-4T16GE-SE; A9K-4T16GE-TR; A9K-40GE-SE; A9K-40GE-TR; A9K-VSM-500; A9K-SIP-700
Redundancy
Redundancy featuresNo single point of failure; 1 + 1 route switch processor redundancy (both route switch processors must be of the same kind); Software redundancy
Physical Specifications
Slot occupancyEach route switch processor occupies 1 slot; a redundant route switch processor configuration occupies 2 slots
Height1.81 in. (4.60 cm)
Width16.87 in. (42.85 cm)
Depth24.74 in. (62.89 cm)
Weight17.8 lb (8.07 kg)
Environmental Conditions
Operating temperature32 to 104°F (0 to 40°C)
Storage temperature-40 to 167°F (-40 to 70°C)
Relative humidity10 to 85%, noncondensing
Operating temperature (short-term)23 to 131°F (-5 to 55°C). Short-term refers to a period of not more than 96 consecutive hours and a total of not more than 15 days in 1 year (a total of 360 hours in any given year, but no more than 15 occurrences during that 1-year period)
Operating humidity (nominal) (relative humidity)10 to 85%
Operating humidity (short-term)5 to 90%. Not to exceed 0.024 kg water or dry air
Storage temperature-40 to 158°F (-40 to 70°C)
Storage (relative humidity)5 to 95%. Not to exceed 0.024 kg water or dry air
Operating altitude-60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)
Compliance - NEBS
Network Equipment Building Standards (NEBS)SR-3580: NEBS Criteria Levels (Level 3); GR-1089-CORE: NEBS Electromagnetic Compatibility (EMC) and Safety; GR-63-CORE: NEBS Physical Protection; VZ.TPR.9205: Verizon TEEER
Compliance - ETSI Standards
ETSI standardsEN300 386: Telecommunications Network Equipment (EMC); ETSI 300 019 Storage Class 1.1; ETSI 300 019 Transportation Class 2.3; ETSI 300 019 Stationary Use Class 3.1; EN55022: Information Technology Equipment (Emissions); EN55024: Information Technology Equipment (Immunity); EN50082-1/EN-61000-6-1: Generic Immunity Standard
Compliance - EMC Standards
EMC standardsFCC Class A; ICES 003 Class A; AS/NZS 3548 Class A; CISPR 22 (EN55022) Class A; VCCI Class A; BSMI Class A; IEC/EN 61000-3-2: Power Line Harmonics; IEC/EN 61000-3-3: Voltage Fluctuations and Flicker; EN 50121-4: Railway EMC
Compliance - Immunity
ImmunityIEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air); IEC/EN-61000-4-3: Radiated Immunity (10V/m); IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal); IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM); IEC/EN-61000-4-5: Signal Ports (1kV); IEC/EN-61000-4-5: Surge DC Port (1kV); IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms); IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m); IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations; EN 50121-4: Railway EMC
Compliance - Safety
SafetyUL/CSA/IEC/EN 60950-1; IEC/EN 60825 Laser Safety; ACA TS001; AS/NZS 60950; FDA: Code of Federal Regulations Laser Safety
Ordering Information
ASR 9000 Route Switch Processor 880 for packet transport (Cisco IOS XR Software Release 5.3.0 and later)A9K-RSP880-TR
ASR 9000 Route Switch Processor 880 for packet transport, spare (Cisco IOS XR Software Release 5.3.0 and later)A9K-RSP880-TR=
ASR 9000 Route Switch Processor 880 for service edge (Cisco IOS XR Software Release 5.3.0 and later)A9K-RSP880-SE
ASR 9000 Route Switch Processor 880 for service edge, spare (Cisco IOS-XR Software Release 5.3.0 and later)A9K-RSP880-SE=
ASR 9000 Route Switch Processor 880-LT for packet transport (Cisco IOS-XR Software Release 6.2.2 and later)A9K-RSP880-LT-TR
ASR 9000 Route Switch Processor 880-LT for packet transport, spare (Cisco IOS-XR Software Release 6.2.2 and later)A9K-RSP880-LT-TR=
ASR 9000 Route Switch Processor 880-LT for service edge (Cisco IOS-XR Software Release 6.2.2 and later)A9K-RSP880-LT-SE
ASR9000 Route Switch Processor 880-LT for service edge, spare (Cisco IOS-XR Software Release 6.2.2 and later)A9K-RSP880-LT-SE=
