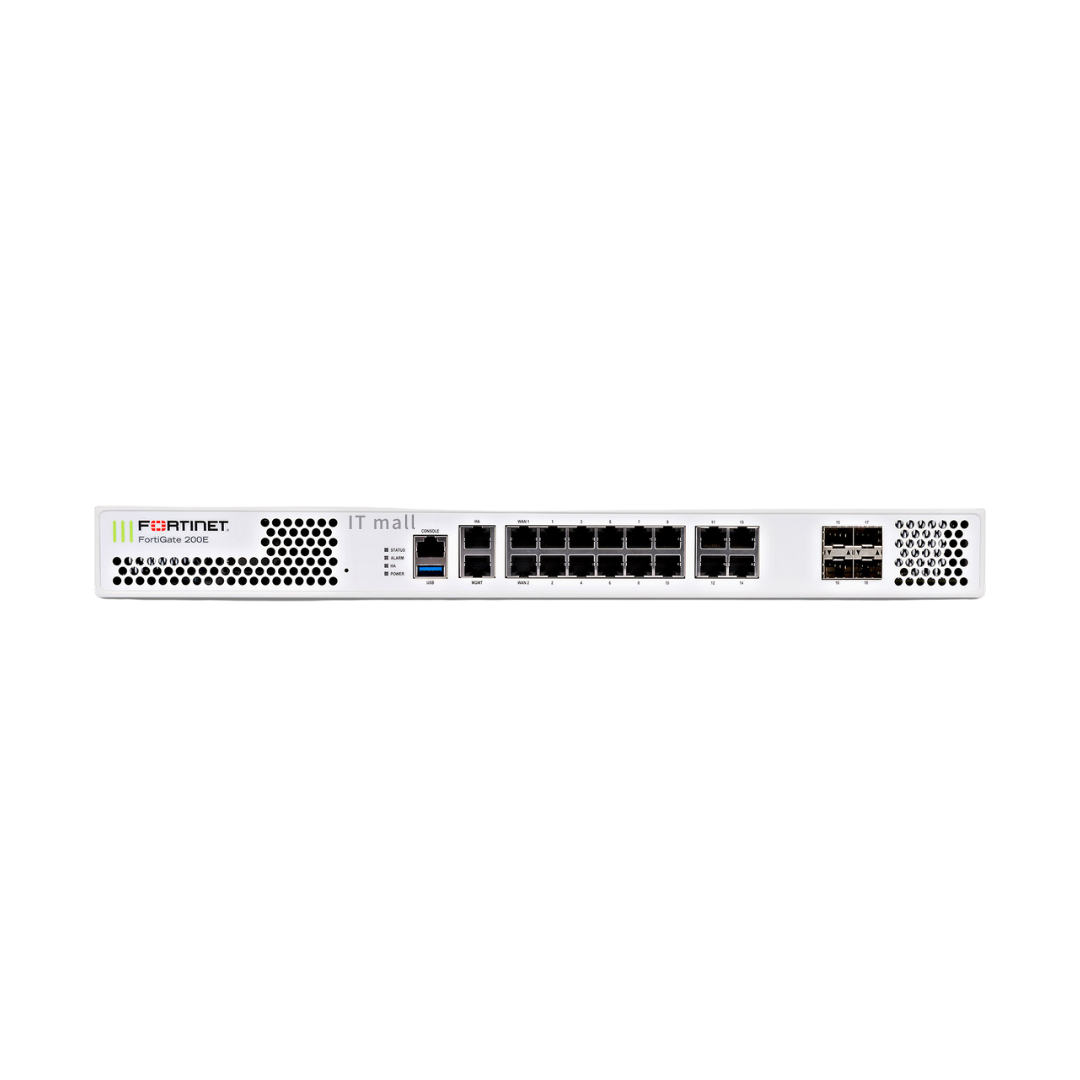

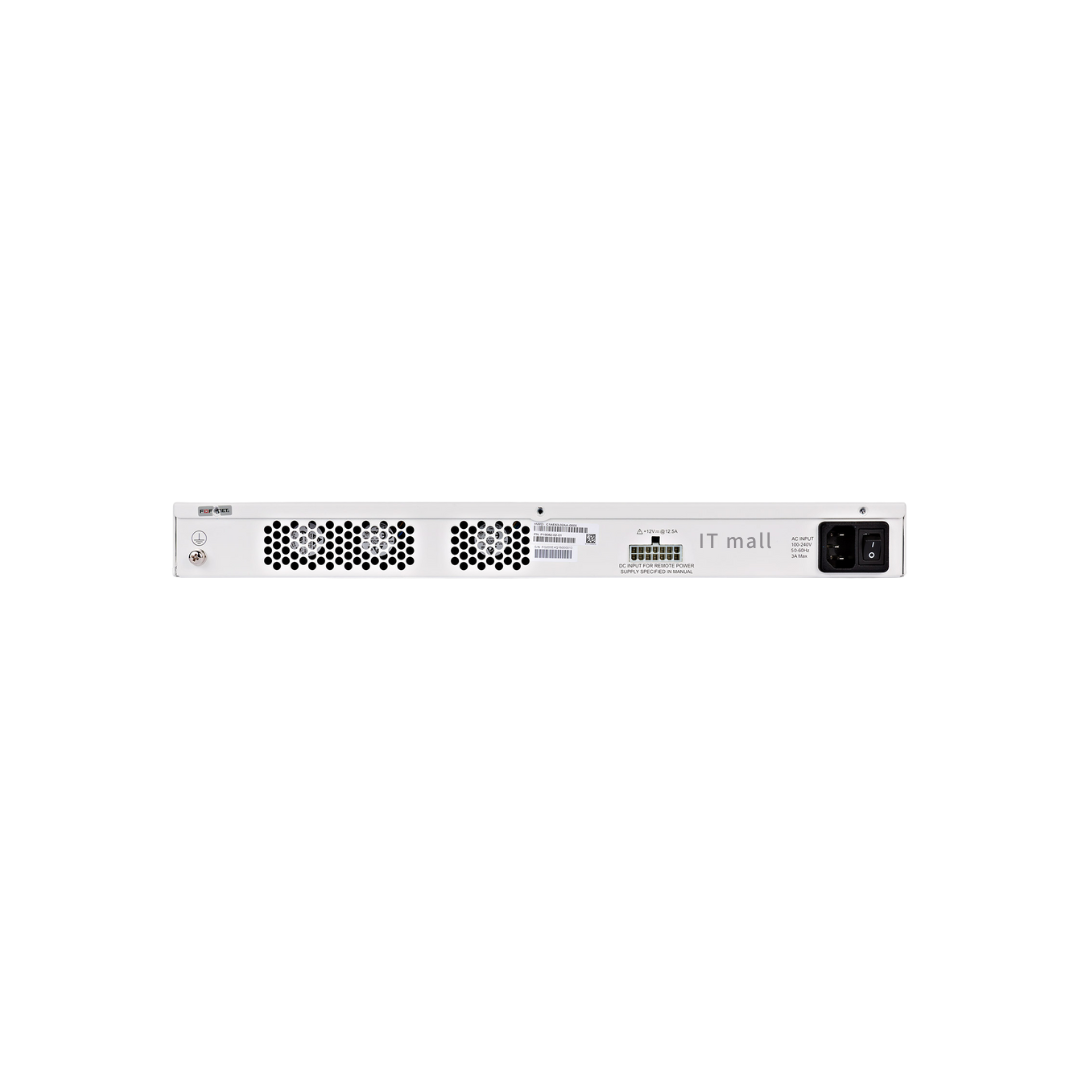

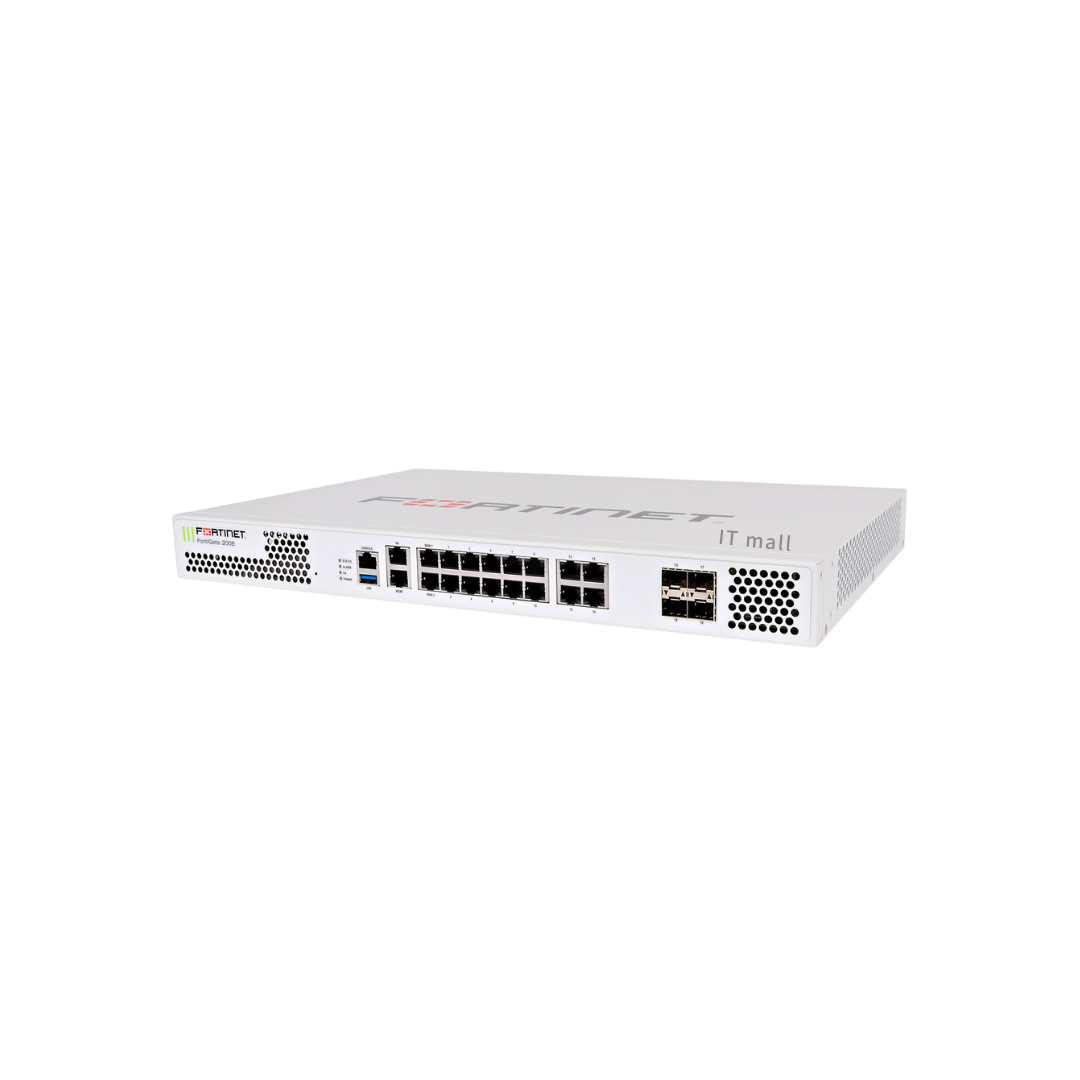

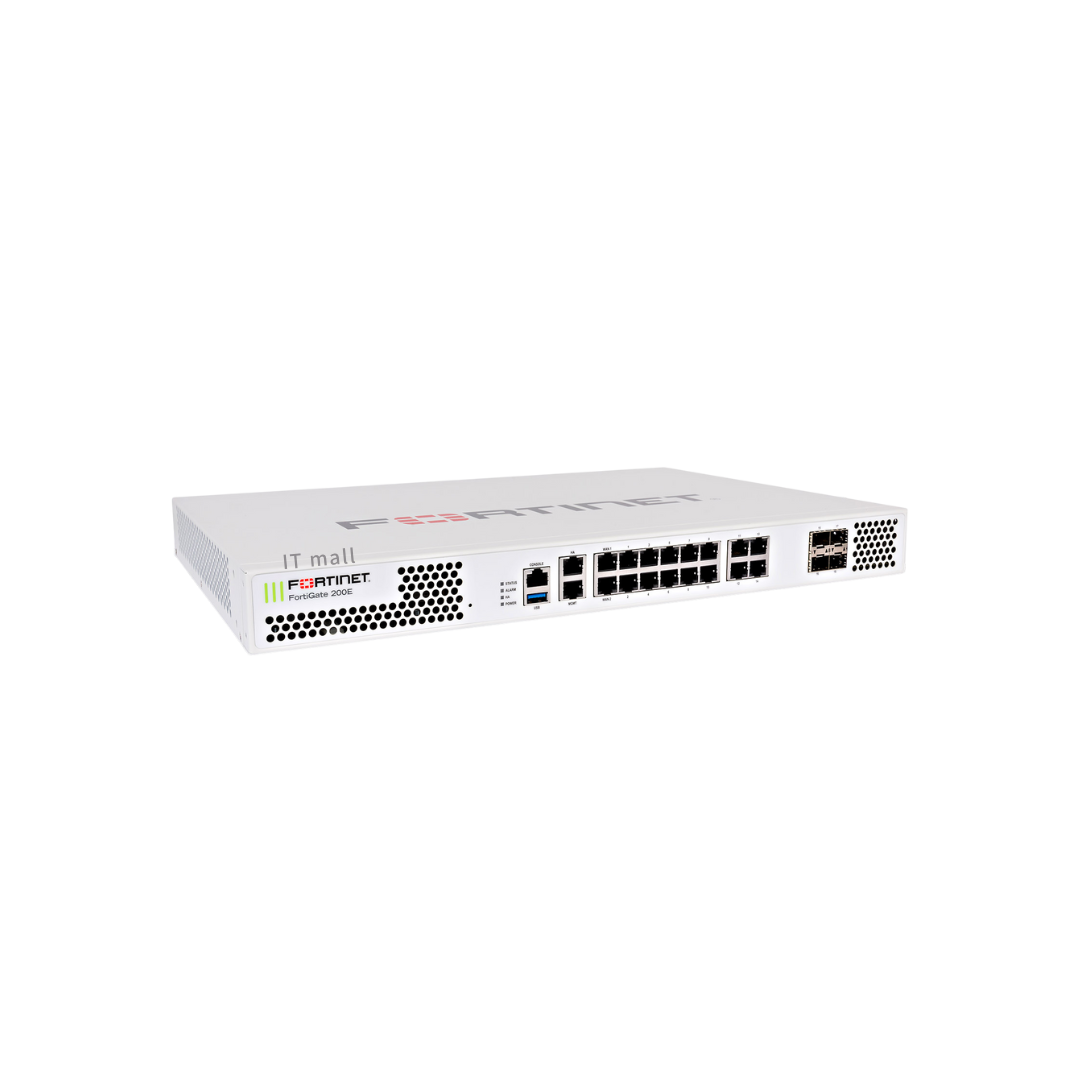

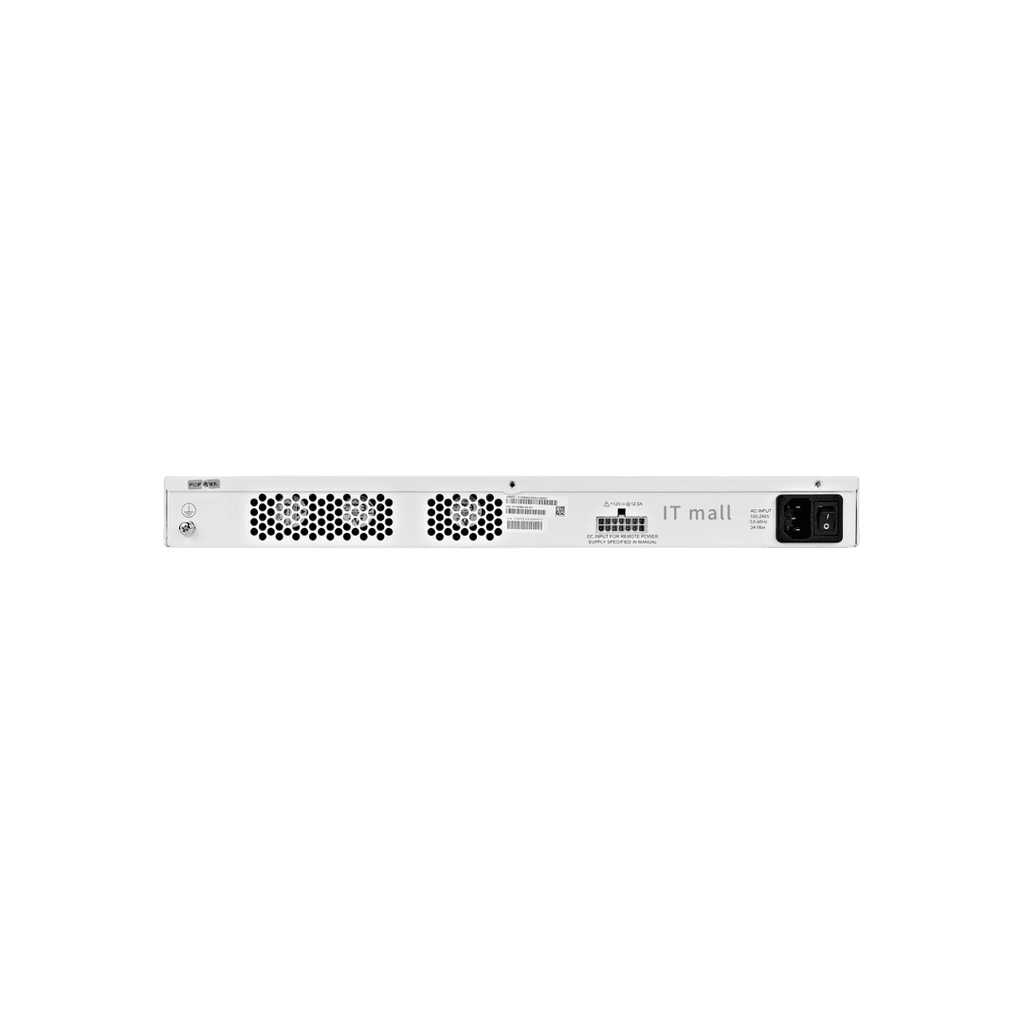

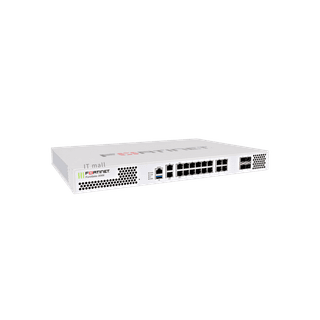

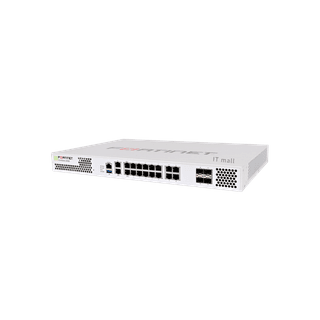

Hardware Firewall with 1-GbE-SFP for medium-sized and distributed enterprise
- For networks in the range of 50-250 users/devices
- 18x 1-GbE-RJ45, 4x 1-GbE-SFP
- 20.0 Gbps Firewall Throughput
- 1.2 Gbps Threat Protection Throughput
- Including 1 year FortiGuard Unified Threat Protection Bundle (UTP)
Condition: NOB
RMA Warranty
Description
FortiGuard Bundles
FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your Fortinet FortiGate 200E with one of these FortiGuard Bundles.
| Bundles | 360 Protection | Enterprise Protection | Unified Threat Protection | Threat Protection | |
|---|---|---|---|---|---|
| FortiCare | ASE1 | 24×7 | 24×7 | 24×7 | |
| FortiGuard App Control Service | √ | √ | √ | √ | |
| FortiGuard IPS Service | √ | √ | √ | √ | |
| FortiGuard Advanced Malware Protection | √ | √ | √ | √ | |
| FortiGuard Web Filtering Service | √ | √ | √ | ||
| FortiGuard Antispam Service | √ | √ | √ | ||
| FortiGuard Security Rating Service | √ | √ | |||
| FortiGuard Industrial Service | √ | √ | |||
| FortiCASB SaaS-only Service | √ | √ | |||
| FortiConverter Service | √ | ||||
| SD-WAN Cloud Assisted Monitoring2 | √ | ||||
| SD-WAN Overlay Controller VPN Service2 | √ | ||||
| FortiAnalyzer Cloud2 | √ | ||||
| FortiManager Cloud2 | √ |
Data Sheet
| General | |
|---|---|
| Manufacturer | Fortinet |
| GTIN-/EAN-Code | 842382109120 |
| In assortment since | 30.01.2017 |
| Licensing | |
| License package included | FortiGuard Unified Threat Protection Bundle (UTP) |
| License Package Features | FortiCare 24×7 Support FortiGuard App Control Service FortiGuard IPS Service FortiGuard Advanced Malware Protection FortiGuard Web Filtering Service FortiGuard Antispam Service |
| License Term | 1 year |
| Application Area | |
| Typical application area | medium-sized and distributed enterprise |
| Network Size Class | 50-250 users/devices |
| Interfaces | |
| 1-GbE-RJ45 Ports | 18x (including 2x WAN, 2x MGMT/HA) |
| 1-GbE-SFP Ports | 4x |
| Network | |
| Packets per second (Mpps) | 14 |
| Concurrent sessions | 2,000,000 |
| Concurrent Sessions (SSL) | 240,000 |
| New Sessions per second | 135,000 |
| Network latency | 3µs |
| Maximum supported switches (external) | 24 |
| Firewall | |
| Firewall Throughput | 20.0 Gbps |
| Firewall Throughput (IMIX) | 9.0 Gbps |
| Threat Protection Throughput | 1.2 Gbps |
| IPS Throughput | 2.2 Gbps |
| Application Control Throughput | 3.5 Gbps |
| SSL Inspection Throughput | 820 Mbps |
| VPN | |
| IPSec VPN Throughput | 7.2 Gbps |
| SSL VPN throughput | 900 Mbps |
| Site-2-Site IPSec VPN Tunnels | 2,000 |
| Client VPN Tunnels | 10,500 (10.000 IPSec (max.), 500 concurrent SSL VPN users) |
| SSL VPN Client Licenses included | Unlimited |
| IPSec VPN Client Licenses included | Unlimited |
| Wireless | |
| Maximum supported Access Points | 128 (64 in FortiAP Tunnel Mode) |
| Dimensions | |
| Form Factor | 19-inch rack mount (1U) |
| Dimensions (WxDxH) | 432mm x 301mm x 44.5mm |
| Weight | 5.40 kg |
| Power Supply | |
| Power Supply | Internal Power Supply Unit |
| Number of Power Supply Units included / maximum | 1 / 2 |
