HPE Alletra Storage Server 4120 48SFF Configure-to-order System
Condition: NOB
RMA Warranty
Description
Overview
Are you looking for a server-based data infrastructure that delivers the optimal balance of performance and affordability to enable data-driven initiatives? Designed to run the widest range of data storage-intensive workloads, HPE Alletra Storage Server 4120 can help you succeed in your data-driven initiatives. From analytics data lakes and general purpose file and object software-defined storage to active archiving, converged data protection, and more, it delivers the features you need at the ideal economics, with trusted security and a cloud operating experience. This includes the option to consume it as a service through HPE GreenLake, enabling you to shift from owning and maintaining it to simply using it. HPE Alletra Storage Server 4000 systems provide the data infrastructure for any successful data-driven organisation.

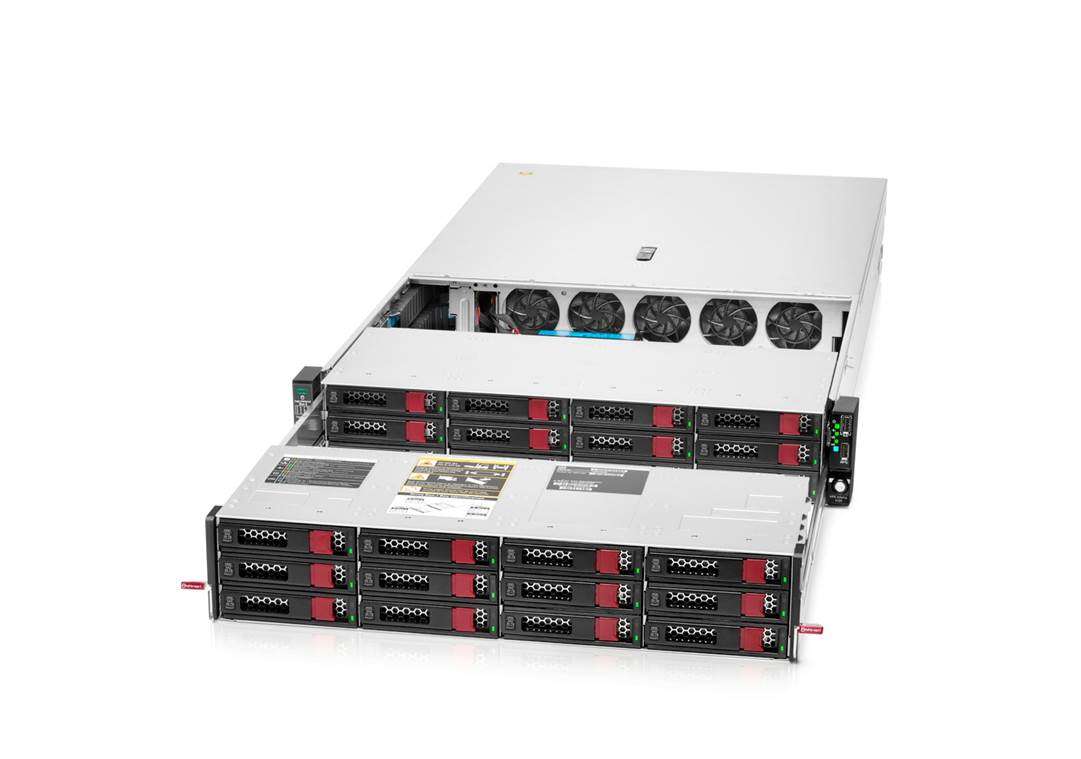

HPE Alletra Storage Server 4120 (24LFF SKU shown)

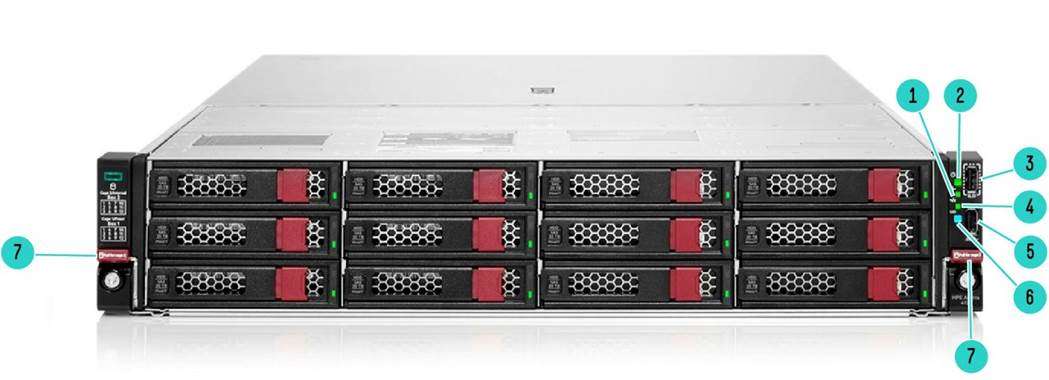

HPE Alletra Storage Server 4120 Configure-to-order System Front View (24LFF SKU shown)
| 1. | Health LED | 5. | USB 3.0 port | ||
| 2. | Power On/Standby button and
system power LED |
6. | UID button/LED | ||
| 3. | iLO Service Port | 7. | Drive cage 1 release latches | ||
| 4. | NIC status LED | ||||
HPE Alletra Storage Server 4120 Configure-to-order System Internal View
| 1. | Drive Cage 1 | 10. | Primary riser connector |
| 2. | Drive Cage 2 | 11. | VBU connector (OCP1) |
| 3. | Up to 2 processors (2 processors installed with standard heat sink shown) | 12. | OCP1 connector |
| 4. | DDR5 DIMM slots (Fully populated 24 DIMMs shown) | 13. | PCIe Gen3 connector |
| 5. | Secondary riser connector | 14. | MCIO connectors |
| 6. | System maintenance switch | 15. | System battery |
| 7. | OCP2 connectors | 16. | MCIO 1A connector |
| 8. | Serial port connector | 17. | System fans |
| 9. | Internal USB connector |
HPE Alletra Storage Server 4120 Configure-to-order System Rear View
| 1. | Primary riser or drive cage 4 (riser shown) | 7. | OCP NIC 3.0 slot 2 | |
| 2. | Secondary riser or drive cage 5 (riser shown) | 8. | Serial port (optional) | |
| 3. | Tertiary riser | 9. | iLO management port | |
| 4. | Power supply LED (bay 1 & 2) | 10. | USB 3.0 ports | |
| 5. | Flex Slot power supply bay 1 & 2 | 11. | UID LED | |
| 6. | Video port | 12. | OCP NIC 3.0 slot 1 | |
Form Factor
- 2U rack
Chassis Types
- 24 LFF SAS 24Gb/SATA 6Gb
- 48 SFF SAS 24Gb/SATA 6Gb
System Fans
- 5 system dual-fan modules shipped as standard
| Dimensions
(Height x Width x Depth) |
87.5 x 448.0 x 812.80 mm
3.44 x 17.63 x 32.00 in |
| Weight (approximate) | |
| Minimum | 21.28 kg
46.91 lb |
| Maximum. | 42.84 kg
94.45 lb |
Configuration Information
| CTO Models | HPE Alletra Storage Server 4120 24LFF Configure-to-order System | HPE Alletra Storage Server 4120 48SFF Configure-to-order System |
| SKU Number | P46252-B21 | P46253-B21 |
| TAA SKU* | P46252-B21#GTA | P46253-B21#GTA |
| Processor | Not included as standard | |
| DIMM Slots | 24-DIMM slots | |
| Storage Controller | One or two SR 32-Port or two MR 16-port PCIe FIO Storage Controllers are required for the Cage 1 and Cage 2 drives and up to four per system for the upgrade drive cage(s). | Two SR 32-Port PCIe FIO Storage Controllers are required for the Cage 1 and Cage 2 drives and up to four per system for the upgrade drive cage |
| PCIe | Up to 8 PCIe slots | |
| Drive Cage – included | 24 LFF – SAS 24Gb/SATA 6Gb | 48 SFF – SAS 24Gb/SATA 6Gb |
| Network Controller | Choice of OCP or stand up cards
Notes: No embedded networking. |
|
| Fans | 5 dual-rotor fan modules | |
| Management | Default: HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download), HPE GreenLake for Compute Ops Management (subscription included) | |
| USB | Front: 1 USB 3.0 + iLO service port
Rear: 2 USB 3.0 Internal: 1 USB 3.0 |
|
| Form Factor | 2U Rack | |
| Warranty | 3-year parts, 3-year labor, 3-year onsite support with next business day response. | |
