High Performance

The all-flash storage system provides million-level input/output operations per second (IOPS) capabilities and ensures data consistency, and a stable low latency.

• State-of-the-art hardware acceleration

  The storage system is equipped with 64-bit multi-core processors, high-speed and large-capacity caches, various high-speed host interface modules, and back-end disk interface modules. It offers better storage performance than traditional storage systems.

• All HSSDs

  The storage system uses Huawei solid state disks (HSSDs). Its storage operating system is designed based on HSSDs, enabling performance of HSSDs to give into full play and remarkably accelerating the performance of the storage system.

  The storage system also supports Non-volatile Memory Express SSDs (NVMe SSDs) that have shorter read and write latency, greatly improving data transmission speed of the storage system.

• Full-stripe write

  The storage system uses redirect-on-write (ROW) for full-stripe write to reduce CPU usage and ensure optimal write performance.

Flexible Scalability

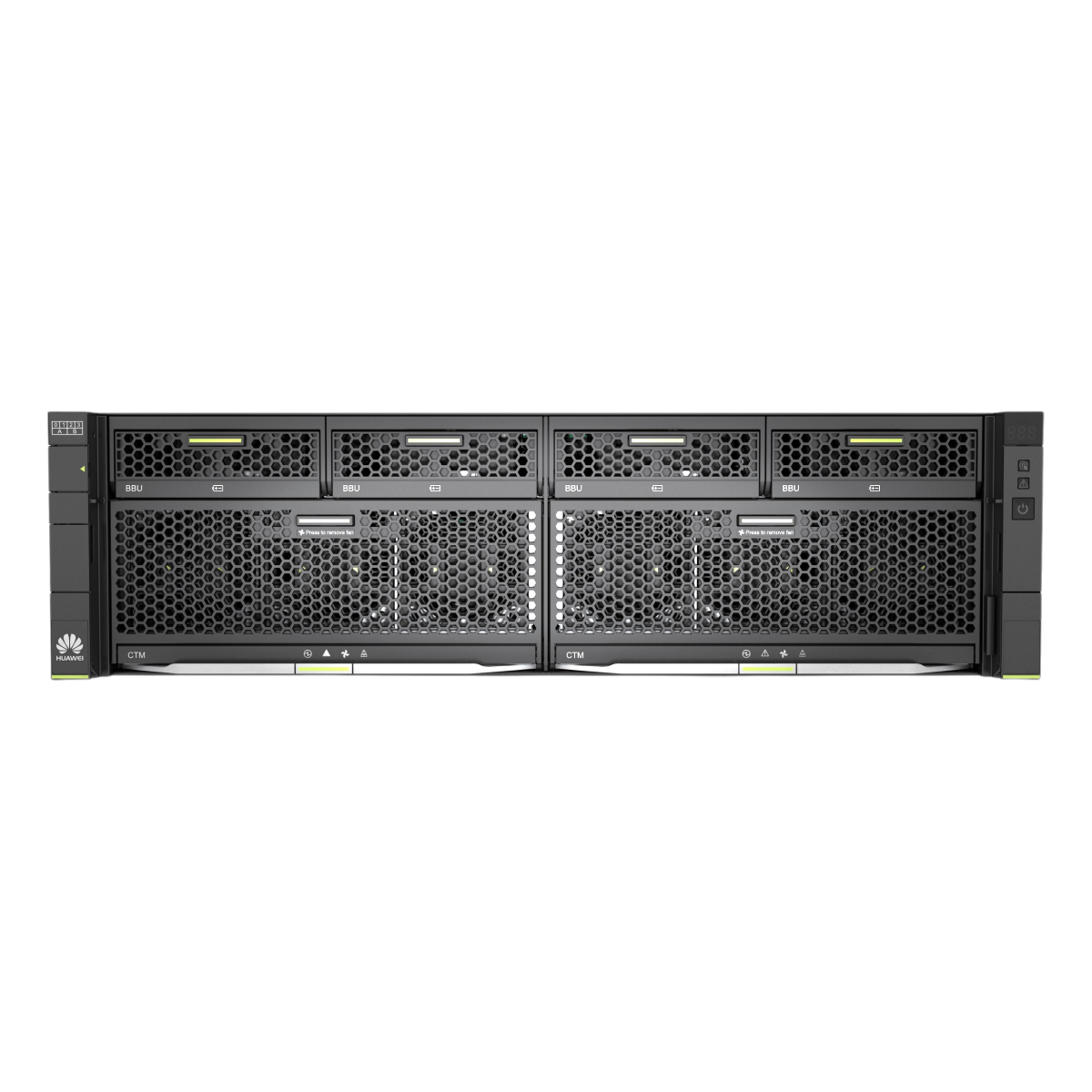

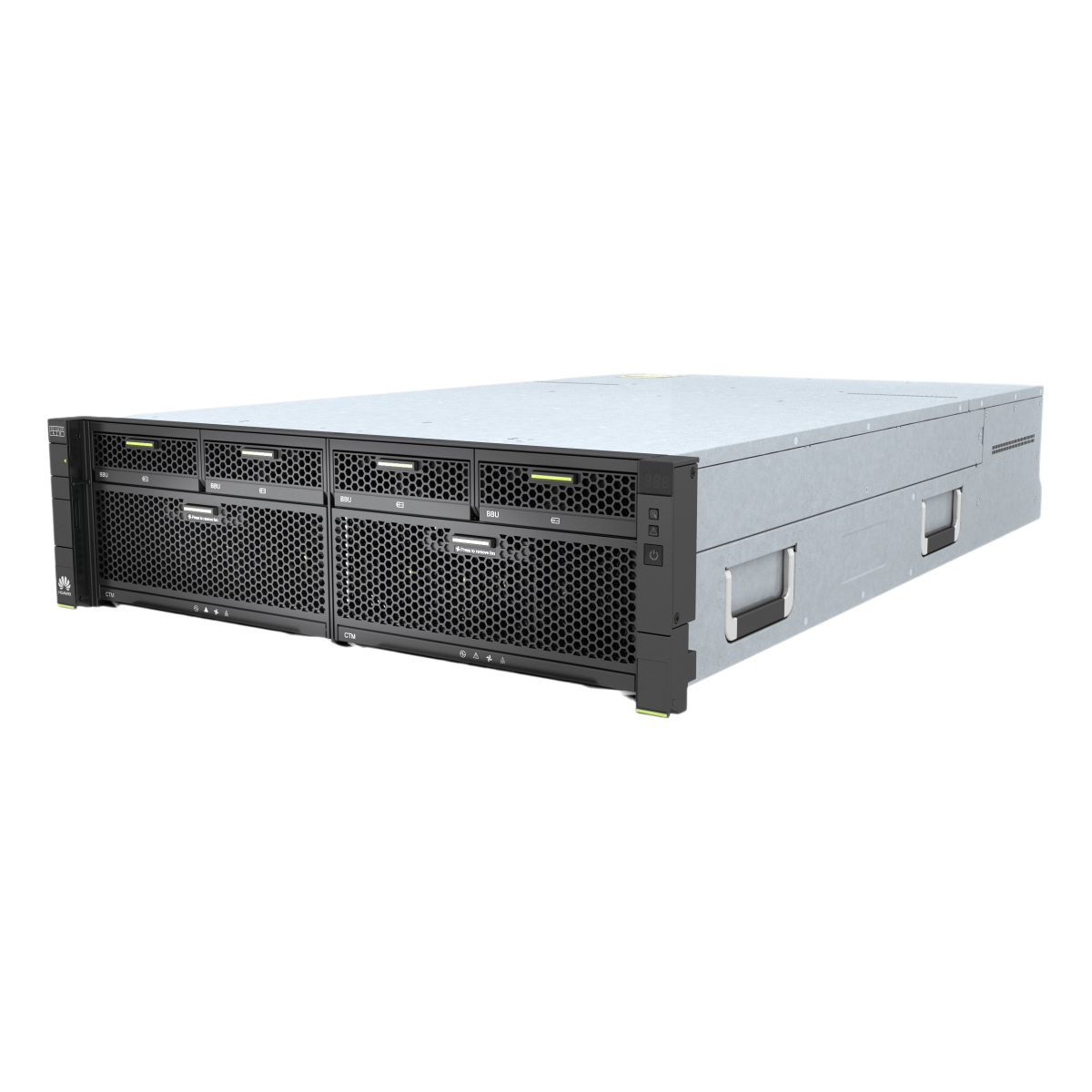

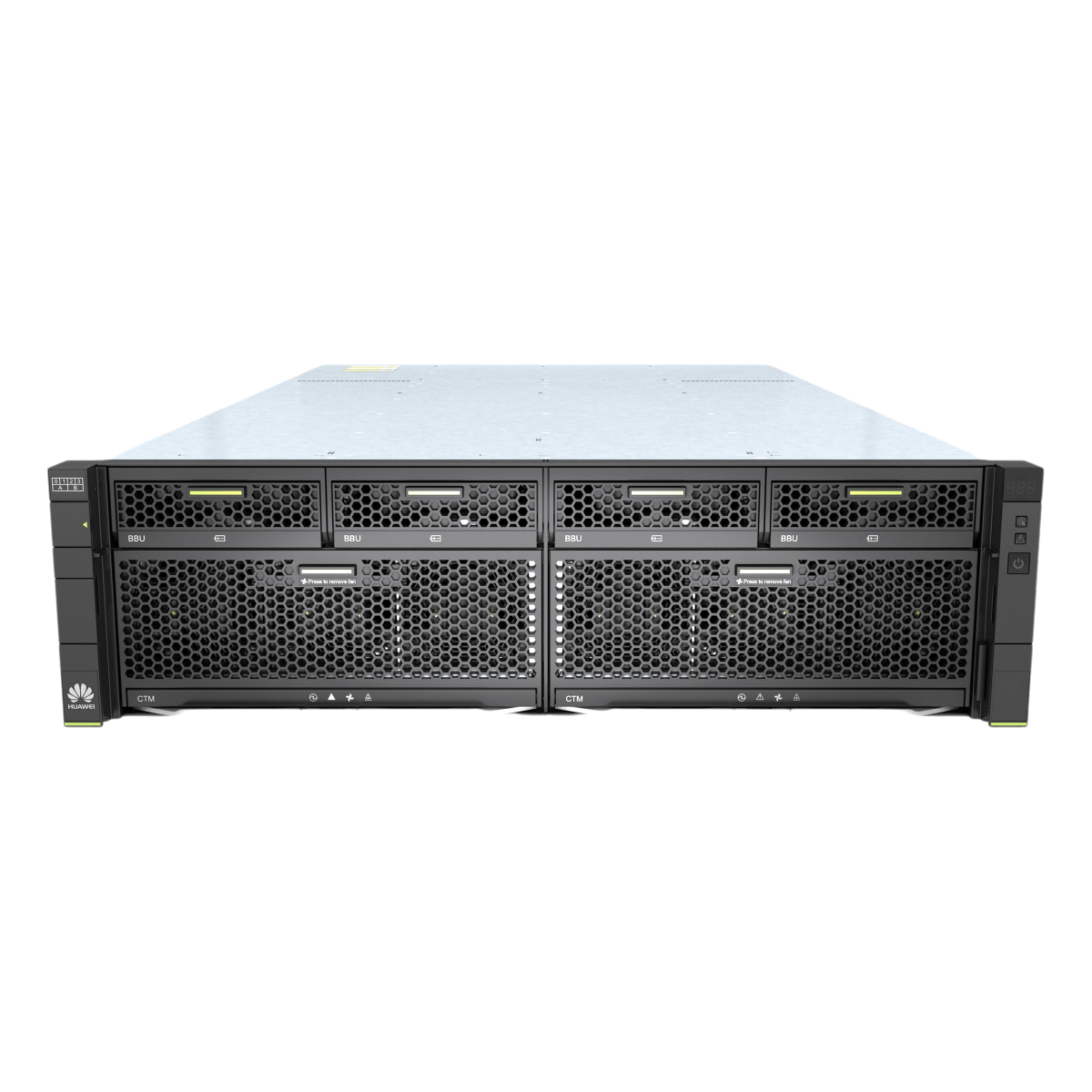

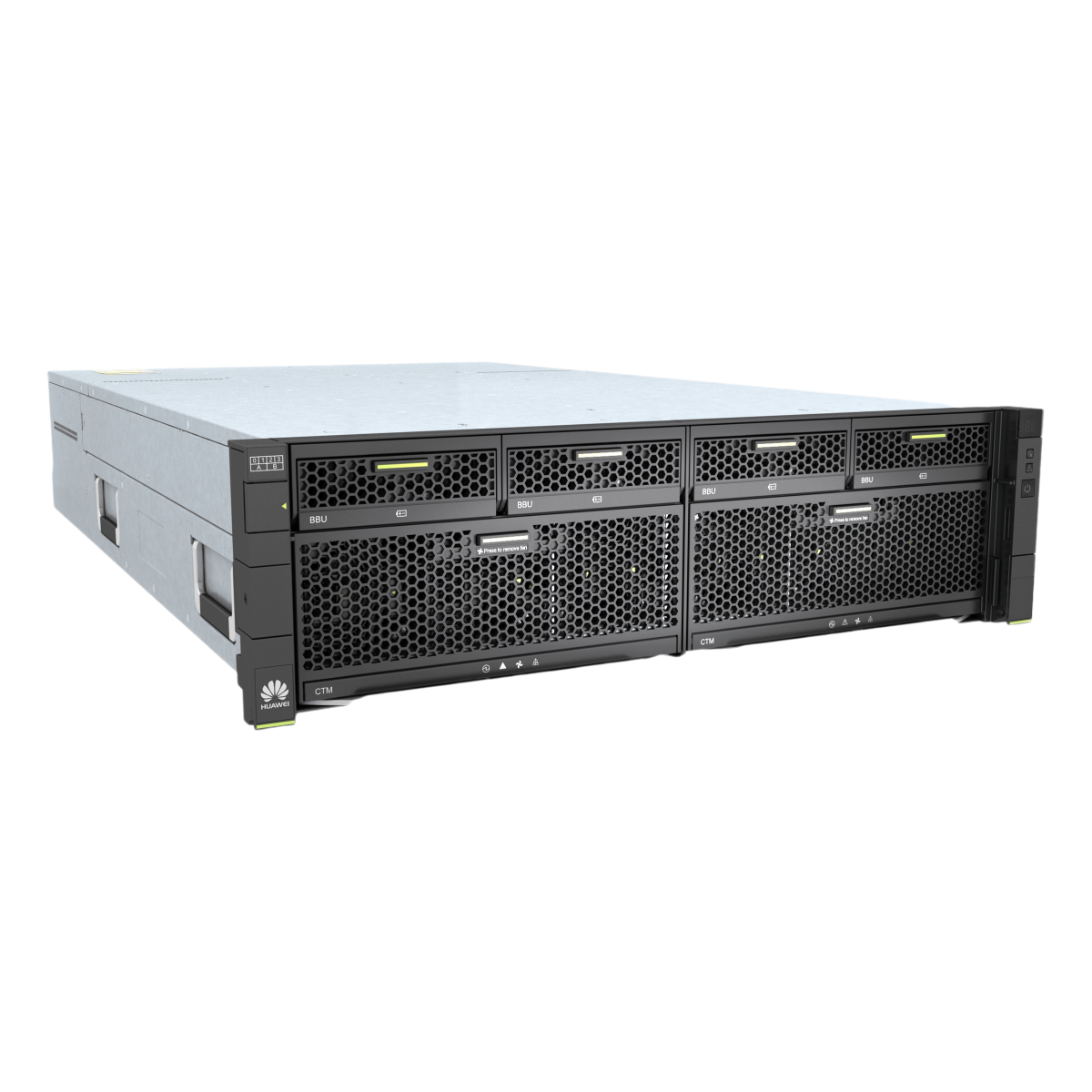

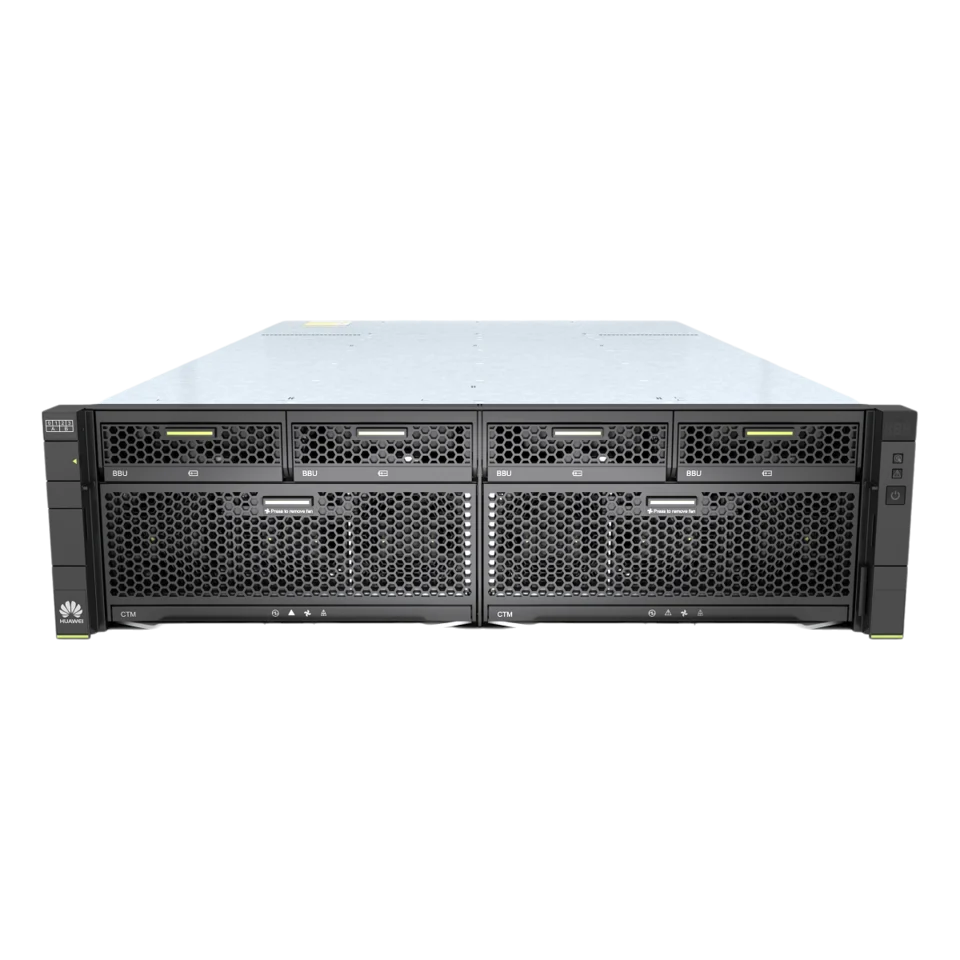

OceanStor Dorado3000 V3, Dorado5000 V3, and Dorado6000 V3 storage system supports both Scale-up and Scale-out, achieving flexible scalability while maintaining high performance.

• Scale-up

  Increases storage capacity and improves processing capabilities of existing controllers.

• Scale-out

  Enables performance to increase linearly as the number of controllers increases.

High Reliability

OceanStor Dorado3000 V3, Dorado5000 V3, and Dorado6000 V3 storage system offers advanced protection technologies to minimize risks of disk failures and data loss.

• Component failure protection

  Storage system components are in 1+1 redundancy and work in active-active mode. Normally, the two redundant components are working simultaneously and share loads. If one component fails or is offline, the other one takes over all loads without affecting ongoing services.

• RAID 2.0+

  The RAID 2.0+ underlying virtualization technology is used to automatically balance loads across disks. If a disk encounters a fault, all the other disks in the same disk domain help reconstruct the faulty disk’s service data, achieving a 20-fold faster reconstruction speed than traditional RAID and significantly reducing the possibility of multi-disk failure. RAID 2.0+ supports dynamic RAID and flexible data layout, accelerating SSD reconstruction.

• Power failure protection

  Built-in backup battery units (BBUs) supply power to controller enclosures in the event of unexpected power failures. BBUs enable cache data to be written to built-in disks of controllers to avoid data loss.

• Global wear leveling

  The wear degrees vary among SSDs. Some SSDs are damaged ahead of the normal period and the maintenance costs will increase. OceanStor Dorado3000 V3, Dorado5000 V3, and Dorado6000 V3 storage system adopts the global wear leveling technology to wear-level all SSDs evenly, extending the SSD lifespan.

• Global anti-wear leveling

  If the wear degree of an SSD reaches the threshold, OceanStor Dorado3000 V3, Dorado5000 V3, and Dorado6000 V3 storage system uses the global anti-wear leveling technology to wear SSD one by one. This technology prevents concurrent failures of multiple SSDs, thereby significantly improving reliability of the storage system.

• Disk data pre-copy

  The disk data pre-copy technology enables the storage system to routinely check hardware status and migrate data from any failing disk to minimize the risks of data loss.

High Availability (HA)

OceanStor Dorado3000 V3, Dorado5000 V3, and Dorado6000 V3 storage system employs the Turbo Module technology, online capacity expansion, and disk roaming to ensure hitless services during routine maintenance.

• The Turbo Module technology enables hot swap of controllers, fans, power supplies, interface modules, BBUs, and disk modules. All these modules can be operated online.
• Online capacity expansion allows you to add disks to disk domains online with ease.
• Disk roaming enables the storage system to automatically identify relocated disks and resume their services.

OceanStor Dorado3000 V3, Dorado5000 V3, and Dorado6000 V3 storage system provides multiple advanced data protection technologies to protect data against catastrophic disasters and ensure continuous system running. These include HyperSnap (snapshot), HyperReplication (remote replication), HyperClone (clone), HyperCopy, HyperCDP, and CloudBackup.

• HyperSnap supports writable snapshots. Snapshot creation and activation have no impact on performance.
• HyperReplication backs up local data onto a remote storage system for disaster recovery.
• HyperClone preserves a real-time physical copy of a source LUN for the high availability of local data.
• HyperCopy supports incremental synchronization and restoration, and allows data copy across engines, disk domains, and consistency groups, ensuring local data availability.
• HyperCDP achieves continuous data protection at an interval of several seconds, generating more intensive recovery points on storage devices.
• CloudBackup allows storage systems to back up data to the cloud without the backup server or gateway, ensuring data security.

OceanStor Dorado3000 V3, Dorado5000 V3, and Dorado6000 V3 storage system employs the following resource application technologies to provide flexible resource management to protect customers’ storage investments:

• SmartVirtualization enables a local storage system to centrally manage storage resources of third-party storage systems, simplifying storage system management and reducing maintenance costs.
• SmartMigration migrates LUNs in or between storage systems, adjusting and allocating resources along with business development.
• SmartQoS categorizes service data based on its characteristics (each category represents a type of application) and sets a priority and performance objective for each category. In this way, resources can be preferentially allocated to services with high priorities to guarantee their performance.

High System Security

• Storage network security
  • Management channel security

    All management operations from physical ports are controlled by the access authentication mechanism of the storage system, and only authorized users are allowed to manage the storage system.

  • Anti-attack protection for protocols and interfaces

    The storage system provides necessary external communication connections for system operations and maintenance. All the used ports including dynamic listening ports are listed in the Communication Matrix and no undisclosed ports exist.

  • Isolated service and management ports

    The Access Control List (ACL) mechanism is used to isolate Ethernet ports from internal heartbeat network ports, management network ports, and maintenance ports.

• Storage management security

  Management permissions are controlled by enabling or disabling users. All management operations are logged.

Virtualization, Intelligence, and Efficiency

OceanStor Dorado3000 V3, Dorado5000 V3, and Dorado6000 V3 storage system adopts the most advanced storage designs in terms of virtualization, intelligence, and efficiency. Compared with traditional storage systems, OceanStor Dorado5000 V3 and Dorado6000 V3 storage system uses the following technologies to provide higher storage space utilization, faster data reconstruction speed, smarter performance allocation technology, and finer service quality control:

• RAID 2.0+ underlying virtualization

  Divides disk storage space into small-sized data blocks and uses the blocks to create RAID groups for fine-grained resource management. This technology enables automatic load balancing, higher storage performance, better storage space utilization, faster disk reconstruction, and delicate storage space management, serving as a basis for a number of other advanced storage technologies.

• Intelligent thin provisioning (SmartThin)

  SmartThin allocates storage space on demand rather than pre-allocating all storage space at the initial stage. It is a cost-effective solution because customers can start business operations with minimal disks and add disks based on onsite requirements. In this way, the initial purchase cost and TCO are reduced.

• Deduplication and compression (SmartDedupe and SmartCompression)

  OceanStor Dorado3000 V3, Dorado5000 V3, and Dorado6000 V3 storage system uses global and inline SmartDedupe and SmartCompression to reduce the storage capacity occupied by data and times of I/Os on SSDs. The two technologies remarkably improve the storage space utilization, prolong the service life of SSDs, and reduce the investment costs as well as the O&M costs.

Cost-effectiveness and Ease-of-Use

OceanStor Dorado3000 V3, Dorado5000 V3, and Dorado6000 V3 storage system employs intelligent CPU frequency control, delicate fan speed control, SmartDedupe, and SmartCompression to drive down costs. It also provides a collection of management and maintenance tools to make operation and maintenance easy.

• Cost-effectiveness
  • Intelligent CPU frequency control

    Automatically changes the CPU frequency based on system loads. For example, it decreases the CPU frequency and power consumption during off-peak hours to ensure a low operation cost and long CPU service life.

  • Delicate fan speed control

    Dynamically adjusts the fan speed based on storage system temperature, lowering the noise and power consumption while saving device operation costs.

• Ease-of-use
  • DeviceManager

    A tool that is developed based on HTML5 and provides the graphical user interface (GUI) for storage management. It helps you easily manage storage systems through wizard-instructed operations.

  • Integrated management

    Supports VMware vCenter Plug-in and Hyper-V System Center for management. In addition, the storage system supports VMware vStorage APIs for Storage Awareness (VASA), vStorage APIs for Array Integration (VAAI), and Volume Shadow Copy Service (VSS) Provider to facilitate management.

  • Tablet management

    Supports flexible storage system management on a tablet.

  • Various alarm notification methods

    Supports alarm notification by sound, indicator, short message service (SMS), and email. Critical information is sent to users in a timely manner.

  • One-key upgrade tool

    Provides one-click online upgrade for controllers. This upgrade is easy and services remain online and operational during the upgrade process.

  • Cloud O&M (Call Home service)

    Huawei provides the Call Home service to connect the OceanStor Dorado3000 V3, Dorado5000 V3, and Dorado6000 V3 storage system to the eService cloud platform for centralized, remote, and intelligent O&M of the storage system. The Big Data analytics technology is used to prevent faults and locate faults quickly. In addition, it provides the optimal configuration, performance optimization suggestions, and troubleshooting solutions based on user service characteristics.
