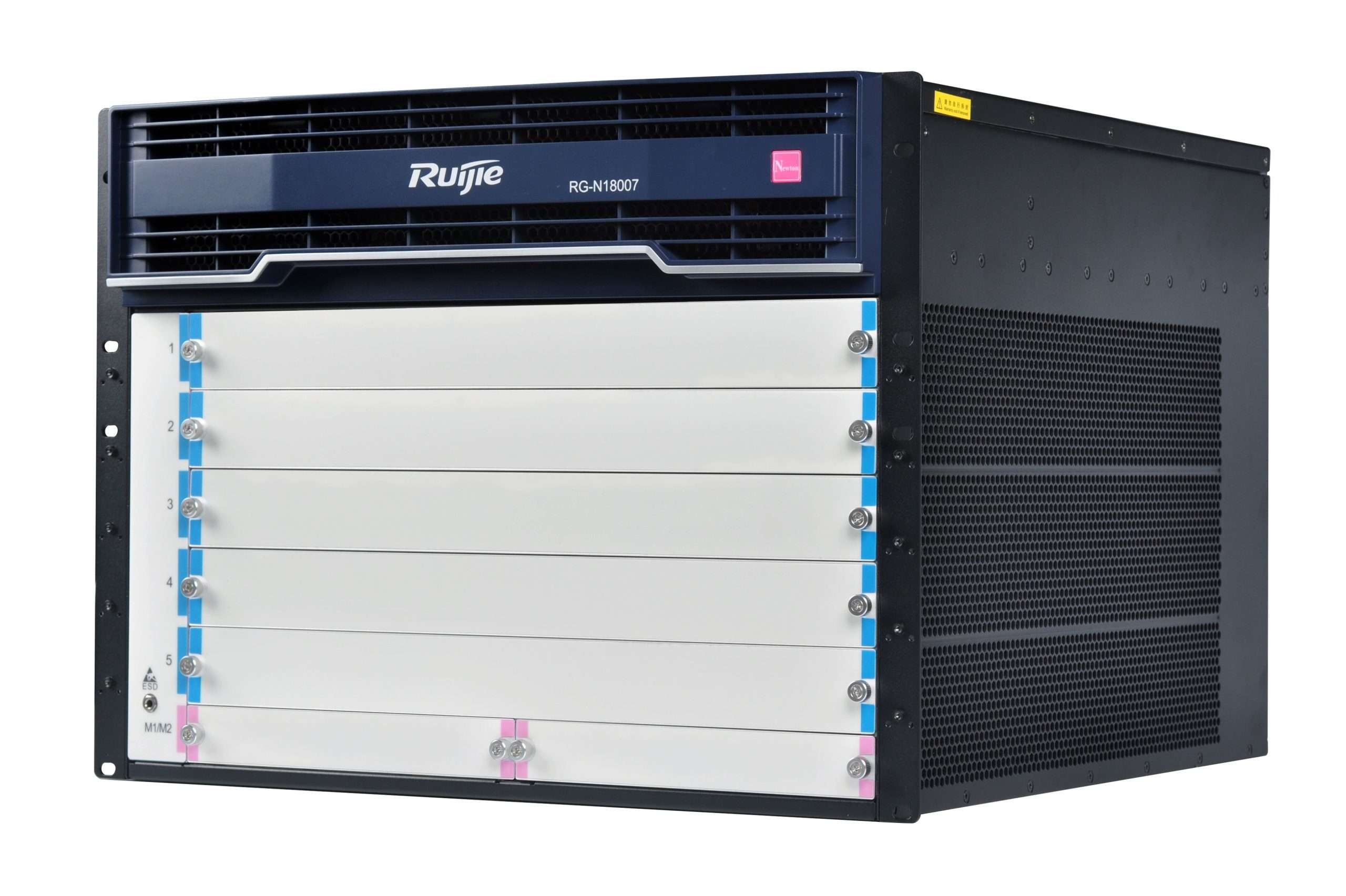

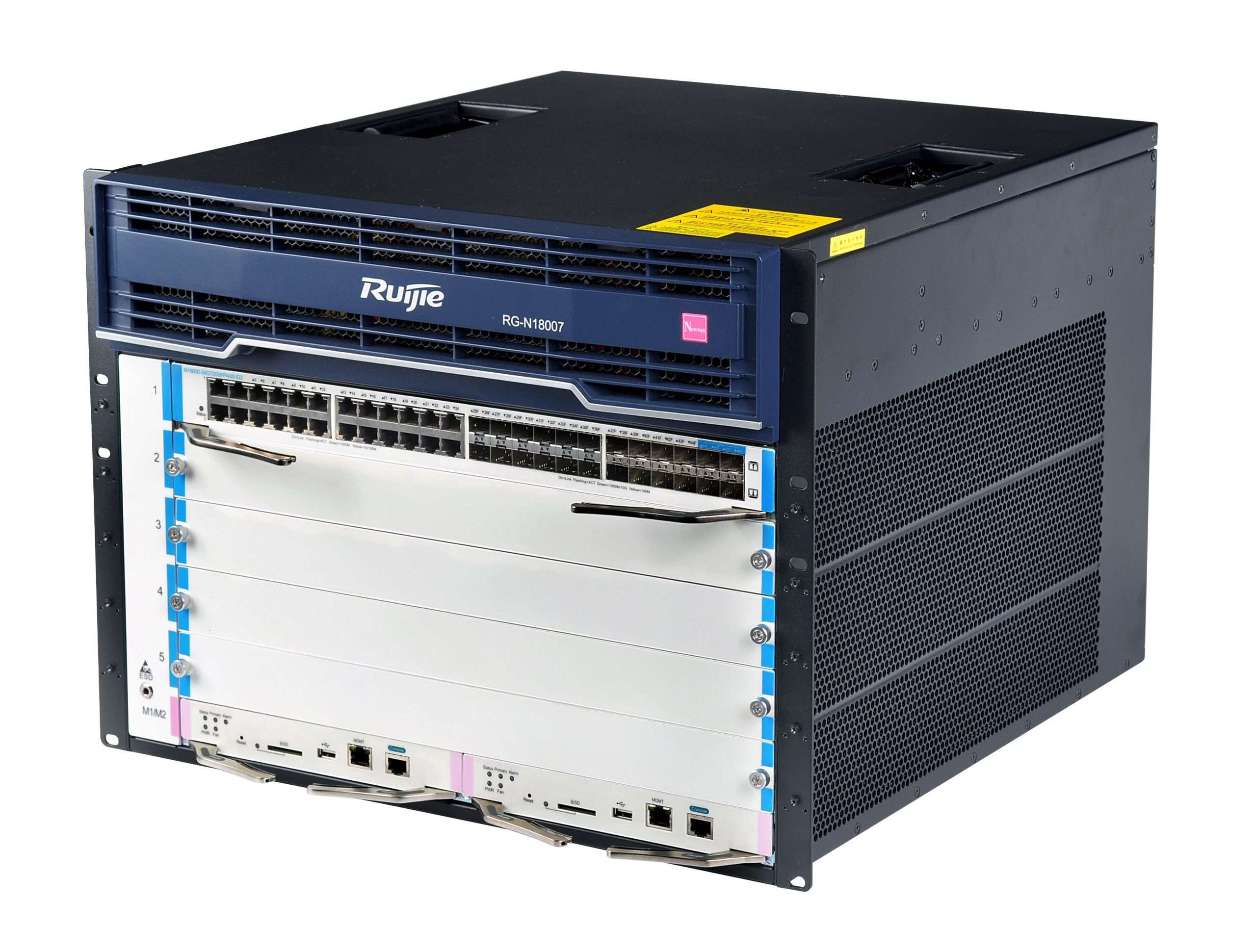

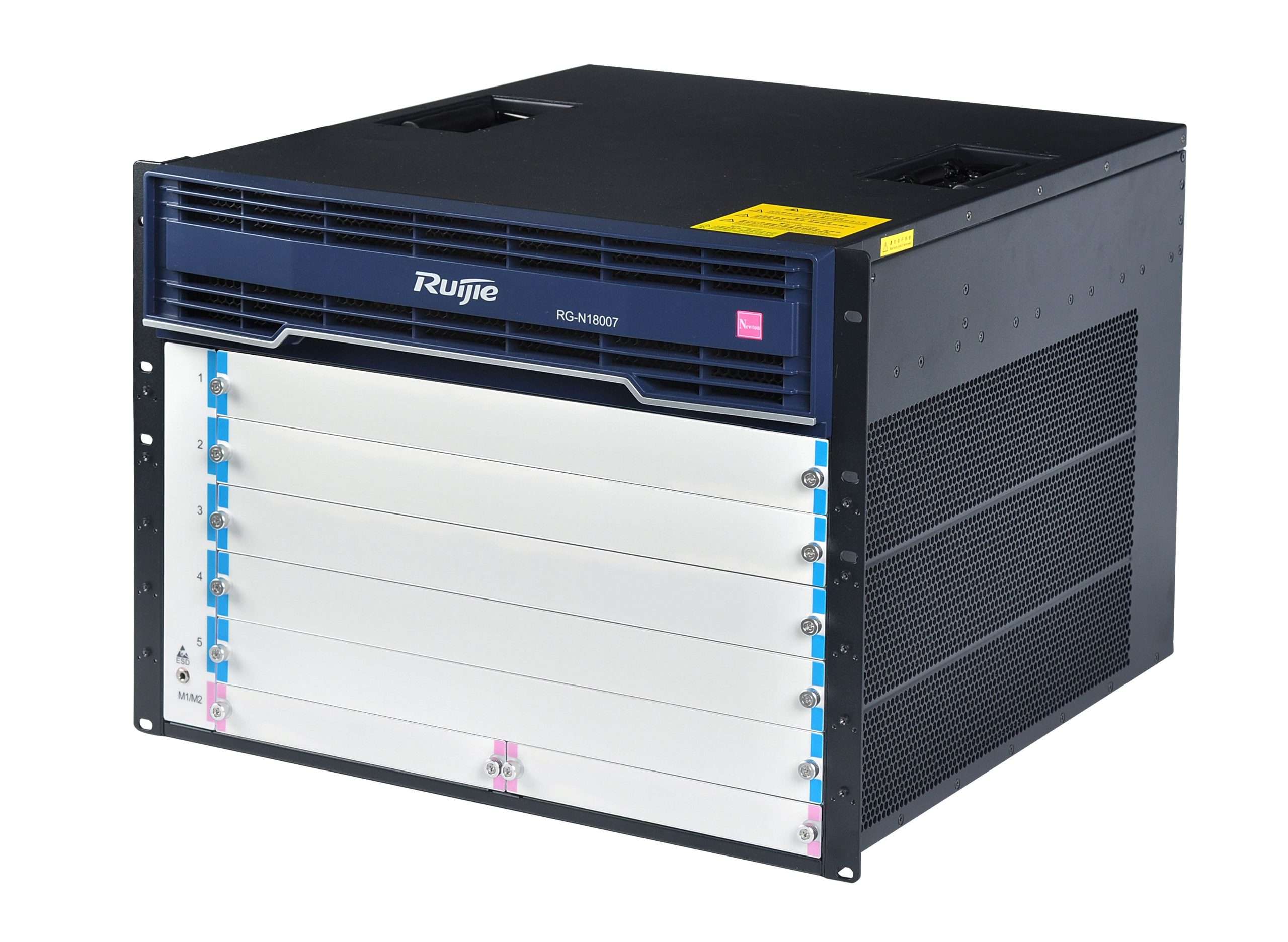

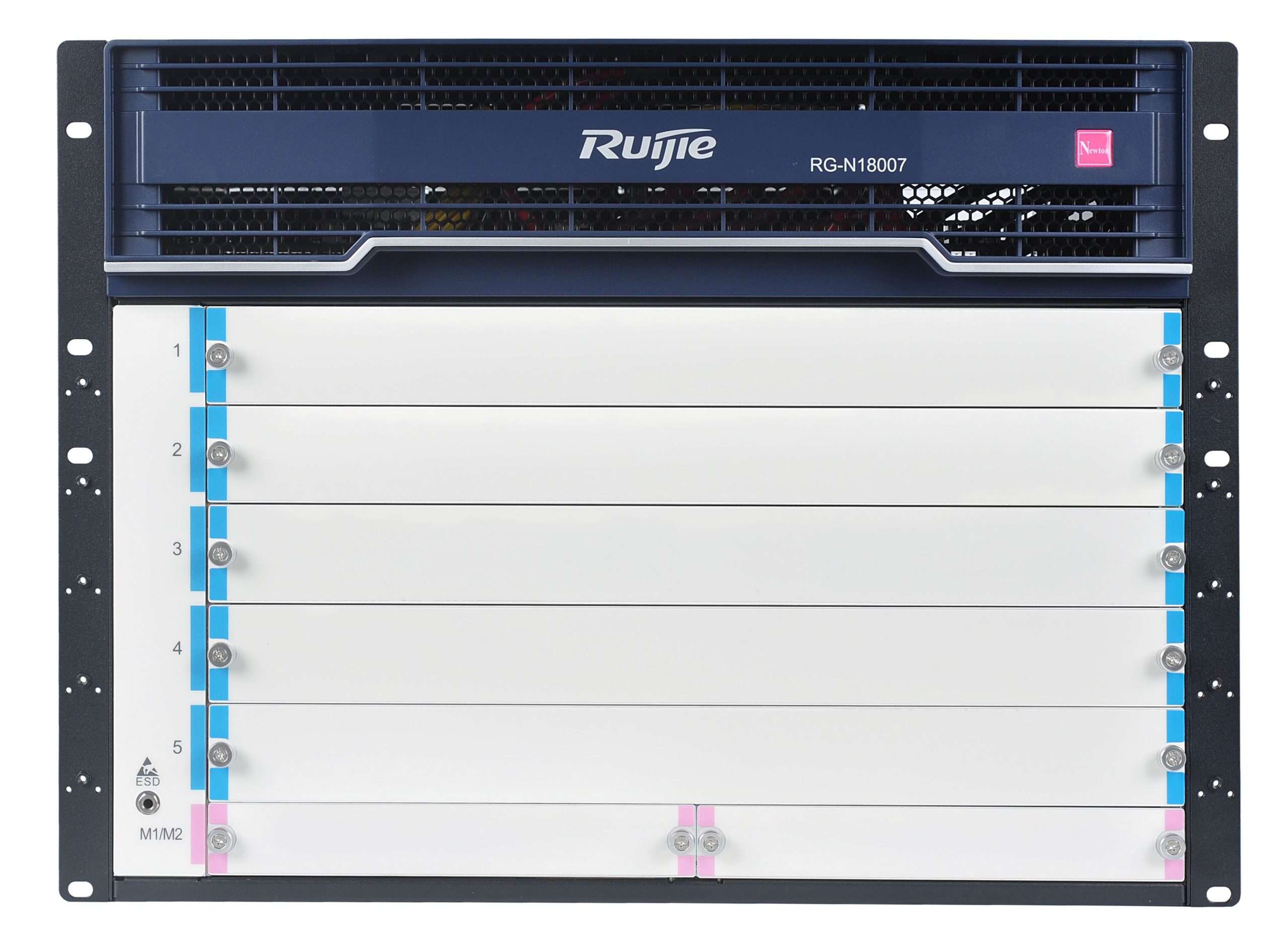

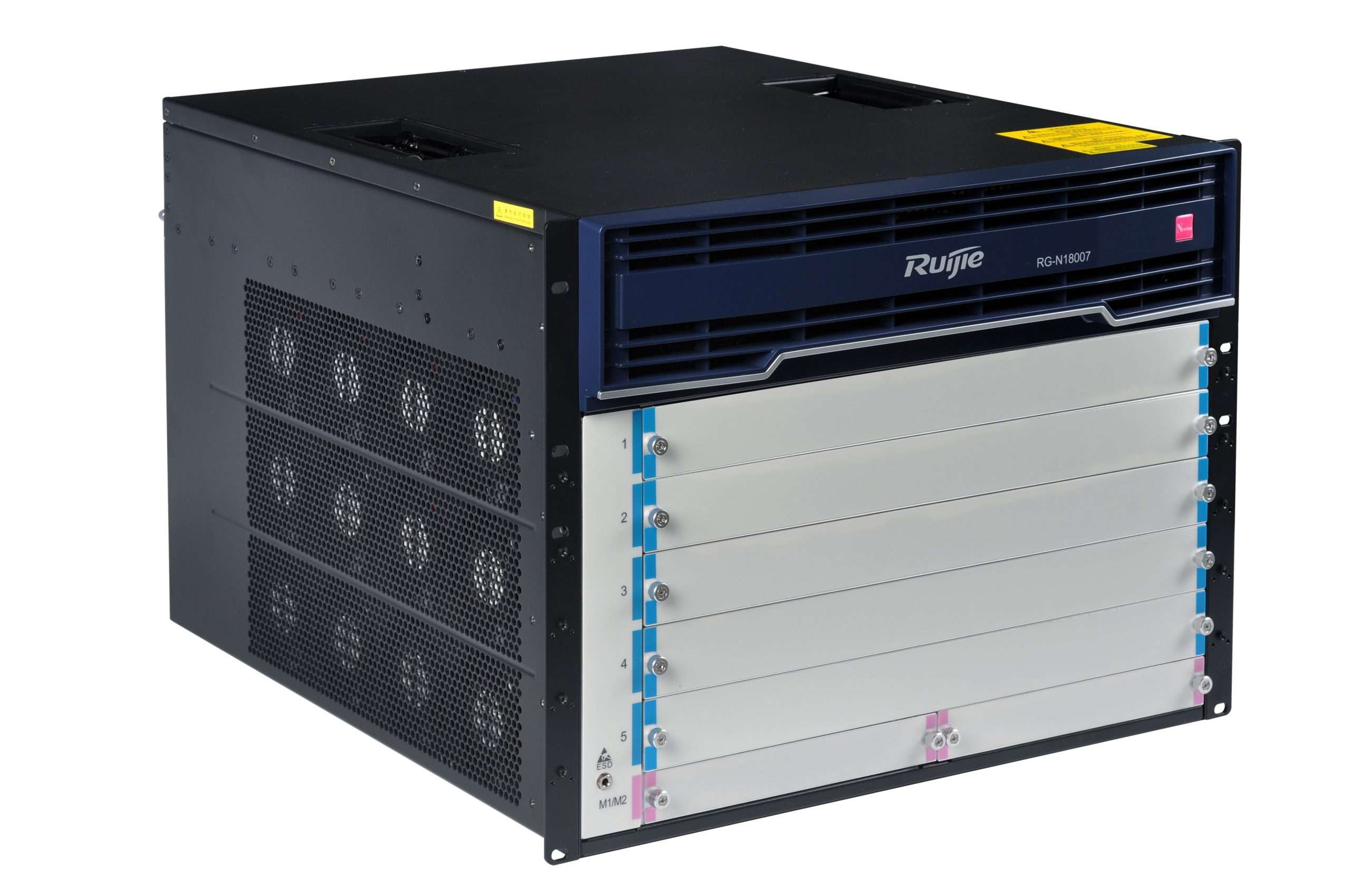

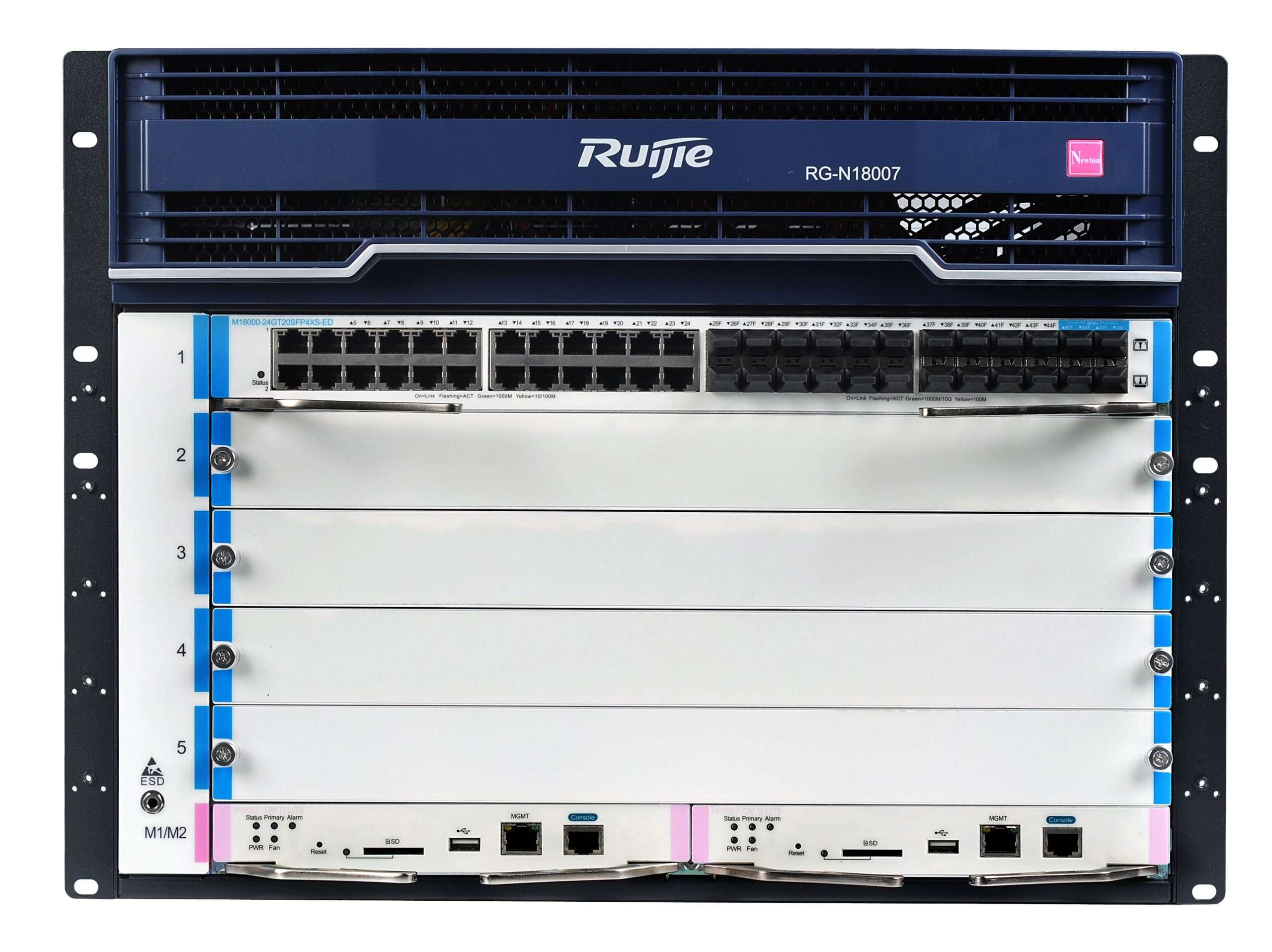

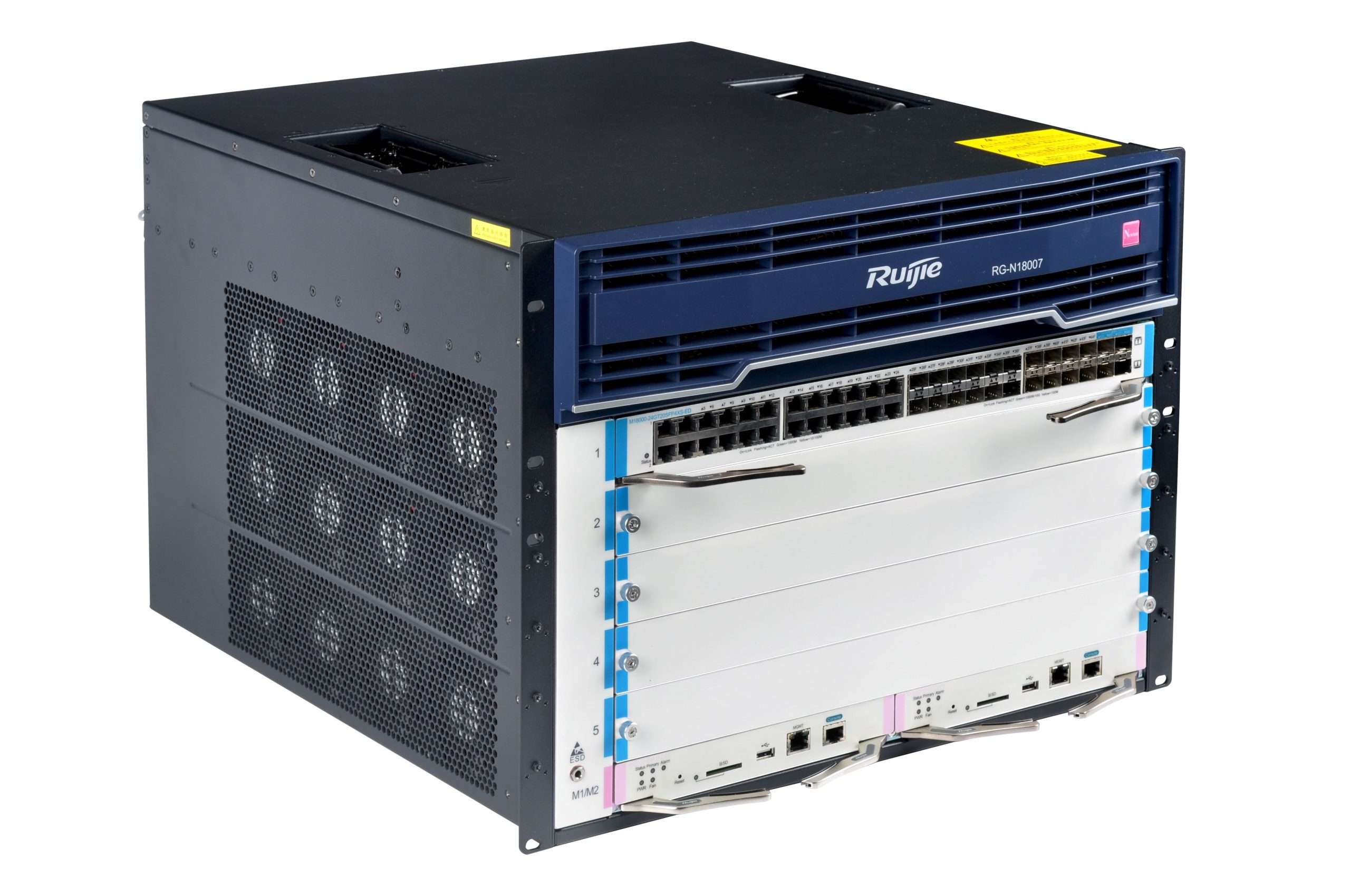

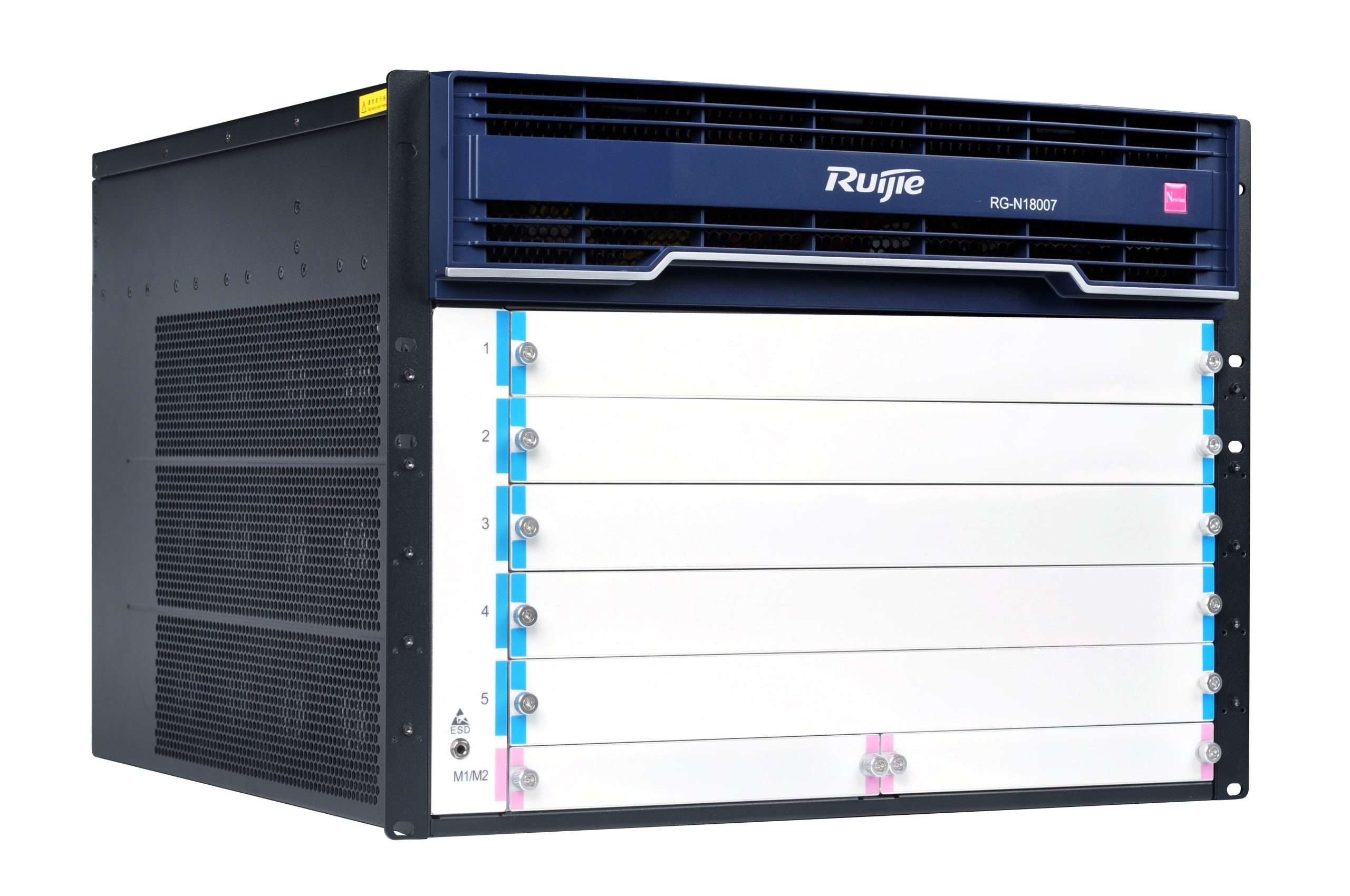

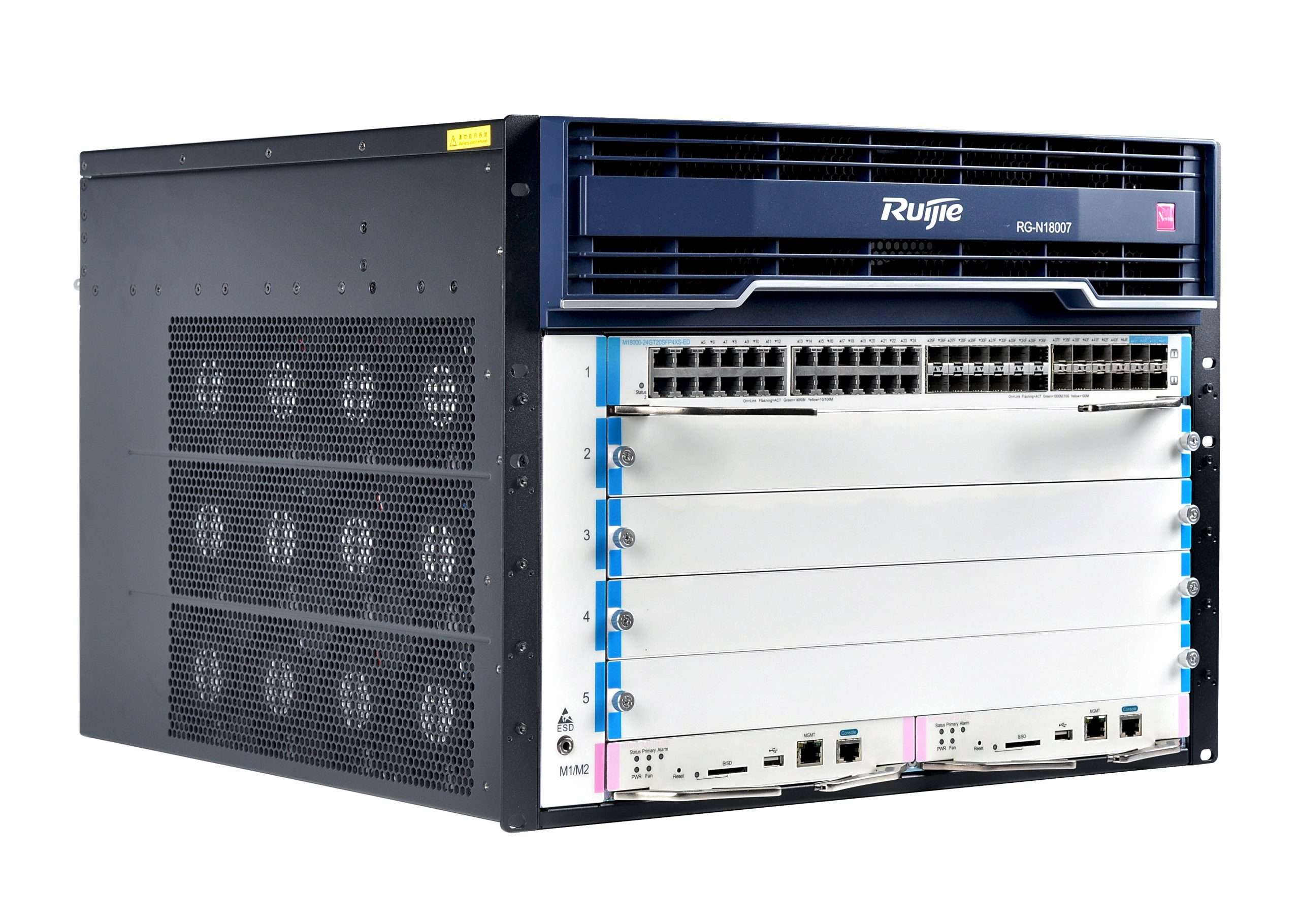

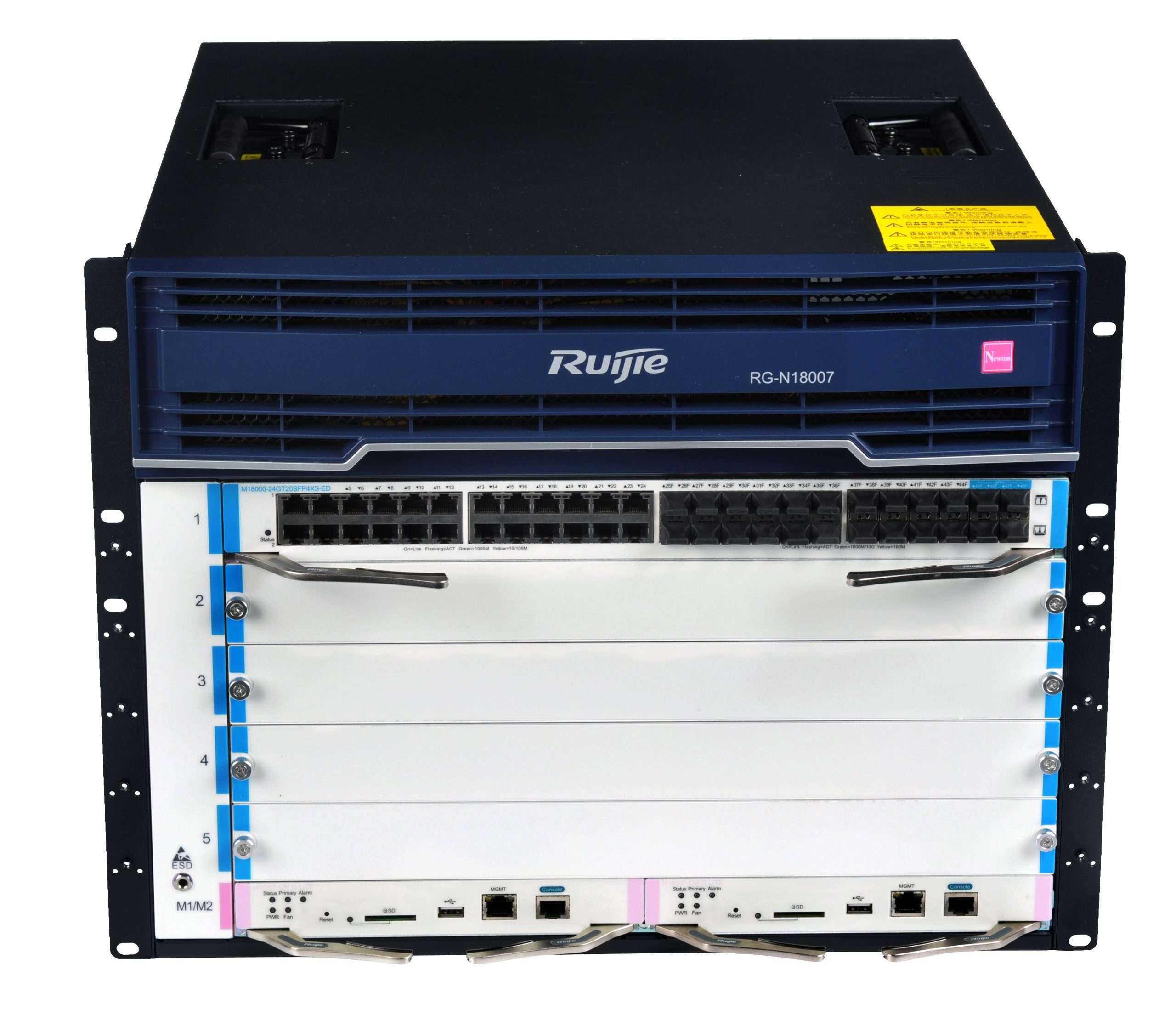

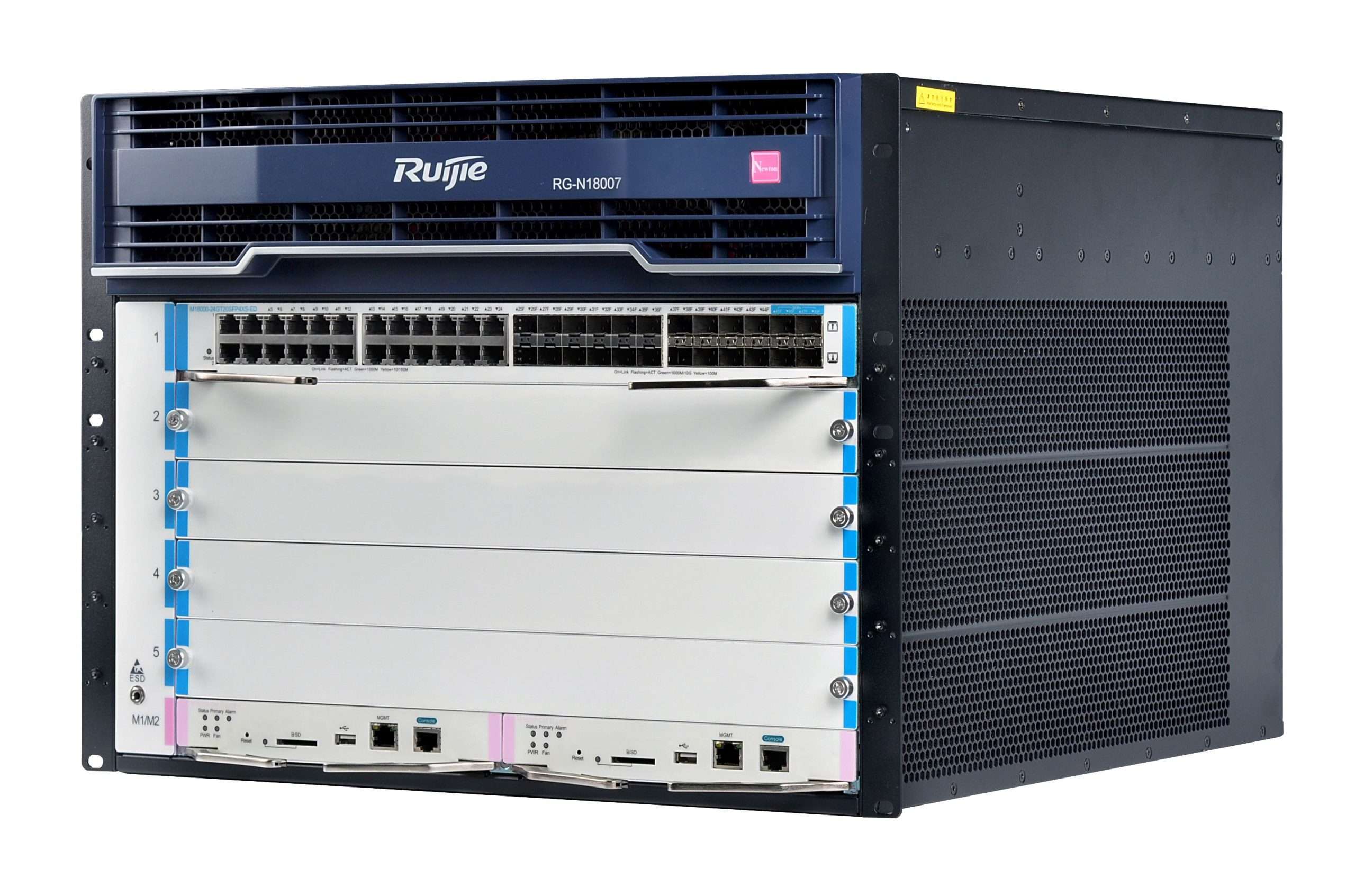

5 x line card slots, 8 RU
Condition: NOB
RMA Warranty
Description
- Clos orthogonal architecture, delivering non-blocking forwarding and high-speed transmission without packet loss
- RGOS, a fully-decoupled modular operating system, providing independent components and nonstop services
- Multiple hardware-level protection, offering carrier-class reliability and ensuring continuous operation without downtime
- Support for SDN, achieving rapid deployment and automated O&M for campus networks
Hardware Specifications
| Hardware Specifications | RG-N18007 | RG-N18012 |
| Interface Specifications | ||

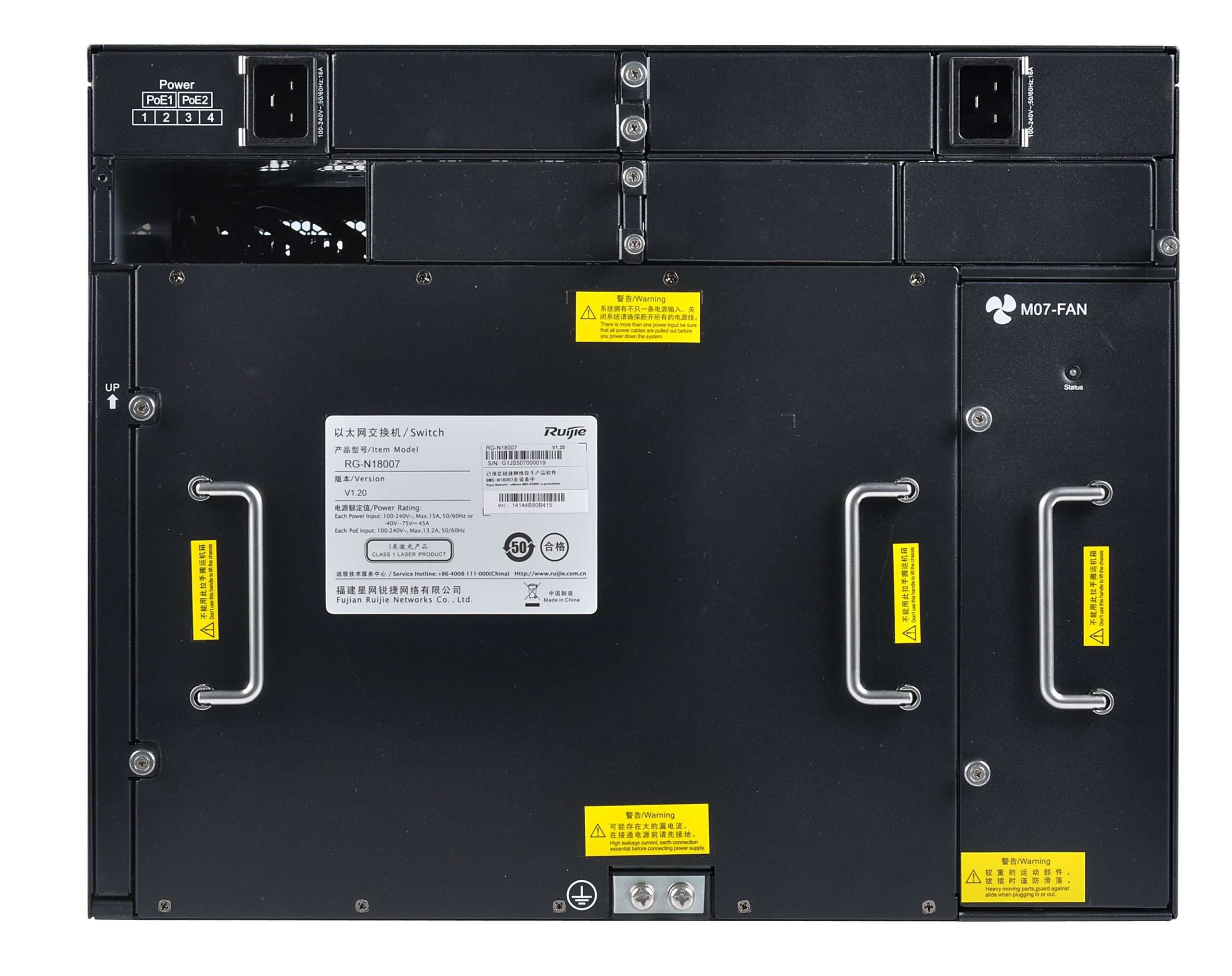

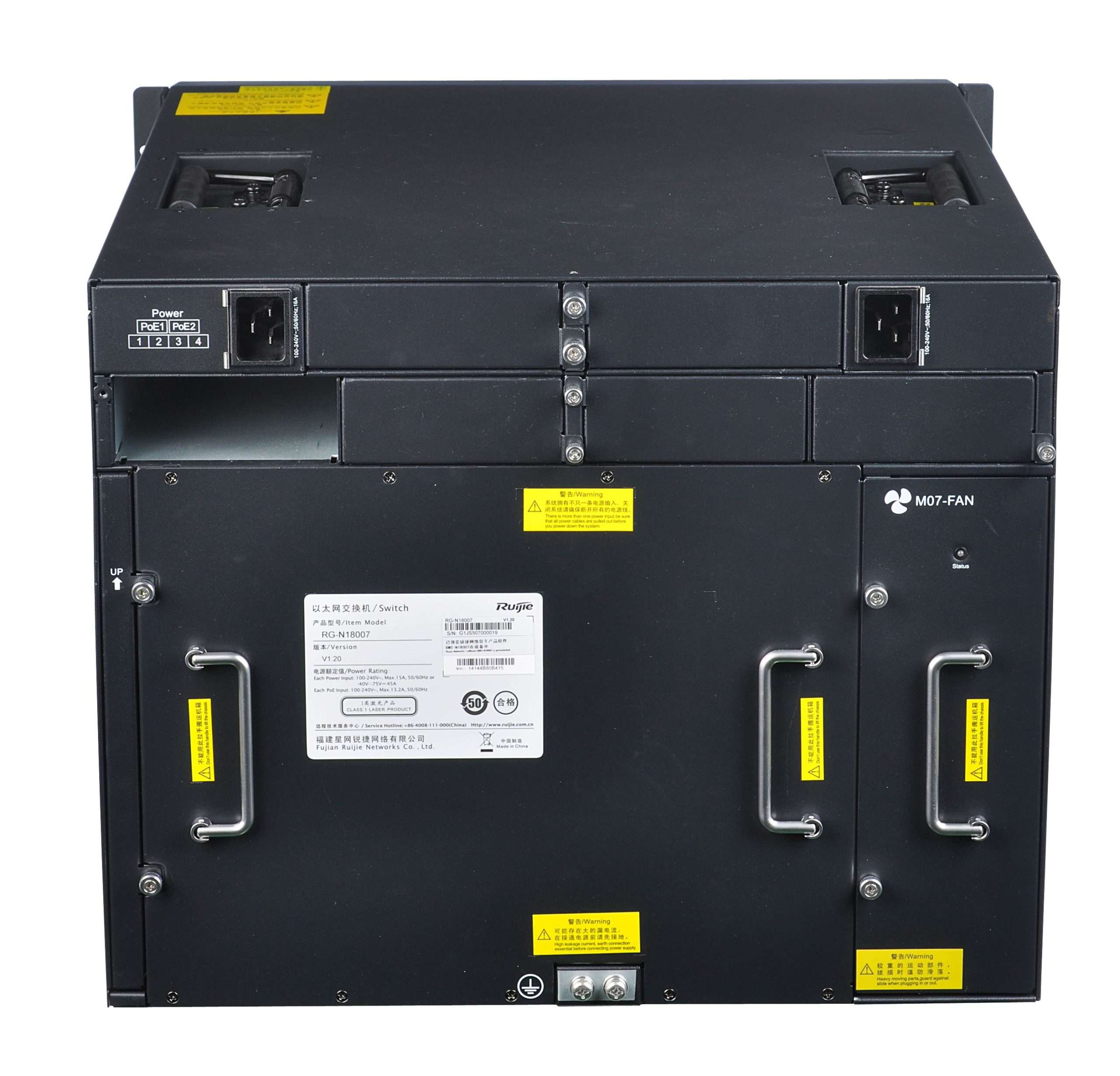

| Fan module | M07-FAN | 2 x M12-FAN-R fan modules |
| Power module | System power: 4
PoE power: 2 |
System power: 6
PoE power: 2 (the power module must adapt to the PoE power frame) |
| Expansion slot | Supervisor module slots: 2
Line card slots: 5 |
CM slots: 2
Line card slots: 10 Switch fabric module slots: 4 |
| Supervisor module slot | 2 | 2 |
| Line card slot | 5 | 10 |
| Switch fabric module slot | / | 4 |
| System Specifications | ||
| Packet forwarding rate | 8,900 Mpps | 17,800 Mpps |
| System switching capacity | 12 Tbps | 24 Tbps |
| MAC address | Number of global MAC addresses:
● ED card: 128K (default) and 512K (max.) ● DC card: 96K (default) and 288K (max.) ● EH card: 136K (default) and 136K (max.) Number of static MAC addresses: 10,000 |
Number of global MAC addresses:
● ED card: 128K (default) and 512K (max.) ● DC card: 96K (default) and 288K (max.) ● EH card: 136K (default) and 136K (max.) Number of static MAC addresses: 10,000 |
| ARP table size | ● ED card: 170,000
● DC card: 75,000 ● EH card: 170,000 |
● ED card: 170,000 (default)
● DC card: 75,000 (default) ● EH card: 170,000 (default) |
| ND table size | ED card: 75,000 (default)
DC/EH card: 45,000 (default) |
ED card: 75,000 (default)
DC/EH card: 45,000 (default) |
| Number of IPv4 unicast routes | 12,000 (default) | 12,000 (default) |
| Number of IPv4 multicast routes | ● ED card: 16,000 (default)
● DC card: 16,000 (default) ● EH card: 4,000 (default) and 8,000 (max.) |
● ED card: 16,000 (default)
● DC card: 16,000 (default) ● EH card: 4,000 (default) and 8,000 (max.) |
| Number of IPv6 unicast routes | IPv6 hardware routing table size: 6,000 (default)
Size of the routing table with a subnet mask of 65 to 128 bits: 1,000 (default) |
IPv6 hardware routing table size: 6,000 (default)
Size of the routing table with a subnet mask of 65 to 128 bits: 1,000 (default) |
| Number of IPv6 multicast routes | ● ED card: 8,000 (default)
● DC card: 8,000 (default) ● EH card: 2,000 (default) and 4,000 (max.) |
● ED card: 8,000 (default)
● DC card: 8,000 (default) ● EH card: 2,000 (default) and 4,000 (max.) |
| Number of IGMP groups | 1,024 | |
| Number of MLD groups | 1,024 | |
| ACL entries | ● Maximum number of ingress ACEs associated with an SVI, physical interface, or aggregate interface
ED card: 7,000 DC card: 8,000 EH card: 1,000 ● Maximum number of egress ACEs associated with an SVI, physical interface, or aggregate interface: 1,000 |
● Maximum number of ingress ACEs associated with an SVI, physical interface, or aggregate interface
ED card: 7,000 DC card: 8,000 EH card: 1,000 ● Maximum number of egress ACEs associated with an SVI, physical interface, or aggregate interface: 1,000 |
| Number of VSU members | 2 | 2 |
| Stacking bandwidth | ≥ 2.56 Tbps | |
| Dimensions and Weight | ||
| Dimensions (W x D x H) | 442 mm x 598 mm x 352.8 mm (17.40 in. x 23.54 in. x 13.89 in.), 8 RU | 442 mm x 725 mm x 708.4 mm (17.40 in. x 28.54 in. x 27.89 in.), 16 RU |
| Weight (empty chassis and fan modules) | 30.2 kg (66.58 lbs) | 105 kg (231.49 lbs) |
| CPU and Storage | ||
| CPU | Supervisor module:
● M18007-CM II: 1.0 GHz 32-core processor Line card: ● ED card: 1.0 GHz quad-core processor |
Supervisor module:
● M18012-CM II: 1.0 GHz 32-core processor Line card: ● ED/DC: 1.0 GHz quad-core processor Switch fabric module: ● M18012-FE-D I: 1.0 GHz quad-core processor |
| Flash memory and SDRAM | Flash memory:
● M18007-CM II/ED/DC card: 512 MB SDRAM: ● M18007-CM II: DDRIII 16 GB ● ED/DC card: 1 GB ● 16XS2QXS: 4 GB |
Flash memory:
● ED/DC/EH card: 512 MB SDRAM: ● M18012-CM II: 16 GB ● M18012-FE-D I: DDRIII 1 GB ● ED/DC: 1 GB ● EF card: 2 GB ● 12CQ-EH/16XS2QXS: 4 GB |
| Data packet buffer | ED card: 5 MB
DC card: 16 MB |
ED card: 5 MB
DC card: 16 MB 12CQ-EH: 16 MB |
| Power and Consumption | ||
| Maximum power consumption | RG-PA1600I: 90 V to 180 V Power: 1,200 W; 180 V to 264 V Power: 1,600 W
RG-PA600I: 90 V to 180 V Power: 600 W; 180 V to 264 V Power: 600 W RG-PD600I: –40 V to –75 V Power: 600 W 210 V to 264 V Power: 3,000 W |
RG-PA1600I: 90 V to 180 V Power: 1,200 W; 180 V to 264 V Power: 1,600 W
RG-PA600I: 90 V to 180 V Power: 600 W; 180 V to 264 V Power: 600 W RG-PD600I: –40 V to –75 V Power: 600 W 210 V to 264 V Power: 3,000 W |
| Rated input voltage | RG-PA1600I: 100 V to 120 V, 200 V to 240 V, 50/60 Hz
RG-PA600I: 100 V to 120 V, 200 V to 240 V, 50/60 Hz RG-PD600I: –48 V DC |
RG-PA1600I: 100 V to 120 V, 200 V to 240 V, 50/60 Hz
RG-PA600I: 100 V to 120 V, 200 V to 240 V, 50/60 Hz RG-PD600I: –48 V DC |
| Maximum input voltage | RG-PA1600I: 90 V to 264 V, 47 Hz to 63 Hz
RG-PA600I: 90 V to 264 V, 47 Hz to 63 Hz RG-PD600I: –40 V DC to –75 V DC |
RG-PA1600I: 90 V to 264 V, 47 Hz to 63 Hz
RG-PA600I: 90 V to 264 V, 47 Hz to 63 Hz RG-PD600I: –40 V DC to –75 V DC |
| Environment and Reliability | ||
| MTBF | > 200,000 hours | |
| Primary airflow | Right-to-left airflow
Supervisor module and line card: right-to-left airflow Power module: built-in fans for drawing air outward Front-to-rear airflow |
Front-to-rear airflow
Supervisor module and line card: air inlet at the front bottom and air outlet at the top back (M12-FAN-R) |
| Operating temperature | 0°C to 50°C (32°F to 122°F) with the height in the range of –500 m to +5,000 m (–1640.42 ft. to + 16404.20 ft.) | |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) | |
| Operating humidity | 10% to 90% RH (non-condensing) | |
| Storage humidity | 5% to 95% RH (non-condensing) | |
| Operating noise | 59.3 dB at the temperature of 35°C (95°F)
68.4 dB at the temperature of 50°C (122°F) |
63.5 dB at the temperature of 35°C (95°F)
77.4 dB at the temperature of 50°C (122°F) |
| Port surge protection | All electrical ports: common mode 4 kV, differential mode 1 kV | All electrical ports: common mode 4 kV, differential mode 1 kV |
| Port surge protection | 6 kV | |
Software Specifications
| RG-N18000 Series | |
| Feature | Description |
| Edge Virtual Bridging (EVB) | Virtual Ethernet Port Aggregator (VEPA)
Automatic migration of VM policies |
| Behavior control | URL audit
User locating |
| Central authentication | Concurrence of 90,000 IPv4 and IPv6 double stack users with an authentication capacity of 1,200 terminals per second
802.1X/Portal/MAC/IPoE authentication modes Portal authentication, RADIUS, and TACACS+ login authentication Layer 2 Portal and Layer 3 Portal access authentication Flow-based charging, flow control, and refined management Gateway authentication |
| Ethernet switching | Jumbo frame (maximum length: 9,216 bytes) |
| IEEE 802.1Q | |
| IEEE 802.3az EEE | |
| Maximum number of VLANs that can be created: 4,094 | |
| Super-VLAN and private VLAN | |
| Port-based, protocol-based, and IP subnet-based VLAN assignment | |
| GVRP | |
| Basic QinQ, selective QinQ, and QinQ termination | |
| STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | |
| ERPS (G.8032) | |
| LLDP/LLDP-MED | |
| IP service | Static and dynamic ARP |
| DHCP client | |
| DHCP relay | |
| DHCP server | |
| DHCP snooping | |
| DNS | |
| DHCPv6 relay | |
| IP routing | Static routing |
| RIP and RIPng | |
| OSPFv2 and OSPFv3 | |
| GR | |
| IPv4/IPv6 IS-IS | |
| BGP4 and BGP4+ | |
| IPv4/IPv6 VRF | |
| Policy-based routing (PBR) | |
| GRE tunnel | |
| IPv6: manual tunnel, automatic tunnel, and ISATAP tunnel | |
| Multicast | IGMP v1/v2/v3 and IGMP proxy |
| IGMP snooping v1/v2/v3 | |
| IGMP fast leave | |
| PIM-DM, PIM-SM, and PIM-SSM | |
| PIM-SSM for IPv4 | |
| MLD and MLD proxy | |
| PIM-SMv6 | |
| Multicast forwarding in a VLAN and multicast replication between VLANs | |
| Multicast load balancing | |
| Multicast source IP address check
Multicast source port check |
|
| ACL and QoS | Standard ACL |
| Extended ACL | |
| MAC extended ACL | |
| Expert ACL | |
| ACL80 and IPv6 ACL | |
| Applying ACLs globally | |
| ACL redirection | |
| Port traffic identification | |
| Port-based rate limit | |
| IEEE 802.1p | |
| Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ | |
| Congestion avoidance: tail drop, RED, and WRED | |
| Eight queues on each port | |
| Rate limiting in each queue | |
| Security | MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication |
| Web authentication | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| SSHv1.5 and SSHv2.0 | |
| Global IP-MAC binding | |
| ICMP (discarding ICMP packets of which the rate exceeds the threshold on an interface) | |
| Port security | |
| IP source guard | |
| CPP and NFPP | |
| Various attack defense functions including NFPP, ARP anti-spoofing, DHCP/DHCPv6 attack defense, ICMP attack defense, ND attack defense, IP scanning attack defense, and customizing attack defense packet types | |
| uRPF | |
| DAI | |
| Login authentication and password security | |
| Unknown multicast packets are not sent to the CPU, and unknown unicast packets can be suppressed. | |
| ITU-T Y.1731 | |
| Reliability | Rapid Link Detection Protocol (RLDP), Layer 2 link connectivity detection, and unidirectional link detection |
| Data Link Detection Protocol (DLDP) | |
| IPv4 VRRPv2/v3 and IPv6 VRRPv3 | |
| BFD for VRRP/OSPF/BGP4/ISIS/ISISv6/ MPLS/static routing | |
| GR for OSPF/IS-IS/GBP | |
| Independent switch fabric modules and supervisor modules to separate the forwarding plane from the control plane | |
| 1+1 redundancy for supervisor modules | |
| N+1 redundancy for switch fabric modules | |
| N+M redundancy for power modules and fan modules | |
| Passive backplane design, eliminating single point of failures | |
| Hot swapping of components | |
| Hot patching function for online patch upgrade | |
| IP FRR | |
| ISSU | |
| Independent PoE power supply slots, ensuring power supply stability of other service modules | |
| Hot swapping of power modules and fan modules | |
| Device virtualization | Virtual Switching Unit (VSU)
*Virtual Switch Device (VSD) |
| NMS and maintenance | SPAN and RSPAN |
| sFlow | |
| NTP | |
| FTP, TFTP, and Xmodem | |
| SNMP v1/v2c/v3 | |
| Multiple types of RMON groups, including event groups, alarm groups, history groups, and statistics groups
RMON Ethernet statistics, historical statistics, and alarms |
|
| CWMP | |
| OpenFlow Special 1.3 | |
| Flow table analysis for all protocols
Transmission of specified packets to the controller Configuring the controller IP address and port Notification of port status changes to the controller |
|
| Console/AUX Modem/Telnet/SSH2.0 CLI configuration | |
| Fault alarm and automatic restoration | |
| System operation logging | |
| Data Center Manageability Interface (DCMI) used to remotely power on, power off, reset, and monitor the device | |
| Many-to-one mirroring, one-to-many mirroring, and flow-based mirroring
VLAN mirroring |
|
Note: The item marked with the asterisk (*) will be available in the future.
Chassis
| Model | Description |
| RG-N18007 | 7-slot chassis (no power module), equipped with fan modules |
| RG-N18012 | 12-slot chassis (no power module), equipped with fan modules |
Supervisor Module
| Model | Description |
| M18007-CM II | RG-N18007 2nd-generation supervisor module |
| M18012-CM II | RG-N18012 2nd-generation supervisor module |
Power Module
| Model | Description |
| RG-PA600I | Generic power module of RG-N18000 series (redundancy, AC, 600 W, 10 A) |
| RG-PD600I | Generic power module of RG-N18000 series (redundancy, DC, 600 W, 20 A) |
| RG-PA1600I | Generic power module of RG-N18000 series (redundancy, AC, 1600 W, 16 A) |
Switch Fabric Module
| Model | Description |
| M18012-FE-D I | RG-N18012 switch fabric module |
Line Card
| Model | Description |
| M18000-44SFP4XS-ED | 44 x GE optical ports (SFP and LC) + 4 x 10GE optical ports (SFP+ and LC) |
| M18000-48GT-ED | 48 x GE electrical ports (RJ45) |
| M18000-24GT20SFP4XS-ED | 24 x GE electrical ports (RJ45) + 20 x GE optical ports (SFP and LC) + 4 x 10GE optical ports (SFP+ and LC) |
| M18000-16XS2QXS-ED | 16 x 10GE optical ports (SFP+ and LC) + 2 x 40GE optical ports (QSFP+ and MPO) |
| M18000-48XS-DC | 48 x 10GE optical ports (SFP+ and LC) |
| M18000-24XS4QXS-DC | 24 x 10GE optical ports (SFP+ and LC) + 4 x 40GE optical ports (QSFP+ and MPO) |
| M18000-12QXS-DC | 12 x 40GE optical ports (QSFP+ and MPO) |
| M18000-12CQ-EH | 12 x 100GE optical ports (QSFP28) |
