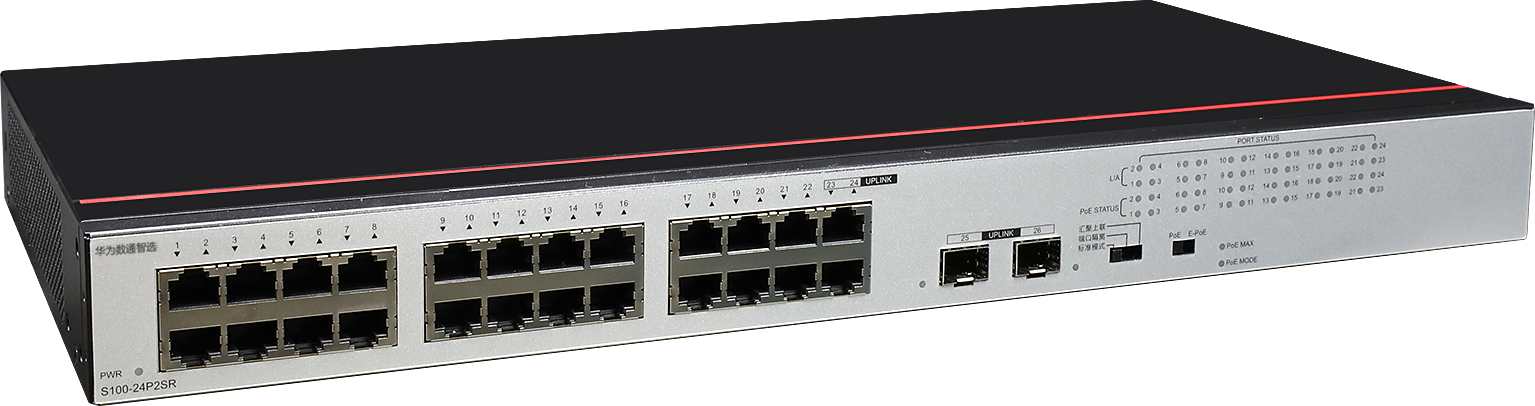

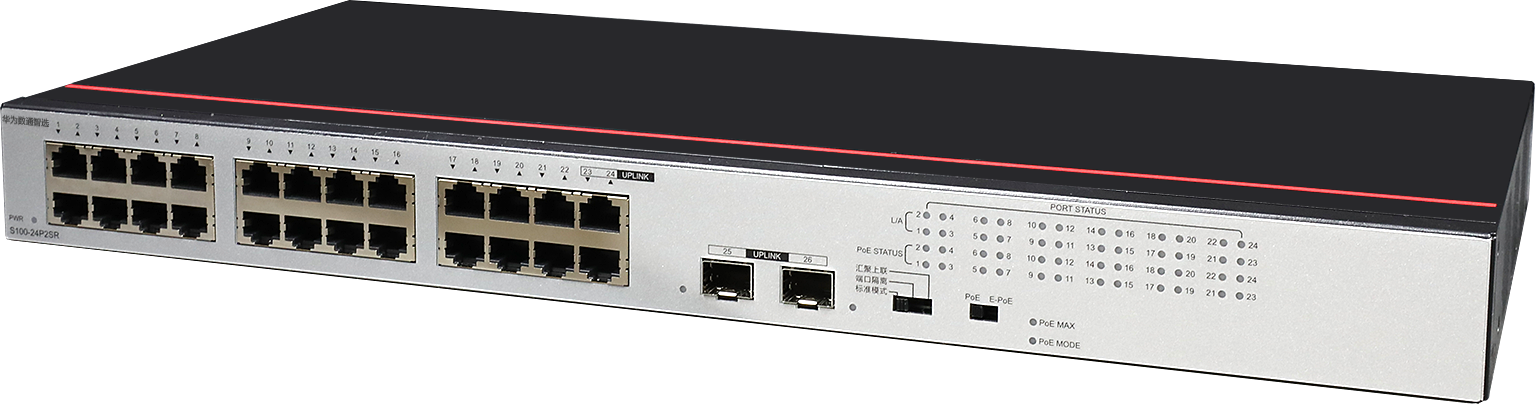

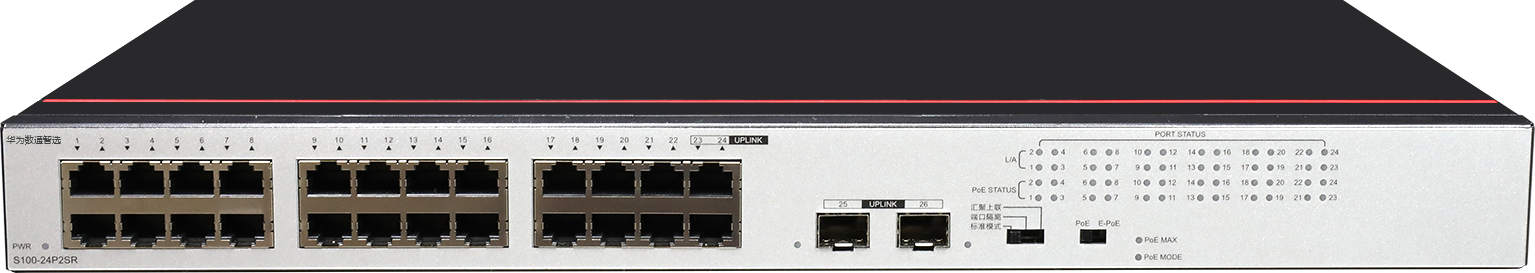

24 * 10/100/1000BASE-T Ethernet ports, 2 Gigabit SFP, POE+, AC power supply
Condition: NOB
RMA Warranty
Description
Technical indicators
| Specification | Parameter |
|---|---|
| Overall dimensions (width x depth x height) | 440.0mm×220.0mm×43.6mm |
| Dimensions (W x D x H, including packaging) | 535.0mm×312.0mm×88.0mm |
| Weight (including packaging material) | 3.92kg |
| Business port lightning protection specifications | Common mode ±6kV |
| Power port lightning protection specifications | Differential mode ±4kV, common mode ±4kV |
| PoE | support |
| Rated voltage range | AC input: 100V AC ~ 240V AC; 50/60Hz |
| Maximum voltage range | AC input: 90V AC ~ 264V AC; 47Hz ~ 63Hz |
| Maximum power consumption (100% flow) | Without PoE: 26.64W
PoE full load: 218.96W (PoE: 191W) |
| Static power consumption (no traffic) | 12.94W |
| range of working temperature |
-5°C～+45°C (0m～1800m above sea level)
illustrate:
1800 m to 5000 m: The maximum temperature specification decreases by 1°C every time the altitude increases by 220 m. The device does not support startup when the ambient temperature is below 0°C. |
| Storage temperature range | -40°C～+70°C |
| Noise at normal temperature (27°C, sound power) | 48.35dB(A) |
| Relative humidity range | 5%RH～95%RH, non-condensing |
| Working altitude | 0m～5000m |
