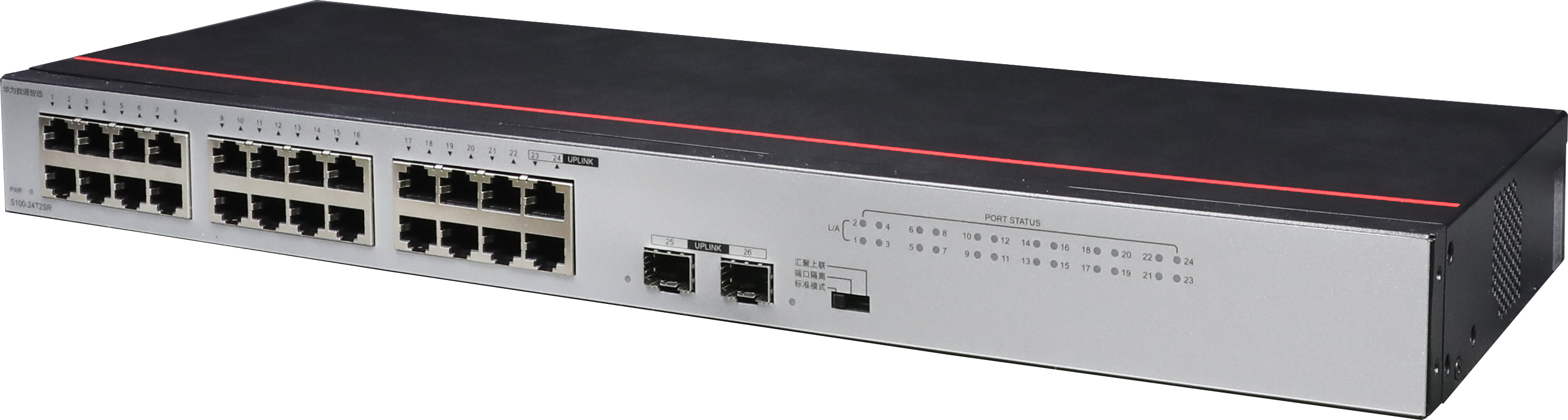

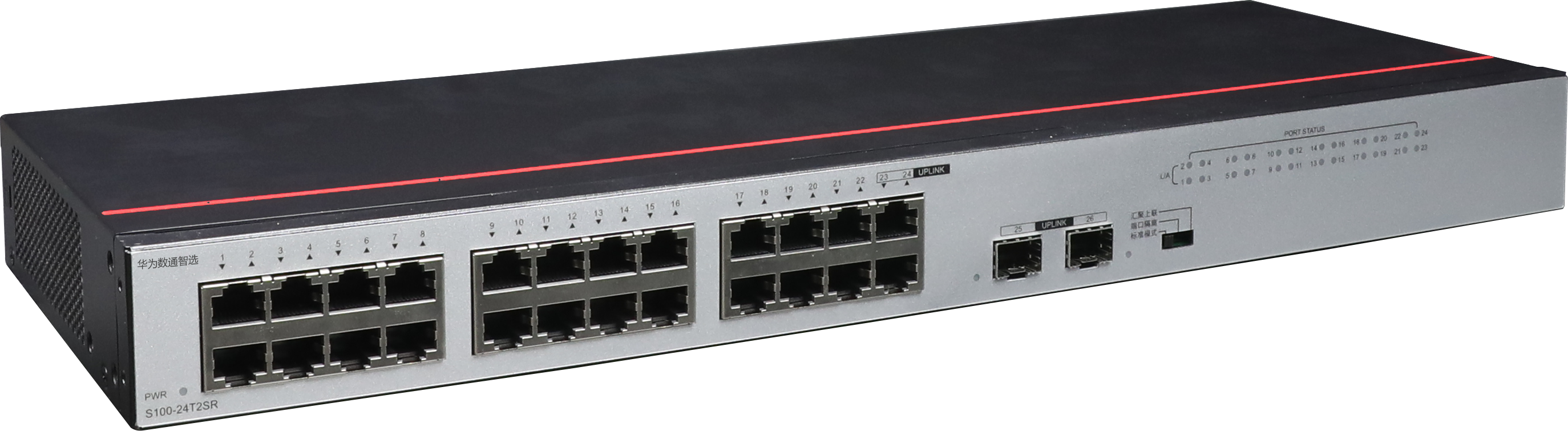

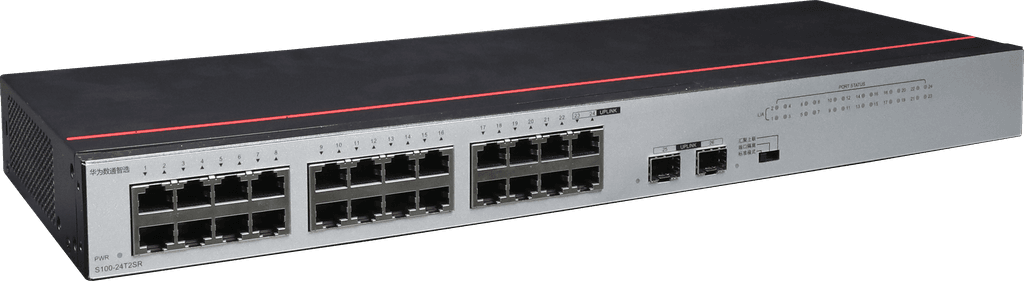

24 * 10/100/1000BASE-T Ethernet ports, 2 Gigabit SFP, AC power supply
Condition: NOB
RMA Warranty
Description
Technical indicators
| Specification | Parameter |
|---|---|
| Overall dimensions (width x depth x height) | 440.0mm×160.0mm×43.6mm |
| Dimensions (W x D x H, including packaging) | 510.0mm×270.0mm×85.0mm |
| Weight (including packaging material) | 2.52kg |
| Business port lightning protection specifications | Common mode ±6kV |
| Power port lightning protection specifications | Differential mode ±4kV, common mode ±4kV |
| PoE | not support |
| Rated voltage range | AC input: 100V AC ~ 240V AC; 50/60Hz |
| Maximum voltage range | AC input: 90V AC ~ 290V AC; 45Hz ~ 65Hz |
| Maximum power consumption (100% flow) | 16.28W |
| Static power consumption (no traffic) | 4.55W |
| range of working temperature |
-5°C～+45°C (0m～1800m above sea level)
illustrate:
1800 m to 5000 m: The maximum temperature specification decreases by 1°C every time the altitude increases by 220 m. The device does not support startup when the ambient temperature is below 0°C. |
| Storage temperature range | -40°C～+70°C |
| Noise at normal temperature (27°C, sound power) | Fanless, silent |
| Relative humidity range | 5%RH～95%RH, non-condensing |
| Working altitude | 0m～5000m |
