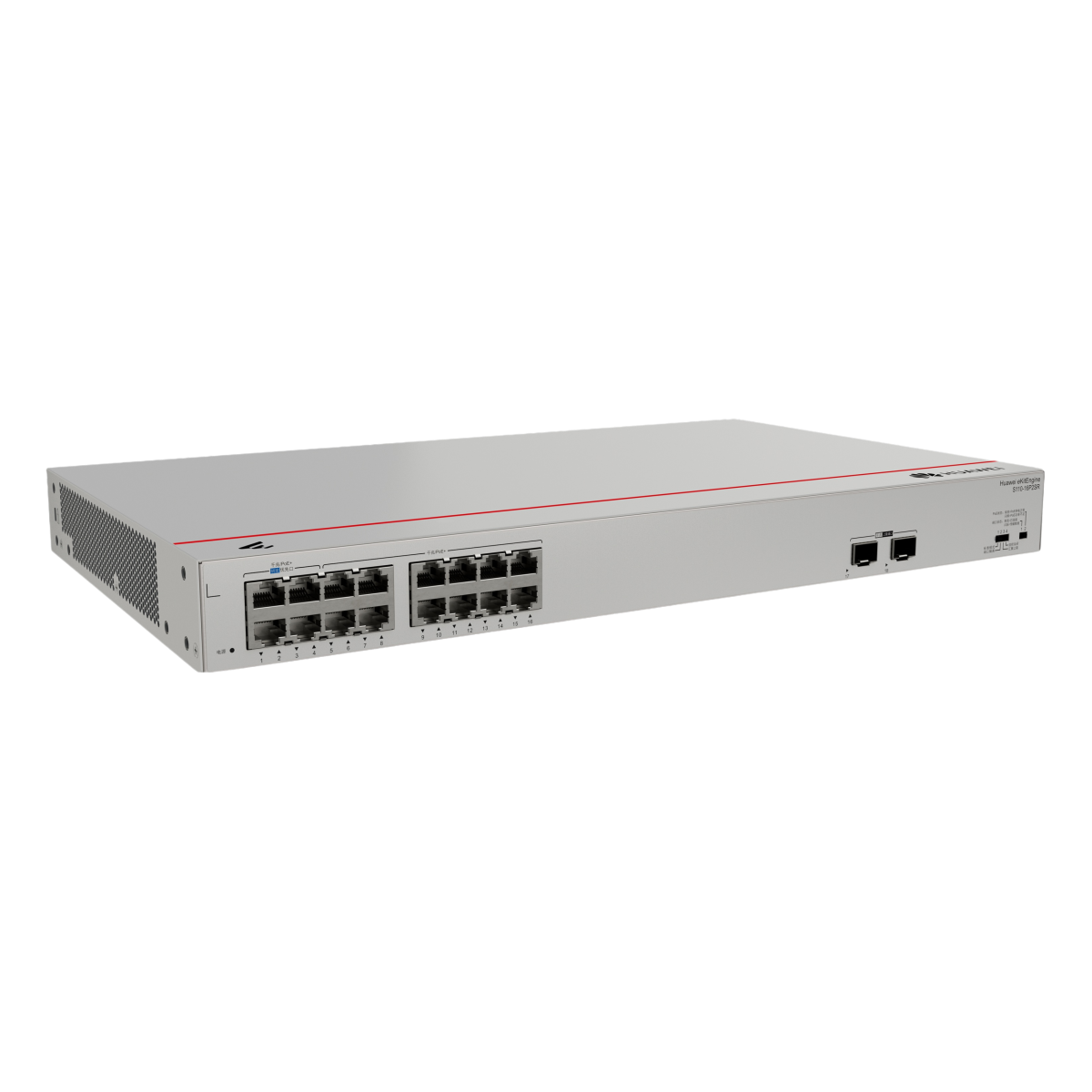

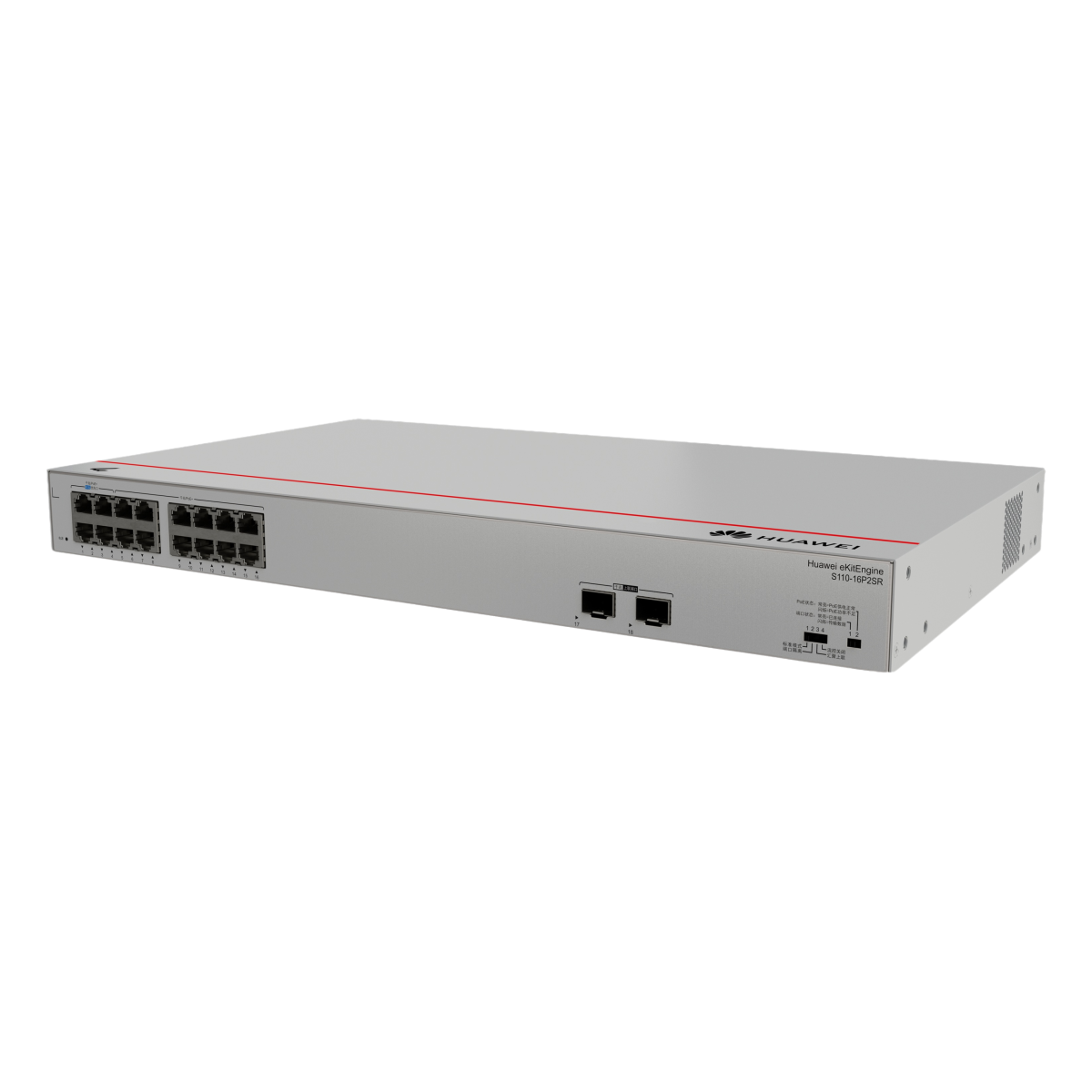

16 * 10/100/1000BASE-T Ethernet ports (247W PoE+), 2 Gigabit SFP, built-in AC power supply
Condition: NOB
RMA Warranty
Description
The S100 series fixed Ethernet switches integrate the access and transmission functions to provide reliable access/aggregation and high-quality transmission of services on enterprise networks. The switches are built on an integrated hardware platform, and the hardware system consists of the chassis, power module, fan module, and Switch Control Unit (SCU).
| Project | Describe |
|---|---|
| Dimensions (W x D x H, excluding packaging) [mm] | Basic dimensions (depth is the distance excluding the protruding structural parts of the front and rear panels): 442.0mm×260.0mm×43.6mm
Maximum size (depth is the maximum distance from the protruding port on the front panel to the protruding structure on the rear panel): 442.0mm×267.0mm×43.6mm |
| Dimensions (W x D x H, including packaging) [mm] | 550.0mm×395.0mm×90.0mm |
| Chassis height [U] | 1U |
| Chassis material | Metal |
| Weight (excluding packaging materials) [kg] | 3.20kg |
| Weight (including packaging) [kg] | 3.84kg |
| Typical power consumption [W] | 22.0W |
| Typical heat dissipation value [BTU/hour] | 75.07BTU/hour |
| Maximum power consumption [W] | Without PoE: 22.0W
PoE full load: 320.0W (PoE: 247W) |
| Maximum heat dissipation value [BTU/hour] | Without PoE: 75.07
PoE full load: 1091.87 |
| Static power consumption [W] | 14.0W |
| MTBF [years] | 54.99years |
| MTTR [hours] | 2hours |
| Availability | > 0.99999 |
| Noise at room temperature (sound power) [dB(A)] | 55dB(A) |
| Noise at normal temperature (sound pressure) [dB(A)] | 46dB(A) |
| Number of card slots | 0 |
| Number of power supply slots | 0 |
| Number of fan modules | 1 |
| Switching capacity | If you need this specification, please check the product brochure or contact the product salesperson to obtain it. |
| Packet forwarding rate | If you need this specification, please check the product brochure or contact the product salesperson to obtain it. |
| Operating mode | Standard mode, port isolation, aggregation uplink, flow control off |
| Number of MAC addresses | 8K |
| Power redundancy | not support |
| Long-term working environment temperature [°C] | 0°C～+45°C (0m～1800m above sea level) |
| Operating environment temperature change limit [°C] | 1800 m to 5000 m: The maximum temperature specification decreases by 1°C every time the altitude increases by 220 m. |
| Storage temperature [°C] | -40°C～+70°C |
| Long-term working environment relative humidity [RH] | 5%RH～95%RH, non-condensing |
| Long-term working altitude [m] | 0m～5000m |
| Storage altitude [m] | 0m～5000m |

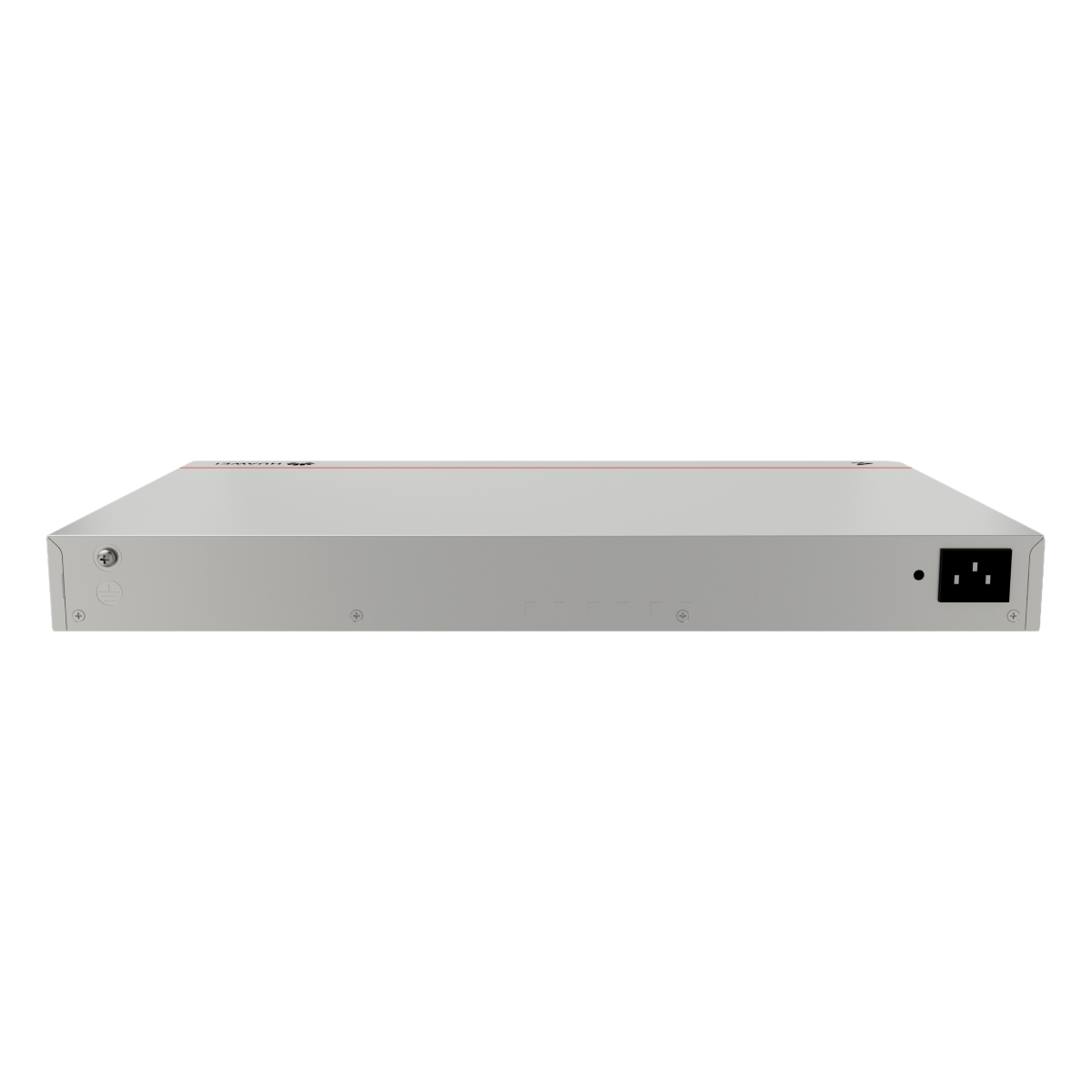

| Power supply type | Built-in AC power supply |
| Rated input voltage [V] | AC input: 100V AC ~ 240V AC; 50/60Hz |
| Input voltage range[V] | AC input: 90V AC ~ 264V AC; 45Hz ~ 65Hz |
| Maximum input current [A] | 3.8A |
| Memory | – |
| Flash | – |
| Console Interface Type | not support |
| Eth management network port type | not support |
| USB interface | not support |
| Real-time Clock (RTC) | not support |
| RPS Input | not support |
| Business port lightning protection [kV] | Common mode ±6kV |
| Power port lightning protection [kV] | Differential mode ±2kV, common mode ±4kV |
| Triple protection (dustproof/waterproof) | IP20 |
| Fan Type | Built-in fan |
| Cooling method | Air cooling, intelligent speed regulation |
| Airflow direction | Air in from the left, air out from the right |
| PoE Function | support |
| certified product | Support EMC certification
Support safety certification Support production certification |
