The S100 series fixed Ethernet switches integrate the access and transmission functions to provide reliable access/aggregation and high-quality transmission of services on enterprise networks. The switches are built on an integrated hardware platform, and the hardware system consists of the chassis, power module, fan module, and Switch Control Unit (SCU).
| Project | Describe |
|---|---|
| Dimensions (W x D x H, excluding packaging) [mm] | Basic dimensions (depth is the distance excluding the protruding structural parts of the front and rear panels): 100.0mm×65.0mm×22.5mm
Maximum size (depth is the maximum distance from the protruding port on the front panel to the protruding structure on the rear panel): 100.0mm×65.0mm×24mm |
| Dimensions (W x D x H, including packaging) [mm] | 200.0mm×110.0mm×35.0mm |
| Chassis height [U] | 0.54U |
| Chassis material | PC+ABS |
| Weight (excluding packaging materials) [kg] | 0.15kg |
| Weight (including packaging) [kg] | 0.22kg |
| Typical power consumption [W] | 3.8W |
| Typical heat dissipation value [BTU/hour] | 12.97BTU/hour |
| Maximum power consumption [W] | 4W |
| Maximum heat dissipation value [BTU/hour] | 13.64BTU/hour |
| Static power consumption [W] | 2W |
| MTBF [years] | 110.46years |
| MTTR [hours] | 2hours |
| Availability | > 0.99999 |
| Noise at room temperature (sound power) [dB(A)] | No fan, silent, <30 |
| Noise at normal temperature (sound pressure) [dB(A)] | No fan, silent, <20 |
| Number of card slots | 0 |
| Number of power supply slots | 0 |
| Number of fan modules | 0 |
| Uplink port | THAT |

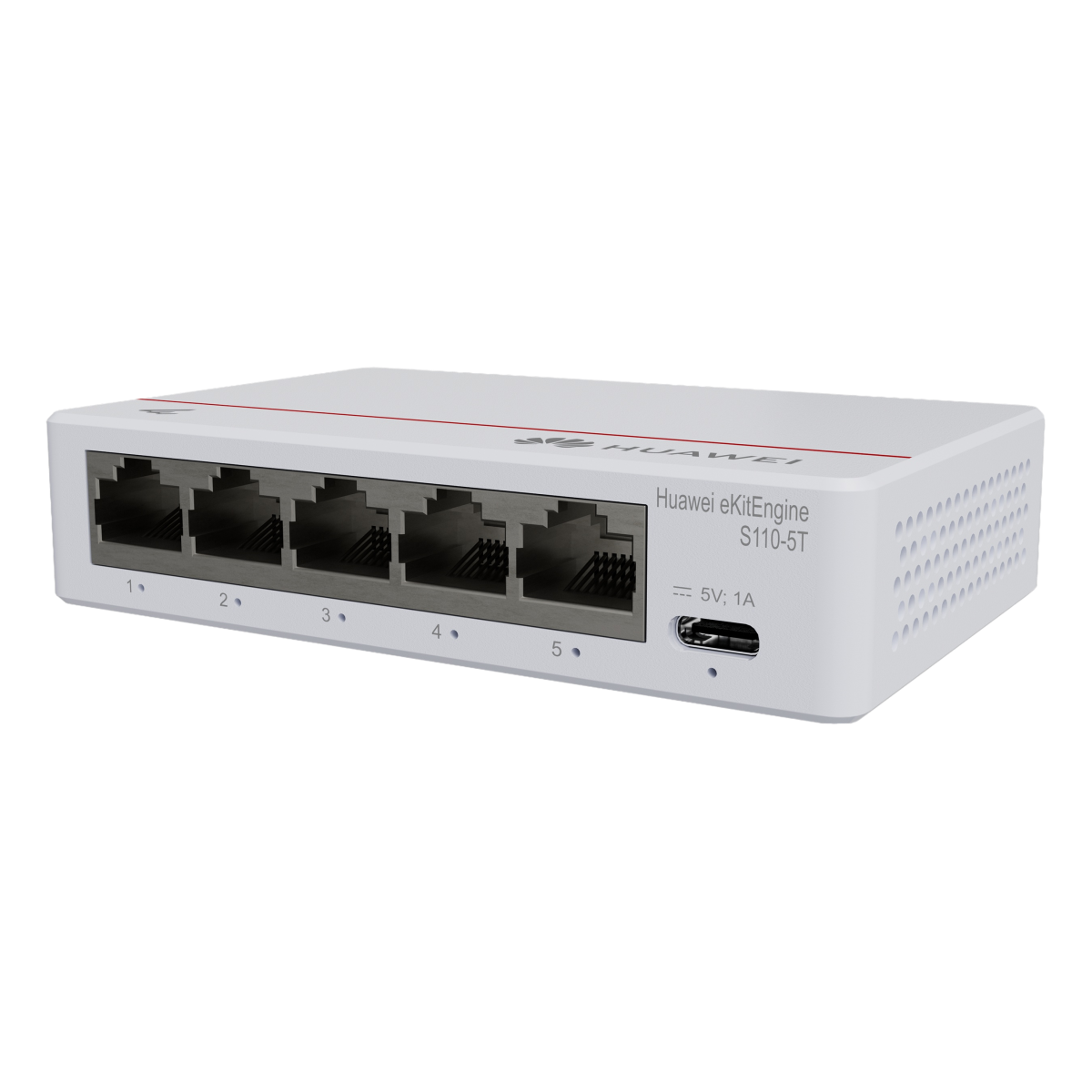

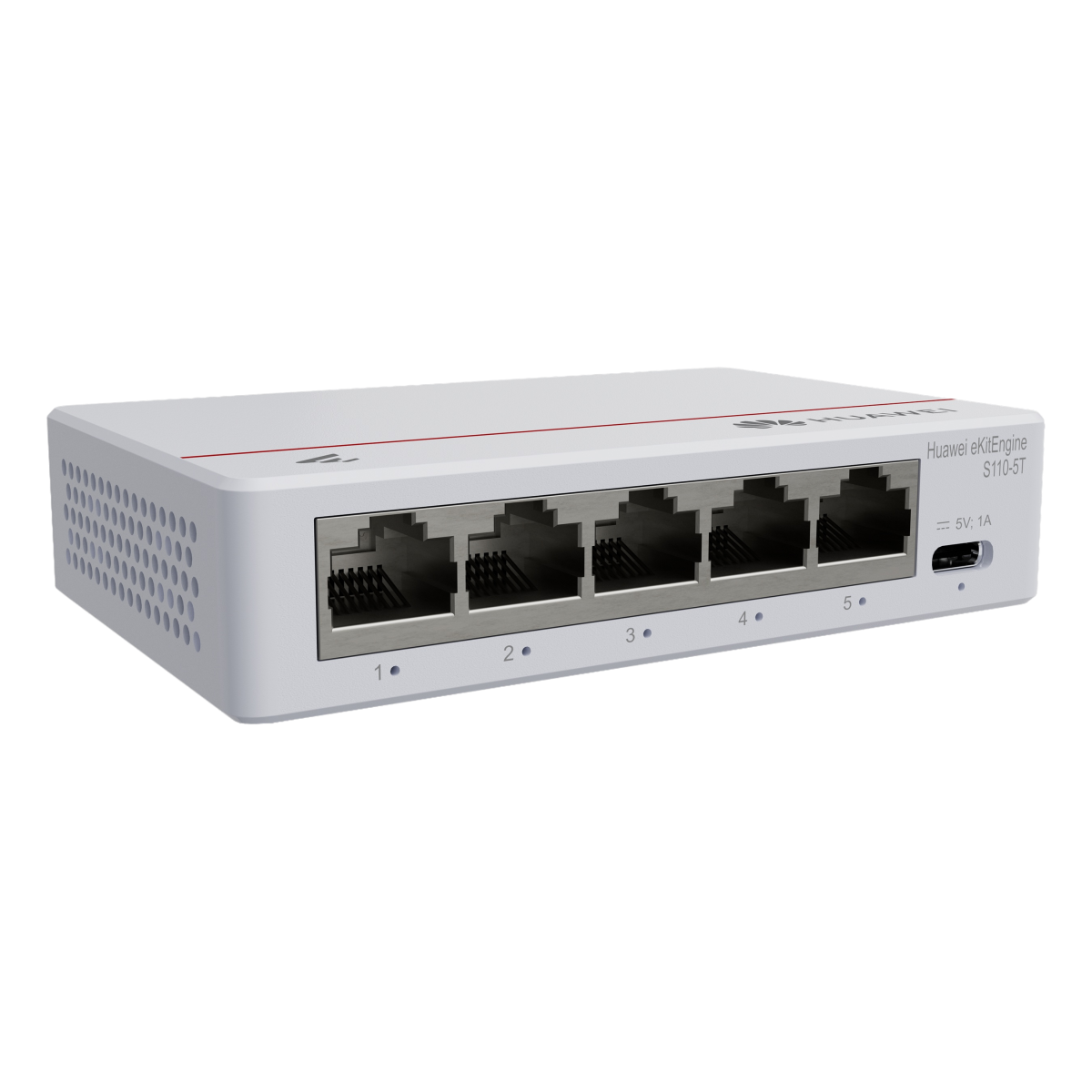

| Downstream Port | 5 10/100/1000Base-T Ethernet ports |
| Operating mode | THAT |
| Number of MAC addresses | 2K |
| Power redundancy | not support |
| Long-term working environment temperature [°C] | 0°C～+40°C (0m～1800m above sea level) |
| Operating environment temperature change limit [°C] | 1800 m to 5000 m: The maximum temperature specification decreases by 1°C every time the altitude increases by 220 m. |
| Storage temperature [°C] | -40°C～+70°C |
| Long-term working environment relative humidity [RH] | 5%RH～95%RH, non-condensing |
| Long-term working altitude [m] | 0m～5000m |
| Storage altitude [m] | 0m～5000m |
| Power supply type | Power Adapter |
| Rated input voltage [V] | Power adapter input: 100V AC ~ 240V AC; 50/60Hz
Power adapter output: 5V DC |
| Input voltage range[V] | Power adapter input: 90V AC ~ 290V AC; 47Hz ~ 63Hz |
| Maximum input current [A] | 1A |
| Memory | – |
| Flash | – |
| Console Interface Type | not support |
| Eth management network port type | not support |
| USB interface | not support |
| Real-time Clock (RTC) | not support |
| RPS Input | not support |
| Business port lightning protection [kV] | Common mode ±4kV |
| Power port lightning protection [kV] | Differential mode ±2kV, common mode ±4kV |
| Triple protection (dustproof/waterproof) | IP20 |
| Fan Type | Fanless |
| Cooling method | Natural cooling |
| Airflow direction | – |
| PoE Function | not support |
| certified product | Support EMC certification
Support safety certification Support production certification |
