HPE ProLiant DL20 Gen10 Plus server

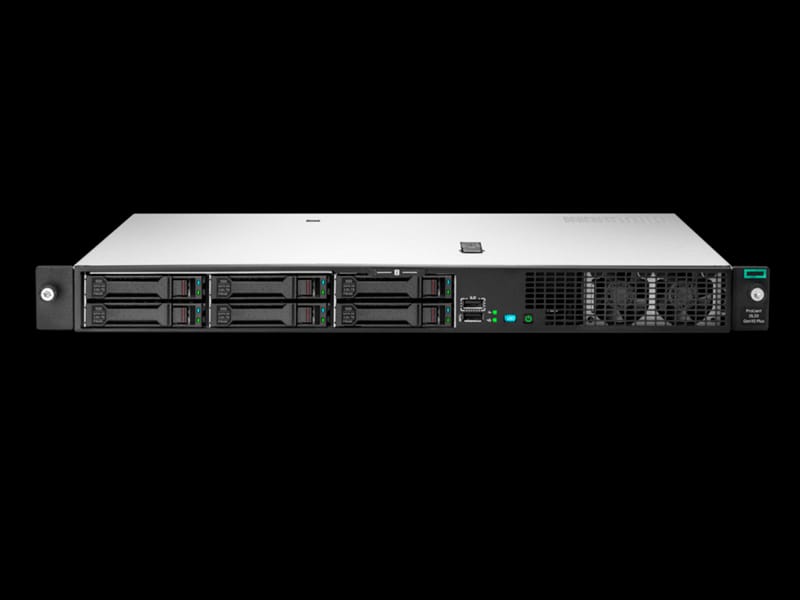

The dense and compact HPE ProLiant DL20 Gen10 Plus server features Intel® Xeon® E and Pentium® processors, offering a unique combination of enterprise-class features and value. It offers excellent configuration flexibility to meet a variety of business needs at an affordable price. Deploy this dense platform in space-constrained environments to handle a variety of workloads and easily maintain it by automating the most important server lifecycle management tasks with HPE iLO 5.
2 LFF Front View Gen10 Plus
| 1. | Access Panel | 7. | Health LED |
| 2. | Optical drive bay | 8. | NIC Status LED |
| 3. | Serial number/iLO information pull tab | 9. | USB 3.2 Gen1 Port |
| 4. | Front Fan Assembly | 10. | iLO Service Port (USB) |
| 5. | System Power LED | 11. | Two-bay LFF hot-plug drive bays |
| 6. | UID LED |

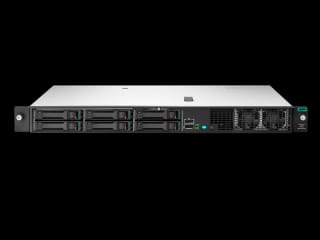

4 (+2) SFF Front View Gen10 Plus
| 1. | Access Panel | 7. | Health LED |
| 2. | 2 SFF hot-plug drive bays (optional) | 8. | NIC Status LED |
| 3. | Serial number/iLO information pull tab | 9. | USB 3.2 Gen1 Port |
| 4. | Front Fan Assembly | 10. | iLO Service Port (USB) |
| 5. | System Power LED | 11. | Four-bay SFF hot-plug drive bays |
| 6. | UID LED |
Internal View – Standard for all 2LFF DL20 Gen10 Plus
| 1. | Fan cage shown with 2 fans | 7. | Not shown: Optional Smart Storage Battery |
| 2. | Processor shown with heat sink | 8. | Modular Smart Array connector |
| 3. | Four DDR4 DIMM Slots | 9. | TPM 2.0 Gen10 |
| 4. | System Battery | 10. | PCIe Riser |
| 5. | Central fan assembly (3rd fan) | 11. | Not shown: Dedicated iLO/M.2 LP Enablement Kit |
| 6. | Power Supply (1x290W shown |
Internal View – Standard for all 4SFF DL20 Gen10 Plus
| 1. | Fan cage shown with 2 fans | 7. | Not shown: Optional Smart Storage Battery |
| 2. | Processor shown with heat sink | 8. | Modular Smart Array connector |
| 3. | Four DDR4 DIMM Slots | 9. | TPM 2.0 Gen10 |
| 4. | System Battery | 10. | PCIe Riser |
| 5. | Central fan assembly (3rd fan) | 11. | Not shown: Dedicated iLO/M.2 LP Enablement Kit |
| 6. | Power Supply (1x290W shown) |
Rear View – Standard for all DL20 Gen10 Plus
| 1. | Slot 1 PCIe 4.0 | 6. | Two USB 3.2 Gen1 Ports |
| 2. | Slot 2 PCIe 4.0 | 7. | NIC Port (1Gb) |
| 3. | Option: Serial Port | 8. | NIC port (1Gb) / Sideband iLO management port (configurable in RBSU) |
| 4. | 290W Non hot plug Power Supply | 9. | VGA port |
| 5. | UID LED | 10. | Dedicated iLO Management Port (Default) |
Platform Information
Form Factor
- 1U rack
Chassis Types
- 4 SFF with options supporting: +2 SFF
- 2 LFF Hot Plug
- 2 LFF Non-Hot Plug
System Fans
- Includes 3 performance single rotor non-hot plug and non-redundant fans
System Unit
Dimensions (Height x Width x Depth)
- SFF Drives
4.32 x 43.46 x 38.22 cm
1.70 x 17.11 x 15.05 in
- LFF Drives
4.32 x 43.46 x 38.22 cm
1.70 x 17.11 x 15.05 in
Weight (approximate)
- Non hot Plug 2 LFF fully loaded (all hard drives, power supplies, and processors installed)
6.00 kg
13.23 lb
- Hot Plug 2LFF fully loaded (one hard drive, power supply, and processor installed)
- Hot Plug 4SFF fully loaded (two hard drives, power supply, and processor installed)
10 kg
22.05 lb
Configuration Information
| Chassis | HPE ProLiant DL20 Gen10 Plus 2LFF Non-hot Plug Configure-to-order Server | HPE ProLiant DL20 Gen10 Plus 2LFF Configure-to-order Server | HPE ProLiant DL20 Gen10 Plus 4SFF Configure-to-order Server |
| SKU Number | P44109-B21 | P44110-B21 | P44111-B21 |
| Processor | 1 | 1 | 1 |
| DIMM Slots | 4 DIMM slots for UDIMM DDR4 Memory | ||
| Storage Controller | Embedded Intel VROC SATA SW RAID | ||
| PCIe | 2 PCIe 4.0 Slots | ||
| Drive Cage | 2LFF Non-Hot Plug | 2LFF Hot Plug | 4SFF Hot Plug |
| Network Controller | HPE embedded 1Gb 2-port BCM5720 network Adapter | ||
| Fans | 3 non hot plug, non-redundant | ||
| Management | iLO Management (standard), Intelligent Provisioning (standard) | ||
| USB | 2 front, 1 internal, 2 rear | ||
| Ears | HPE Thumbscrew Ears | ||
