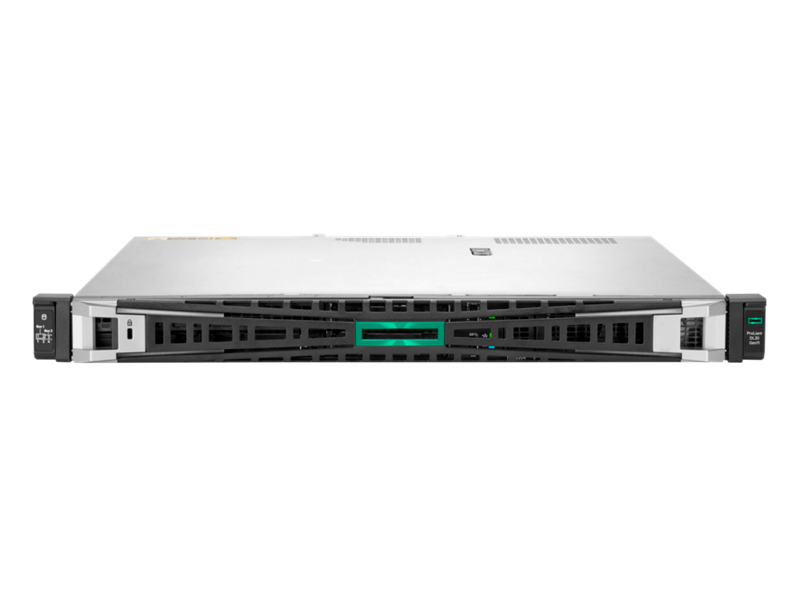

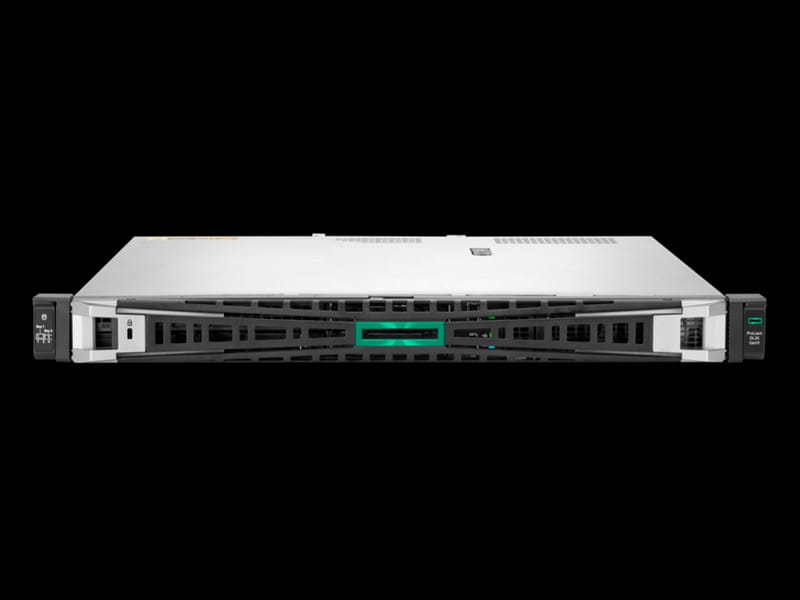

HPE ProLiant DL20 Gen11
The dense and compact HPE ProLiant DL20 Gen11 server powered by Intel® Xeon® E and Pentium® Processors provides a unique blend of enterprise class capabilities & value. It offers mobility, easy deployment and outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point. Deploy this dense platform for diverse workloads in space constrained environments and maintain it with ease by automating the most essential server lifecycle management tasks with HPE iLO 6.
4SFF + 2SFFView Gen11
|
1. |
Access Panel | 3. | Bezel | |||
| 2. | Ear Tab | 4. | Kensington Lock | |||
4 SFF Front View Gen11
| 1. | Access Panel | 7. | Front Fan Assembly | |||
| 2. | Optical drive bay | 8. | Health LED | |||
| 3. | Serial number/iLO information pull tab | 9. | NIC Status LED | |||
| 4. | ILo Service Port (USB) | 10. | UID button/LED | |||
| 5. | System Power button/LED | 11. | USB 3.2 Gen 1 Port | |||
| 6. | NS204i-u device bay (optional) | 12. |
Four-bay SFF hot-plug drive bays |
|||
Internal View – Standard for all 4SFF DL20 Gen11
| 1. | Power Supply (1x500W shown) | 7. | Chassis intrusion detection switch connector |
| 2. | M.2 Slot (Supports the iLO/M.2 Enablement Kit option) | 8. | SlimSAS x8 port |
| 3. | PCIe Riser | 9. | Front I/O & USB 3.2 Gen 1 & iLO service port connector |
| 4. | 4-pin processor power connector | 10. | Fan cage shown with 2 fans |
| 5. | 4 DDR5 DIMM slots | 11. | Central fan assembly (3rd fan) |
| 6. | Processor shown with heatsink |
Rear View – Standard for all DL20 Gen11
| 1. | NIC ports (1Gb) | 6. | iLO dedicated network port (optional) |
| 2. | Serial Port (optional) | 7. | Display Port |
| 3. | Slot 1 PCIe 5.0 | 8. | VGA Port |
| 4. | Redundant Power Supplies (2nd power supply not shown) | 9. | USB 3.2 Gen1 ports |
| 5. | OCP 3.0 Slot |
What’s New
- Supportslatest Intel® Xeon® E-2400 and Pentium® processors up to 8 cores 95W TDP
- New PCIe 5.0 support
- New HPE DDR5 Standard Memory (UDIMM), 4800MT/s maximum speed offering in 16GB and 32GB. Max 128GB memory capacity.
- Embedded 1GbE 4-port NIC with support of PCIe and OCP NICs
- New HPE Gen11 Storage Controllers
- New HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device
- New HPE Storage SSD and HDD support
- New HPE iLO 6 support
- HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
Platform Information
Form Factor
- 1P 1U rack
Chassis Types
- 4 SFF with options supporting: +2 SFF
- 2 LFF Hot Plug
- 2 LFF Non-Hot Plug
System Fans
- Includes 3 performance single rotor non-hot plug and non-redundant fans
Notes: This applies for all three chassis: 2LFF NHP, 2LFF HP and 4SFF HP
Technical Specifications
System Unit
Dimensions (Height x Width x Depth)
- SFF Drives
4.32 x 43.46 x 37.84 cm
1.69 x 17.11 x 15.25in
- LFF Drives
4.32 x 43.46 x 38.22 cm
1.70 x 17.11 x 15.05 in
Weight (approximate)
- Non hot Plug 2 LFF fully loaded (all hard drives, power supplies, and processors installed)
Min 9 kg to Max 12 kg (19.84 to 26.46 lb)
- Hot Plug 2LFF fully loaded (one hard drive, power supply, and processor installed)
Min 9 kg to Max 12 kg (19.84 to 26.46 lb)
- Hot Plug 4SFF fully loaded (two hard drives, power supply, and processor installed)
Min 9 kg to Max 12 kg (19.84 to 26.46 lb)
